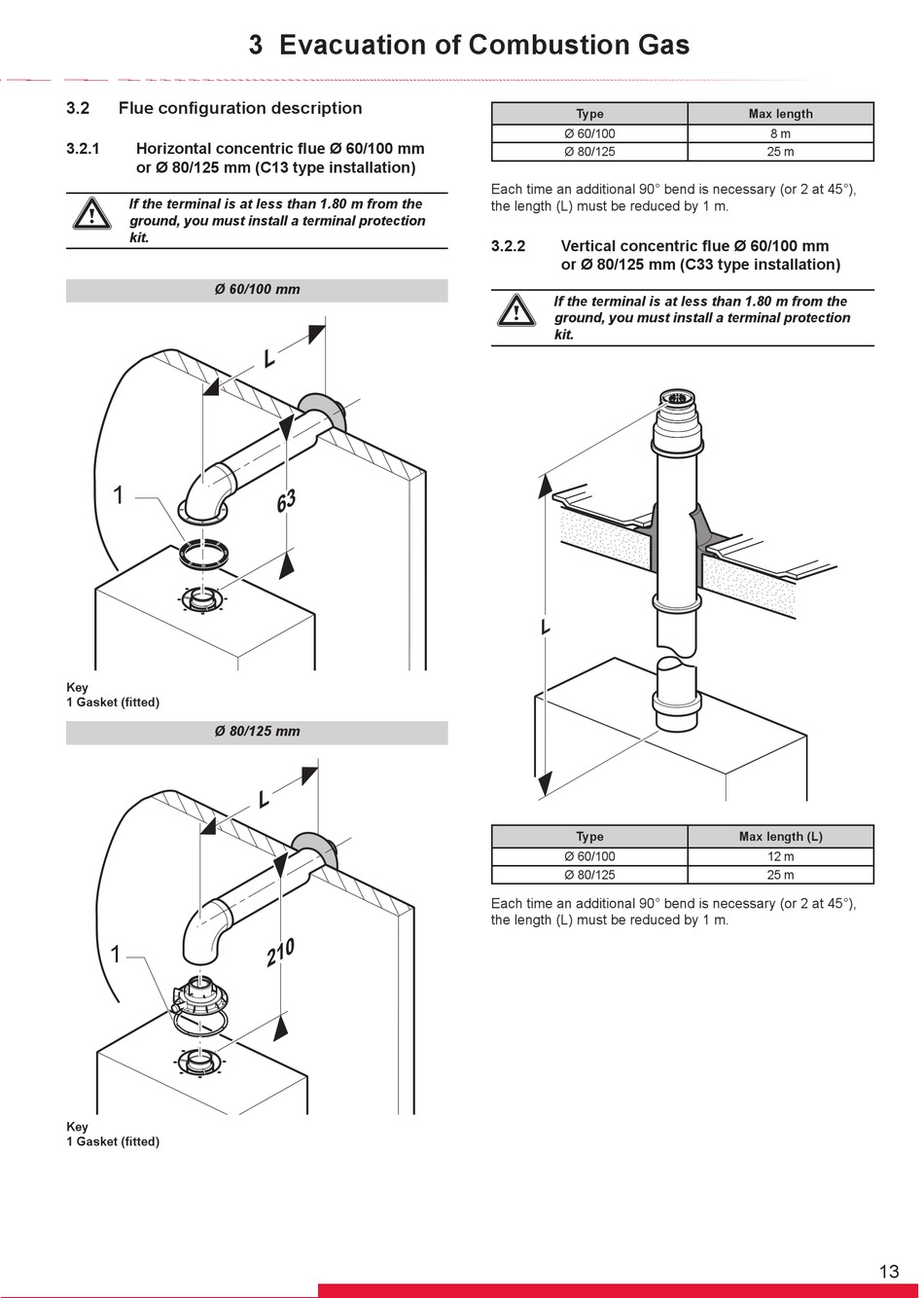

3.2 Flue configuration description
3.2.1 Horizontal concentric flue Ø 60/100 mm
or Ø 80/125 mm (C13 type installation)
a
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection
kit.
Ø 60/100 mm
1
Key
1 Gasket (fitted)
Ø 80/125 mm
1
Key
1 Gasket (fitted)
3 Evacuation of Combustion Gas
L
6 3
L
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced by 1 m.
3.2.2 Vertical concentric flue Ø 60/100 mm
or Ø 80/125 mm (C33 type installation)
a
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection
kit.
L
Type
Ø 60/100
Ø 80/125
Each time an additional 90° bend is necessary (or 2 at 45°),
the length (L) must be reduced by 1 m.
Max length
8 m
25 m
Max length (L)
12 m
25 m
