WPS-DVR Quick Start Guide
1. CONNECT AND CONFIGURE THE DVR
1.1. CONNECT DEVICES
Before powering on the DVR, connect a VGA or
composite monitor, cameras, and the mouse.
Some models can be connected to a display via
HDMI as an alternative to VGA or composite.
1.2. POWER ON THE DVR
Connect the power cord and turn on the POWER
switch to begin the boot-up process. Some
models do not have a power switch, on these
models the boot-up process will begin when the
power supply is connected.
1.3. LOG IN
To log into the DVR, move the mouse cursor to the bottom of the screen and select the menu icon, or "right-click"
the mouse.
• Select Login/Logout
• The DVR is factory preset to ADMINISTRATOR level
• Login Name: user
• Password: 1234
1.4. CONFIGURE DVR NETWORK SETTINGS
1.4.1. Basic DVR Network Configuration
A. From the main MENU, select Setup
B. Set the Net Type to Static IP.
C. Enter the Static IP Address issued by the network admin.
D. Enter the Net Mask for the network.
(usually 255.255.255.0)
E. Enter the Default Gateway.
(Address used to access the router)
F. Enter the DNS Address.
(Same address as Default Gateway)
G. Select Advanced to enter port settings.
1.4.2. Advanced DVR Network Configuration
A. Set Control Port (Default 67).
B. Set Data Port (Default 68).
C. Set HTTP Port (Default 80).
D. EXIT SETUP and save the settings.
The ports listed are the default ports used by networks. Due to the routers configuration, these
may need to be changed. See CONFIGURE INTERNET EXPLORER FOR FIRST USE on Pg. 3.
2
(For security purposes, it's recommended to change the default password to prevent unwanted access.)
then Network.

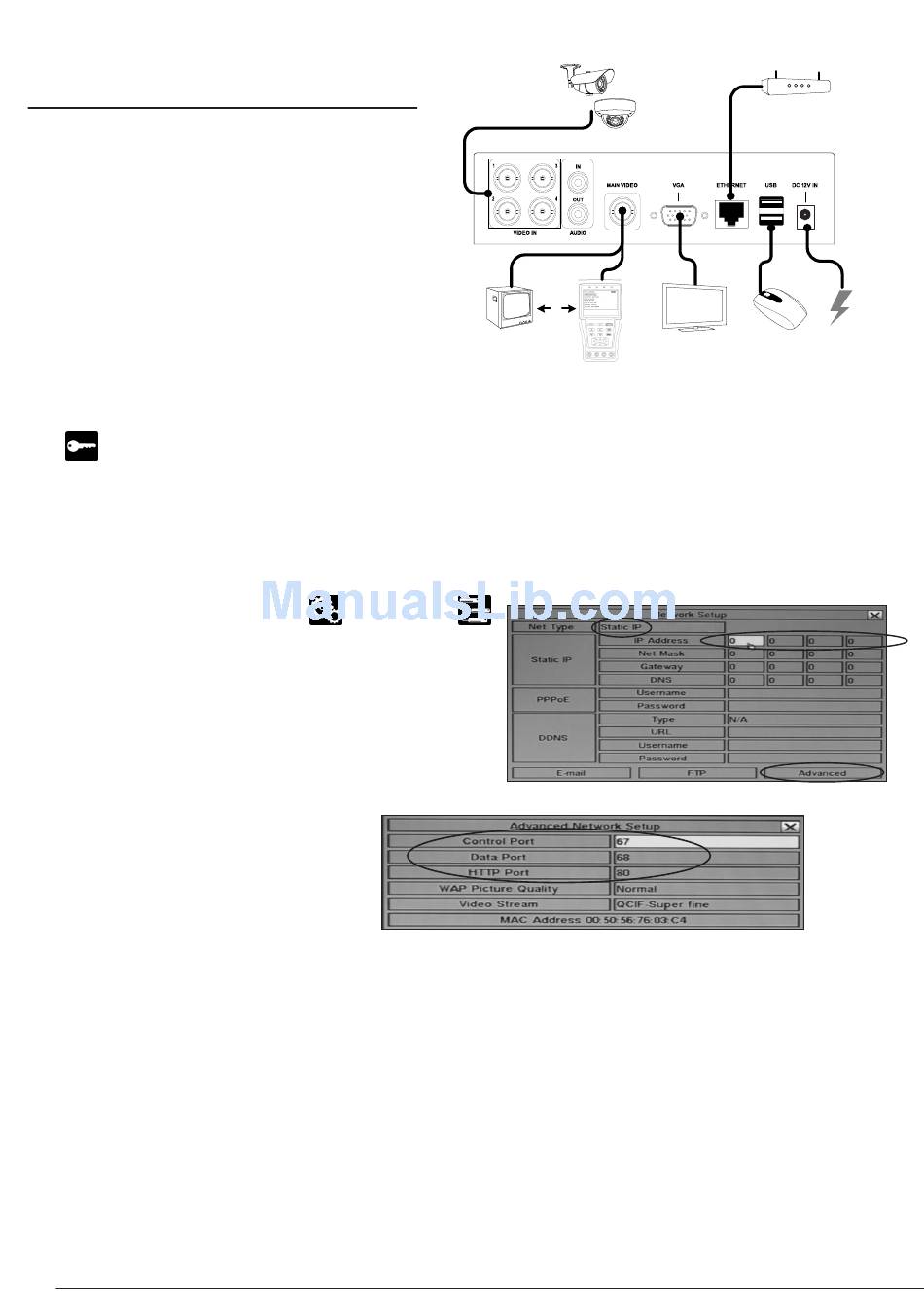

Camera(s)
or
LCD Monitor/Flat Panel
CRT Monitor
WPS-CCTV-TESTER
Router
AC Power
USB Mouse
TV
