Wirepath WPS-300-DVR Installation And User Manual

9/16 channel
Hide thumbs Also See for WPS-300-DVR:
Table of Contents

Advertisement

Quick Links

See also: Installer and User Manual

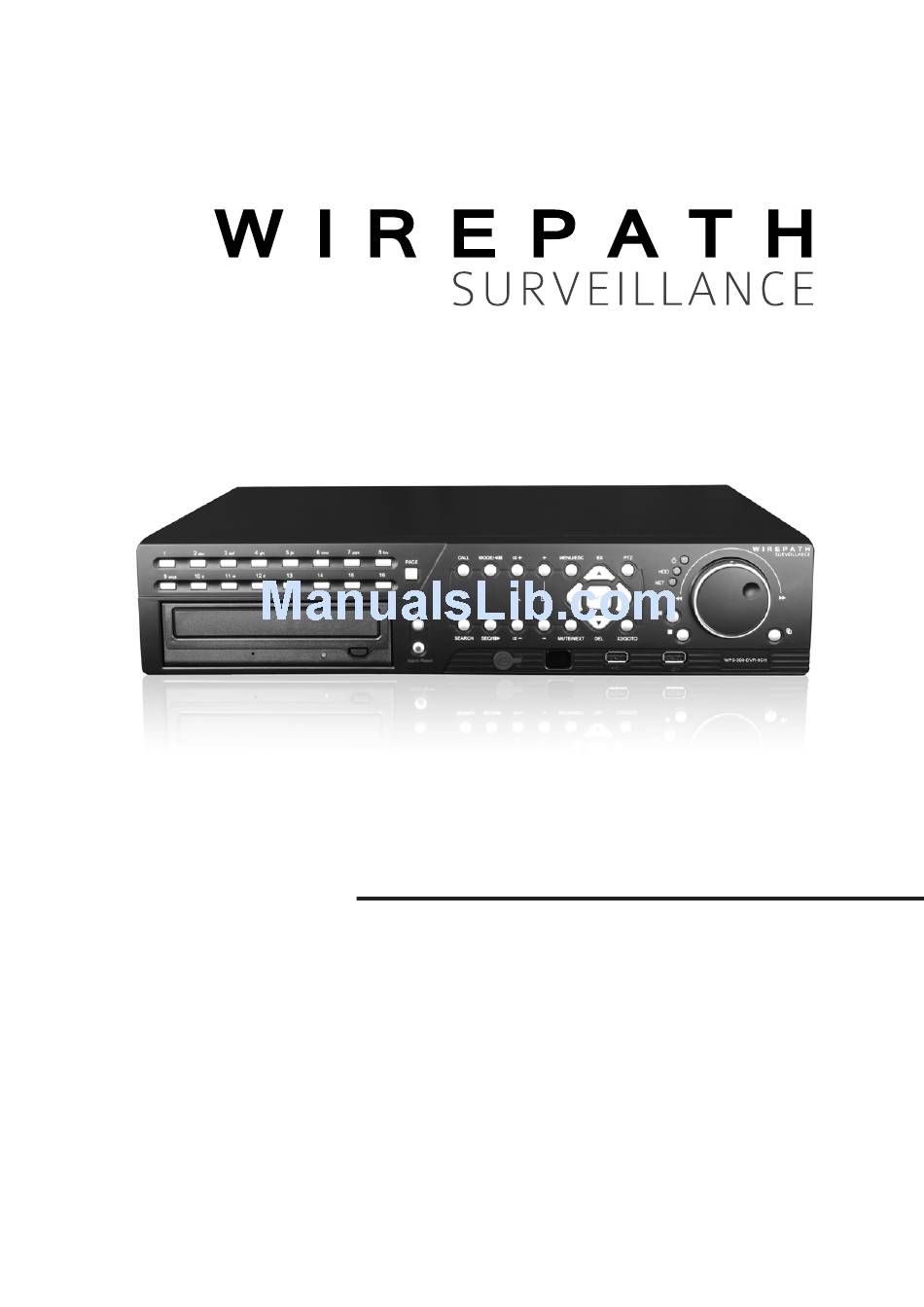

WPS-300-DVR
9/16 CHANNEL
DVR
INSTALLATION AND USERS MANUAL
Review manual thoroughly before
installation. Retain for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Wirepath WPS-300-DVR

Summary of Contents for Wirepath WPS-300-DVR

  • Page 1 WPS-300-DVR 9/16 CHANNEL INSTALLATION AND USERS MANUAL Review manual thoroughly before installation. Retain for future reference.

  • Page 2: Table Of Contents

    6.8 System Setup............................. 50 6.9 RS485 Setup............................... 51 6.10 Network Setup............................53 6.10.1 E-mail Setup..........................54 6.10.2 FTP Setup............................ 56 6.10.3 Advanced Network Setup...................... 57 6.11 Factory Default............................58 7. PTZ CONTROL..............................59 7.1 OSD Control for Wirepath Surveillance Cameras................. 60...
  • Page 3 8. SEARCH/PLAYBACK/ARCHIVE........................... 62 8.1 Search By Time............................63 8.2 Search By Event / Log Display......................... 64 8.3 Smart Search............................. 65 8.4 Search Archived Files..........................68 8.5 Playback Search Results.......................... 69 8.6 Archive (Backup) Search Results......................70 9. REMOTE ACCESS..............................72 9.1 PC Remote Access...........................

  • Page 4: Safety Information

    SAFETY INFORMATION • Handle this device with care. Do not strike or shake this device as this may damage it. • Do not expose this device to water or moisture. Moisture may damage the device and also cause electric shock. Do not operate it in wet areas. Take immediate action if the device becomes wet. Turn the power off and refer servicing to qualified service personnel. • Do not use this device near any heat sources such as radiators, heat registers, stoves or other apparatus that produces heat. • Protect the power cord from being stepped on or pinched particularly at the point where it connects to the device and at the receptacle. • Do not operate this device beyond its specified temperature, humidity or power source ratings. • Use this device in humidity below 85%. • The performance and lifespan of the hard drive is affected when used in high temperatures. It is recommended to use this device within 68ºF ~ 86ºF. • If mounting in a closed space, ventilation should be included. Do not block any ventilation openings.

  • Page 5: Product Overview

    D1 / Half D1 / CIF video resolution support and adjustable Frame Per Second record settings the installer can maximize the storage time of the built-in hard drive. Wirepath™ DVR’s professional grade features make them ideal for high-end residential and commercial monitoring applications.

  • Page 6: Panels And Remote Controller

    RS-485 2. FRONT AND REAR PANELS AND REMOTE CONTROL 2.1 REAR PANEL 1. Video Input Connectors (1-9 on WPS-300-DVR-9CH, 1-16 on WPS-300-DVR-16CH) Connect system cameras to these BNC connectors. The corresponding 75 Ω termination must be ON unless the video output terminal is connected. See item 5 below. 2. Video Output Connectors (1-9 on WPS-300-DVR-9CH, 1-16 on WPS-300-DVR-16CH) BNC connectors for looping camera output from the corresponding camera video input.
  • Page 7 WPS-300-DVR-9CH & 16CH Installation and Users Manual POWER DC12V HDMI ESATA 11. CALL-AUX Connectors (CALL-AUX IN/OUT) Used to daisy-chain to Multiple DVR call outputs. CALL-AUX OUT has the same output as CALLOUT, but can be switched off through RS-232 control.

  • Page 8: Front Panel

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 2.2 FRONT PANEL 1. Alpha-Numeric Buttons (1-16, 0, *, #) 9. Up/BS Button ( /BS)  Selects the corresponding camera during normal Press this button to move the cursor or focus window operation and is used for text entry for menus and in most circumstances.

  • Page 9: Remote Controller

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 17. USB Mouse Connector 25. SEARCH Button Connect to the included USB1.1 mouse. Press this button to display the search menu in main screen display. In some dialogs, this button is 18. X2/GOTO Button used as a miscellaneous function key.
  • Page 10 WPS-300-DVR-9CH & 16CH Installation and Users Manual 2.3 REMOTE CONTROL The remote control has many of the same functions as the front panel buttons. See the corresponding numbers on page 8-9 for descriptions. The functions include: 1. 1-9, 0, *, # (Numeric Buttons) 3.

  • Page 11: Installations

    3. INSTALLATION 3.1 POSITIONING THE 300 DVR Wirepath Surveillance DVRs are designed to deliver unsurpassed technology with superior performance. However, where you place the DVR can have a large effect on the performance that you receive, and the life of the unit. Here are some guidelines to follow when installing the DVR.

  • Page 12: Connections

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 3.2 CONNECTIONS To ensure proper performance and operation of the 300 DVR, it is recommended that all connections and setup be performed by a qualified system installer. 3.2.1 BASIC CONNECTIONS Camera(s) Speakers Amplifier WPS-300 Series DVR POWER Microphone DC12V HDM I...

  • Page 13: Ptz Camera / Automation System Connections

    Connect the RS-485 connector to PTZ camera(s) via an appropriate cable. The system supports a variety of PTZ cameras and the OSD menu of Wirepath™ Surveillance cameras. Different PTZ cameras can coexist in a system only if they support the same protocol and baud rate. Make sure to set unique PTZ IDs to the cameras, the DVR and any other PTZ device.

  • Page 14: Main Screen And Basic Operations

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 4. MAIN SCREEN AND BASIC OPERATIONS The following sections (Sections 4-6) relate to the display output from the VGA or BNC connection. For operation using an Internet Explorer web browser see Section 9.

  • Page 15: Text Input

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 4.1 TEXT INPUT There are certain system settings that the system requires text to be entered, such as system login, camera title setup, etc. Follow the steps below using the front panel or remote control to enter text when prompted to do so by a text box: 1.

  • Page 16: Login / Logout

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 4.2 LOGIN / LOGOUT There are three password levels in the system; Administrator (highest), Supervisor, and Operator (lowest). If the user does not login to the system, the user will be treated as a Guest and can only view live video display.
  • Page 17 WPS-300-DVR-9CH & 16CH Installation and Users Manual • MODE Use the button on the front of the DVR or the remote control to toggle live and playback mode. Playback mode is indicated by a red box around the camera title of the focus camera (the camera being controlled). If in a split window display, the focus window will first switch to playback mode. A second press...

  • Page 18: Digital Zoom

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • OSD Use the mouse to select the OSD Display icon to enable or disable the following information from appearing in the System Status Bar on the main display; Title, Time, Messages, Status and Rec%.

  • Page 19: Main Menu

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 5. MAIN MENU Select the MENU icon from the Control Bar or right click the mouse in the display window to activate the main Menu display as shown. In the main Menu display and all subsequent displays, the items enabled are highlighted in Blue, and those disabled in Gray.

  • Page 20: Volume Control

    WPS-300-DVR-9CH & 16CH Installation and Users Manual The Status display includes: • ALARM RECORDING STATUS Displayed is the portion of the hard drive allocated to recording alarm events and the percentage of that space that is currently full. • NORMAL RECORDING STATUS Displayed is the portion of the hard drive allocated to regular (normal, non-event) recording and the percentage of that space that is currently full.

  • Page 21: Video Adjustment

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • MUTE Mutes the selected audio input channel. Using the front panel of the DVR or the remote control, press ENTER (or +/-) to check/uncheck this item. The default setting is “-” noting that the channel is not muted.

  • Page 22: Display

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • CALL Press this button on the front panel of the DVR or remote control to reset the video settings for all cameras to factory default values. • MODE Press this button on the front panel of the DVR or remote control to restore the values.

  • Page 23: Backup Device

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • NUMERIC Press these buttons on the front panel of the DVR or remote control to change the camera. Alternatively use the mouse to select the desired camera. • MODE Press this button on the front panel of the DVR or remote control to restore Brightness, Contrast, Hue and Saturation values.
  • Page 24 WPS-300-DVR-9CH & 16CH Installation and Users Manual • CONNECT/DISCONNECT If the backup device is disconnected (as shown in screen capture above), plug the USB device into the USB 2.0 port and then press ENTER on the front panel of the DVR or on the remote control. Alternatively use the mouse to click on the CONNECT button.

  • Page 25: Software Upgrade

    3. Reboot each computer that will be used to access or configure the updated DVR. 4. When the computer restarts, Do Not Open IE. Run the Remove_WPS_IE_Plugin file. 5. Open IE and access the updated Wirepath DVR. Perform Step 2, 3and 4 for all computers that will be used to access the DVR. 6. IE may initially block installation of the DVR Plugin. If so, review the prompt and allow the Plugin to be installed.

  • Page 26: System Shutdown

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 5.7 SYSTEM SHUTDOWN This menu is available to Administrators only. Always properly shutdown the DVR before moving it. The hard drive can be damaged if the DVR is moved before shutdown. Whatever state the DVR was in when it was properly shutdown, the DVR will reboot to this state (ex: split window display, etc).

  • Page 27: Setup Menu

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6. SETUP MENU This menu is available to Administrators only. In the Menu display, use the buttons on the front panel of the DVR or remote control, and press ▲▼◄► to select Setup, and then press ENTER. To navigate and operate this menu: • ▲▼◄► Press these buttons on the front of the DVR or remote control to change the highlighted item.

  • Page 28: Pre-Camera Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.1 PRE-CAMERA SETUP Pre-Camera Setup allows the administrator to define fundamental attributes for connected cameras. In the Setup menu, press ▲▼◄► on the front panel of the DVR or on the remote to change the highlighted option to Pre-Camera, and then press ENTER to display Pre-Camera menu.

  • Page 29: Camera Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.2 CAMERA SETUP The Camera Setup menu allows the administrator to define additional attributes for each camera. In the Setup menu, press ▲▼◄► on the front panel of the DVR or on the remote to change the highlighted option to Camera Setup, and then press ENTER to display the Camera Setup menu. To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.
  • Page 30 WPS-300-DVR-9CH & 16CH Installation and Users Manual •MOTION SETTINGS Used to set specific actions for when the DVR detects motion. Please refer to Section 6.2.2 for the details. •COVERT If a camera’s covert function is enabled, the video of this camera can only be seen if the user has logged in an Administrator. The default setting is disabled.

  • Page 31: Video Loss Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.2.1 VIDEO LOSS SETUP Video Loss Setup allows the administrator to define how the system responds when video signal is lost for the camera. In the Camera Setup menu, highlight Settings in Video Loss and press the ENTER button on the front panel of the DVR or remote control to display Video Loss Setup sub menu for the selected camera.
  • Page 32 WPS-300-DVR-9CH & 16CH Installation and Users Manual • GOTO PRESET The GOTO Preset feature works in conjunction with the Camera To Go setting and defines the preset position the Camera To Go PTZ camera will go to when video signal is lost for this camera.

  • Page 33: Motion Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.2.2 MOTION SETUP Motion Setup allows the administrator to define how the system responds when motion is detected for the camera. In the Camera Setup menu, highlight Motion Setup and press the ENTER button on the front panel of the DVR or remote control to display the Motion Setup sub menu for the selected camera.
  • Page 34 WPS-300-DVR-9CH & 16CH Installation and Users Manual Functions in the Sub-menu: • DURATION Set the length of time the buzzer and the corresponding Alarm Out relay will remain triggered once video loss is detected for this camera. The Buzzer and Alarm Out relay will reset immediately once video signal is restored.

  • Page 35: Detection Settings

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.2.2.1 DETECTION SETTINGS The Detection Setting sub menu is used to customize motion detection settings including the motion detection area(s) and sensitivity. In the Motion Setup menu, highlight Settings in Detection and press the ENTER button on the front panel of the DVR or remote control to display the Motion Detection Settings sub menu for the selected camera.

  • Page 36: Alarm Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • SEQ / CALL Press these buttons on the front panel of the DVR or remote control to decrease (SEQ) or increase (CALL) the Sensitivity of the motion detection area of this camera from 1 - 10 (1 is least sensitive and 10 is most sensitive).
  • Page 37 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.

  • Page 38: Seq Display Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • LOG By default, the DVR will log when video loss is detected to the Event Log (see Section 8.2). Highlight this setting and press ENTER or +/- to enable or disable this item. Alternatively use the mouse to left-click on this item.
  • Page 39 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.

  • Page 40: Scheduled Record Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • ESC Press the ESC button on the front panel of the DVR or remote control to escape from this menu and return to the main menu. Alternatively use the mouse to exit the sub menu by clicking on the “X.” If the contents in this menu have been modified, a Save dialog box will be displayed...

  • Page 41: Schedule Record Easy Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual The following is a brief description for each item in the sub menu and its specific operations: • START Set the start time of this time segment (conditional) in increments of 30 minutes in military time format.

  • Page 42: Hdd Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual Recording options include: - Pink: Alarm, Motion and Normal Video and Audio Recording (Default setting) - Purple: Alarm and Motion Video and Audio Recording only - Red: Alarm Video and Audio Recording only...
  • Page 43 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.

  • Page 44: Hdd Format/Clear

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • Duration If HDD Full Action is enabled, set the duration that the Alarm Out relay and the buzzer will remain triggered when the corresponding partition is full. Press +/- buttons on the front panel of the DVR or on the remote to adjust the time from 3 seconds or 60 minutes or ‘-‘ indefinitely until the Alarm Reset button...

  • Page 45: Advanced Hdd Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • CALL Press the Call button on the front panel of the DVR or the remote control to Physically Format the hard drive (similar to a “full” Format option found on a PC). A confirmation dialog box will be displayed on the screen. Using the front panel of the DVR or the remote, press ENTER to confirm or ESC to cancel.
  • Page 46 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.

  • Page 47: Password Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.7 PASSWORD SETUP The Password Setup allows the administrator to add new users, delete existing users, and/or modify the user login names, password, and levels of access. And allows automation system access In the Setup Menu display, press ▲▼◄► on the front panel of the DVR or on the remote to change the highlighted option to Password, and then press ENTER to display Password Setup as shown.
  • Page 48 WPS-300-DVR-9CH & 16CH Installation and Users Manual • ESC Press the ESC button on the front panel of the DVR or remote control to escape from this menu and return to the main menu. Alternatively use the mouse to exit the sub menu by clicking on the “X.” If the contents in this menu have been modified, a Save dialog box will be displayed requesting the user to save the changes.

  • Page 49: Advanced User Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • Password Enter a unique Password (numbers only) for each user. Follow the Text Input method described in Section 4.1 to enter this information. • Level Select the appropriate access level (Administrator, Supervisor, Operator, or Customized) for each user. Press +/- buttons on the front panel of the DVR or on the remote control to change this level.

  • Page 50: System Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • VIDEO ADJUSTMENT Allows the user to adjust the video • VGA DISPLAY Allow the user to change VGA settings. • PLAYBACK Allows the user to view playback video and audio. • BACKUP Allows the user to backup video and audio.
  • Page 51 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • ▲▼◄► Press these buttons on the front panel of the DVR or remote control to select an item. Alternatively use the mouse to select an item.
  • Page 52 Dynacolor, Bosch AutoDome, Video Trek, etc. The Keyboard models supported include Terminal (EX. VT-100) and Control Protocol. Press +/- buttons to change the supported model (or protocol). Wirepath 500 & 700 set to Pelco (D-Type) Automation System set to Terminal. All others refer to the devices owners manual for proper setting Note: If the PTZ+Keyboard is selected for Device Type, the Keyboard model is always Control Protocol, and the other settings (Baud Rate, Data Bit, Stop Bit, and Parity) are the same as the PTZ Model selected.

  • Page 53: Network Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.10 NETWORK SETUP The Network Setup allows the administrator to setup all Ethernet network related parameters. Consultation with the network administrator may be required to set these parameters correctly. In the Setup Menu display, press ▲▼◄► on the front panel of the DVR or on the remote to change the high- lighted option to Network, and then press ENTER to display Network Setup as shown.

  • Page 54: E-Mail Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • DDNS Type Starting with Version 7.75.53 a new selection will appear for WirepathDNS. It is strongly recommended that this option is used to simplify configuration. Using the WirepathDNS is easy. Select WirepathDNS from the list and enter the client name or other unique string in the URL. When exiting the Network menu, confirm the changes. A DDNS service is setup automatical-...
  • Page 55 WPS-300-DVR-9CH & 16CH Installation and Users Manual • ESC Press the ESC button on the front panel of the DVR or remote control to escape from this menu and return to the main menu. Alternatively use the mouse to exit the sub menu by clicking on the “X.”...

  • Page 56: Ftp Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.10.2 FTP SETUP FTP Setup allows the administrator to set FTP related parameters. When an event occurs and FTP is enabled for the action, the recorded video and audio for that event will be sent to the FTP server based on the parameters set in this menu.

  • Page 57: Advanced Network Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 6.10.3 ADVANCED NETWORK SETUP The Advanced Network Setup allows the administrator to set advanced network parameters use for connection from remote devices such as PCs and Smart phones. Consultation with the network administrator may be required for these settings.

  • Page 58: Factory Default

    WPS-300-DVR-9CH & 16CH Installation and Users Manual - QCIF Fair – Lowest QCIF Resolution - QCIF Normal – Medium QCIF Resolution - QCIF Fine – High QCIF Resolution - QCIF Super fine – Best QCIF Resolution 6.11 FACTORY DEFAULT To reset all the DVR settings to factory default values, press ▲▼◄► on the front panel of the DVR or on the remote control to change the highlighted option to Factory Default and then press ENTER.

  • Page 59: Ptz Control

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 7. PTZ CONTROL The DVR supports a variety of PTZ cameras. The user can easily control PTZ cameras through the operations described in this section if the PTZ cameras have been connected and setup properly.

  • Page 60: Osd Control For Wirepath Surveillance Cameras

    7.1 OSD CONTROL FOR WIREPATH™ SURVEILLANCE CAMERAS Wirepath™ Surveillance 500 and 700 series analog cameras offer remote control of the OSD (On Screen Display) menu. This is achieved through the PTZ functions of the DVR. The cameras must be connected to the RS485 terminals on the DVR and properly configured according to the camera manual. The DVR must...
  • Page 61 WPS-300-DVR-9CH & 16CH Installation and Users Manual To operate the OSD, use the mouse to select the PTZ Control icon to enter PTZ control mode if the focus camera is a Wirepath Surveillance camera that supports this feature. The asterisk ( ) will change to inverse color to indicate that the camera is now in PTZ control mode and the PTZ Control Bar will be displayed: •...

  • Page 62: Search/Playback/Archive

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 8. SEARCH/PLAYBACK/ARCHIVE This menu is available to Administrators and Supervisors only. There are four ways to search the recorded video and audio for playback: • Search by time • Search by event • Smart Search • Search archived files Use the Search button on the front panel of the DVR or on the remote control to activate the Search Menu.

  • Page 63: Search By Time

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 8.1 SEARCH BY TIME The Search By Time feature allows the user to search for recorded video and audio based on time. Tip: When the screen is opened the oldest record time is displayed at the bottom labeled as Recorded From To navigate and operate this menu: •...

  • Page 64: Search By Event / Log Display

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 8.2 SEARCH BY EVENT / LOG DISPLAY The Search By Event feature allows the user to search for recorded video and audio based on the type of event recorded by the DVR. The DVR will store up to 6000 of the most recent event logs. There are four different types of event logs: Alarm, Motion, Video Loss, and System.

  • Page 65: Smart Search

    WPS-300-DVR-9CH & 16CH Installation and Users Manual the selected type of recorded video (beginning from the Search Time) to the connected backup device. The Backup menu (described in the Archive portion of Section 8.6) will be displayed. Alternatively use the mouse to select the COPY button.
  • Page 66 WPS-300-DVR-9CH & 16CH Installation and Users Manual To navigate and operate this menu: • MODE Press the Mode button on the front panel of the DVR or on the remote control to begin searching the recorded video and audio based on the selected search Time, Camera, and Motion Area. Alternatively use the mouse to set the parameters and begin the search.
  • Page 67 WPS-300-DVR-9CH & 16CH Installation and Users Manual 2. Press Play (►/II, ► ► ) button on the front panel of the DVR or on the remote control to playback all the selected events. Alternatively use the mouse to select the Play button.

  • Page 68: Search Archived Files

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • MODE Press this button on the front panel of the DVR or remote control to Set/Reset the whole video area. Alternatively use the mouse to select this icon. • Press the ESC button on the front panel of the DVR or remote control to escape from this menu and return to the Smart Search menu.

  • Page 69: Playback Search Results

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 8.5 PLAYBACK SEARCH RESULTS Once playing back video, use the following controls to operate and archivethe video and audio: To navigate and operate this menu: MODE • Use the button on the front of the DVR or the remote control to toggle live and playback mode.

  • Page 70: Archive (Backup) Search Results

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 8.6 ARCHIVE (BACKUP) SEARCH RESULTS Once playing back video from the Search option, use the following controls to archive (backup) the video and audio: The following is a brief description for the operations in the Backup menu: •...
  • Page 71 WPS-300-DVR-9CH & 16CH Installation and Users Manual • CAMERAS Press the ENTER or +/- buttons on the front panel of the DVR or on the remote control to select or deselect each of the cameras to be archived. • END TIME...

  • Page 72: Remote Access

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9. REMOTE ACCESS The following section discusses DVR remote viewing and control options from PCs and Smart phones. 9.1 PC REMOTE ACCESS After completing the initial setup, the DVR can be remotely accessed from a PC using a 32bit Internet Explorer web browser.

  • Page 73: Camera Window Option Menu

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.2.1 SPLIT-WINDOW OPTION MENU Right click on any split-window to display the Split-Window Option Menu. The following is a brief description for each item in this menu and its specific operations: • 1-W When in a split-window view, expand the focus window camera to fill the entire video window.

  • Page 74: Split-Window Panel

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 5. AUDIO IN Use the microphone in the PC to send audio to the DVR. An amplifier and speaker must be attached to the Audio Out connection of the DVR to use this function. 6. ARCHIVE MENU Select this icon to save and backup files. 7. SNAPSHOT Select this icon to take a Snapshot of the screen being viewed. A pop-up window will allow this snapshot to be saved to the local PC.

  • Page 75: Search Panel And Copy Feature

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • ALARM IN STATUS Status indicators for Alarm Inputs 1-16 (this DVR supports the first 4) - GREEN indicates normal status - RED indicates alarm detection • ALARM OUT Status indicators for Alarm Outputs 1-8 (this DVR supports the first 2) - GREEN indicates normal state - RED indicates triggered state) for the selected DVR.
  • Page 76 WPS-300-DVR-9CH & 16CH Installation and Users Manual The following is a brief description for each item in this menu and its specific operations: • DEVICE Select the appropriate DVR to search • EVENT TYPE Select the event type(s) to search. System events include Login/Logout, e-mail errors, hard drive failures, etc.

  • Page 77: Search By Pc Video

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.2.6.3 SEARCH BY PC VIDEO Search the local PC for stored video files. Once the files have been selected, click on Open. Use the Playback Panel icons to control the video. To exit playback, select the LIVE icon at the bottom of the screen.

  • Page 78: Ptz Control Panel

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.2.7 PTZ CONTROL PANEL If the camera in the focus window is a Pan/Tilt/Zoom camera, use the buttons on the user interface to operate basic PTZ features. For more control, display the PTZ Control Panel by clicking on the PTZ Panel icon.

  • Page 79: Modify

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.2.8.1 MODIFY DVRs in the Device List may be modified using this menu. The following is a brief description for each item in this menu and its specific operations: • NAME Enter a meaningful name for the DVR •...

  • Page 80: Software Upgrade

    Do Not Open IE Remove_WPS_IE_Plugin 5. Open IE and access the updated Wirepath DVR. Perform Step 2, 3and 4 for all computers that will be used to access the DVR. 6. IE may initially block installation of the DVR Plugin. If so, review the prompt and allow the Plugin to be installed.

  • Page 81: System

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.1 SYSTEM The System Setup allows the administrator to set the system time, time zone, time synchronization, language, etc. The following is a brief description for each item in this menu and its specific operations: •...

  • Page 82: Password

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.2 PASSWORD The Password Setup allows the administrator to add new users, delete existing users, and/or modify the user names, password, and levels of access The DVR allows up to 18 user accounts. There are three default user levels in the system: •...
  • Page 83 WPS-300-DVR-9CH & 16CH Installation and Users Manual “-“ (Default) - No Guest Access Allowed (Does not prevent access by User with login credentials) Administrator - Provides full access to the DVR allowing for viewing of all cameras and modification to all settings. Use this setting with caution. Supervisor - Provides access to view and control all cameras, Search, Archive and modify basic settings.
  • Page 84 WPS-300-DVR-9CH & 16CH Installation and Users Manual • ADV. For Customized access per user setup the Advanced User Setup. Within the menu, options are categorized into groups (Monitor, Search, Setup and Others): - Monitor Channel 1-8 Select Channels (cameras) the user can monitor.

  • Page 85: Network

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.3 NETWORK The Network Setup allows the administrator to setup all Ethernet network related parameters. Consultation with the network administrator may be required to set these parameters correctly. The following is a brief description for each item in this menu and its specific operations: •...
  • Page 86 WPS-300-DVR-9CH & 16CH Installation and Users Manual • URL Enter the DDNS URL if DDNS is used. – Enter Client Name or System Name to identify the DVR. • DDNS Username Enter the DDNS username if DDNS is used. – Not used unless an existing DDNS other than WirepathDNS service is configured.

  • Page 87: Pre Camera

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.4 PRE CAMERA Pre-Camera setup allows the administrator to define fundamental attributes for connected cameras. The following is a brief description for each item in this menu and its specific operations: • BEST REC RESOLUTION Select the record resolution for all the cameras connected to the system. This is a global setting.

  • Page 88: Camera

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.5 CAMERA The Camera setup allows the administrator to define additional attributes for each camera The following is a brief description for each item in this menu and its specific operations: • TITLE Name each camera with a unique identifying name up to eight characters maximum.

  • Page 89: Motion

    WPS-300-DVR-9CH & 16CH Installation and Users Manual after the event triggers recording. Please refer to Section 9.3.6 and Section 9.3.8 for Post-record time. Select a value from 0 (off) - 30. Note: The total Event Record FPS should not exceed the system recording capacity of 270 FPS (9CH) or 480 FPS (16CH) FPS at CIF resolution, 240 FPS at Half-D1 resolution or 120 FPS at Full-D1 resolution as set in Pre-Camera setup in Section 9.3.4.
  • Page 90 WPS-300-DVR-9CH & 16CH Installation and Users Manual The following is a brief description for each item in this menu and its specific operations: • CAMERA Select the camera to define motion triggered events. • DURATION Set the length of time the buzzer and the corresponding Alarm Out relay will remain triggered once motion is detected for this camera.

  • Page 91: Video Loss

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.7 VIDEO LOSS Video Loss Setup allows the administrator to define how the system responds when video signal is lost for the camera. The following is a brief description for each item in this menu and its specific operations: CAMERA • Select the camera to define video loss triggered events. • DURATION Set the length of time the buzzer and the corresponding Alarm Out relay will remain triggered once video loss is detected for this camera.

  • Page 92: Alarm

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • LOG By default, the DVR will log when video loss is detected to the Event Log. • E-MAIL This DVR can send an email message to a predefined email address in the event video loss is detected for this camera. The default setting is disabled. See Section 9.3.11 for more information on e-mail.
  • Page 93 WPS-300-DVR-9CH & 16CH Installation and Users Manual • GOTO PRESET Define the preset PTZ position the Focus Camera will go to if the alarm input is triggered (the focus camera must be a PTZ camera for this feature). For more details about preset positions for PTZ cameras, refer to Section 7. • PRE-RECORD Define how much time the DVR will record before the alarm input is triggered. The Pre Record FPS set in Section 9.3.5 determines the frame rate of this recording Note: Actual pre-record time may be shorter than the value set if the total size of the pre-record video exceeds the pre-record video buffer.

  • Page 94: Seq Display

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.9 SEQ DISPLAY The SEQ Display Setup allows the administrator to define the displayed pages when in SEQ Display mode. The following is a brief description for each item in this menu and its specific operations: • DEVICE TYPE This DVR only supports Main Monitor • WINDOW TYPE Select the desired amount of windows to display based on the following options.

  • Page 95: Schedule

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.3.10 SCHEDULE The Scheduled Record Setup allows the administrator to define when and how video (and audio) will be recorded. This feature may be useful to increase hard drive storage space by defining what types of events are recorded on specific days of the week. For example if Normal Recording (recall that the DVR is capable of always recording video even without event triggers such as motion or alarm) is not necessary, this feature can be disabled on a daily basis. To further define when and how the DVR records, up to 16 time segments...

  • Page 96: Email

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • NORMAL Define if normal video and audio (non-event based video and audio) is recorded. Options include V for Video only, AV for Audio and Video, NO for No Recording, and OFF for recording but no event notification. Note: If both Alarm and Motion are set to OFF, then all video and audio recordings will be considered “normal recording”...

  • Page 97: Rs232/485

    Dynacolor, Bosch AutoDome, Video Trek, etc. The Keyboard models supported include Terminal (EX. VT-100) and Control Protocol. Press +/- buttons to change the supported model (or protocol). Wirepath 500 & 700 set to Pelco (D-Type) Automation System set to Terminal. All others refer to the devices owners manual for proper setting...

  • Page 98: Ftp

    PTZ, keyboard, PTZ+keyboard or n/a (Not Available). Alternatively use the mouse to select the appropriate setting. Wirepath 500 & 700 set to PTZ Automation System set to Keyboard. All others refer to the devices owners manual for proper setting •...

  • Page 99: Hdd

    WPS-300-DVR-9CH & 16CH Installation and Users Manual The following is a brief description for each item in this menu and its specific operations: • SERVER URL Enter the FTP server web/IP address. • FTP PORT Enter the FTP port number. The default value is 21.

  • Page 100: Dual Streaming

    WPS-300-DVR-9CH & 16CH Installation and Users Manual • DURATION Set the duration that the Alarm Out relay and the buzzer will remain triggered when the corresponding partition is full. Set the time from 3 seconds to 60 minutes or ‘-‘ indefinitely until the Alarm Reset button on the remote control is pressed. • ALARM OUT Define which Alarm Output will be triggered when the corresponding partition is full. • BUZZER By default, the internal buzzer is enabled to sound when the corresponding hard drive partition is full.
  • Page 101 WPS-300-DVR-9CH & 16CH Installation and Users Manual 2. Adjust the Video Stream accordingly. • RECORD If Record is selected, the PC will match the Best REC Resolution setting found in Pre-Camera tab. The Record setting (with Compression set to Normal, see Section 9.3.4) delivers the best video performance but requires the network to offer the necessary bandwidth capacity.

  • Page 102: Motion Detection / Privacy Mask

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.5 MOTION DETECTION / PRIVACY MASK Note: This feature is only available on DVRs with software versions 7.77.53 or higher. Update the DVR to the latest version available on the SnapAV Website to use this feature.

  • Page 103: Remote Viewing With A Smartphone

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.6 REMOTE VIEWING WITH A SMARTPHONE 1. INSTALL THE APPLICATION 1. Install the application 1.1. On iPhone®, iPad®, or iPod touch® A. Access the App StoreSM using iTunes® or your Apple® Device and search for WPS-DVR (WPS-DVR-HD for iPad®).
  • Page 104 WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.6.1 REMOTE DISPLAY AND OPERATION After launching WPS-DVR or WPS-DVR-HD, select the DVR in the Device list to connect. The application will open to a 4 window split screen by default. Use the CH button or double-tap a quadrant in the split screen to view a single camera full screen.
  • Page 105 WPS-300-DVR-9CH & 16CH Installation and Users Manual • SEARCH OPERATION Search By Time - Select month-day-year- hour-minute of the video to be viewed and press to begin playback. Search By Event – A chronological list of events will be displayed beginning with the most recent event first. Use the FWD...

  • Page 106: Wap Support

    WPS-300-DVR-9CH & 16CH Installation and Users Manual 9.7 SMARTPHONE REMOTE CONTROL (OTHER THAN IPHONE) USING WAP The DVR can also be remotely accessed using a web browser installed on a Smartphone that supports xHTML and MJPEG file format, and has a screen resolution of 240x320 or above. To access the DVR, enter the DDNS name or IP address of the DVR in the Location/Address field of the web browser.

  • Page 107: Warranty

    This DVR has a 3-Year Limited Warranty. The warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified, disassembled or improperly installed. Products to be repaired under this warranty must be returned to Wirepath™ Surveillance or a designated service center with prior notification and an assigned return authorization number (RA).

  • Page 108: Appendix A - Specifications

    WPS-300-DVR-9CH & 16CH Installation and Users Manual APPENDIX A – SPECIFICATIONS System Operating System Embedded Linux 2.6 Input 9 / 16 Video Main monitor VGA / BNC / HDMI / S-Video Detection Motion, Video loss Audio Input / Output 4 In, 2 Out Compression H.264 Video, ADPCM Audio...

  • Page 109: Appendix B - Menu Structure

    WPS-300-DVR-9CH & 16CH Installation and Users Manual APPENDIX B – MENU STRUCTURE Numbers preceding the Menu name are the section numbers for the OSD menu (VGA and BNC output) within this manual. 5 MENU DISPLAY 4.2 LOGIN/LOGOUT 5.1 STATUS DISPLAY 5.2 VOLUME CONTROL...

  • Page 110: Appendix C - Hard Drive Recording Table

    WPS-300-DVR-9CH & 16CH Installation and Users Manual APPENDIX C – HARD DRIVE RECORDING TABLE The following tables list the recording time in days for the factory installed hard drives. Please visit the appropriate product page on www.SnapAV.com to calculate recording times for replaced hard drives with different capacities.
  • Page 111 WPS-300-DVR-9CH & 16CH Installation and Users Manual WPS-300-DVR-9CH Storage Size: 1000GB (1TB) Total Recording Rate (FPS)* Resolution Quality 13.9 27.9 15.7 31.5 18.4 36.7 10.5 21.0 41.9 720x480 13.8 27.6 (Full D1) 17.1 34.1 12.5 25.1 17.2 34.4 26.8 13.9 27.8...

  • Page 112: Appendix D - H.264 To Avi Conversion

    WPS-300-DVR-9CH & 16CH Installation and Users Manual APPENDIX D – H.264 TO AVI CONVERSION UTILITY Included on the bundled disc is a MS-Windows utility program used to convert native .h264 files from the DVR to .avi file format to be played back on PCs using Windows Media Player. 1. Insert the CD in the CD-ROM or DVD-ROM drive in the PC and copy the AVI_Converter.exe file to the desktop. Double click the AVI Converter icon to open the utility.

  • Page 113: Appendix E - Wirepathdns Setup

    WPS-300-DVR-9CH & 16CH Installation and Users Manual APPENDIX E – WIREPATHDNS SETUP Using the WirepathDNS is easy. Select WirepathDNS from the list and enter the client name or other unique string in the URL. When exiting the Network menu, confirm the changes. A DDNS service is setup automatically. See IE Interface Setup and DVR Local Display Menu Setup below for details on using WirepathDNS.
  • Page 114 WPS-300-DVR-9CH & 16CH Installation and Users Manual ACCESSING THE DVR Internet Explorer To access the DVR, the address must be preceded by http://. Example: http://snap.WirepathDNS.com:81/ie.htm The standard port (80) will be used, and does not need to be included in the address. If the port has been changed within router setup, the port number assigned must follow the address.
  • Page 115 120503-1150 © 2012 Wirepath Surveillance...

This manual is also suitable for:

Wps-300-dvr-9chWps-300-dvr-16ch
