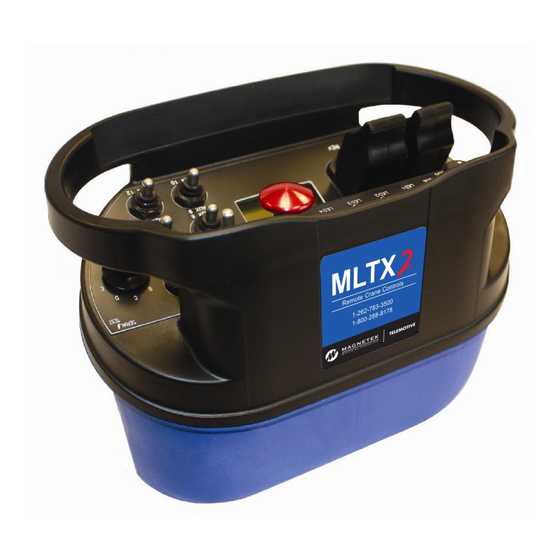

Telemotive MLTX2 Transmitter
Remote Equipment Control
April 2012
Part Number: 198-00144-0006-R1
© 2012 Magnetek Material Handling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telemotive MLTX2 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnetek Telemotive MLTX2

Summary of Contents for Magnetek Telemotive MLTX2

  • Page 1 Telemotive MLTX2 Transmitter Remote Equipment Control April 2012 Part Number: 198-00144-0006-R1 © 2012 Magnetek Material Handling...
  • Page 2 Thank you for your purchase of Magnetek’s Telemotive brand MLTX2 Radio Remote Equipment Control. Magnetek has set a whole new standard in radio-remote performance, dependability, and value with this unique new line of handheld transmitters. If your product ever needs modification or service, please contact one of our representatives at the following locations: U.S.

  • Page 3: Table Of Contents

        OPTIONAL RECHARGEABLE BATTERY CHARGING ..........10     BATTERY DISPOSAL ..................... 10     MLTX2 TRANSMITTER STANDARD CONFIGURATION AND OPERATION ....11     INSTALLING BATTERY PACKS ..................12     3.1.1 Alkaline Battery Pack (BT129) ................. 12  ...
  • Page 4 CAN CONNECTOR RECEPTACLE PIN-OUT DETAILS ..........41     GENERAL TROUBLESHOOTING ..................42     TROUBLESHOOTING OPTIONAL TETHER OPERATION ........... 43     ASSEMBLY AND REPLACEMENT PARTS ..............43     Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 4 of 43...

  • Page 5: Introduction

    Magnetek Products to know, understand and follow all of these requirements. It is the responsibility of the owner of the Magnetek Products to make its employees aware of all of the above listed requirements and to make certain that all operators are properly trained. No one should use Magnetek Products prior to becoming familiar with and being trained in these requirements.

  • Page 6: Warnings And Cautions

    The following information is intended to be used in conjunction with other rules or regulations already in existence. It is important to read all of the safety information contained in this section before installing or operating the Radio Control System. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 6 of 43...

  • Page 7: Critical Installation Considerations

    Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 7 of 43...

  • Page 8: Safety Information And Recommended Training For Radio Controlled Equipment Operators

     operate a crane, hoist or lifting device when the device is not centered over the load Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 8 of 43...

  • Page 9: Transmitter Unit

    SHOULD IMMEDIATELY BE TAKEN OUT OF SERVICE AND BE REPORTED TO THE SUPERVISOR. DAMAGED AND INOPERABLE RADIO CONTROLLER EQUIPMENT SHOULD BE RETURNED TO MAGNETEK FOR EVALUATION AND REPAIR. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.

  • Page 10: Handling Batteries

    Do not short the charger. Do not attempt to charge a damaged battery. Use only Magnetek Telemotive approved chargers for the appropriate battery pack. Do not attempt to use a battery that is leaking, swollen or corroded. Charger units are not intended for outdoor use. Only use charger units indoors.

  • Page 11: Mltx2 Transmitter Standard Configuration And Operation

    MLTX2 TRANSMITTER STANDARD CONFIGURATION AND OPERATION WARNING BEFORE OPERATING THE TRANSMITTER, FAMILIARIZE YOURSELF WITH ALL SAFETY INFORMATION IN THIS MANUAL, THE CORRESPONDING RECEIVER SYSTEM MANUAL, APPROPRIATE MANUAL SUPPLEMENTS AND ANY OTHER LOCAL, STATE, OR FEDERAL RULES OR REGULATIONS ALREADY IN EXISTENCE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY OR DEATH AND DAMAGE TO EQUIPMENT.

  • Page 12: Installing Battery Packs

    INSTALLING BATTERY PACKS Prior to utilizing the MLTX2 transmitter, the battery pack must be installed (unless the unit is being utilized with the optional tethered feature; then the battery pack is optional). 3.1.1 Alkaline Battery Pack (BT129) The MLTX2 comes standard with a battery pack (BT129) that holds three disposable AA alkaline batteries.

  • Page 13: Optional Nimh Rechargeable Battery Pack (Bt128)

    The rechargeable battery pack only can be recharged using the specified charger. When placing the battery pack into the MLTX2 battery pocket, orient the battery pack so that the sticker is facing out (see Figure 4).

  • Page 14: Setting Battery Type Dip Switches

    3.1.3 Setting Battery Type Dip switches For proper indication of the battery level on the MLTX2 transmitters, the battery type dip switch settings need to be set for the battery pack being used in the transmitter. NOTE: The dip switch settings are set at the factory for the battery type ordered with the system.

  • Page 15: Turning The Transmitter On And Off

    During initialization, the MLTX2 scans for any switches or motions that may be on during power up. If any switches or motions are on, the failure will be displayed as a solid red Battery LED, and then the MLTX2 will power itself down.

  • Page 16: Turning On The Transmitter (With Optional Graphic User Interface Screen)

    Pulling In the Machine Stop Relay Once the MLTX2 has been turned on (as described in Sections 3.2.1 or 3.2.2) and in the Normal Operating Mode, the Machine Stop relay in the receiver can be pulled in by pushing the OFF-ON- START toggle switch to the START position and then releasing.

  • Page 17: Power/Status And Battery Led

    POWER/STATUS AND BATTERY LED The standard MLTX2 transmitter includes a Power/Status LED to let the operator know that the unit is functioning and Battery LED to indicate that the battery level is low (see section 3.6.1 for LED indication definitions) NOTE: Single Status/Battery LED equipped units will indicate that the transmitter is on and the battery level from the single LED (see section 3.6.2 for LED indication definitions)

  • Page 18: Transmitters Equipped With Single Status/Battery Led Indicator

    NOTE: When the shutdown sequence is completed, all LEDs will turn off NORMAL OPERATING MODE WITH OPTIONAL GRAPHIC USER INTERFACE In normal operating mode, the MLTX2 displays real time information relating to the operation of the transmitter on the graphic user interface. Information may include Command Confirmation, Battery Life, Signal Strength, Two-Way Feedback, etc.

  • Page 19: Watch Dog Indicator (Spinning Arrow)

    (systems utilizing the 433Mhz frequency band do not have Two-Way feedback available). For such systems, Signal Strength is displayed at the bottom right hand corner of the graphic user interface screen. Signal Strength is displayed in 5% increments. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 19 of 43...

  • Page 20: Two-Way Feedback System

    A rotary switch can have 2 to 12 positions to select from. 3.10 AUXILIARY SWITCHES These switches activate special function relays that control items such as grab attachments, magnets, lights, etc. The auxiliary switches can be momentary or latched. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 20 of 43...

  • Page 21: Transmitter Setup

    Regardless of which radio frequency the transmitter was equipped with the RF channel dip switch settings are the same. Refer to Sections 6.2 and 6.3 for details on the specific RF channel details for the radio frequency that the transmitter is equipped with. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 21 of 43...
  • Page 22 Only the dip switches for the battery life indication are functional on graphic user interface equipped transmitters. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 22 of 43...

  • Page 23: Using The Transmitter In Setup Mode (With Optional Graphic User Interface)

    4.2.2.1 Access Code The Access Code determines which receiver will be controlled by the transmitter. The Access Code in the MLTX2 transmitter must match the receiver Access Code or DIP switches. If the Access Codes settings on the receiver and transmitter do not match, no communication will occur.
  • Page 24 4.2.2.2 Channel Select The Channel Select setting determines the frequency that the MLTX2 is operating on. The user can select channels 1-32 which correspond to the frequencies in Sections 6.2 and 6.3. 4.2.2.3 User Code The User Code setting is a unique identifier that allows the user to select multiple modes when using the same channel.
  • Page 25 Magnetek strongly recommends enabling the setup mode password setting to prevent unauthorized or accidental changes to parameters. NOTE: the unit is shipped with the password requirement enabled and utilizing the factory default password. 4.2.2.7 Change Password This allows the user to change the password needed to enter the setup mode.

  • Page 26: Optional Programming With Rcp

    OPTIONAL PROGRAMMING WITH RCP Using the optional RCP software makes programming of the MLTX2 easier and allows for settings to be saved for future reference. WARNING THE USE OF RCP (RADIO CONTROL PROGRAMMER) IS INTENDED FOR USE BY AUTHORIZED PERSONS ONLY.

  • Page 27: Connecting The Mltx2 To A Computer

    Magnetek RCP software makes the programming of the MLTX2 transmitter easier and allows the programmer to store all of the MLTX2 settings in files for later use or reference. The RCP software also allows the programmer to customize the MLTX2 transmitter display (on MLTX2s with optional graphic user interface) with language descriptions that are project or machine specific.
  • Page 28 A list of recent projects will appear under “Open Project.” Clicking on one of these will open that project. It is recommended that you create a folder in which to save all programming files. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 28 of 43...
  • Page 29 THE OPERATOR UPON SENDING THE PROGRAM TO THE DEVICE. ALL STORED VALUE SETTINGS WITHIN THE DEVICE WILL BE REPLACED, INCLUDING ANY PROJECT-SPECIFIC VALUES. MAGNETEK STRONGLY RECOMMENDS THAT THE “RECEIVE DEVICE DATA” CHECKBOX BE LEFT CHECKED. Telemotive MLTX2 Transmitter Instruction Manual...

  • Page 30: Mltx2 Configuration

    PC or manually set the clock/date. NOTE: Changing any of these details will require a reboot of the MLTX2 after the new information has been sent to the device.
  • Page 31 This feature is selectable by the user. NOTE: The transmitter must be set with the same access code as the receiver to properly communicate with each other. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 31 of 43...
  • Page 32 The user-selectable options for RF power are Full, Half, Quarter and Minimum. Activate Password The password is used to restrict access to the configuration menu on the MLTX2. Having an active password prevents accidental changes to the transmitter. Please familiarize yourself with this section before programming password.
  • Page 33 This feature allows the user to reset the internal clock on the transmitter to the correct date and time. The user can select to match the clock on the PC that is connected to the unit or select a custom date and time. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 33 of 43...
  • Page 34 CAN Configuration Page This page allows the user to modify the CAN bus network communication settings. Source Address This is the address that the MLTX2 will use as the source address when transmitting messages on the CAN bus network. Protocol This pull down menu allows the user to modify the communication protocol for the CAN bus network.

  • Page 35: Saving, Downloading, And Reading The Programs And Other Rcp Software Functions

    RCP SOFTWARE FUNCTIONS CAUTION TO PROGRAM OR READ DATA FROM THE MLTX2, THE TRANSMITTER MUST BE TURNED ON. Saving the Programming File Once programming is complete click the file tab at the top of the RCP screen to open the file menu.
  • Page 36 To read a program file from the MLTX2 Transmitter: 1. Plug in the USB programming cable. 2. Click “Receive” and follow on screen prompts. 3. RCP will confirm reception and automatically display current programming in the MLTX2 unit. Reading the RCP Software Version 1.

  • Page 37: Transmitter Rf Channel Configuration Settings

    Changes or modifications not expressly complies with FCC’s RF exposure limits approved by the party responsible for for general population/uncontrolled compliance should void the user’s exposure. authority to operate the equipment. Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 37 of 43...

  • Page 38: Channel Frequency Designations By Count

    914.60 MHz 434.300 MHz 914.80 MHz 434.350 MHz 915.80 MHz 434.400 MHz 917.40 MHz 434.450 MHz 923.20 MHz 434.500 MHz 927.00 MHz 434.550 MHz 927.30 MHz Table 1.A Table 1.B Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 38 of 43...

  • Page 39: Optional Frequencies And Channels

    AKA02 433.525 MHz AKA03 433.725 MHz AKA04 433.925 MHz AKA05 434.125 MHz AKA06 434.325 MHz AKA07 434.525 MHz AKA08 434.725 MHz AK38 432.4 MHz AK50 430.0 MHz Table 2 Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 39 of 43...

  • Page 40: Optional Can Bus Tether Feature

    OPTIONAL CAN BUS TETHER FEATURE The MLTX2 transmitter can be ordered with an optional CAN bus tether feature. This feature allows for the operation of the transmitter as a wired transmitter with no wireless radio transmission. If the MLTX2 transmitter was ordered with the CAN bus tether feature, this section applies to features and operation of the transmitter in tether mode.

  • Page 41: Can Connector Receptacle Pin-Out Details

    The CAN connector receptacle located on the transmitter has specific pin assignments. It is very critical that these pin assignments are matched in the CAN cable assembly. Keyway Figure 14: CAN Connector Pin Out details Telemotive MLTX2 Transmitter Instruction Manual April 2012 Page 41 of 43...

  • Page 42: General Troubleshooting

    Inspect all battery pack backwards; battery holder is contacts for damage. When installing the damaged. battery pack into the MLTX2, confirm it is Transmitter will not turn on installed with the label facing out. Be sure all switches and motions are in the off Transmitter is failing switch position on startup.

  • Page 43: Troubleshooting Optional Tether Operation

    300 feet from the receiver location. ASSEMBLY AND REPLACEMENT PARTS If your transmitter ever needs repair, we always recommend that you have Magnetek perform the repair. If you need to refer to a parts list, refer to your transmitter’s drawing that was included in the shipment of your transmitter.
