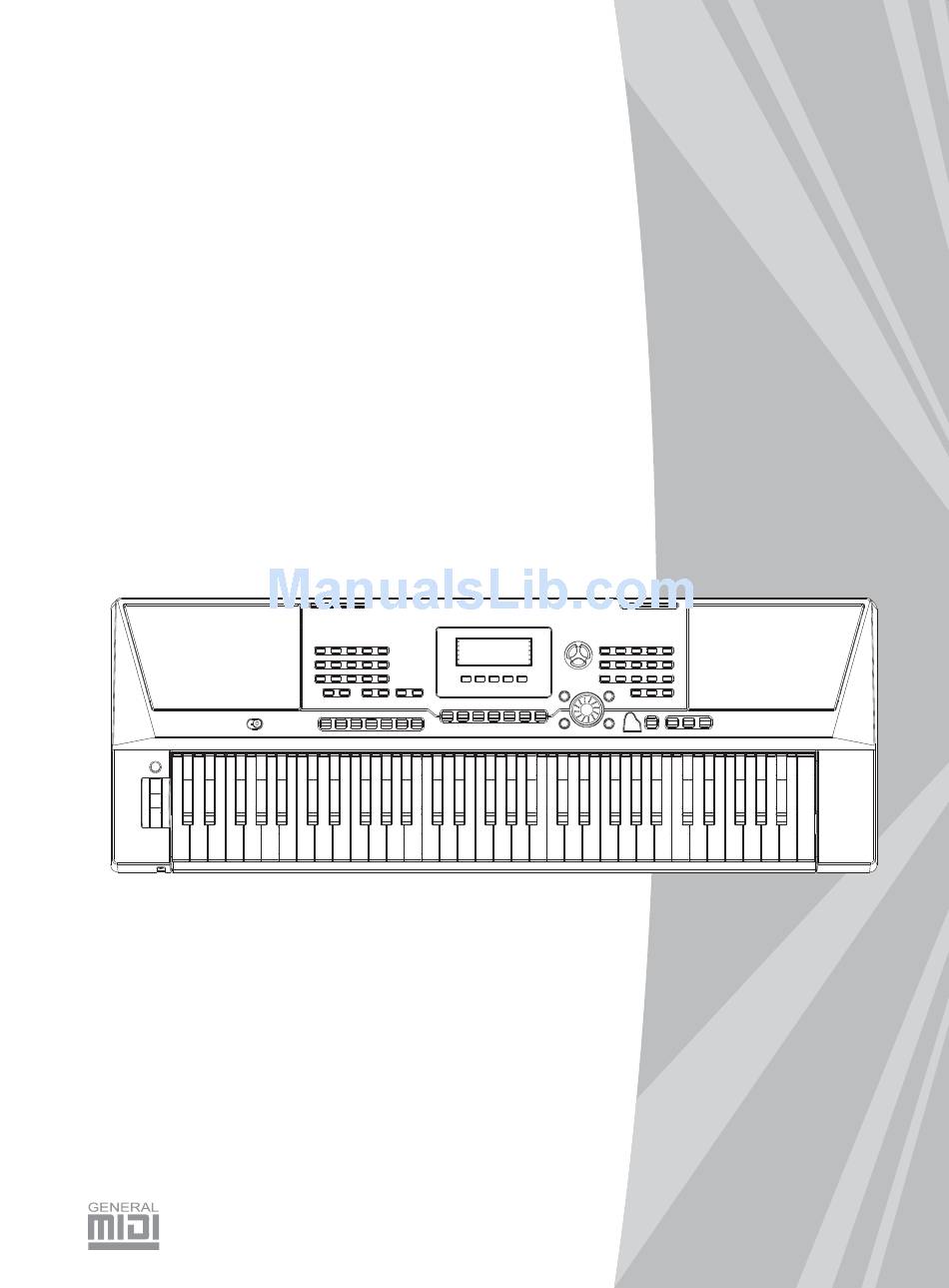

  • Page 1 ELECTRONIC KEYBOARD Owner’s Manual...
  • Page 2 INFORMATION FOR YOUR SAFETY! PRECAUTIONS THE FCC REGULATION WARNING (for USA) This equipment has been tested and found to comply with the PLEASE READ CAREFULLY BEFORE PROCEEDING limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Contents Panel & Display Description Song Front Panel................4 Listening to the Songs............20 Rear Panel................5 Song Control..............20 Display.................5 Lesson Mode..............20 Downloading MIDI Song............22 Setup Chord Dictionary Power Supply...............6 Setting a Music Stand............6 DICT 1 – Chord Learning Mode..........23 Connecting a Footswitch............6 DICT2 –...

  • Page 4: Panel & Display Description

    Panel & Display Description Front Panel 18 19 In Song Mode 13...FADE 24...ONE TOUCH SETTING Turn the Fade in or Fade out on. Enter the One Touch Setting Mode. 8...START/STOP 14...CHORD MODE Start or stop playing the Select the Chord Mode. 25...SONG song.

  • Page 5: Rear Panel

    Panel & Display Description Rear Panel 38...- / NO 42...VOICE DIRECT Decrease the displayed SELECT BUTTON Select a value by 1. direct voice. 39...+ / YES 43...LCD DISPLAY MIC IN SUSTAIN AUX.OUT AUX.IN Increase the displayed Show all important settings value by 1.

  • Page 6: Setup

    Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Power Supply First, please make sure that POWER ON/OFF switch of the VOLUME instrument is set to OFF. Then turn the MASTER VOLUME control to the minimum volume level.

  • Page 7: Connections

    Connections Connecting a pair of Headphones A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. The internal stereo speaker system is automatically shut off when a pair of head phones is plugged into the PHONES jack. Note Do not listen with the headphones at high volume for long periods of time.

  • Page 8: Playing The Demos

    Playing the Demos The instrument features 5 wonderful demos. Please refer to DEMO LIST. Press the [STYLE] and [VOICE] buttons simultaneously to start playing the demo. Select a demo song. SONG Use the data dial, the [+/YES] button or the [-/NO] button to select a demo song.

  • Page 9: Playing Two Voice Simultaneously-Dual

    Playing Voices Playing Two Voice Simultaneously-DUAL Press the [DUAL] button. Play the voices. Two different voices are sounded simultaneously in a layer. The number of the dual voice will be displayed on the LCD. Selecting a voice for VOICE R2. When the number of the dual voice is displayed, you can select a voice for Voice R2.

  • Page 10: Sustain

    Playing Voices Sustain When the Sustain is turned on, all notes will play with a longer sustain. Press the [SUSTAIN] button to turn the SUSTAIN effect ON or OFF. Note: When you step on the “sustain pedal”, the sustain effect is stronger than the effect by pressing the [SUSTAIN] button.

  • Page 11: Auto Accompaniment

    Auto Accompaniment The auto accompaniment feature puts a full backing band at your fingertips. To use it, all you have to do is play the chords with your left hand as you perform and the selected accompaniment style matching your music sill automatically play along, instantly following the chords you play.

  • Page 12: Accompaniment Sections

    Auto Accompaniment Accompaniment Sections There are various types of Auto Accompaniment sections that allow you to vary the arrangement of the accompaniment to match the song you are playing. They are: Intro, Main (A, B), Fill-in (A, B) and Ending. By switching among them during your performance you can easily produce the dynamic elements of a professional-sounding arrangement in your performance.

  • Page 13: Tempo

    Auto Accompaniment Note: Hold down the FILL-IN A/B button when the style is playing, the selected FILL pattern repeats continuously until button is released. Press FILL-IN A/B when style stop, it will change to the normal section, the icon A/B on LCD will be lightened. Tempo Each style of the instrument has been programmed with a default or standard tempo;...
  • Page 14 Auto Accompaniment In the C major triad shown, the lowest note is the “root” of the chord (this is the chord’s “root position”…using other chord notes for the lowest note results in “inversion”). The root is the central sound of the chord, which supports and anchors the other chord notes.

  • Page 15: One Touch Setting

    Auto Accompaniment The FULL RANGE mode When the chord detection is in the FULL RANGE mode, the instrument will automatically create appropriate accompaniment while you play just about anything using both hands, anywhere on the keyboard. You do not have to worry about specifying the accompaniment chords.

  • Page 16: Digital Effects

    Digital Effects With the built in digital effects, you can add ambiance and depth to your music in a variety of ways – such as adding reverb that makes you sound like you are playing in a concert hall or adding harmony notes for a full, rich sound.

  • Page 17: Harmony

    Harmony You can add a variety of harmony notes to the keys you played in the right-hand section. Selecting a Harmony type Press the [FUNCTION] button. Select “DUET”. Use the [FUNCTION], [BACK] or [NEXT] button to select Duet. The LCD displays Duet and it is the default harmony type.

  • Page 18: Ifx

    Press the [IFX] button. Turn on the IFX and the icon “IFX” will be lighten. The LCD displays “Chorus”, it means the default effect setting is Chorus. Turn off the effect. Press the [IFX] button again in the IFX mode will turn off the and the icon “IFX”...

  • Page 19: Registration Memory

    Registration Memory The keyboard is an instrument with a variety of controls and functions, the Registration Memory feature can make your performance more easily and efficiently. It allows you save virtually all panel settings to a Registration Memory setting, and you can instantly recall custom panel settings by pressing a single button. Registering the Panel Settings There are 4 memory banks, each bank has 4 memories (M1-M4).

  • Page 20: Song

    Song The keyboard has a music library of 120 preset songs. Each song can be practiced in LESSON mode. Listening to the Songs Press the [SONG] button to enter the song mode and it will play all songs circularly. Select a song. Use the data dial, [+/YES] or [-/NO] button to select a song.
  • Page 21 Song Select the practice hand. There are 3 levels of the lessons. Use [LEFT] or [RIGHT] button to select which hand you want to practice. If neither hand is selected, the keyboard will automatically select the right hand practice for you. Note: According to the type of the song, the content of your practice by left hand is different.

  • Page 22: Downloading Midi Song

    Song Lesson 3 - Performance Press the [LESSON] button in LESSON 2 to enter the lesson 3 mode. In LESSON 3 mode, it will score your practice by the correction of the time value and note. Press the [START/STOP] button to start to practice. Downloading MIDI Song Connect a standard USB cable between the rear-panel of the USB jack of the instrument and the USB jack on your computer.

  • Page 23: Chord Dictionary

    Chord Dictionary Chord dictionary is essentially a built-in “chord book” that help you to check the Chord notes. You can learn the chord and test in this features. DICT 1 – Chord Learning Mode Press the [CHORD DICT] button and hold it for longer than 2 seconds to enter the DICT 1 mode.

  • Page 24: Song Recording

    Song Recording With the easy-to-use song recording features, you can record your own keyboard performances as a User song. 5 user songs can be recorded with 3 tracks (1 ACCOMP track, 2 MELODY tracks) each. Starting Recording Press [RECORD] button to enter the user song selection mode.

  • Page 25: Stopping Recording

    Song Recording Stopping Recording Press [RECORD] again while recording can stop this action immediately. When the capacity is full, the recording will be stopped automatically. When the record ending is finished, the recording will be stopped automatically. Playing back the User Song Press [PLAY/STOP] button to enter the user song selected mode.

  • Page 26: Performance Assistant

    Performance Assistant What’s the Performance Assistant? Performance Assistant is an easy-to-use function. With this function you will find playing will be more interesting. Even if you are not a keyboard player, the Performance Assistant will help you to play your familiar instrument voice on the keyboard. If you’re a pianist, you can easier to achieve many hard perform skills on the keyboard with the help of this function.

  • Page 27: Playing In The Guitar Mode

    Performance Assistant Playing in the Guitar Mode Play a chord in the chord part. GUITAR KEY MAP A chord type will be displayed on the LCD and the guitar base will be sounded. Play a broken chord in the sub area 1. CHORD PART SUB AREA 1 SUB AREA 2...

  • Page 28: Chinese Traditional Instruments Mode

    Performance Assistant Chinese Traditional Instruments Mode Chinese Traditional Instruments Key Map In this mode, a keyboard player can play some Chinese The Chinese Traditional Instruments key map instrument voice easily by using the keyboard. There are 5 is as the picture: instruments you can select to perform: GUZHENG, PIPA, SANXIAN, YANGQIN and ZHONRUAN.

  • Page 29: Other Functions

    Other Functions Turning the Metronome ON/OFF Press the [Metronome] button to turn the metronome on. METRONOME GrandPn1 Press the [Metronome] button again to turn the metronome off. Tuning Press the [FUNCTION] button. Select “TUNE”. FUNCTION Use [FUNCTION], [BACK] or [NEXT] button to select TUNE. BACK NEXT The LCD displays the tune value.

  • Page 30: Setting The Octave

    Other Functions Setting the Octave Press the [FUNCTION] button. Select “OCTAVE”. FUNCTION Use [FUNCTION], [BACK] or [NEXT] button to select BACK NEXT OCTAVE. The LCD displays the octave value. The value ranges from -1 to 1 and the default value is relevance to the voice.

  • Page 31: Fade Out Duration

    Other Functions Fade Out Durat Press the [FUNCTION] button. FUNCTION Select “FADE OUT”. BACK NEXT Use [FUNCTION], [BACK] or [NEXT] button to select FADE OUT. The LCD displays the time value. The value ranges from 1 to 30 seconds and the default value is 10. Change the time value.

  • Page 32: Midi Functions

    MIDI Functions By using the MIDI functions you can expand your musical possibilities. This section explains what MIDI is, and what it can do, as well as how you can use MIDI on your instrument. What’s MIDI? MIDI is an acronym that stands for Musical Instrument Digital Interface, which allows electronic musical instruments to communicate with each other, by sending and receiving compatible Note, Control Change, Program Change and...

  • Page 33: Troubleshooting

    Troubleshooting Problem Possible Cause and Solution The speakers produce a “pop” sound This is normal and is no cause for alarm. whenever the power is turned ON or OFF. No sound when the keyboard is played. The R1/R2/L voice volume (Mixer) settings could be set too low.

  • Page 34: Voice List

    Voice List Name LCD Name NylonGt2 AnaVoice Nylon Guitar 2 Ana Voice PIANO Steel Guitar SteelGtr Orchestra Hit OrchHit Acoustic Grand Piano GrandPn1 12 String Guitar 12StrGtr Bass Hit BassHit Stereo Grand Piano 1 StGrPn1 Mandolin 6thHit Mandolin 6th Hit Grand Piano GrandPn2 Steel+Body...
  • Page 35 Voice List HuLuSi HuLuSi NewAge Pad NewAgePd Horse Gallop HorseGlp LuSheng LuSheng Warm Pad WarmPad Bird Tweet 2 Tweet2 Xiao Xiao SinePad Sine Pad Telphon1 Telephone 1 Poly Synth PolySyPd Telephone 2 Telphon2 SuoNa SuoNa Space Choir ChoirPad Door Creak DoorCrek GuanZi GuanZi...
  • Page 36 Voice List TrlTango XDiClav1 Tremolo Tango 2 XinDi+Clavichord 1 Bl-Pad Bl-Pad Accord Bass AccBass Br-EP BrEP Dream Lead DreamLd Fx+Accordion 1 FxAcc1 Tuba+Ehorn 1 TubaEhn1 WahLd Wah Lead HarpAcc FxTrump2 Harpsichord+Accordion Fx+Trumpet 2 Double Lead DoublLd Fx+Tango 2 FxTango Brass+Tango 1 BrTang1 Lead Saw 3 LeadSaw3...

  • Page 37: Style List

    Style List BALLROOM Name LCD Name Rumba 2 Rumba2 8BEAT Twist Twist Rumba 3 Rumba3 Guitar Pop 1 GtPop1 Big Band Fox BandFox Pop Cha Cha PChaCha 8Beat Shuffle 8BtShufl Tango Tango Salsa 2 Salsa2 WALTZ & TRADITIONAL 8Beat Piano 8BtPiano Slow Fox SlowFox...

  • Page 38: Song List

    Song List CLASSICAL Name LCD Name Wedding March Wedding FOLK & COUNTRY 2-Part Invention #13 In A Invntion Pianosonatan 08 IN Cm Piano08 Red River Valley RedRiver IN Pathetique Minor.B.W. Iii Troika Troika Brahms Waltz BrmsWalz Minuet In G MinuetG Susanna Susanna Aida...

  • Page 39: Chord List

    Chord List Chord Name (Abbreviation) Normal Voicing Chord Display Major [M] 1-3-5 Major sixth [6] 1-(3)-5-6 Major seventh [M7] 1-3-(5)-7 Major sharp eleventh [b5] 1-3-b5 Major seventh sharp eleventh [M7b5] 1-3-b5-7 CM7b5 CM7b5 Major seventh sharp eleventh [M7#11] 1-(2)-3-#4-(5)-7 CM7#11 CM7#11 Major add ninth [Madd9] 1-2-3-5...

  • Page 40: Midi Implementation Chart

    MIDI Implementation Chart Function Transmitted Recognized Remarks Default Basic Changed Channel 1-16ch 1-16ch Default × Messages Mode × Altered *********** × Note Note 0—127 0—127 :True voice Number *********** 0—127 Note on ○ 9nH,V=1-127 ○ 9nH,V=1-127 Velocity Note off × 9nH,V=0 ×(9nH,V=0;...
