Page 2
AW_A100S_Manual_G02_181122.pdf 2 18/11/23 14:08 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.

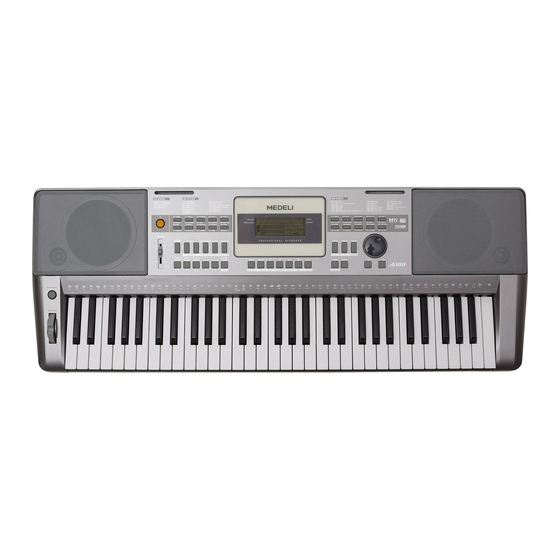

AW_A100S_Manual_G02_181122.pdf 4 18/11/23 14:08 Panel & Display Description Front Panel 11 12 13 14 15 16 17 1. POWER SWITCH 3. [VOLUME] Slider In Style Mode Turn the Power on or off. Adjust the master Volume. 10. [START/ STOP] button Start or Stop playing the style.
AW_A100S_Manual_G02_181122.pdf 5 18/11/23 14:08 Panel & Display Description 18 19 21 22 23. LCD display When the [SHIFT] button Released When the [SHIFT] button Pressed 18~21. [M1] ~ [M4] buttons 18. [DUAL] button Display important setting information. Instantly call up a panel setting. Turn the Dual function on or off.
AW_A100S_Manual_G02_181122.pdf 6 18/11/23 14:08 Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Power Supply You can power the instrument either by batteries or by power adaptor. Before you switch your instrument on, turn down the volume of instrument and the connected audio equipment first.
AW_A100S_Manual_G02_181122.pdf 7 18/11/23 14:08 Connections Connecting a Pair of Headphones A standard pair of stereo headphones can be connected to the PHONES jack for private practice or late-night playing. When a pair of headphones is plugged in, the internal speakers will be automatically shut off, sound can only be heard from the headphones.
AW_A100S_Manual_G02_181122.pdf 8 18/11/23 14:08 Power Switch and Master Volume Power Switch Before connecting the power supply, please set the [POWER] switch to “OFF” and set the master volume level to minimum. Make sure the instrument is properly connected to power supply. Press the POWER switch, the LCD screen will be lit and display parameters, indicating the instrument is powered on.
AW_A100S_Manual_G02_181122.pdf 9 18/11/23 14:08 Playing Voices Press the [VOICE] button. Enter the Voice Mode. The LCD displays the current default voice name and number. Select a Voice. Use the data dial or [+/Yes]/[-/No] button to select a desired voice. You can also use the Voice select buttons to select a voice. Each button has two preset voices.
AW_A100S_Manual_G02_181122.pdf 10 18/11/23 14:08 Playing Songs This instrument features a variety of preset songs, and each song can be practiced in Lesson Mode. Press the [SONG] button. Enter the song mode. It will play all songs circularly. Select a song. Use the data dial or the [+/YES]/ [-/NO] button to select the song you want to play.
AW_A100S_Manual_G02_181122.pdf 11 18/11/23 14:08 Playing the Voices The instrument features a variety of exceptionally realistic voices. Please refer to the Voice List. Selecting a Voice When power on, the “VOICE R1” icon will be lit and the LCD will display the current voice name and number.
AW_A100S_Manual_G02_181122.pdf 12 18/11/23 14:08 Auto Accompaniment The auto accompaniment feature puts a full backing band at your fingertips. To use it, all you have to do is to play the chords with your left hand using your selected accompaniment style, and then the accompaniment will automatically play along, instantly following the chords you play.
AW_A100S_Manual_G02_181122.pdf 13 18/11/23 14:08 Auto Accompaniment FILL IN Section Auto fill in function automatically adds a fill to your performance. When the fill-in is finished,accompaniment shifts to the Main section. ENDING Section The Ending is the ending section of a song. When the ending is finished, accompaniment automatically stops.The length of the ending differs depending on the selected style.
AW_A100S_Manual_G02_181122.pdf 14 18/11/23 14:08 Auto Accompaniment Chord Basics A chord, in music, is a harmonic set of three or more notes that are heard simultaneously. The most common type of chord is a triad. A triad is a set of three notes that can be stacked in thirds. When arranged this way, the triad's notes, from lowest pitched to highest, are called: the Root, the Third, and the Fifth.
AW_A100S_Manual_G02_181122.pdf 15 18/11/23 14:08 Auto Accompaniment Tempo Each style is preset with a default or standard tempo, however, you can change it as needed. Press the [TEMPO+]/ [TEMPO-] button to change the current tempo. Alternatively, when the tempo is flashing on LCD, use the data dial to make a quick change in the value.
AW_A100S_Manual_G02_181122.pdf 16 18/11/23 14:08 Function Menu Press and hold the [SHIFT] button and then press the [FUNCTION] button to enter function menu. The LCD displays the current function menu option. Use [+/YES]/ [-/NO] button to set parameter of the current option. Detailed parameters and their ranges: Range Default...
AW_A100S_Manual_G02_181122.pdf 17 18/11/23 14:08 Function Menu Beat Type Press and hold the [SHIFT] button and then repeatedly press the [FUNCTION] button to select beat type menu. The LCD displays “xxx Beat”. Use [+/YES]/ [-/NO] button or data dial to change beat type. The range of beat type: 0, 2~9.
AW_A100S_Manual_G02_181122.pdf 18 18/11/23 14:08 Function Menu Reverb Type Press and hold the [SHIFT] button and then repeatedly press the [FUNCTION] button to select reverb type menu. The LCD displays “004 RevHall1”. Use [+/YES]/ [-/NO] button or data dial to change reverb type. The default setting is Hall 1.
AW_A100S_Manual_G02_181122.pdf 19 18/11/23 14:08 Function Menu Harmony Type Press and hold the [SHIFT] button and then repeatedly press the [FUNCTION] button to select harmony type menu. The LCD displays “001 HrmDuet”. Use [+/YES]/ [-/NO] button or data dial to change harmony type. The harmony types are as follows: LCD Display Harmony Type...
AW_A100S_Manual_G02_181122.pdf 20 18/11/23 14:08 Mixer Mixer function adjusts separately the volume of different tracks. Press the [MIXER] button to enter the mixer menu. The LCD displays “030 Rhythm_s” for the initial time when power on. Next time when you enter the mixer menu, it will show the same option of your last operation.
AW_A100S_Manual_G02_181122.pdf 21 18/11/23 14:08 Effect Related Settings Octave Press and hold the [SHIFT] button and then press the [OCTAVE] button to select octave menu. The LCD displays “xxx Octave”. Use [+/YES]/ [-/NO] button or data dial to change octave value, adjustable range is: -2 ~ +2.
AW_A100S_Manual_G02_181122.pdf 22 18/11/23 14:08 Effect Related Settings Pitch Bend Use the pitch bend wheel to bend notes up (roll the wheel away from you) or down (roll the wheel toward you) while playing the keyboard. The pitch bend wheel is self-centering and will automatically return to normal pitch when released.
AW_A100S_Manual_G02_181122.pdf 23 18/11/23 14:08 Register Memory This function is designed to make your performance easy and efficient. It allows you to save virtually all panel settings to a single registration memory for instant recall. Registration Banks There are 12 memory banks, and each bank has 4 memories (M1-M4). Press the [BANK] button to select a bank over the range of 1 ~ 12.
AW_A100S_Manual_G02_181122.pdf 24 18/11/23 14:08 Recording You can record in real time and save your keyboard performance as a user song on the instrument. Prepare Recording Before you start recording, you need to select a user song to which the recording will be saved. Press and hold [SHIFT], then press the [RECORD] button to enter the user song menu.
AW_A100S_Manual_G02_181122.pdf 25 18/11/23 14:08 Record Playback Recording Press and hold [SHIFT], then press [PLAY] to enter the play menu. Use the data dial or [+/YES]/ [-/NO] button to select a user song to play. If the user song has data, LCD will display “XXX PlySngX”, such as “001 PlySng1”.
AW_A100S_Manual_G02_181122.pdf 26 18/11/23 14:08 Piano Mode By pressing the [PIANO] button, the instrument replicates a concert grand voice. All parameters become optimized for piano performance. Press the [PIANO] button to enter or exit piano mode. In piano mode, the accompaniment control is the same as other mode.
AW_A100S_Manual_G02_181122.pdf 27 18/11/23 14:08 Song Lesson Mode The buttons related to lesson mode are [SHIFT] + [LESSON], [SHIFT] + [L], [SHIFT] + [R] and [SHIFT] + [L] + [R]. Enter the lesson mode While the song is stop playing, holding down the [SHIFT] button and press the [LESSON] button.
AW_A100S_Manual_G02_181122.pdf 28 18/11/23 14:08 Chord Dictionary If you know the name of a chord but don't know how to play it, you can use the Chord Dictionary function. DICT 1 (Chord Learning Mode) Press and hold [SHIFT], then press the [DICT.] button to enter DICT. 1 mode.
AW_A100S_Manual_G02_181122.pdf 29 18/11/23 14:08 Pedal Function You can assign different functions to the connected sustain pedal in the Function Menu. Please see the Function Menu. Sustain Pedal This pedal function performs the same function as the damper pedal on an acoustic piano, letting you sustain the sound of voices even after releasing the keys.
AW_A100S_Manual_G02_181122.pdf 30 18/11/23 14:08 MIDI With the MIDI functions you can expand your musical possibilities. This section will let you know what MIDI is, and what it can do, as well as how you can use MIDI on your instrument. What's MIDI? MIDI (short for Musical Instrument Digital Interface) allows a wide variety of electronic musical instruments, computers and other...
AW_A100S_Manual_G02_181122.pdf 31 18/11/23 14:08 Troubleshooting Problem Possible Cause and Solution The speakers produce a pop sound This is normal and no cause for alarm. whenever the power is turned ON or OFF. No sound when the keyboard is played. 1. Check if the master volume is set too low. 2.
AW_A100S_Manual_G02_181122.pdf 32 18/11/23 14:08 Voice List English Name LCD Name Celesta 3 Celesta3 PIANO Glockenspiel l Glcckspl Acoustic Grand Piano GrdPno Glockenspiel 2 Glccksp2 Acoustic Grand Piano 2 GrdPno 2 Glockenspiel 3 Glccksp3 Acoustic Grand Piano (wide) GrdPnoW Music Box MBox Acoustic Grand Piano (dark) GrdPnoD...
Page 34
AW_A100S_Manual_G02_181122.pdf 34 18/11/23 14:08 Voice List PIPE Tuba Tuba Tuba 2 Tuba 2 Piccolo Piccolo Piccolo 2 Piccolo2 Muted Trumpet MutTp Piccolo 3 Piccolo3 Muted Trumpet 2 MutTp 2 2 Piccolo Muted Trumpet 3 MutTp 3 2Piccolo French Horn FrHorn Sweet Flute SweetFl Flute...
Page 35
AW_A100S_Manual_G02_181122.pdf 35 18/11/23 14:08 Voice List Lead 8 (bass + lead) 2 Bass&Ld2 Click Pad ClickPad Lead 8 (bass + lead) 3 Bass&Ld3 Analog Pad Ana Pad Lead 8a (soft wrl) Soft wrl 80's Poly Pad 80'sPoly Massiness Massin PWM 4th Soft PWM4thSf Square Square...
Page 36
AW_A100S_Manual_G02_181122.pdf 36 18/11/23 14:08 Voice List Taisho Koto TaisKoto Closed Hi-hat ClosedHH Kalimba Kalimba Analog Closed Hi-hat AnClosHH Kalimba 2 Kalimba2 Pedal Hi-hat Pedal HH Kalimba 3 Kalimba3 Open Hi-hat Open HH Bag Pipe BagPipe Crash Cymbal CrashCym Bag pipe 2 Bagpipe2 Analog Cymbal Ana Cym...
Page 37
AW_A100S_Manual_G02_181122.pdf 37 18/11/23 14:08 Voice List Flute Key Click 2 FlClick2 Marimba & Kalimba Mar&Kal Seashore Seashor Marimba Delay MarDel Seashore 2 Seashor2 Xylophone Octave XylopOct Rain Rain Organ & Stereo Strings Org&Str Thunder Thunder Stereo Organ & Piano StOr&Pno Wind Wind Rock Organ &...
AW_A100S_Manual_G02_181122.pdf 39 18/11/23 14:08 Style List English Name LCD Name Soft Beat SoftBeat Hip Hop 1 HipHop1 8 BEAT 60's Pop 60'sPop House 1 House 8Beat Ballad 8BtBld Sting Latin StigLatn House 2 House 8Beat Piano 8BtPiano R&B Ballad 1 R&BBld1 Pop Dance 2 PopDanc2...
Page 40
AW_A100S_Manual_G02_181122.pdf 40 18/11/23 14:08 Style List Swing Ballad SwingBal Laendler Laendler Jazz 2 Jazz2 Orchestra Swing OrhSwing Hawaiian Hawaiian Jazz Pub JazzPub COUNTRY Sirtake Sirtake Piano Rock PianoRk Country Pop 1 CntyPop1 Dangdut Dangdut Pop Bossa PopBossa Bluegrass 1 Bluegrs1 6/8 Flipper 6/8Flipp March 1...
AW_A100S_Manual_G02_181122.pdf 41 18/11/23 14:08 Song List English Name LCD Name An Die Musik Musik FOLK & COUNTRY Lieder Ohne Worte Op.62 No.6 Lieder Toccata Toccata Red River Valley RedRiver Carry Me Back To Old Virginny CarMeBk Die Forelle Forelle El Condor Pasa ElCondor Symphony No.
