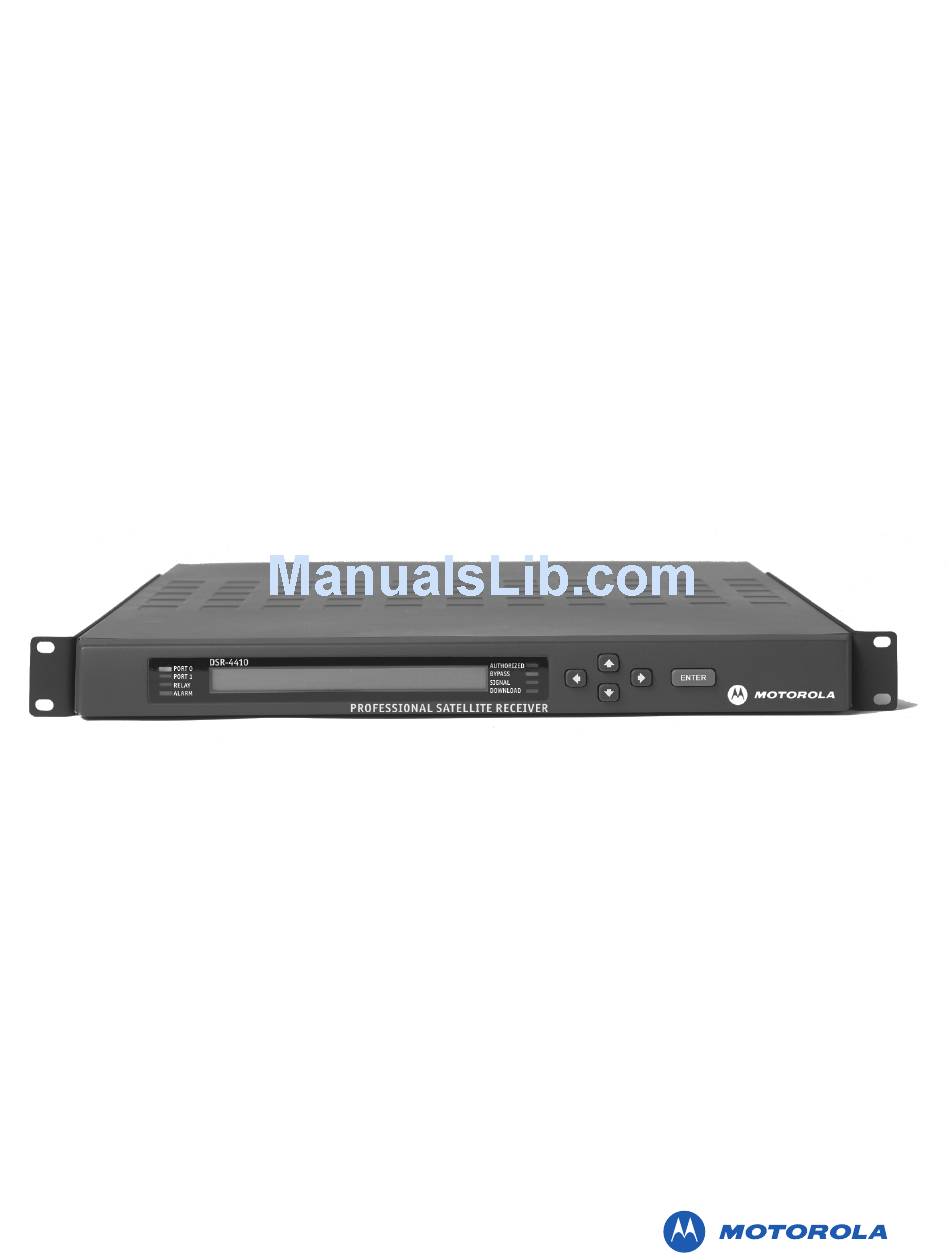

  • Page 1 DSR4410 Commercial Integrated Receiver/ Decoder Operator Guide...

  • Page 2: Operation Precautions

    Motorola, Inc. plug (polarized) with an extension cord, receptacle, or other outlet Motorola reserves the right to revise this publication and to make unless the blades can be fully inserted to prevent blade exposure. changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change.
  • Page 3 DSR4410 Integrated Commercial Receiver/Decoder Operator Guide...

  • Page 5: Table Of Contents

    Chapter 1: Introducing the DSR4410 ................1 Key Features..........................1 Chapter 2: Connecting the DSR4410 ................3 Unpacking And Connecting The DSR4410................3 Unpacking And Mounting......................4 Connecting A Unit for L-Band Input ..................4 Chapter 3: Operating the DSR4410 ................7 Using The Front Panel ......................
  • Page 6 Product Support ........................53 IRD Repair Procedures ......................55 Chapter 7: Conversion Tables ..................57 Downlink/l-band Frequency Conversions ................57 Chapter 8: Diagnostic Display ................... 59 On-Screen Diagnostic Display....................59 Chapter 9: Language Abbreviations ................63 Chapter 10: DSR4410 Specifications ................65...

  • Page 7: Chapter 1: Introducing The Dsr4410

    • The user is able to select an input L-band frequency of 950 to 2150 MHz. The user can select a code rate from these values: 5/11, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, and 7/8. • Multiple Virtual Channel Tables (VCTs) can be stored in the DSR4410 so that the unit can be moved to various satellites/transponders.
  • Page 8 • DTMF output for control of tape machines and other ad insertion equipment. • One Form-C relay used for fault alarm indication • Memory to recall the operating configuration when power sags or is removed. • Security features include Motorola DigiCipher II security technology. The unit does not ® require a TVPass card to operate with security.

  • Page 9: Chapter 2: Connecting The Dsr4410

    Connecting the DSR4410 Unpacking And Connecting The DSR4410 Cable connections described in this chapter are made to the rear panel of the DSR4410. A C -1 2 0 V -2 5 0 V 5 0 /6 0 H z 5 0 w...

  • Page 10: Unpacking And Mounting

    • For installations using both polarities of a satellite, connect one LNB coax to each port. The polarity is programmable for the DSR4410. The default polarity for Port 0 is Vertical and Port 1 is Horizontal. It is important to record which polarities and ports are connected to the LNB for later use when inputting information in the front panel menus.
  • Page 11 (L+ and L-) to the audio inputs on the channel modulator. Right Audio Out terminals (R+ and R-) will also contain the single mono. The DSR4410 will be able to generate cue tones when commanded over the satellite link. If these internally generated cue tones are used, connect the 600 ohm differential Cue...

  • Page 13: Chapter 3: Operating The Dsr4410

    All operations described in this chapter require use of the front panel. As illustrated in Figure 3-1, the front panel has an operator's keypad and several LEDs used as indicator lights. Figure 3-1: DSR4410 Front Panel 1. Port 0 LED 6.

  • Page 14: Using The Front Panel

    Using The Front Panel The front panel LCD screen displays a series of menus that can be used to configure and control the system. The name of the current menu is always in the upper left corner of the screen for easy identification. •...
  • Page 15 Operating the DSR4410 corner), will scroll to another menu. • Pressing the Enter button while the cursor is blinking next to the menu name (far left corner) will scroll to the Main, top-level menu. • Pressing the34buttons while in the top line of the menu will move between field labels (or the menu name and a field label).

  • Page 16: Installation Menus

    Installation Menus MANUAL TUNE Input Mode Xpnr LFreq RESET Reset Type Port 1 Xpndr dddd.dd Factory Defaults MODULATION Mode Symbol Code Format MAC ADDRESS DCII-MAN 19.5 Comb hh-hh-hh-hh-hh-hh PORT0 SETUP Mode Satellite Polar IP ADDRESS Address Manual G5 H/LHP ddd.ddd.ddd.ddd PORT1 SETUP Mode Satellite...

  • Page 17: Status Menus

    Operating the DSR4410 Channel Selection Menus Status Menus CHANNEL Chnl Xpndr STATUS1 FrontPanel Input Type ddddd dddd aaaaaaaa Local Control L-Band MPEG SELECT Program STATUS2 Source Channel Quality ddddd aaaaaaaaaaaa dddd AUD1LANG Dspl Left Right InputMode STATUS3 Signal_Quality Avail eng00...

  • Page 18: Diagnostic Menus

    Diagnostic Menus DIAG Menus Fact 1 UNIT ADDRESS 123-08000-12345-678 TV PASS CARD Status Not Inserted AUDIO TEST SIGNAL L1/R1 L2/R2 4040,3960 VIDEO TEST SIGNAL Pattern 525 Composite VITS Waveform Field Line 625CCIR 331 AD INSERTION TEST Cue Tone Sig Relay...

  • Page 19: How To Use The Menus

    How To Use The Menus About Menu The front panel LCD will display the About menu when the unit is plugged in or after factory reset. This menu identifies the unit model (“MOTOROLA DSR4410”) and the software version that is currently installed. MOTOROLA DSR4410 Version 0x148.31...

  • Page 20: Manual Tune Menu

    If, however, selection of an International C-band, a functional transponder, or a Ku-band satellite is preferred, use the L Freq option in the Mode field and directly enter the L-band frequency. The DSR4410 requires no distinction between Ku-band and C-band signals after selecting the L-band carrier frequency.
  • Page 21 Operating the DSR4410 of the menu. If Port 0 or Port 1 is selected, then move to the Mode field, Xpndr field or Lfreq field. These fields are not visible when ASI In is selected. The following Caution screen will appear, asking the user to confirm the selection.
  • Page 22 Then press the56buttons to select the desired transponder number. Since the associated transponder/frequency tables are stored in the unit, scrolling through the transponder numbers, the user will notice that the associated frequency (shown in the LFreq field to the right) will automatically change with the selection (970-1430 MHz). There are 24 transponder options, and when the transponder selection is displayed, press the Enter button to confirm selection and move the cursor back up to the field label.

  • Page 23: Port0 Setup And Port1 Setup Menus

    Operating the DSR4410 Modulation Menu This menu, together with the Manual Tune menu, allows the user to initially acquire a DigiCipher II signal. Press the56buttons until the Modulation menu appears. Press the Enter button to continue. MODULATION Mode DCII-AUTO When the DCII-MAN option in the Mode field is selected the user must additionally specify a Symbol/Code/format combination.
  • Page 24 with port 0 and port 1. Press the56buttons until the Port0 Setup menu or Port1 Setup menu appears. PORT0 SETUP Mode Satellite Polar Manual G5 H/LHP PORT1 SETUP Mode Satellite Polar Manual G5 V/RHP Port 0 and port 1 may be setup manually or automatically, and each individually. The user enters the satellite and polarity information directly when the port is setup manually.

  • Page 25: Audio 1 And 2 Menus

    Operating the DSR4410 Polar Field This field allows the selection of a polarity, when the Manual option in the Mode field is selected. Press the4button until the cursor is at the Polar label. After pressing the Enter button to enter this field, press the56buttons to display the options: H/LHP (Horizontal/ Left-Hand Polarity) or V/RHP (Vertical/Right-Hand Polarity).

  • Page 26: Audio1 Gain And Audio2 Gain Menus

    If you select Dual Mono, a warning screen will appear. The warning screen is needed because of possible conflicts between this menu and the channel selection menus that specify audio language. It appears if the user had previously used the Language menu (channel selection group) to select a single language for Mono or Stereo output and then changed to Dual Mono output.

  • Page 27: Alarm Menu

    Operating the DSR4410 The user may adjust the output levels of the left and right channels either independently of jointly. The output level of the right channel tracks the setting for the left channel when the output levels are adjusted jointly.

  • Page 28: Asi Output Menu

    • The unit loses power There are five choices: Disabled, Auto, No Signal, No Video, No Auth (authorization). Use this option to select which of the above conditions activates the alarm. The default setting is No Video. Bypass Field Press the4button until the cursor is at the Bypass label, and press the Enter button to move into the field.

  • Page 29: Reset Menu

    Operating the DSR4410 individual bytes spread out in time (Byte option). For additional information regarding these two MPEG-2 transport stream packet formats, refer to EN 50083-9, “Cabled distribution systems for television, sound, and interactive multimedia signals; Part 9: Interfaces for CATV/SMATV headends and similar professional equipment for DVB/ MPEG-2 transport streams.”...

  • Page 30: Mac Address Menu

    Press a directional (3456) button to back out of the field and leave it unchanged. Otherwise, press the Enter button to proceed. The following message will appear. Factory Default reset in progress. . . Press E to continue or to stop Power Cycle Option The Power Cycle option will reboot the unit without losing internal user setup information or downloaded network information.

  • Page 31: Subnet Mask Menu

    Operating the DSR4410 Press the4button until the cursor is at the Address label, and press the Enter button to move into the field. Press the34and 56buttons to enter the desired address and then press Enter to confirm the selection. Subnet Mask Menu Press the 56 buttons until the Subnet Mask menu appears.

  • Page 32: Core Menu

    Core Menu Press the 56 buttons until the Core menu appears. This menu allows the user to change the front panel LCD contrast, select where text (e.g., subtitles) is displayed, and turn on/off the LNB power output. Core Contrast Show Text LNB Power Video1&2 Contrast Field...
  • Page 33 Operating the DSR4410 encoder is a 625-line, the field selects the type of PAL the receiver outputs, and the NTSC or PAL M selection has no impact. VIDEO OUT FORMAT 525 Lines 625 Lines NTSC PAL D,G,B 525 Lines Field Press the4button until the cursor is at the 525 Lines label, and press the Enter button to move into the field.

  • Page 34: Firmware Menu

    If you select a new aspect ratio a warning screen will appear. CAUTION: Change will interrupt service Press E to continue or to stop Press a directional (3456) button to back out of the field and leave it unchanged. Otherwise, press the Enter button to proceed. Firmware Menu Press the56buttons until the Firmware menu appears.

  • Page 35: Download Menu

    Operating the DSR4410 Download Menu Press the56buttons until the Download menu appears. This menu allows the user to monitor the status of the current code download. This menu is used most commonly in troubleshooting. DOWNLOAD File Current Last Total 00 of 00 0000 0000 0000 The unit supports two types of code download.
  • Page 36 Last Field The Last field indicates ID for the last segment of the file selected in the File field. This field is non-editable. Total Field The Total field indicates the number of segments that the unit has received for the file selected in the File field.

  • Page 37: Group 2 Menus: Channel Selection

    Operating the DSR4410 Group 2 Menus: Channel Selection Channel Menu Press the56buttons until the Channel menu appears. This menu allows the user to select an active VCT, select the virtual channel, and view the name of the current transponder. CHANNEL...
  • Page 38 twenty-four virtual channels will appear in this field.) Press the Enter button to confirm the selection. This field also provides a second method for selecting the virtual channel: Use the34buttons to select the digit to change and then, while the cursor is on that digit, press the56buttons to display the required value.

  • Page 39: Mpeg Select Menu

    Operating the DSR4410 CAUTION: Channel dddd not on RF input Press E to continue or to stop Press a directional (3456) button to back out of the field and leave it unchanged. The unit will not be able to decode the chosen virtual channel until a port is setup with the applicable satellite and polarity information.

  • Page 40: Aud(Io)1 Lang(Uage) And Aud(Io)2 Lang(Uage) Menus

    and leave it unchanged. Otherwise, press the Enter button to proceed. • A warning message is displayed when a MPEG program number is selected which does not exist. CAUTION: Program ddddd does not exist Press E to continue or to stop Press a directional (3456) button to back out of the field and leave it unchanged.
  • Page 41 Operating the DSR4410 The Avail option allows the user to scroll through the languages supported by the system while the cursor is in the Left and Right fields. Furthermore, selection of this option allows the user to scroll through only the languages available for the active service. (If the active service has only three languages, as listed for the virtual channel or program, only three will appear.

  • Page 42: Text Lang(Uage) Menu

    changing the AudioMix menu to Dual Mono, the user should reselect the languages desired here, in this menu. • If the user previously selected Dual Mono in the AudioMix field with two different languages as audio outputs in the Language menu, but later selects Stereo, Stereo Surround, or Mono in the AudioMix field, the output in this Language menu will default to the first occurrence of a specified language (the one defined for the left channel first, then for right channel if there is no match for the left).
  • Page 43 Operating the DSR4410 Press the56buttons until the EMM ID menu appears. EMM ID ID Number(Hex) dddd ID Number Field The ID Number field allows the user to change the ID number, which is represented in the hexadecimal format. Press the4button until the cursor is at the ID Number label, and press the Enter button to move into the field.

  • Page 45: Group 3 Menus: Status Display

    Operating the DSR4410 Group 3 Menus: Status Display Status display menus provide information regarding the current status of the unit. They group together important parameters and display them conveniently together for the user to review the receiver's operation. These fields are not editable, and the displayed information is either (1) the result of changes in an installation or channel selection menu, or (2) a parameter the unit reports as part of its operation.

  • Page 46: Status3 Menu

    Quality Field The Quality field displays a number from one to 100 so that the quality level of the signal can be judged. The signal quality is also displayed as a large bar graph in the Status3 menu. If the signal is 50 or less, it is marginal. If it is 35 or less, take action to increase the dish size or improve the LNB to prevent occasional loss of output.

  • Page 47: Status5 Menu

    Operating the DSR4410 Code Field This field displays the code rate (error control coding for forward error correction) of the L-band signal. Dashes are displayed when no information is available or when the ASI input is in use. Format Field This field displays the format (combined or split) of the L-band signal.

  • Page 48: Group 4 Menus: Diagnostics

    Group 4 Menus: Diagnostics The unit's diagnostic menus allow the user to isolate problems to the unit or the satellite using the front panel. They also enable the user to test waveforms and use other diagnostic information displayed on an NTSC television monitor connected through the rear panel video output.

  • Page 49: Audiotestsignal Menu

    Operating the DSR4410 Unit Address Menu Press the56buttons until the Unit Address menu appears. This menu is for display only, and it shows the unit address. The Unit Address menu displays the decoder’s electronic address in decimal digits. The program provider uses this address to identify a specific unit for authorization and to retune messages.

  • Page 50: Video Test Signal Menu

    In order to terminate an audio test signal, scroll to Off or exit the L1/R1 field. L2/R2 Field This field allows the user to enable the Audio2 test signal. Refer to the description for the L1/R1 field. Video Test Signal Menu Press the56buttons until the Video Test Signal menu appears.

  • Page 51: Vertical Interval Test Signal (Vits) Menu

    Operating the DSR4410 Press a directional (3456) button to back out of the field and leave it unchanged. Otherwise, press the Enter button to proceed. Test signals override any active service component, and the unit displays diagnostics over the video test patterns if diagnostics are enabled. Disable the selected signals by displaying Off in the Pattern field and then exiting the menu.

  • Page 52: Ad Insertion Test Menu

    The default waveform is “Transmitted” (indicating whatever signal is provided over the satellite link by the programmer, if one is present). Press the Enter button to confirm the selection. Notice that if the Waveform option is neither Transmitted nor Disabled, the Field and Line fields will appear on the Vertical Interval Test Signal menu.

  • Page 53: Caution Screens

    Operating the DSR4410 Cue Tone Sig(nal) Field The Cue Tone Signal field lets the user turn the cue tone test on and off. Press the4button until the cursor is at the Cue Tone Signal label, and press the Enter button to move into the field.
  • Page 54 After the 30-second countdown period, the system update will start if the user has not pressed any buttons. The update may take from several minutes to complete. During the download, the following screen will appear, the unit will be nonfunctional, and will not respond to front panel button presses.

  • Page 55: Chapter 4: Troubleshooting

    No audio or Bypass Audio is Unit set in bypass mode Change to channel available present Will not acquire Port not configured Check port configuration; check manual frequency tune Incorrect language Wrong language setting Check language screen settings DSR4410...

  • Page 57: Chapter 5: Signal Flow

    RF Input Video with SDRAM 64MByte Aux Audio In Tuner Primary Audio BCM7320 SPI I/F Secondary Audio Media Cipher Transport stream Relay CCIR656 Video Alarm FPGA Cable 10/100 +28V Driver +20V POWER SUPPLY Video w/o Cue-tone 10/100 Ethernet -5.2V DSR4410...

  • Page 59: Chapter 6: Product Support

    If located in another country, dial the in-country toll-free number shown in column two of the chart below. Next, enter the toll-free Hotline number 1-858-404-2992, or an operator will ask you for it. Table 6-1 Hotline Toll-Free Numbers COUNTRY IN-COUNTRY TOLL-FREE NUMBER COMMENTS Argentina 001-800-200-1111 Belize Note 1 Bolivia 0-800-1112 Brazil 000-8010 Chile 123-0-0311 DSR4410...
  • Page 60 Table 6-1 Hotline Toll-Free Numbers COUNTRY IN-COUNTRY TOLL-FREE NUMBER COMMENTS China (PRC) 10810 Colombia 980-11-0010 Costa Rica Ecuador 000-119 El Salvador Guatemala Guyana Honduras Note 2 Hong Kong 800-1111 Korea 00911 Mexico 95-800-462-4240 Note 3 Nicaragua Panama Paraguay 0081-800 Note 2 Peru Note 2 Suriname...

  • Page 61: Ird Repair Procedures

    IRD Repair Procedures Motorola BCS has established policies and procedures for servicing and repairing its IRD products. As a system operator, return an IRD to a Motorola BCS Repair Center in accordance with the procedures outlined below. Shipping IRDs for Repair •...
  • Page 62 • Non-warranty repaired or replacement IRDs will carry a 90-day limited warranty. • Motorola BCS will replace at full price and with a 90-day limited warranty any IRD returned for repair (warranty or non-warranty) that determines, in its sole discretionary judgment, has undergone tampering.

  • Page 63: Chapter 7: Conversion Tables

    -Downlink frequency (MHz) -3,740 MHz L-band frequency (MHz) 1,410 MHz Calculation for Ku-Band Transponders Example calculation if downlink Formula for Ku-band frequency: frequency = 12,019 MHz: Downlink frequency (MHz) 12,019 MHz -10,750 (MHz) -10,750 MHz L-band frequency (MHz) 1,269 MHz DSR4410...

  • Page 65: Chapter 8: Diagnostic Display

    The On-Screen Diagnostic (OSD) display contains many fields of information that indicate the status and history of the receiver. The Fast Facts menus are a summary of the information contained in the other menus. Fast Facts 1 Fast Facts 2 DSR4410...
  • Page 66 Fast Facts 3 Fast Facts 4 Diagnostics Screen A Diagnostics Screen B...
  • Page 67 Diagnostic Display Diagnostics Screen C Diagnostics Screen D DSR4410...

  • Page 69: Chapter 9: Language Abbreviations

    Refer to Language Menu operation. LANGUAGE ABBREVIATION LANGUAGE ABBREVIATION Arabic Japanese Armenian Javanese Balinese Kashmiri Basque Korean Batak (Indonesian) Kurdish Bengali Latin Bhojpuri Malay Bulgarian Mandar Burmese Marathi Catalan Miscellaneous Lang. Chinese Mongolian Croatian Nepali Cue (Tones) Norwegian Czech Otomian Lang. Danish Pahlavi DSR4410...
  • Page 70 LANGUAGE ABBREVIATION LANGUAGE ABBREVIATION Dutch Panjabi Egyptian Persian English Philippine (Other) Esperanto Polish Faroese Portuguese Finnish Rajasthani French Romanian German Russian Greek Samoan Gujarati Scots Hebrew Sindhi Hindi Swahili Hiri Motu Swedish Hungarian Tagalog Indonesian Tamil Interlingua Thai Iranian Urdu Irish Vietnamese Italian...

  • Page 71: Chapter 10: Dsr4410 Specifications

    DSR4410 Specifications Table 10-1 Input Frequency Range 950-2150 MHz Input RF Level -25 to -65 dBm RF Port Impedance 75 Ohms RF Port Return Loss 8 dB minimum Port-to-Port Isolation 40 dB minimum Table 10-2 VIDEO Frequency response ±0.9 dB (1 kHz to 4.2 MHz) NTSC ±0.9 dB (1 kHz to 4.8 MHz) PAL...
  • Page 72 Table 10-3 TRANSMISSION STANDARD DCII Symbol Rates 3.25-29.27 Msps DCII Code Rates 5/11, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8 DVB Symbol Rates 3.25-30 Msps DVB Code Rates 1/2, 2/3, 3/4, 4/5, 7/8 Table 10-4 AUDIO Output level +16.0 dBm ±1.0 dB into 600 Ohms, attenuation adjustable (0 to -15 dB) Frequency Response ±...
  • Page 73 DSR4410 Specifications Table 10-5 ELECTRICAL Video in/out QTone Screw terminal Audio in/out Screw terminal ISOC data Screw terminal Contact Closure Screw terminal BNC connector Table 10-6 MECHANICAL Dimensions H 3.1" (4.4 cm) x W 19.0" (48.3 cm) x D 20.50" (52 cm) Weight 12 lbs.
  • Page 75 (iv) if any IRD has had its housing opened. Motorola BCS shall have no liability to any third person or entity in relation to any warranty or representation which purports to extend, alter, or modify the limited warranty terms set forth above.
  • Page 76 Motorola Broadband Communications Sector 6450 Sequence Dr. San Diego, CA 92121 Publication #495018-001 Rev. A...
