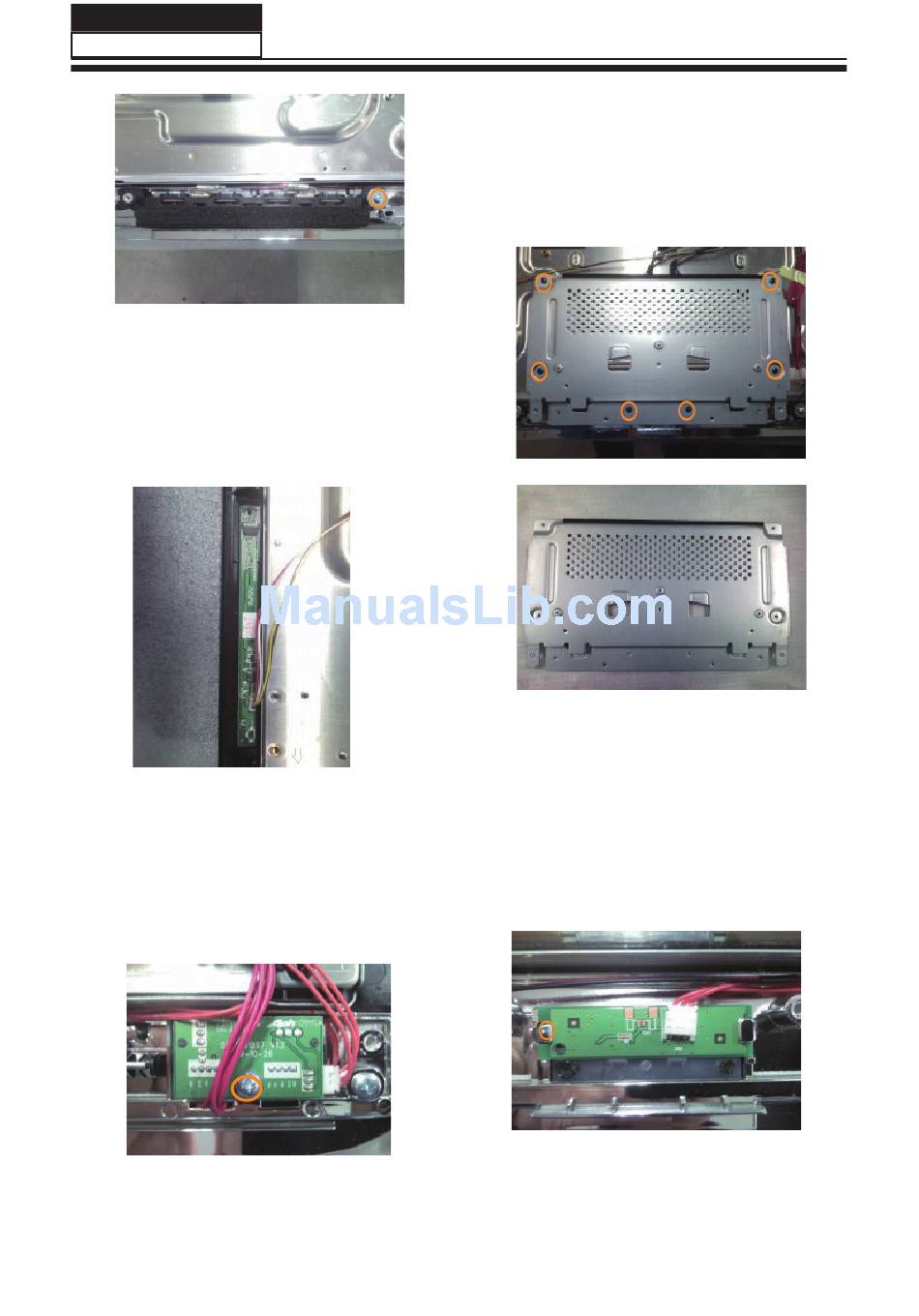

3-6. Remove the Keypad
The Keypad is conglutinated with front frame
, just uncover the keypad gently.
Then remove the keypad.
3-7. Remove the Remote Control
Board
Remove the screw indicated by the red
circles in below picture.
Take out the remote control board.
12
3-8. Remove the Stand backstop
Remove the six screws indicated by the red
circles in below picture.
Take out the stand backstop.
3-9. Remove the indicator light
The indicator light is buckled into the front
frame,remove the clasp indicated by the red
circles in below picture.
Take out the indicator light.
