V
SRX210 Services Gateway
Use the instructions in this guide to help you connect the SRX210 Services Gateway to your network. For details, see the
SRX210 Services Gateway Hardware Guide at http://www.juniper.net/techpubs/a057.html.

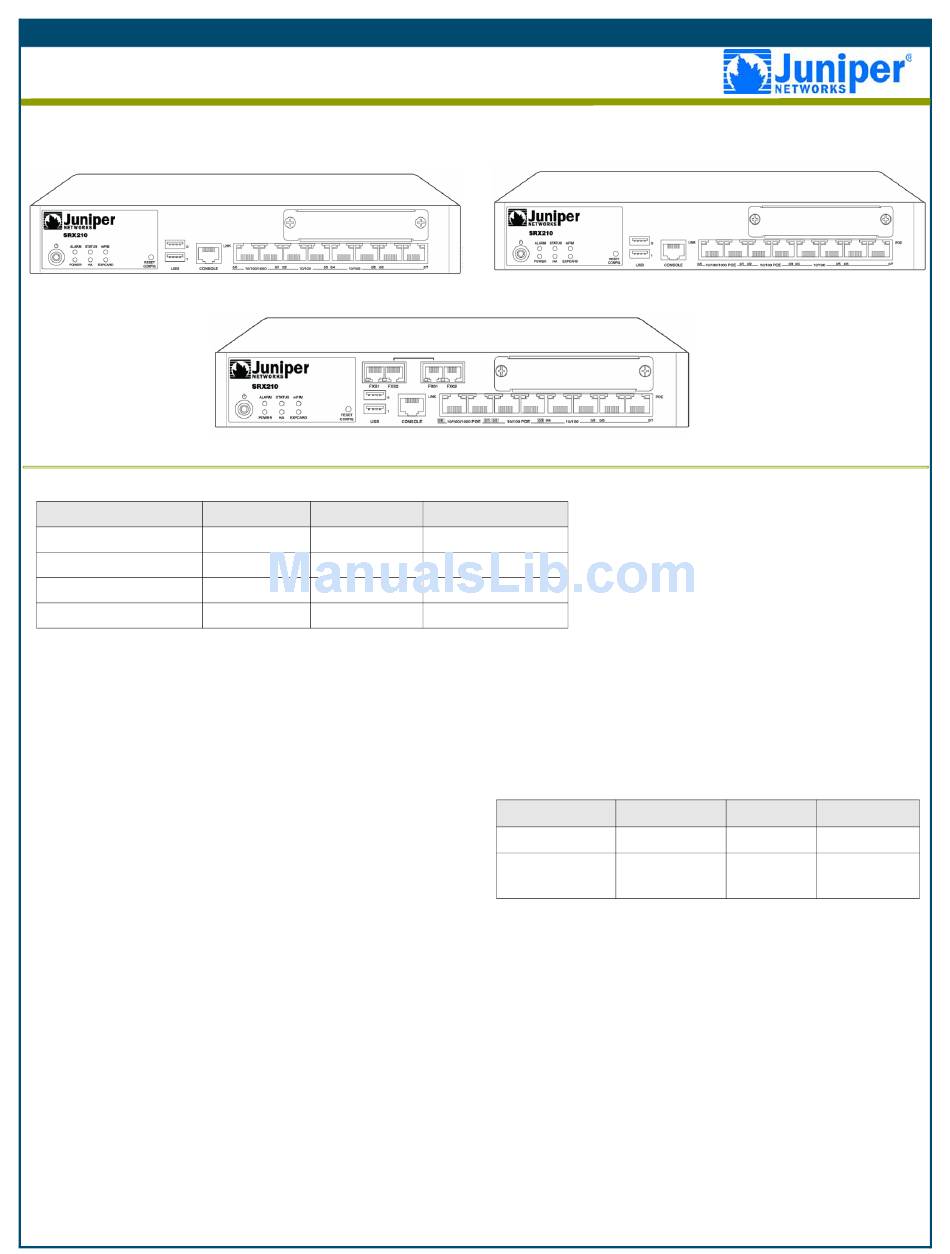

SRX210 Services Gateway (Low Memory and High Memory)
The following four types of SRX210 Services Gateways are available:
Device
SRX210B
SRX210H
SRX210H-POE
SRX210-P-MGW
PART 1 - CONNECTING AND CONFIGURING THE DEVICE
Use the instructions below to connect and set up the SRX210 Services Gateway to protect your network. Refer to the LEDs on the
front panel of the device to help you determine the status of the device.
Step 1
Connect the power cable to the device and a power source. We
recommend using a surge protector. Note the following indications:
Power LED (green): The device is receiving power.
Status LED (green): The device is operating normally.
Note: You must allow the device between 5 and 7 minutes to boot up after
you have powered it on. Wait until the Status LED is solid green before
proceeding to the next step.
Step 2
Connect the management device to the services gateway using either of
the following methods:
Connect an Ethernet cable from one of the following ports to the
Ethernet port on the management device (workstation or laptop):
• ge-0/0/1
• fe-0/0/2 through fe-0/0/7
We recommend this connection method. If you are using this
method to connect, proceed with Step 3.
Connect an RJ-45 cable from the console port to the supplied DB-9
adapter, which then connects to the serial port on the management
device. (Serial port settings: 9600 8-N-1-N).
If you are using this method to connect, proceed with the CLI
configuration instructions available in the Quickstart Guide for
Branch SRX Series Services Gateways at
http://www.juniper.net/us/en/local/pdf/app-notes/3500153-en.pdf.
SRX210 Services Gateway with Integrated Convergence Services
DDR Memory PoE
512 MB
No
1 GB
No
1 GB
Yes
1 GB
Yes
SRX210 Services Gateway (Power over Ethernet)
Voice Support
Note: On the SRX210H-PoE and SRX210-P-MGW
No
models, Power over Ethernet (PoE) of 50 watts is
supported across 4 ports (ge-0/0/0, ge-0/0/1, fe-0/0/2,
No
and fe-0/0/3).
No
Yes
Step 3
Ensure that the management device acquires an IP address on the
192.168.1/24 subnetwork (other than 192.168.1.1) from the device.
The interfaces have following factory-default settings:
Interface
ge-0/0/0
ge-0/0/1 and fe-0/
0/2 to fe-0/0/7
Notes:
The services gateway functions as a DHCP server and will assign an IP
address to the management device.
If an IP address is not assigned to the management device, manually
configure an IP address in the 192.168.1.0/24 subnetwork. Do not
assign the 192.168.1.1 IP address to the management device, as this IP
address is assigned to the device. By default, the DHCP server is
enabled on the L3 VLAN interface, (IRB) vlan.0 (ge-0/0/1 and fe-0/0/2
to fe-0/0/7), which is configured with an IP address of 192.168.1.1/24.
When an SRX210 Series Services Gateway is powered on for the first
time, it boots using the factory default configuration.
Step 4
Access the J-Web interface:
1.
Launch a Web browser from the management device.
2.
Enter 192.168.1.1 in the URL address field.
Specify the default user name as root. Do not enter any value in the
3.
Password field.
Getting Started Guide
Security Zone
DHCP State IP Address
untrust
client
trust
server
unassigned
192.168.1.1/24
