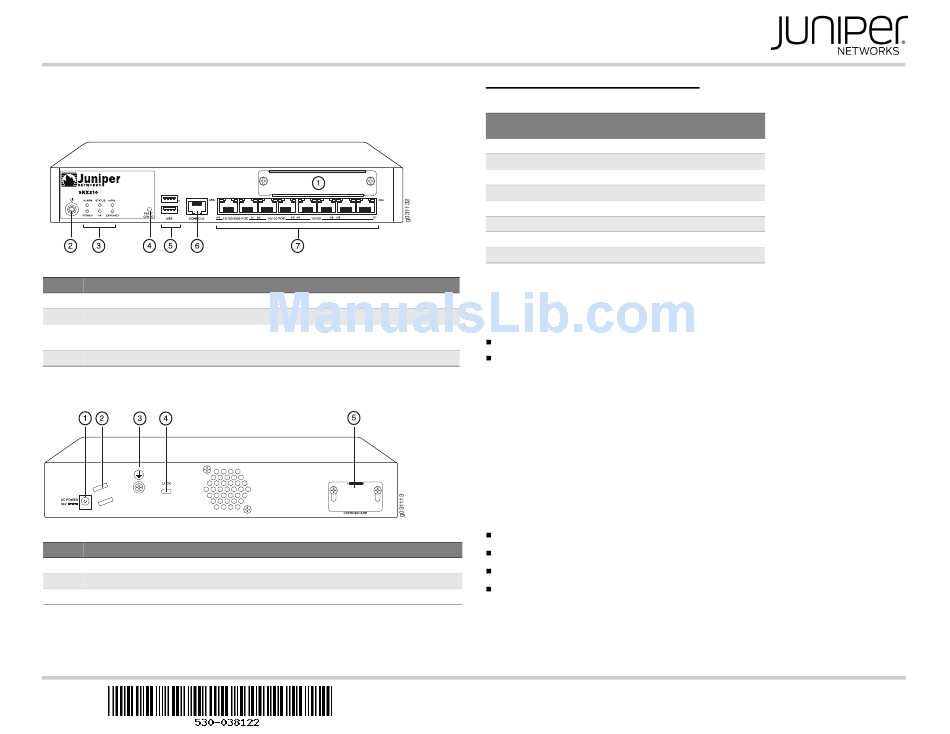

SRX210 Services Gateway Quick Start
Use the instructions in this quick start to help you connect the SRX210 Services
Gateway to your network. For details, see the SRX210 Services Gateway Hardware
Guide at http://www.juniper.net/techpubs/a057.html .
SRX210 Services Gateway Front Panel
Callout Description
1
Mini-PIM slot
2
Power button
3
LEDs (ALARM, POWER,
STATUS, HA, mPIM, EXPCARD)
4
Reset Config button
SRX210 Services Gateway Back Panel
Callout Description
1
Power supply input
2
Cable tie holder
3
Grounding point
Callout
Description
5
USB ports
6
Console port
7
Gigabit Ethernet (0/0 and 0/1) and Fast
Ethernet (0/2 to 0/7) ports
Callout
Description
4
Lock for security cable
5
ExpressCard slot
SRX210 Services Gateway Models
The following models of SRX210 Services Gateways are available:
Device
DDR Memory
SRX210B
512 MB
SRX210H
1 GB
SRX210H-POE
1 GB
SRX210BE
512 MB
SRX210HE
1 GB
SRX210HE-POE
1 GB
SRX210HE-TAA
1 GB
SRX210HE-POE-TAA
1 GB
On the SRX210H-POE, SRX210HE-POE and SRX210HE-POE-TAA models, Power
over Ethernet (PoE) of 50 watts is supported across four ports (0/0, 0/1, 0/2, and 0/3).
Note that you must use the following power supply adapters (supplied) for your services
gateway:
54V, 150 watts power supply adapters for PoE models
12V, 60 watts power supply adapters for non-PoE models
Connecting and Configuring the SRX Series Device
Follow the instructions to connect and set up the SRX210 Services Gateway to protect
your network. Refer to the LEDs on the front of the device to help you determine the
status of the device.
Overview
The SRX210 Services Gateway is a security device that requires the following basic
configuration settings to function:
Interfaces must be assigned IP addresses.
Interfaces must be bound to zones.
Policies must be configured between zones to permit or deny traffic.
Source NAT rules must be set.
The device has the following default configuration set when you power it on for the first
time. To use the device, you do not need to perform any initial configuration.
Power over
Ethernet
No
No
Yes
No
No
Yes
No
Yes
