GE Concord 4 Quick Setup Manual page 2

Home security system

Hide thumbs Also See for Concord 4:

b. Programming Hardwired Zones

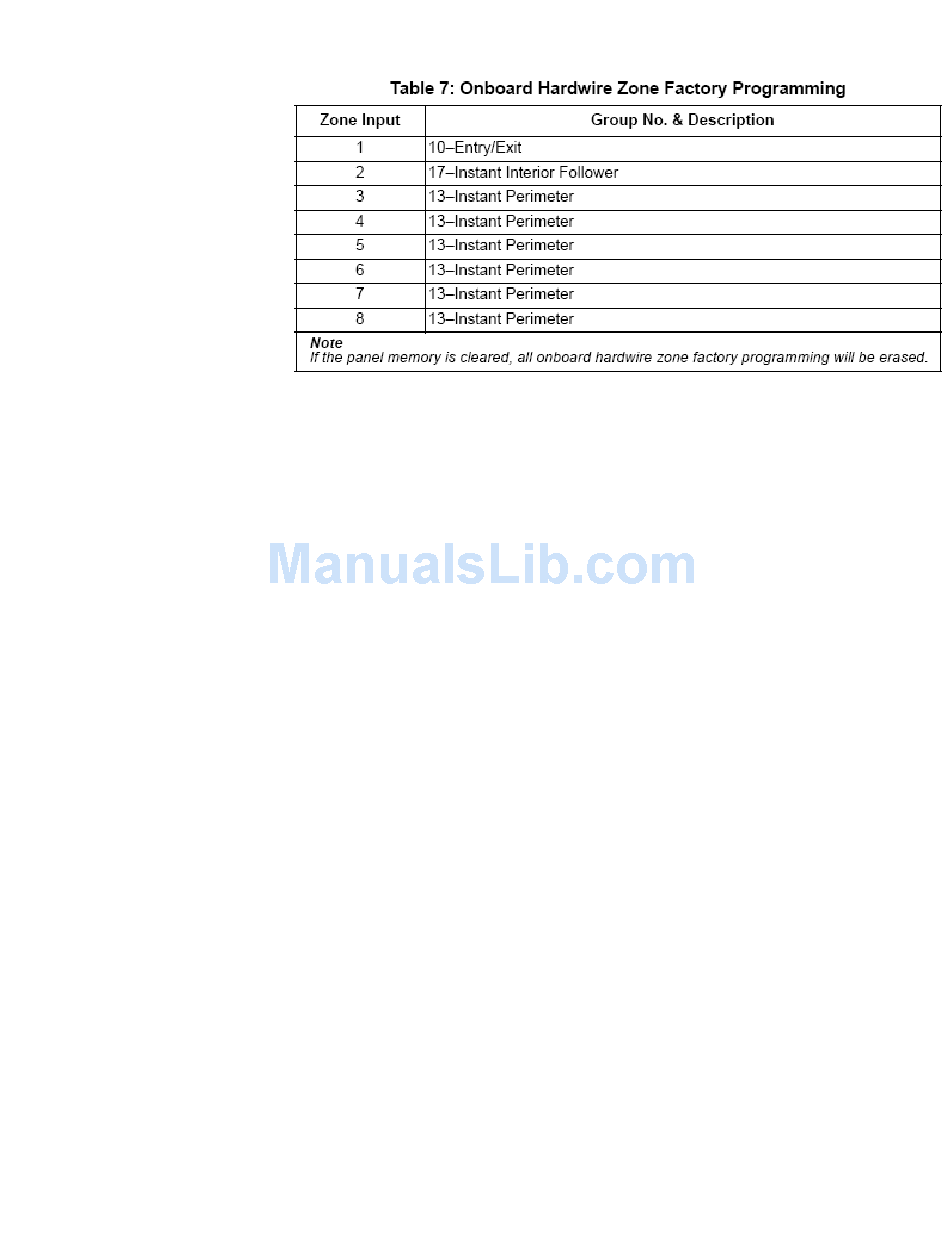

i. Zone Groups are pre-programmed for the 8 hardwired zones.

1. Entry Exit Delay – For Doors that require a delay for entry or

exit

2. Instant Interior Follower – For motion detectors that will

arm instantly.

3. Instant Perimeter – For all doors/window sensors, glass

break detectors that do not require a delay.

ii. **Change the "Pre-Programmed" Zone Settings:

1. Once you are in the programming mode, press B until the

display shows "Sensors", and press # to select

2. Now Press B until the display shows "Edit", and press # to

select.

3. Press A or B to scroll to the zone number you desire to change

press # to select

4. Enter the desired partition number, and then press #. (Most Applications the

Partition is always 1) The display shows the new partition assignment.

5. Press A or B and the display shows

assignment)

Enter the desired group number, (See appendix B in Installation Manual) then

press #. The display shows the new group assignment.

c. Programming Wireless Zones

i. With the display showing SENSORS, press # and the display shows "Learn Sensors"

ii. Press # and the display shows Sensor PTN 1

iii. Press # to select partition 1 or press 2, 3, 4, 5, or 6 + # to select the desired partition

(Typically is always Partition 1). The display should show "Sensor Group 0"

iv. Enter the desired sensor group number and press # to select (see Table B1 in "Appendix

B" for a description of all sensor group characteristics). The display shows TRIP

SENSOR nn, where nn is the displayed (next available) sensor number.

v. To change the displayed sensor number, enter the desired sensor number + #. The desired

sensor number is displayed.

vi. With the desired sensor number displayed, use the guidelines in Table 6 to force the

sensor or zone you are adding (learning) into the panel memory to send a signal to the

panel.

vii. To add another sensor to the same sensor group and partition, go back to step 5.

viii. To add sensors to another sensor group or partition, press * twice and go back to step 1

(LEARN SENSORS).

(current group

SENSOR GROUP nn
