DynaColor HCR series User Manual

DynaColor HCR series User Manual

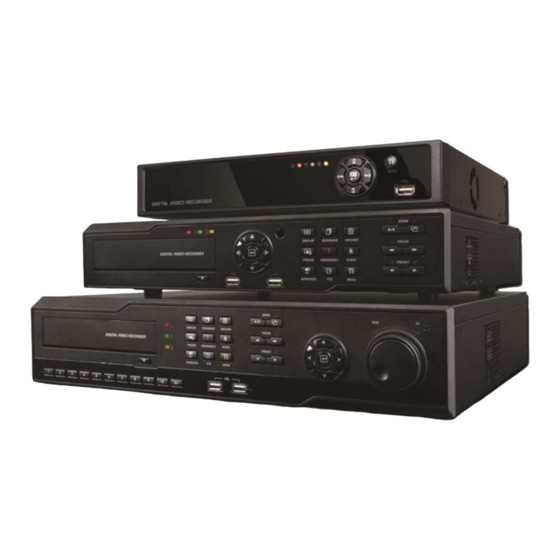

Premium standalone digital video recorder 4, 8, 16 channel models
Table of Contents

Advertisement

Standalone Digital Video Recorder
Premium DVR
4, 8, 16 Channel Models
User`s Manual
MADE IN KOREA
M2302AMDFR
AMD6
This document contains preliminary information and is subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCR series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DynaColor HCR series

  • Page 1 Standalone Digital Video Recorder Premium DVR 4, 8, 16 Channel Models User`s Manual MADE IN KOREA M2302AMDFR AMD6 This document contains preliminary information and is subject to change without notice.
  • Page 2 FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Cautions This product has free voltages (100V and 240V). See installation instructions before connecting to the power supply. This product uses a Lithium battery. To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. Dispose of used batteries according to the manufacturer’s instructions.
  • Page 4 12. Servicing Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage Requiring Service Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: ① When the power-supply cord or the plug has been damaged. ②...
  • Page 5 The List of Configuration A Type : 4 / 8 / 16CH B and D Type : 4 / 8 / 16CH DVR Set C, E, F, G, H, I and J Type : 4 / 8 / 16CH Remote Controller Manual Screws HDD Brackets...
  • Page 6 Adapter (Except F, I and J Type Model)
  • Page 7: Operation Precautions

    Operation Precautions Power Off Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shutdown completely.
  • Page 8: Table Of Contents

    Table of Contents Server 4.4.4 Alarm In ............... 50 4.4.5 Alarm Out ..............51 PRODUCT FEATURES ............10 4.4.6 Serial In ............... 51 Unpacking ................10 RECORD ................52 4.5.1 Setting ................. 52 4.5.2 Schedule ..............57 Service ................. 10 4.5.3 Pre Alarm ..............
  • Page 9 Live Video ................82 12.2.1 System Requirements ..........111 8.3.1 Network Connection ............. 82 12.2.2 Installation ..............111 8.3.2 Watch Mode ..............83 12.2.3 Site Registration ............112 8.3.3 Multi Screen ..............84 12.2.4 Connection ..............113 8.3.4 Screen Color Adjustment ..........84 12.2.5 Search ...............
  • Page 10: Product Features

    1. Product Features 1.1 Unpacking This equipment is an electronic appliance, so it should be handled with special care. After unpacking, please check if all the following items are included. - DVR Main body A Type : Power Supply Adapter (DC 12V, 3.33A) and Power Supply Cable B, C and D Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable E, G and H Type...
  • Page 11 B Type – 4 / 8 / 16 channel Series DVR...
  • Page 12 C Type – 4 / 8 / 16 channel Series DVR...
  • Page 13 D Type – 4 / 8 / 16 channel Series DVR...
  • Page 14 E Type – 4 / 8 / 16 channel Series DVR...
  • Page 15 F Type – 4 / 8 / 16 channel Series DVR...
  • Page 16 G Type – 4 / 8 / 16 channel Series DVR...
  • Page 17 H Type – 4 / 8 channel Series HD-SDI DVR...
  • Page 18 I Type – 4 channel Series HD-SDI DVR...
  • Page 19 J Type– 16 channel Series Hybrid DVR...
  • Page 20: Installation

    2. Installation 2.1 Hard disk and DVD-RW Installation 2.1.1 SATA Port A Type - Main substrate of this DVR has one SATA port: it is indicated as SATA 1. - Only one SATA device (hard disk) is possible to connect in Serial to the SATA port. B and D Type - Main substrate of this DVR has three SATA ports: they are indicated as SATA 1, 2 and SATA 3.
  • Page 21: Hdd Installation

    2.1.2 Internal SATA Storage (E / F / G / H / I / and J Type) These series DVRs have 5 Internal SATA Ports: The picture below shows internal ports 1-4 SATA Port and 5 SATA Port. 1-3 SATA Port: It is designed to mount HDD. 4 SATA Port: Please mount DVD-RW.
  • Page 22: Maximum Hdd Capacity

    2.1.5 Maximum HDD Capacity Each model has a different HDD capacity recognition. Below table shows the recommended maximum HDD capacity for each model. Model A type B type C type D type E type F type G type H type I type J type Capacity...
  • Page 23: Audio Connections

    If user wishes to hear audio via HDMI cable, check the box HD Audio Output Click the box below to select resolution. - User can select the resolution among ‘1920x1080 RB’, ‘1920x1080’, ‘1680x1050 RB’, ‘1680x1050’, ‘1280x1024’, and ‘1024x768’ - The default setting of DVR is ‘1280 x 1024’. (NOTE) HDMI connection.
  • Page 24: Factory Reset Switch

    2.2.10 Factory Reset Switch Reset the switch to restore all setup values of menus to factory default settings. It is also possible to use to initialize System Log file. The switch is located in a pin hole of the back panel. Put the clip pin into the switch hole on the monitor (Live) screen and keep pressing until the switch has clicked.
  • Page 25: Input Device And Screen Icons

    3. Input Device and Screen Icons 3.1 Key and LEDs B and D Type KEYS PTZ KEY Operating mode Setup mode •Up/Down/Left/Righ ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode t on screen cursor control 1 ~ 10 •...
  • Page 26 C, E, F, G, H, I and J Type KEYS PTZ KEY Operating mode Setup mode •Up/Down/Left/Righ ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode t on screen cursor control 1 ~ 16 • Camera select keys : (4/8/16 channel DVR) DISPLAY •...
  • Page 27: Camera Select Keys For 16 Channel Dvr

    3.2 Camera Select Keys for 16 Channel DVR B and D Type Below shows how to select camera channel for 4 channel DVR - Select Camera No. 1~4: press key and use 1~4 key Below shows how to select camera channel for 8channel DVR - Select Camera No.
  • Page 28: Using A Remote Controller

    B and D Type 4 Channel DVR 8 Channel DVR 16 Channel DVR C, E, F, G, H, I and J Type 4 Channel DVR Channel DVR Channel DVR 3.4 Using a Remote Controller Usage of a remote controller is same as the front panel keys. Follow the procedure below when using the remote controller for multi DVRs.
  • Page 29: Using A Mouse

    3.5 Using a Mouse Mouse provides an easier access to adjustment. Refer to below for proper use. Left mouse button functions the same as Enter ( ) key on the front panel of DVR. Right mouse button displays the following “Function keys” on screen. Click Search menu at “Function Keys”...
  • Page 30: Screen Icon

    3.6 Screen Icon Icon Description Icon Description Continuous recording mode In Audio recording Event recording mode CMS access indication/ No. of accesses (Alarm In/Motion) (up to 4) In recording In channel sequencing PTZ registration / PTZ mode Lock Remote Controller Setup in HDD Overwrite mode Setup in HDD No Overwrite mode Setup in HDD No Overwrite mode...
  • Page 31: Setup

    4. Setup 4.1 Login / Logout At the default setting of DVR, user has to input the password to enter the set up menu. Please press SETUP key to enter the setup menu and the following screen will appear. In order to use all functions and privileges, log in as ID: admin. Default Password is “1111”.
  • Page 32: System

    4.2 SYSTEM 4.2.1 Information Please click ( ) SYSTEM>Information and the following screen will appear. Status Site Description Decide on a name of DVR. Please click ( ) keyboard icon on Site Description frame and the following virtual keyboard will appear. Please click ( ) desired letters (characters) on the virtual keyboard to input.
  • Page 33 Import: Copy the Menu setup stored in USB memory stick into DVR. Please plug in the memory stick and then click ( ) Import. Export: Store the Menu setup of DVR in USB memory stick. Please plug in the memory stick and then click ( ) Export. When user is on Default, Import or Export process, a message box will ask the progress and click the confirmation icon, then a message box will show whether its success or failure.
  • Page 34 User shall designate the total recording days from 1 day to 30 days and unlimited. User may set for beeping or notifying messages that notify the used percentage of disk. Check Disk Overwrite and user may activate the overwrite function. - This function makes restart the recording from the beginning when the HDD is full.
  • Page 35: Admin

    4.2.2 Admin Please click ( ) SYSTEM>Admin and the following screen will appear. Date / Time Date This menu will allow user to adjust the settings. Please follow the procedure below for time adjustment. ① Click ( ) items (Y, M, D) to change. A designated item will be highlighted in a box (Y: Year, M: Month and D: Date). ②...
  • Page 36 Set date indication format. Please click ( ) Date Format frame to select a format from the list. Time Format Set time indication format. Please click ( ) Time Format frame to select a format from the list. When user complete Date/Time input, please click ( ) NTP and the following screen will appear. This menu is for accurate setting of time of day clock in DVR.
  • Page 37 Clicking Up and Down button for checking up the status of HDD and DVD-RW devices. Using E-SATA port will allow users to connect up to maximum 12 HDD +1 DVD-RW. When user installs full storage device and DVD-RW including two e-SATA storage, then following procedures will be listed as below: - 1.
  • Page 38: Account

    Check the square box next to Use On. Through S.M.A.R.T function, make alarm message, indicating HDD damage, will show. Check Beep; it will give the alarm sound, indicating HDD damage, as the SMART setup. Check Blink Message, the alarm message will blink on the OSD, as the SMART setup. If “Use on”...
  • Page 39: New User

    Click ( ) keyboard icon on the right-hand side of Group Name frame. Then, the virtual keyboard will show. Please click ( ) desired characters (up to 8 characteristics) on the virtual keyboard. Do provisioning for Group Name by selectively checking some of the following items (Setup, Search, Network, Archiving and Shut Down).
  • Page 40: System Log

    Click ( ) to delete the set Group or User. User may create up to 8 Groups and 8 Users. Choose ‘OK’ to confirm the setting. Password Resetting Click ID on User column. The following screen will appear. This is a screen for password resetting. Input password by clicking the keyboard icon on the right-hand side of the frame.
  • Page 41: Exit

    System Log displays diverse events as below events by specifying the user account that actually has accessed the DVR. - Setup (Menu) Enter/Exit - Playback Mode Enter/Exit - Network Access Enter/Exit - Archive Success/Fail - System Start/shut down - S.M.A.R.T. Check - NTP Sync/ Server Success/Fail - Send E-mail Success/Fail - HDD Format Success/Fail...
  • Page 42: Osd

    4.3.1 Please click ( ) DISPLAY>OSD and the following screen will appear. The OSD menu will allow user to configure full features (i.e., on/off every letter and icon) displayed on the screen. Letters and icons are divided under System and Camera categories. If click ( ) ‘All’, all items are on/off at once. OSD Margin The OSD Margin menu will allow user to adjust the position of OSD (letters) on the monitor.
  • Page 43: Spot Monitor

    The Main Monitor menu will allow user to adjust channel sequencing interval of Main monitor. Full Seq Adjust interval for ‘Full screen sequencing’. Check check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing.
  • Page 44: Spot Monitor Control On Display Mode

    Check (check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing. Adjust the rotation interval of camera by clicking Dwell column. The rotation interval changes to 3>5>10>15>30>60 seconds by each press.
  • Page 45: Vga (D, E, F, G, H, I And J Type )

    Adjust interval for ‘X4 Split Screen sequencing’. Check check box next to the camera that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing. Adjust the rotation interval of camera by clicking Dwell column. The rotation interval changes to 3>5>10>15>30>60 seconds by each press.
  • Page 46: Devices

    Once it has changed, it will ask to reboot for the new recognition of video out method The default value is NTSC CAUTION ALTHOUGH USERS TURN ITS SYSTEM SETTING TO DEFAULT, THE ANALOG OUTPUT WILL STAY PREVIOUS OUTPUT METHOD AND NOT EFFECT BY THE DEFAULT SETTING. 4.4 DEVICES Please click ( ) DEVICES and the following screen will appear.
  • Page 47 In DHCP, IP Address, Subnet Mask, Gateway and DNS Server will have input automatically. DNS Server When user set Network Type to DHCP, DNS server will be inputted automatically. When user set Network Type to Static, please click ( ) the keyboard icon on the right-hand side of DNS Server frame and manually input the address.
  • Page 48 Choose ‘OK’ to confirm the setting. Port Please click ( ) Port and the following screen will appear. Network Throat is for setting an average transfer speed. Please choose the suitable speed according to the users’ network environment. If users want to use dual streaming, please click on the check box beside the “Enable Dual Streamming”. If not, please uncheck the check box.
  • Page 49: Camera / Ptz

    The Notification menu allows to send users the message of the Event occurred in DVR via E-Mail. Click ( ) the keyboard icon on the right-hand side of Add E-Mail frame and the virtual keyboard will appear. Please register E-Mail address. E-Mail address should contain @. Click ( ) the keyboard icon on the right-hand side of SMTP Server frame and the virtual keyboard will appear.
  • Page 50: Audio Bind To Cam

    ), MAKE SURE CHANNELS OF LARGE NUMBERS ARE EXCLUDED FIRST. If a check box is checked on Covert column, a video is recorded but is not displayed on the monitor. Click ( ) each frame on PTZ column to select PTZ protocols connected to a corresponding camera. Click ( ) each frame on Set to set PTZ Settings connected to a corresponding camera.
  • Page 51: Alarm Out

    The Alarm In menu will allow user to give title and to select the type of Alarm input. Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, please register the title of Alarm input.
  • Page 52: Record

    4.5 RECORD Please click ( ) RECORD and the following screen will appear. 4.5.1 Setting Please click ( ) RECORD>Settings and the following screen will appear. There are three kinds of recording mode. - Continuous: record continuously. - Event: record only when Sensor or Motion calls. - Emergency: record when press EMERGENCY key.
  • Page 53 F Type NTSC(PAL) 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 8 Channel DVR 240 (200) 240 (200) 240 (200) 16 Channel DVR 480 (400) 480 (400) 480 (400) -HD-SDI Type- G Type 360x 240(288) 720x240(288) 720x480(576) 1280 x 720 1920 x 1080 4 Channel DVR 120(100) 120(100)
  • Page 54 NOTE For G and H Type, all channels must use same format. For example, if the input signal is 720p, then all input signal need to be 720p. (Auto Selection) Event Please click ( ) Event and the following screen will appear. The Event menu will allow user to set Event videos.
  • Page 55 8 Channel DVR 240(200) 240(200) 240(200) 16 Channel DVR 480(400) 480(400) 480(400) I Type 360x 240(288) 720x240(288) 720x480(576) 1280 x 720 1920 x 1080 4 Channel DVR 120(100) 120(100) 120(100) 8 Channel DVR 240(200) 240(200) 240(200) 16 Channel DVR 480(400) 480(400) 480(400) J Type...
  • Page 56 camera. Below lists the maximum recording rate of each camera. A, B and C Type NTSC(PAL) 360x240 (360x288) 720x240 (720x288) 720x480 (720x576) 4 Channel DVR 120 (100) 120 (100) 60 (50) 8 Channel DVR 240 (200) 120 (100) 60 (50) 16 Channel DVR 480 (400) 240 (200)
  • Page 57: Schedule

    Click ( ) each frame on ‘Duration’ column to select recording duration (i.e., 1 second ~3 hours) of a corresponding camera. User may change the setting values of Resolution, Frames, Quality and Duration at a time by clicking the menu tab. Choose ‘OK’...
  • Page 58: Pre Alarm

    Motion / Alarm In Motion / Alarm In / Continuous Motion / Alarm In / PreAlarm Choose ‘OK’ to confirm the setting. (NOTE) Holiday (H) registration is done with a separate menu. 4.5.3 Pre Alarm Please ( ) RECORD>Pre Alarm and the following will appear. Pre Alarm is effectively used when user selected recording mode by Alarm or Motion.
  • Page 59: Motion Detection

    8 Channel DVR 240(200) 240(200) 240(200) 16 Channel DVR 480(400) 480(400) 480(400) H Type 360x 240(288) 720x240(288) 720x480(576) 1280 x 720 1920 x 1080 4 Channel DVR 120(100) 120(100) 120(100) 8 Channel DVR 240(200) 240(200) 240(200) 16 Channel DVR 480(400) 480(400) 480(400) I Type...
  • Page 60: Holiday

    The Motion Detection menu will allow user to set Motion detection alarm. Press SETUP key (or right mouse button) and the SETUP menu will appear. SETUP menu descriptions. - Camera: select camera for setup. - Sensitivity: select sensitivity (Low, Normal and High) - Reverse Vert: activate the entire column at the cursor’s position.
  • Page 61: Alarm In

    The LINK menu will allow user to set recording modes of all kinds of alarms (Sensor, Motion Event, Video loss, System Event, etc.), alarm output, e-mail notification and the like. 4.6.1 Alarm In Please click ( ) LINK>Alarm In and the following screen will appear. Select cameras for recording while the motion sensor is in operation and alarm outputs and set up E-mail addresses for notification.
  • Page 62: Video Loss

    Select cameras for recording while the motion sensor is in operation and alarm outputs and set up E-mail addresses for notification. Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. Please follow the setup procedures below. ① Click ( ) Motion Event frame and select Motion Event 1. ②...
  • Page 63: System Event

    Choose ‘OK’ to confirm the setting. 4.6.4 System Event Please click ( ) LINK>System Event and the following screen will appear. Select recording cameras and alarm outputs while Emergency recording using EMERGENCY key and set E-mail addresses for notification. Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. Please follow the setup procedures below.
  • Page 64: Operation Instruction

    5. OPERATION INSTRUCTION 5.1 Viewing 5.1.1 First Image Power on DVR and the following live video will appear, while viewing and recording at the same time. The screen will display date/time and icons below. Icon Description Continuous recording mode Event recording mode (Alarm In/Motion) In recording PTZ registration/PTZ mode In Audio recording...
  • Page 65: View Format

    (NOTE) When front key does not work well, please check whether the audio icon is activated on the screen. 5.1.2 View Format The available view formats when the Main Monitor is in viewing mode include Full Screen, Split Screen, Channel Sequencing Screen and PIP screen.
  • Page 66 In Pan/Tilt mode, the icon is displayed on the bottom of the screen. Following is the key usage found in Pan/Tilt mode. Function ▲, ▼, Up/Down/Left/Right rotation Zoom out Zoom in Focus near Focus far Iris Close Iris Open Save Preset Go to the Preset Go to OSD main menu Run Group Tour 1~9...
  • Page 67: System Log

    5.1.6 System Log Press EVENT key and the System Log screen will appear. Please refer ‘SETUP>SYSTEM>System Log’ to learn different events listed on the System Log and see how to delete the System Log. 5.1.7 Key Lock Press AUDIO>FF>FORWARD keys in sequence to operate the key lock function. This function is indicated by icon in the lower portion on the right-hand side of the screen.
  • Page 68: Date / Time Search

    5.2.1 Date / Time Search Please click ( ) Date/Time Search in SEARCH menu and the following input box will appear. Follow the procedure below to search video by date/time. ① Click ( ) the date and/or time whichever user needs to change and block the item. The designated item will be marked in a square.
  • Page 69: Event Search

    ⑤ The screen will show selected date/time. ⑥ Click ▲▼ button for selecting cameras. ⑦ Selected camera will show the time bar 0-60 and It will be marked on 2.5minutes basis during selected time zone. ⑧ Click ( ) the box on the time indication bar to select the start time of the video playback Click ( ) Search key to start playing back the selected video.
  • Page 70: One-Touch Playback

    - Archive: The Archive function will allow user to copy the recorded video (moving images and still images) from a storage device (USB memory stick, DVD-RW). - Exit Search: From playback display to live display. - Cancel: Hide menu in playback mode. Playback mode runs in the available maximum number of split screen format.
  • Page 71: Archive

    5.6 Archive The Backup function will allow user to copy the recorded video (moving images and still images) from a storage device (USB memory stick, DVD-RW). Please execute Backup Live or playback. Follow the backup procedure. ① Press ARCHIVE key. In case of using a mouse, please press the mouse right button and click in Archive. Then, the following screen will appear.
  • Page 72: Menu Bar

    CAUSE PERMANENT DAMAGE TO THE DVR OR THE STORAGE DEVICE. IN SUCH CASE, USER MUST REBOOT THE DVR. IF THE DVR DOES NOT OPERATE PROPERLY, USER MIGHT NEED THE RECOVERY FILE SYSTEM PROGRAM OR MUST IMPLEMENT FORMATING THE HDD. 5.7 Menu Bar Menu bar enables users to control all function as front button on the OSD screen.
  • Page 73: Color Control And Position

    5.8 Color Control and Position Please click ( ) Color /Alarm in SEARCH menu and the following input box will appear. (NOTE) THIS FUNCTION IS ENABLED ONLY WHEN LIVE MODE AND 1 CHANNEL MODE If user clicks (Default), proper number of Color Control or HSTART/VSTART will appear automatically. Please choose ‘OK’ to confirm the setting.
  • Page 74 Please click ( ) Color / Alarm in SEARCH popup menu or in front panel and the following input box will appear. Choose ‘Close’ to confirm the setting. CAUTION ALTHOUGH USERS TURN ITS SYSTEM SETTING TO DEFAULT, THE ANALOG OUTPUT WILL STAY PREVIOUS OUTPUT METHOD AND NOT EFFECT BY THE DEFAULT SETTING.
  • Page 75 Intuitive CMS (Central Monitoring Station) User`s Manual...
  • Page 76: Program Installations

    This document contains preliminary information and is subject to change without notice. 6. PROGRAM INSTALLATIONS 6.1 System Recommendations Power on DVR and the following live video will appear, while viewing and recording at the same time. - Processor: Intel Pentium(R) (at 2.8GHz or higher) - Memory: 1.00GB or more - Video: 128 MB AGP VGA card, 1024 x 768 Resolution, 32-bit Color, DirectX®...
  • Page 77: Login

    ⑥ When the following screen appears, select folder and click Next. ⑦ When the following screen appears, click Install. ⑧ When the following screen appears, click Finish to complete the installation. 6.3 Login After install CMS software, CMS icon below appears on desktop. Please double click on the icon to execute the program.
  • Page 78: Function And Instructions

    7. FUNCTION AND INSTRUCTIONS Below lists are functions of the program. ICON ICON NAME WATCH MODE SEARCH MODE REMARKS System Log DVR System Log PTZ Control DVR PTZ Control System Health Check DVR System Health Check DVR Data Playback DVR Data Playback CMS(PC) Data Playback CMS(PC) Data Playback DVR Event Record Data...
  • Page 79: Watch Mode

    8. WATCH MODE 8.1 LOGIN Screen When user login CMS, the following screen will appear. This screen is of Watch mode. Because it is not connected to DVR, images do not show. Please do Local Setting first before connecting to DVR. 8.2 Local Setting Please click LOCAL SETTING button of Toolbar and the following screen will appear.
  • Page 80: Remote Site

    - Manager/User: allow user to authority. Save Option: allow user to select Drive(C, D) and folder to save data. Choose ‘OK’ to confirm the setting. 8.2.2 Remote Site This menu is for Network setup. Make CMS IP address and Port coincide with DVR. Remote Site Connection Setup - Site Name: input DVR site name to be displayed on the right-hand side of DVR icon.
  • Page 81 - Click “Scan DVR” button then IP address of DVR will be listed which is currently connected with PC in the network. - Select the IP address and click “Add site” then the connected DVR is automatically registered in the CMS. Camera Name - It helps to set the camera name in CMS program other than DVR camera name.
  • Page 82: Live Video

    8.3 Live Video 8.3.1 Network Connection As the setup is completed, user should connect CMS to DVR over Network. Please click in REMOTE DVR on the screen. It will turn to blue, while being activated. Please click REMOTE CONNECT button. If a popup window for ID/Password appears, please input ID/Password.
  • Page 83: Watch Mode

    The list below describes functions of each part of the screen. Tool Bar Watch Mode Date/Time LED Site Tree (DVR and Channels) Color Control Bar Instant Record Button System Log Alarm Out Channels Audio Channels Two way Audio Video Display Screen Network Connect/Disconnect Button/Exit CMS 8.3.2 Watch Mode...
  • Page 84: Multi Screen

    64-Split Screen Mode: Click on 64-SPLIT button and 64-split screens will display. Zoom Mode: Click on Zoom button. Then, the setup screen will disappear and only the video image will be zoomed in(scaled to fit the screen). To cancel, please press the right mouse button. E Map: load and close E Map image program.
  • Page 85: System Log

    8.3.6 System Log Click on LOG button on Watch screen. This will allow user to check System Log of Remote Site (DVR). 8.3.7 Alarm Out This is for operating Alarm Out of a selected DVR from a remote distance. Click a channel number and Alarm Out of the corresponding channel will operate. If user sees an intruder, use this function to turn on a siren in an area where the DVR is installed.
  • Page 86: Health Check

    ② Up/Down/Left/Right direction buttons Zoom In / Zoom Out Focus Far / Focus Near Iris Open / Iris Close Preset Control / Go to Preset ③ Preset Control button The completed Preset Click on Preset Control button and the following screen will appear. Please input Title and Preset Number. When user completes the inputting, please choose ‘OK’...
  • Page 87: Camera Connections And Operating Status

    The list below describes functions of each part of the screen. CMS connections (up to 4) Camera connections and operating status HDD connection and its operating status Recording status Motion recording status Alarm In connection and operating status Alarm Out connection and operating status Version Recording start/end date and time 8.5.1...
  • Page 88: Alarm Out Connection And Operating Status

    Recording is stopped. Above the maximum number of cameras allowed. 8.5.6 Alarm Out Connection and Operating Status Camera is in normal operation. Recording is stopped. Above the maximum number of cameras allowed. 8.6 Remote Setting User may change DVR’s Menu setup through CMS. Remote Setting works only in Watch mode.
  • Page 89: Search Mode

    9. SEARCH MODE 9.1 Search Screen This menu is for playing back recorded data. Click on REMOTE SEARCH button in Watch mode and the following Screen mode screen will appear. Search mode provides three search functions. One is for searching DVR video by clicking REMOTE SEARCH button and another is for searching video stored in CMS (HDD of PC) by clicking LOCAL SEARCH button and the other is for searching event recorded data stored in DVR by clicking REMOTE EVENT button.
  • Page 90: Remote Search

    9.2 Remote Search The REMOTE SEARCH button allows user to playback recorded video of DVR. Select Date - In Calendar, dates with recorded data are marked in red. - Click the wanted date among the dates marked in red. In background of Time Select Bar, data recorded time is displayed in bar shape.
  • Page 91: Event Search

    9.4 Event Search The REMOTE SEARCH button allows user to search event recorded data of DVR. ① Designate Event Search start time. ② Designate Event Search end time. ③ Select camera (video) to search data. ④ Check a check box (Motion/Alarm In/Emergency/Serial in) Check box. ⑤...
  • Page 92: Print

    9.5.2 Print This is for printing a selected image (within the red outline). Click IMAGE PRINT button and the following screen will appear. Choose ‘OK’ to confirm the setting. Then, the printing proceeds. 9.5.3 Save This is for saving still image(s) in Bitmap or JPEG file. Click IMAGE SAVE button and the following screen will appear.
  • Page 93: Archive

    9.5.4 Archive This is to back up the DVR’s moving image data to EXE file in PC(CMS). Work only in playback mode. Press STOP button first to make sure the playback is stopped and then press ARCHIEVE button. Click ARCHIVE button and the following screen will appear. ①...
  • Page 94: Others

    10. OTHERS 10.1 Viewer The Format of archive file is .exe(executable file). Please double click on the icon to execute the program. PLAY • Playback mode: 1X PLAY • Playback mode: PAUSE PAUSE • Frame-by-frame backward still image BACKWARD playback •...
  • Page 95 Please click on the icon to load the image file. To move the icon just drag and drop. You can also rotate the icon. Please click on the icon and input the name of the E Map file to save and execute. Please click on the icon to exit program.
  • Page 96: Watermark Check System

    10.3 Watermark Check System Mouse double click WCS.exe program in the CMS program folder (Default: C:\Program Files\CMS\WCS.exe). To open the check .exe or .jpg or .bmp file just click Load File button. To click the check button, user will get following message; - Result: - Verification OK ! - Corrupted or Modified...
  • Page 97 Both are able to download freely in many web-sites. Select “Start>Programs>CMS>EXE to AVI” to open the program. Click “File Open” and choose an Archived file(EXE format). Click “EXE to AVI File” and select a directory to save the converted AVI file. Select a channel to convert (Only one channel can be converted at once).
  • Page 98 CMS Web Client CMS Web Client User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 99: Cms Web Client

    11. CMS WEB CLIENT 11.1 Setup and Login MS Explorer web browser is required for installation and using this program. Open a browser and type the IP address of DVR. It is required to install ActiveX in the first connection. Basically, Explorer limits automatic ActiveX installation.
  • Page 100: Live Display

    11.2 Live Display After Login, following screen will appear. ② ③ ④ ⑤` The screen contains following features: ① Display current live video ② Setting display mode - Playback : Transferring search mode. - Freeze : Pause current display. - Resume : Resume paused display. - Quit : Finish program and close browser.
  • Page 101: Playback Screen

    11.3 Playback Screen Click [Playback] then following screen will appear. ② ③ ④ ⑤ ⑥ The screen contains following features: ① Searched playback video displays. ② Transferring Live mode. ③ Setting Date/Time to search. - Click a date in calendar, then recorded data will be showed up in Time bar. - Start Time : Setting start time.
  • Page 102 CMS Mobile Viewer CMS Mobile Viewer User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 103: Cms Mobile Viewer

    12. CMS MOBILE VIEWER 12.1 iPhone Mobile 12.1.1 System Requirements There are no other requirements to run this program because it is specialized to perform on iPhone interface. 12.1.2 Installation Turn on the iPhone then connect to App Store. Move to search menu and type “mviewer” then click “ ”.
  • Page 104 Select “ ” program which is offered from dvrdomain by free. When user clicks a “ ” button, it will be turned to “ ” Click “ ” to start installation. If user already has a iTunes account, then input user’s account to download the program. If user does not have the account, then click “...
  • Page 105: Site Registration

    When user registered the account, the program will be automatically installed. 12.1.3 Site Registration Click “ ” icon on iPhone menu then below will show. Move to “ ” and enter site information which are same as CMS site registration. Enter Site Name, IP or DDNS address.
  • Page 106: Connection

    Click “ ” to save the setting. 12.1.4 Connection On “ ” window, click one of the registered site and click “ ”. Click “ ” to connect the DVR to the iPhone. To select other channels, click the channel bar below the Site Name. If users wish to change the channel among 9~16, then click “...
  • Page 107: Search

    12.1.5 Search Users are able to search the recorded data in the mobile CMS program. Click “ ” to use search function of the application. click “ ” for date setting. If users click “ ”, then the month with recorded data will show up. Choose the month that wish to search and click “...
  • Page 108: Ptz Control

    Click “ ” to select the date in the month and click “ ” Click “ ” to select the time of the date of the recorded data. And then search the data with the playback buttons on the search menu. If users wish to change the search speed, then click “1x 아이콘”...
  • Page 109: Information

    Touch and drag upside on the center of the screen to zoom out. Touch and drag downside on the center of the screen to zoom in. Touch sides and corners of the screen to change the direction as user want. Touch right side of the screen to move right and left side to move left.
  • Page 110: Uninstallation

    When disconnecting, please click “ ” and exit the mobile viewer program. 12.1.9 Uninstallation Click the “ ” icon and hold for a while until the program icon shows x mark on the top-left side. Click the “ ” icon then it will ask to delete the program. Click “...
  • Page 111: System Requirements

    12.2.1 System Requirements This program is designed and applied only for Android OS(version 1.6 or higher) based Smart phones. 12.2.2 Installation Turn on the phone then connect to Android Market. Move to search menu and type “mviewer” then select “ ”...
  • Page 112: Site Registration

    The program will be automatically installed in user’s application menu. 12.2.3 Site Registration Click “ ” icon on application menu then below will show. Move to “ ” tab and enter site information which are same as CMS site registration. Enter Site Name, IP or DDNS address.
  • Page 113: Connection

    Click “ ” to save the setting. 12.2.4 Connection Click “ ” icon and select one of the registered site and click “ ”. Move to “ ” tab and click “ ” icon. To change the display mode, click the “ ”...
  • Page 114: Audio

    Users are able to search the recorded data in the mobile CMS program. Click “ ” to use search function of the application. click “ ” to select the month, the date and the time in order. Click “ ” to select the month, the date and the time in order. Users can adjust the speed of playback from x1 to x 64 or extreme.
  • Page 115: Information

    Touch sides and corners of the screen to change the direction as user want. Touch right side of the screen to move right and left side to move left. Touch up side of the screen to move up and down side to move down. In the same way, touch any corners to change the directions.
  • Page 116: Uninstallation

    When disconnecting, please click " ” and exit the mobile viewer program. 12.2.10 Uninstallation Move to Setup > Application > Manage Applications then select “ ”. Click “ ” icon then it will ask to delete the program. Click “ ”...
  • Page 117: Site Registration

    Click “search” icon and type “DVR Viewer” program. Select the “DVR viewer” which is offered from dvrdomain by free and start to install the program by clicking the icon. 12.3.3 Site Registration After downloading the program, click “ ” icon in the download folder or applications folder and the following screen will be shown.
  • Page 118: Connection

    Enter Site Name and IP/Domain. Enter Admin and Stream port. Enter ID and Password. Click “Add” to save the setting. 12.3.4 Connection If the site is registered appropriately, the following screen will be shown. Click “Menu>Connect” to connect the site. Users can select the display mode from 1, 4, 9 and 16 multi view.
  • Page 119: Ptz Control

    12.3.5 PTZ Control Users are able to control PTZ by blackberry phone. Press volume up button on the right side of the phone to zoom in. Press volume down button on the right side of the phone to zoom out. Press 1~9 number buttons to change directions as user want.
  • Page 120: Symbian Mobile

    12.4 Symbian Mobile 12.4.1 System Requirements This program is designed and applied only for Symbian OS based Smart phones. 12.4.2 Installation Turn on the phone then connect to ovi store. Move to “Search all items” and Type “dvr viewer” then click “Search” Select “DVR Viewer “...
  • Page 121 When user clicks a DVR Viewer icon, it will be changed to login page. If user does not have the account, then click “create a Nokia account” and it is registered by free. Type e-mail address and password and select country and type the identified text shown at the below, then you can click “OK”...
  • Page 122: Site Registration

    When users registered the account, then click “download” When downloading has been completed, Click “Launch” to complete the installation. 12.4.3 Site Registration Click “DVR Viewer” icon on Symbian menu then below will show.
  • Page 123: Connection

    Click options and select “New”. Enter the information which is similar as CMS site registration. Enter site Name, IP. Enter Admin/Stream port value. Enter ID/Password Click “Submit” to save the setting. 12.4.4 Connection Click one of the registered site and then select “options” to click “Connect” to choose connection.
  • Page 124 Choose available connection and it will start connecting the DVR to the Symbian. Choose required channel to display. Selected channel will be displayed.
  • Page 125: Ptz Control

    12.4.5 PTZ Control Users are able to control PTZ with Symbian by touching the screen. Touch sides and corners of the screen to change the direction as user want. Touch right side of the screen to move right and left side to move left. Touch up side of the screen to move up and down side.
  • Page 126: Information

    12.4.6 Information Click “Options” and select “About” to check the information of the application. 12.4.7 Disconnection When disconnecting, please click “Disconnect” and exit the mobile viewer program. 12.4.8 Uninstallation Click “option” and select “Remove” to uninstall the program. Click “Yes” button to successfully uninstall the program.
  • Page 127: Windows Mobile

    12.5 Windows Mobile 12.5.1 System Requirements OS : Windows Mobile Professional 6.1 or higher version. Memory : 512Kb or Higher. Device : Smartphone Network : Available all wireless networking method. I.e. Wi-fi, HSDPA, Wibro. 12.5.2 Installation Prepare ActiveSync program to user’s PC. - Available download at following link.
  • Page 128 Click accepting the license agreement, then click “Finish” button. Installation box will appear. Click [OK] to start installation. When installation completed, following pop-up will appear. Click [OK]. If following message appeared, it has successfully installed. (NOTE) Depending on mobile device, successful installation message may not appear. Click [OK] when license agreement message appear.
  • Page 129: Site Configuration

    12.5.3 Site Configuration Click [Add] to appear following screen. Fill in correct information. - Site Name : Insert the name of site. - IP/Domain : Insert the IP address or Domain name of the site. - ID : Input the registered ID of the site. - Password : Input the password of the registered ID.
  • Page 130: Connection

    Correct items then click [Save]. Delete Select a site and click [Del]. Confirmation message will pop up. Click [Yes] then the site information will be removed. 12.5.4 Connection Select a site then click [Connect]. Live display screen of the site will appear if it is successfully connected.
  • Page 131: Uninstall

    Users are able to select a camera by clicking camera button. Click [Disconnect] then, live display screen will be closed and Site list box will appear. 12.5.5 Uninstall Move to [Program Menu> System] then click [Remove Programs]. The currently installed list will show up. Choose Mobile CMS on the list and click [Remove].
  • Page 132 Keyboard Controller Keyboard Controller CP1200A User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 133: Keyboard Controller

    13. KEYBOARD CONTROLLER 13.1 Connection User may connect cameras and Keyboard through DVR in various ways. Below shows the major probable connection methods through RS-485; 13.1.1 Configuration Diagram I Single system configuration (1 Camera, 1 DVR) DVR PTZ Port RS485 RS485 Tx1+ Tx1-...
  • Page 134: Configuration Diagram Iii

    13.1.3 Configuration Diagram III Multiple system configuration (Multi Cameras, Multi DVRs) Max 16 camera RS485 RS485 RS485 RS485 … … … … Multi port Max 16 DVR DVR 1 DVR 2 … … Multi port Please make sure to connect “Tx to Rx “or “Rx to Tx” with positive polarity. (+ to +) and (- to -). 13.2 Keyboard Setup in DVR Enter “Setup>SYSTEM>Information: System ID”...
  • Page 135: Keyboard Configuration

    13.3 Keyboard Configuration 13.4 Operation 13.4.1 DVR/PTZ Mode conversion Press System ID number (For example, ID: 001 press Num Pad ) with button. OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture; Then, user should be able to operate the DVR functions by the keyboard controller.
  • Page 136: Ptz Control Mode

    the PIP channel. In case of 4 or 9 channel screen, it changes the screen to a next one in the sequence. - FREEZ: freeze a current image. - SETUP: pop up Setup window. - PLAY/PAUSE: play/pause recorded data in play mode. - SEARCH: pop up Search window, or switches play mode to search mode.
  • Page 137 Serial In (POS / ATM) Serial In (POS / ATM) User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 138: Serial In (Pos/Atm)

    14. SERIAL IN (POS/ATM) 14.1 Usage of Serial-In Function Enables to record/search/display all transactions on monitoring screen by connecting POS/ATM/Cash Register. User can choose the data whether to record/display on their taste without limitedly designated protocols. 14.2 Connection Method Four ATM/POS channels are available as a default. Connect the USB slot of DVR by using USB to RS-232 Converter Cable and it is available to connect up to 4 serial-in devices by using the converter.
  • Page 139: Link

    14.4 Link 14.4.1 Link Setup Click “Setup>Link>” then shows as below. (NOTE) The above menu is only available on the DVR model with Serial-In function. Click “Serial In” to appear following screen. Select POS/ATM port by clicking ‘Serial In’ button. Assign the port to display/record channel by clicking a “Link Camera”.
  • Page 140: Setup

    Tick the box(□) item Alarm In. Click the Time/Date that wishes to activate ATM/POS function on schedule. It is possible to activate all the time by clicking top-right side of table. Click “OK” to save the schedules. (NOTE) Please do not select the Alarm In and Motion simultaneously on schedule setup. Otherwise, POS/ATM text will be displayed improperly.
  • Page 141: Osd Display

    14.5.3 OSD Display OSD items are to decide whether to display the information from the serial port connected to the rs232 port on OSD screen. They have 4 menus as followings: - None : displays nothing on the OSD screen. - Live : displays incoming information from the serial port in real time on the OSD screen.
  • Page 142 Input a certain repeated string to “Line Delimiter”. Decide the number of minimum characters in “MCPL” item to hide data under the designated number of characters. Input the pattern of dummy data to Discard Pattern. Choose the data which willing to display and enter the Start Pattern and End Pattern.
  • Page 143: Search

    Then tick the Auto box off in order to make the DVR recognizes the data between the Start and End patterns. Finally, test again and adjust data to remove missed dummy data. 14.6 Search Using event search function. Please click ( ) the “Search>Event Search” menu on the pop-up menu of the wallpaper, then user will see the following screen.

Table of Contents
