DynaColor EDNS V3000 Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

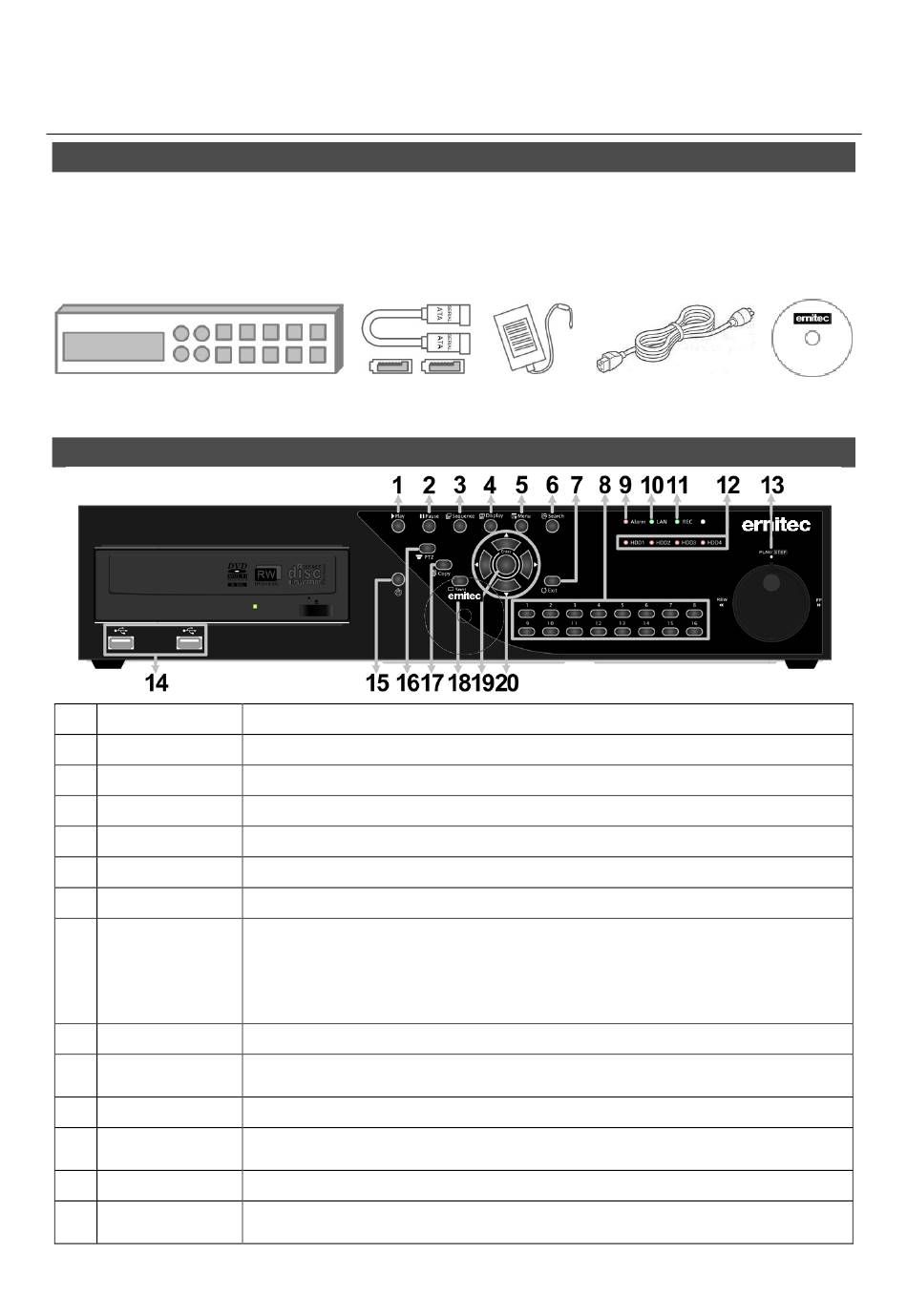

Package Content
Inspect the packaging carton. Make sure the Ernitec EDNS V3000 is properly delivered. Remove
all items from the box and make sure the box contains the following items.
Ernitec EDNS V3000
*Power adaptor is provided for Standard Models only.
Front Panel
1
Play
2
Pause
3
Sequence
4
Display
5
Menu
6
Search
7
Exit
8
Channels
9
Alarm LED
10
Network LED
11
Record LED
12
HDD LEDs
13
Shuttle/ Jog
14
USB 2.0 Port
00P5DG080F4SEB2
Ernitec EDNS V3000
Setup Guide
SATA Cable
Press once to start the playback of recorded video. Press again to exit.
Press this key to freeze the current viewing screen.
Press this key to start automatic sequence display of cameras.
Press this key to view in full-screen or multiple window modes.
Press this key to enter the OSD setup menu.
Press this key to search recorded video by date/time or event.
Press this key to cancel or exit from certain control mode.
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 11~16 is for quick access of preset points 1~6.
It lights up when an alarm is triggered.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It blinks when videos are being recorded.
The LEDs light up when disk cloning is in process. When the light is on
with alert beeping, that means the corresponding HDD has error.
This is used to control playback operations.
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive or a USB mouse.
Power
Power Cord
Adaptor*
User's
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDNS V3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DynaColor EDNS V3000

Summary of Contents for DynaColor EDNS V3000

  • Page 1 Ernitec EDNS V3000 Setup Guide Package Content Inspect the packaging carton. Make sure the Ernitec EDNS V3000 is properly delivered. Remove all items from the box and make sure the box contains the following items. Power User’s Ernitec EDNS V3000...

  • Page 2: Rear Panel

    Power Key Press and hold this key to trigger the quick shutdown function. Press this key to enter Dome Camera Control mode. This key is used for marking time in quick video export function. Copy Spot Press this key to enter Call Monitor Control mode. 1.
  • Page 3 Main Monitor – The DVR can connect a VGA monitor via the VGA connector. Main Monitor – The DVR can connect to a Digital Output monitor via an optional Digital Output Digital Output connector. Alarm Inputs & The DVR provides alarm inputs and RS485 ports that offer users to RS-485 connect the DVR to alarm input and RS485 devices.
  • Page 4 NOTE: Please avoid using Seagate SV35 series and WD AVGP series HDDs.  Release the screws and remove the cover of the Ernitec EDNS V3000.  First fix the HDDs onto the mounting kits. Then connect the power and SATA cables to the HDDs and fix the HDDs onto the bottom of the DVR.
  • Page 5 RAID Disk Types (Plus Models Only) RAID, the acronym for Redundant Array of Independent Disks, is a data storage scheme that stores data dispersedly in multiple disks to prevent data loss. The DVR provides four different types of RAID disks: RAID 0, RAID 1, RAID 5 and RAID 10. Refer to the description listed below, users can choose their preferred RAID disk types.
  • Page 6 RAID 5: RAID 5 stores the data separately into the installed disks, and creates parity blocks for the data. What parity blocks do is to recover failed part of the data. For example, when Disk 1 has errors: Parity Block A can repair “A1”; Parity Block B can repair “B1”; Parity Block C can repair “C1”. The data stored in Disk 1 is now fully recovered.

  • Page 7: Power On The Dvr

    Power On the DVR Please follow the proper power on procedures to avoid damaging the DVR.  Connect all necessary components, e.g. monitor and cameras, before power on the DVR.  Check the type of power source before connecting the power adaptor to the DVR. The acceptable power input is between AC110V ~ AC240V.

  • Page 8: Basic Setup

    Basic Setup Enter the OSD main menu and setup some basic configuration of the DVR. The basic configuration can be set via either the DVR or DVRRemote, the remote software. Enter OSD Main Menu:  Press Menu to enter the OSD main menu. ...

  • Page 9: Dome Camera Control

    Dome Camera Control Dome Camera Connection & Settings:  See section Pin Definition of Alarm Iuputs & RS-485, and Alarm Outputs for RS-485 port pin definition.  Refer to the following figure. Connect the R+, R- terminals on the dome camera to the D+, D- terminals on the RS-485 port by RS-485 cable respectively.

  • Page 10: Basic Playback Operation

    Basic Playback Operation Search by Time:  Press Search to enter the Search menu.  Move the cursor to “From” and press Enter will start playing recorded video from the specified “From” time.  Move the cursor to “End” and press Enter will start playing recorded video from the specified “End”...
  • Page 11 DVR Status Bar Icons Icons that will be displayed in the status bar are listed in the following table with their descriptions. Item Icon Description Item Icon Description Main Monitor Pause @ Playback mode Call Monitor End of Video Monitor Active / Inactive Quick Export Sequence Stamp A...
  • Page 12  Make sure the PC is connected to the Internet.  Obtain IP address of the Ernitec EDNS V3000. To check the DVR’s IP address, press Menu on the front panel and select <System Setup>  <Network Setup>  <LAN Setup>  <IP> to check the IP.
  • Page 13 NOTE: If the default trigger port 80 is changed into another one, port 81 for example, then the IP address should be entered as “192.68.80.6:81”.  Version verification starts automatically to verify whether DVRRemote was installed. This process may take up to 30 seconds. ...
  • Page 14 DVRRemote Playback Playback Remote Video:  Click <Play> on the main window toolbar, and then <Remote Playback> tab.  The <From> and <To> on top of the screen display the date and time from which recorded video is available for playback. ...
