DynaColor DG80II Setup Manual

Versatile h.264 dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

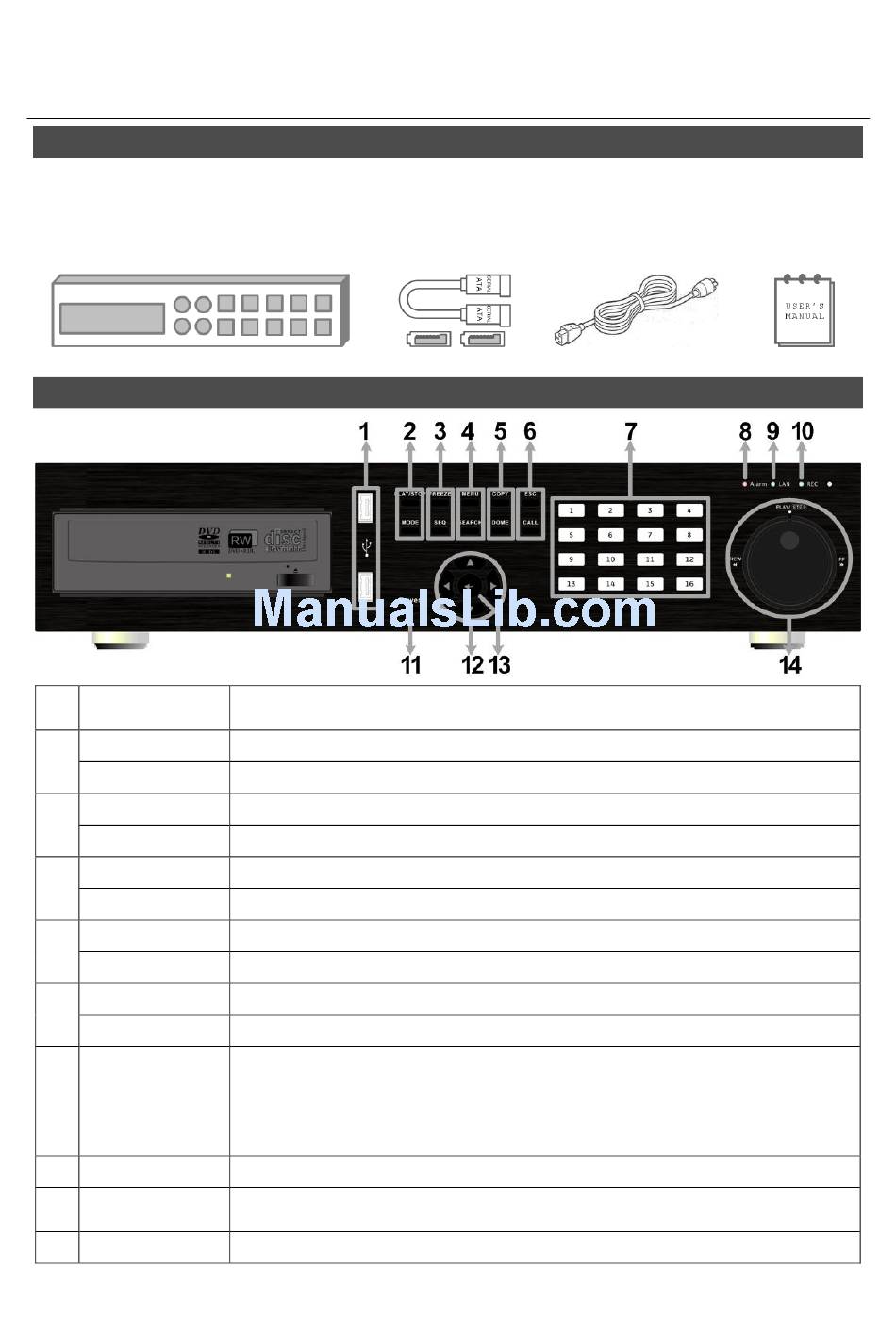

Package Content

Inspect the packaging carton. Make sure the Versatile H.264 DVR is properly delivered. Remove all
items from the box and make sure the box contains the following items.
Versatile H.264 DVR

Front Panel

1
USB 2.0 Port
PLAY/STOP
2
MODE
FREEZE
3
SEQUENCE
MENU
4
SEARCH
COPY
5
DOME
ESC
6
CALL
7
Channels
8
Alarm LED
9
Network LED
10
Record LED
00P5DG080F1SEB1
Versatile H.264 DVR
Setup Guide
SATA Cable
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive or a USB mouse.
Press once to start the playback of recorded video. Press again to exit.
Press this key to view in full-screen or multiple window modes.
Press this key to freeze the current viewing screen.
Press this key to start automatic sequence display of cameras.
Press this key to enter the OSD setup menu.
Press this key to search recorded video by date/time or event.
This key is used for marking time in quick video export function.
Press this key to enter Dome Camera Control mode.
Press this key to cancel or exit from certain control mode.
Press this key to enter Call Monitor Control mode.
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 11~16 is for quick access of preset points 1~6.
It lights up when an alarm is triggered.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It blinks when videos are being recorded.
Power Cord
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG80II and is the answer not in the manual?

Questions and answers

Related Manuals for DynaColor DG80II

Summary of Contents for DynaColor DG80II

  • Page 1: Package Content

    Versatile H.264 DVR Setup Guide Package Content Inspect the packaging carton. Make sure the Versatile H.264 DVR is properly delivered. Remove all items from the box and make sure the box contains the following items. Versatile H.264 DVR SATA Cable Power Cord User’s Manual Front Panel...

  • Page 2: Rear Panel

    Press and hold this key to trigger the quick shutdown function. Power Key 1. In Zoom mode, these keys function as normal direction keys. 2. In the OSD setup menu, the direction keys are used to move the Direction Keys cursor to previous or next fields.

  • Page 3: Install Hdds

    Pin Definition of Alarm I/O & RS-485, and Audio In/Out Audio: Pin Definition Pin Definition Pin Definition Audio In 1 Audio In 12 (16CH only) Audio In 3 Audio In 14 (16CH only) Audio In 5 (8CH & 16CH) Call Audio Out Audio In 16 (16CH only) Audio In 7 (8CH &...
  • Page 4  Release the screws and remove the cover of the Versatile H.264 DVR.  First fix the HDDs onto the mounting kits. Then connect the power and SATA cables to the HDDs and fix the HDDs onto the bottom of the DVR. ...
  • Page 5 RAID 1: RAID 1 enables the DVR to store data in 1 disk drive and make copies of the stored data to the other installed disk drive. RAID 1 requires two disks, and it is fully fault tolerable. RAID 1 Disk Type DISK 1 DISK 2 RAID 10:...

  • Page 6: Power On The Dvr

    Power On the DVR Please follow the proper power on procedures to avoid damaging the DVR.  Connect all necessary components, e.g. monitor and cameras, before power on the DVR.  Check the type of power source before connecting the power adaptor to the DVR. The acceptable power input is between AC110V ~ AC240V.

  • Page 7: Basic Setup

    Basic Setup After RAID disk of the DVR is created, setup some basic configuration of the DVR. The basic configuration can be set via either the DVR or DVRRemote, the remote software. Date / Time Setting: Follow steps below to setup date/time before the recording starts. Refer to the User’s Manual for advanced setup of Time Sync function.

  • Page 8: Dome Camera Control

    Dome Camera Control Dome Camera Connection & Settings:  See section Pin Definition of Alarm I/O & RS-485, and Audio In for RS-485 port pin definition.  Refer to the following figure. Connect the R+, R- terminals on the dome camera to the D+, D- terminals on the RS-485 port by RS-485 cable respectively.

  • Page 9: Basic Playback Operation

    Basic Playback Operation Search by Time:  Press SEARCH to enter the Search menu.  Move the cursor to “From” and press ENTER will start playing recorded video from the specified “From” time.  Move the cursor to “End” and press ENTER will start playing recorded video from the specified “End”...
  • Page 10 DVR Status Bar Icons Icons that will be displayed in the status bar are listed in the following table with their descriptions. Item Icon Description Item Icon Description Main Monitor Pause @ Playback mode Call Monitor End of Video Monitor Active / Inactive Quick Export Sequence Stamp A...
  • Page 11 Lock RAID Disk Correct Fan Error RAID Disk Error RAID Disk Clone Completed 31 No RIAD Disk NOTE: For HDD Cloning Status icons, a number will be shown in the center of the icon to represent the group of HDD that is cloning. In the mean time, percentage will be displayed underneath the icon.
  • Page 12 NOTE: If the default trigger port 80 is changed into another one, port 81 for example, then the IP address should be entered as “192.68.80.6:81”.  Version verification starts automatically to verify whether DVRRemote was installed. This process may take up to 30 seconds. ...
  • Page 13 DVRRemote Playback Playback Remote Video:  Click <Play> on the main window toolbar, and then <Remote Playback> tab.  The <From> and <To> on top of the screen display the date and time from which recorded video is available for playback. ...
