mini-box M3-ATX-HV Installation Manual page 2

http://mini-box.com, Embedded PC Solutions

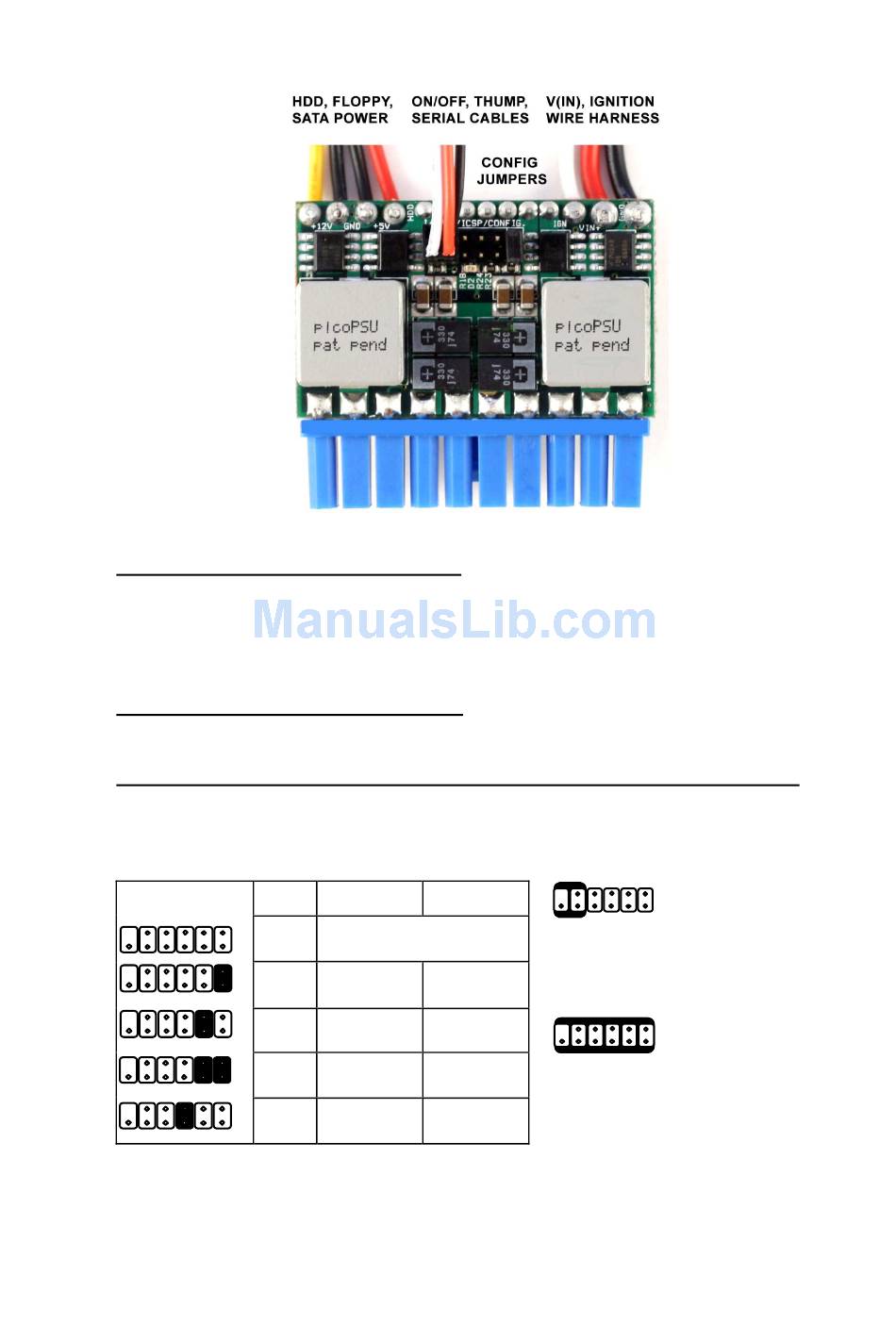

Power Input Connectors (right side)
Red Battery + (positive, un-switched battery)
Black Battery - (negative)
White Ignition (To start connect to Battery +).
Do not use in the standard PSU mode (mode P0)
Power Output Connectors (left side)
Hard drive wire harness (HDD, SATA-HDD, Floppy)
ON/OFF and THUMP wire harness (connects to M3-ATX-HV pin header)
-ON/OFF wire harness (red/back) to connect to motherboard's ON/OFF pin
headers.
-THUMP (white) to connect to amplifier remote ON/OFF connector.
P
P0
P1
P2
P3
P4
IMPORTANT:
Always use the "Hibernate" feature on your PC, never use "Standby".
P0: In this mode, the M3-ATX-HV behaves like a regular ATX power supply.
Do not use Ignition switch in this mode.
M3-ATX-HV User Guide
Off-delay Hard-off
Standard PSU mode
5sec 1 min
1 min 5 min
30 min 2 hour
custom custom
Wire harness for motherboard
ON/OFF switch and Thump
control (optional)
Wire harness for serial
connection.
Page 2
