6-24V Intelligent ATX Power Supply
Before you start...
Please take a moment and read this manual before you install the M3-ATX in
your
vehicle. Often times, rushing into installing the unit can result in serious damage
to your M3-ATX board, computer and probably your car's electrical system.
Always double check the polarity of your wires with a voltmeter.
Avoid using the cigarette plug as a power source, often times the contacts are
not capable of delivering high current to your PC.
Introduction
Thank you for purchasing the M3-ATX power sequencer / vehicle ATX power
supply.
The M3-ATX was designed to work with a wide variety of main boards such as
the VIA mini-ITX motherboards as well as Pentium-M / Celeron or full power
Pentium systems.

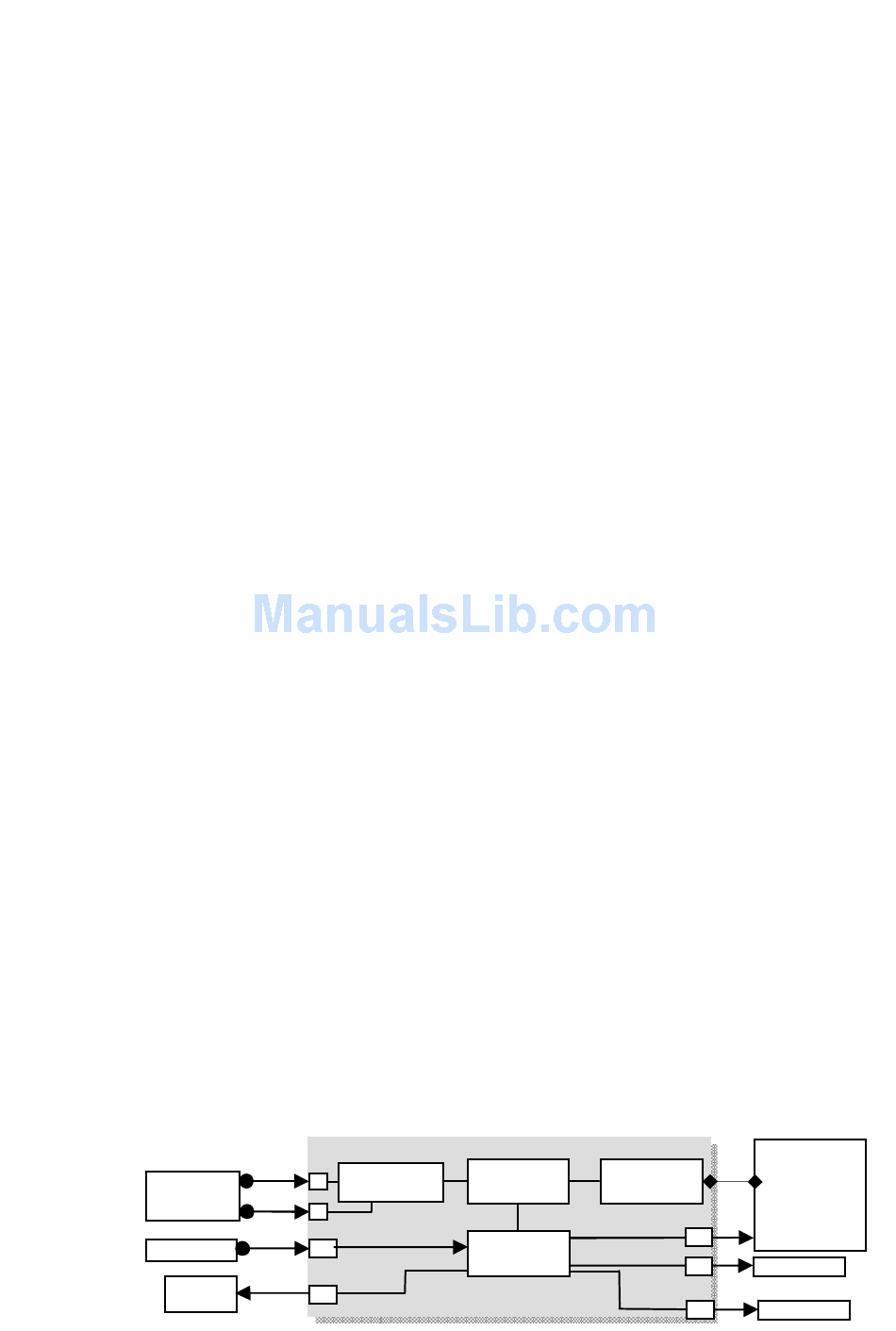

M3-ATX Logic Diagram
+
Battery
GND
Ignition SW
Amplifier
Enable
M3-ATX
Installation Guide
Version 1.0c
P/N M3-ATX-01
Reverse and
Switch Logic
+
forward protection
-
M3-ATX
6-24V DC-DC
ATX PSU
8bit MCU
PC
ATX power
Mother Board
ON/OFF switch
Status LED
Serial ctlr
