6-30V Intelligent ATX Power Supply
Before you start...
Please take a moment and read this manual before you install the M4-ATX in your
vehicle. Often times, rushing into installing the unit can result in serious damage
to your M4-ATX board, computer and probably your car's electrical system. Always
double check the polarity of your wires with a voltmeter.
Avoid using the cigarette plug as a power source, often times the contacts are not
capable of delivering high current to your PC.
Introduction
Thank you for purchasing the M4-ATX power sequencer / vehicle ATX power supply.
The M4-ATX was designed to work with a wide variety of main boards ranging from low
power to fully fledged Intel, AMD or VIA models .

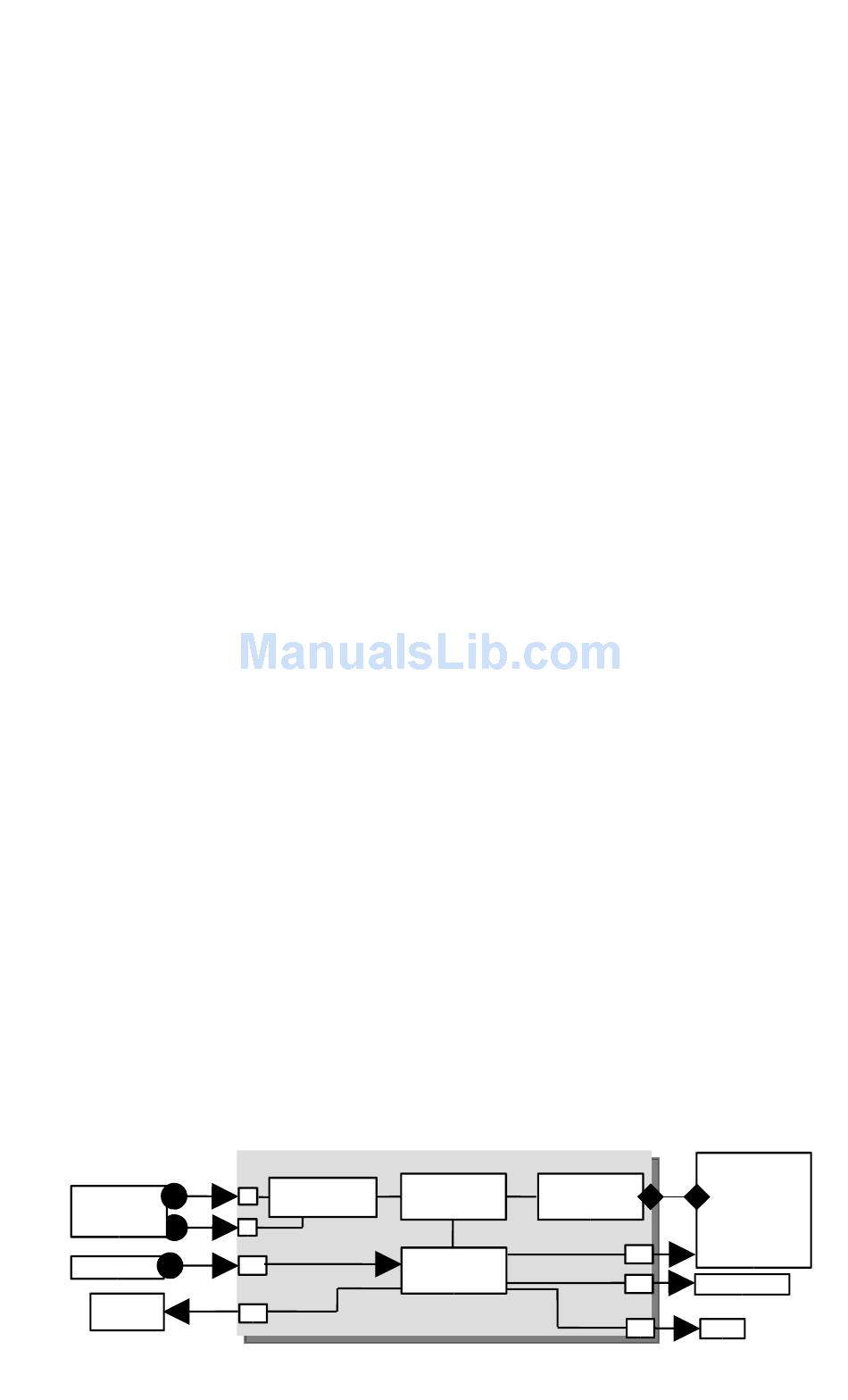

M4-ATX Logic Diagram
+
Battery
GND
Ignition SW
Amplifier
Enable
M4-ATX
Installation Guide
P/N M4-ATX-01
Reverse and
+
forward protection
-
Version 1.0c
Switch Logic
6-30V DC-DC
ATX PSU
8bit MCU
M4-ATX
PC
ATX
power
Mother Board
ON/OFF
switch
Status LED
USB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for mini-box M4-ATX
Summary of Contents for mini-box M4-ATX
-
Page 1: Installation Guide
Introduction Thank you for purchasing the M4-ATX power sequencer / vehicle ATX power supply. The M4-ATX was designed to work with a wide variety of main boards ranging from low power to fully fledged Intel, AMD or VIA models . - Page 2 (B) 12V-ATX power output connector 4 pin (C) Configuration dip switch (J5) For internal use only (do not use) (J6) Amplifier THUMP wire harness (connects to the M4-ATX pin header) (J3) Fan Header (J8) USB, Motherboard ON/OFF and THUMP (Thump also available on J6)
- Page 3 5VSB to conserve battery. In this mode, the M4-ATX consumes less than 0.5mA. This is our recommended setting. NOTE: To reset to the M4-ATX settings to the factory defaults (in case changes were made via the USB uplink), simply power off the unit, connect a jumper to JP1 and then power back up.
- Page 4 M4-ATX will go to step 1, if ignition is tuned ON again. NOTE. When all dip switches are off, M4-ATX acts as a regular power supply, no ignition timing, no HARDOFF. M4- ATX will send a gratuitous “ON” pulse to the M/B when power is applied for the first time. Do not connect the on/off switch if you don’t want your PC to be started automatically.
- Page 5 Embedded PC Solutions Installation support: 30days via at http//www.mini-box.com M4-ATX User Guide Page 5...
