mini-box M2-ATX Installation Manual

6-24V Intelligent Automotive ATX Power Supply
Before you start...
Please take a moment and read this manual before you install the M2-ATX in
your
vehicle. Often times, rushing into installing the unit can result in serious damage
to your M2-ATX board, computer and probably your car's electrical system.
The M2-ATX board has several wires that need to be installed in various
places.
When installing, always double check the polarity of your wires with a
voltmeter.
Avoid using the cigarette plug as a power source, often times the contacts are
not capable of delivering high current to your PC.
1.0 Introduction
Thank you for purchasing the M2-ATX power sequencer / vehicle ATX power
supply.
The M2-ATX was designed to work with a wide variety of main boards such as
the VIA mini-ITX motherboards as well as Pentium-M, Celeron or certain full
power Core Duo systems.

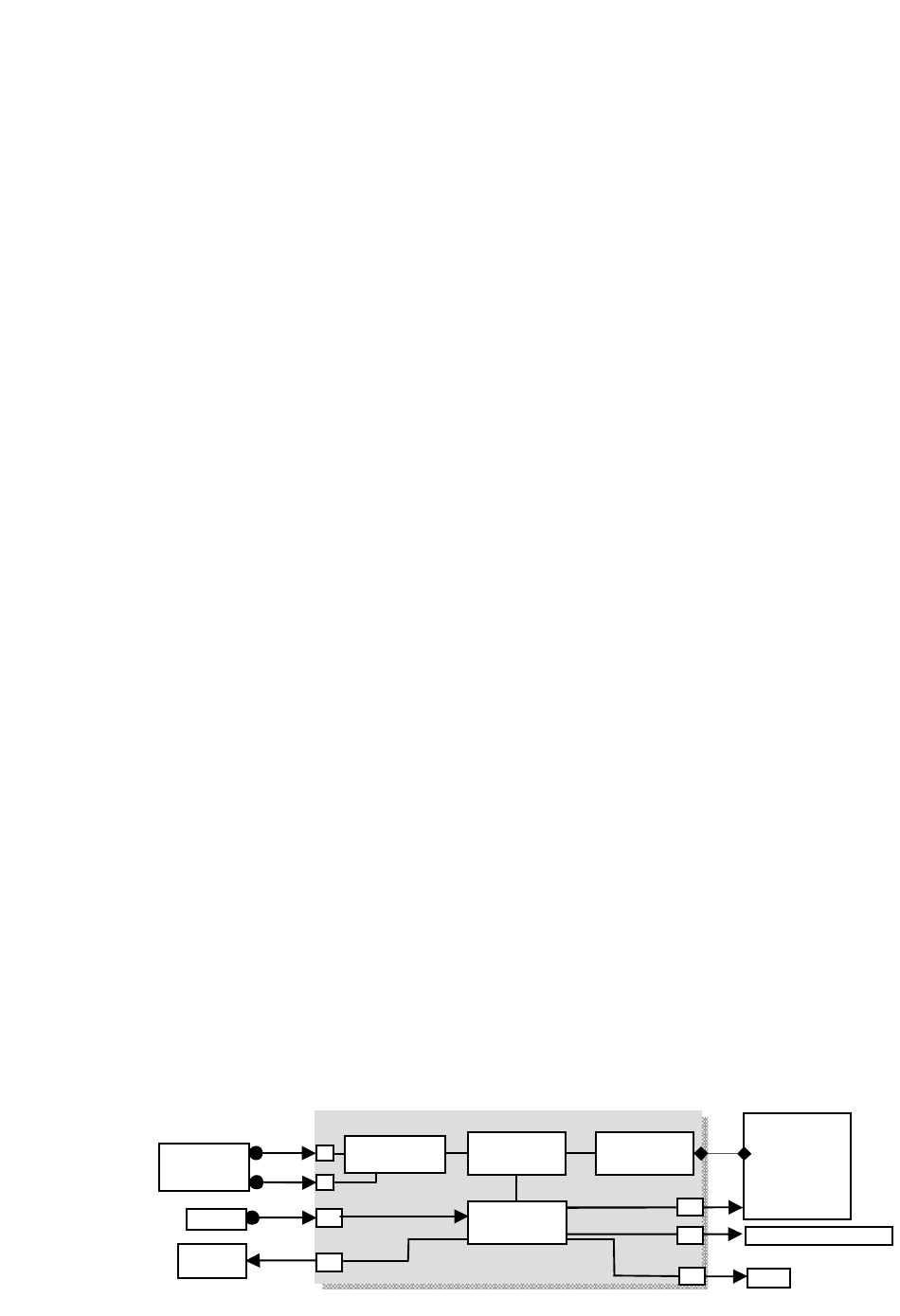

1.1 M2-ATX Logic Diagram
+
Battery
GND
Ignition
Amplifier
Enable
M2-ATX
Installation Guide
Version 1.4 (firmware v1.5, 10/15/2009)
P/N M2-ATX-01
Reverse and
Switch Logic
+
forward protection
-
SW
8bit MCU
M2-ATX
J6
6-30V DC-DC
ATX power
ATX PSU
MotherBoard
ON/OFF switch
J8
J9 Optional On/OFF switch
J5
LED
PC
