mini-box M4-HV ATX Installation Manual

6-34v intelligent atx power supply
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
M4-HV ATX
6-34V Intelligent ATX Power Supply

Installation Guide

Version 1.0e
P/N M4-HV ATX-01
Before you start...
Please take a moment and read this manual before you install the M4-HV ATX in your vehicle.
Often times, rushing into installing the unit can result in serious damage to your M4-HV ATX
board, computer and probably your car's electrical system. Always double check the
polarity of your wires with a voltmeter.
Avoid using the cigarette plug as a power source, often times the contacts are not capable of
delivering high current to your PC.
Introduction
Thank you for purchasing the M4-HV ATX power sequencer / vehicle ATX power supply. The
M4-HV ATX was designed to work with a wide variety of main boards ranging from low power
to fully fledged Intel, AMD or VIA models (such as the VIA mini-ITX motherboards as well as
Pentium-M / Celeron / Core2Duo or full power Pentium systems).

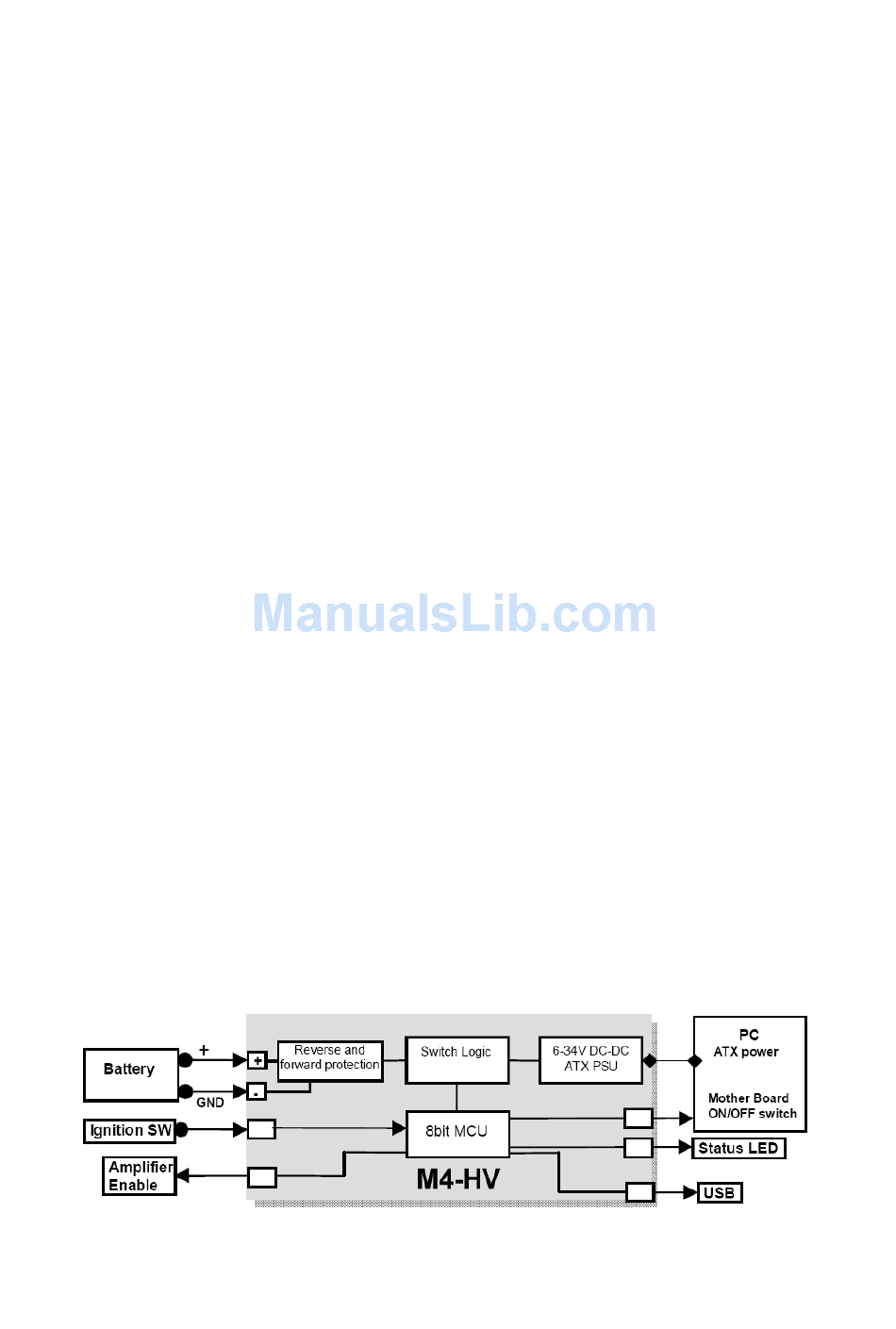

M4-HV ATX Logic Diagram
1
