- Page 1 12-32V, 80watt ATX Power Supply Quick Installation Guide Version 1.0d P/N picoPSU-80-WI-32...

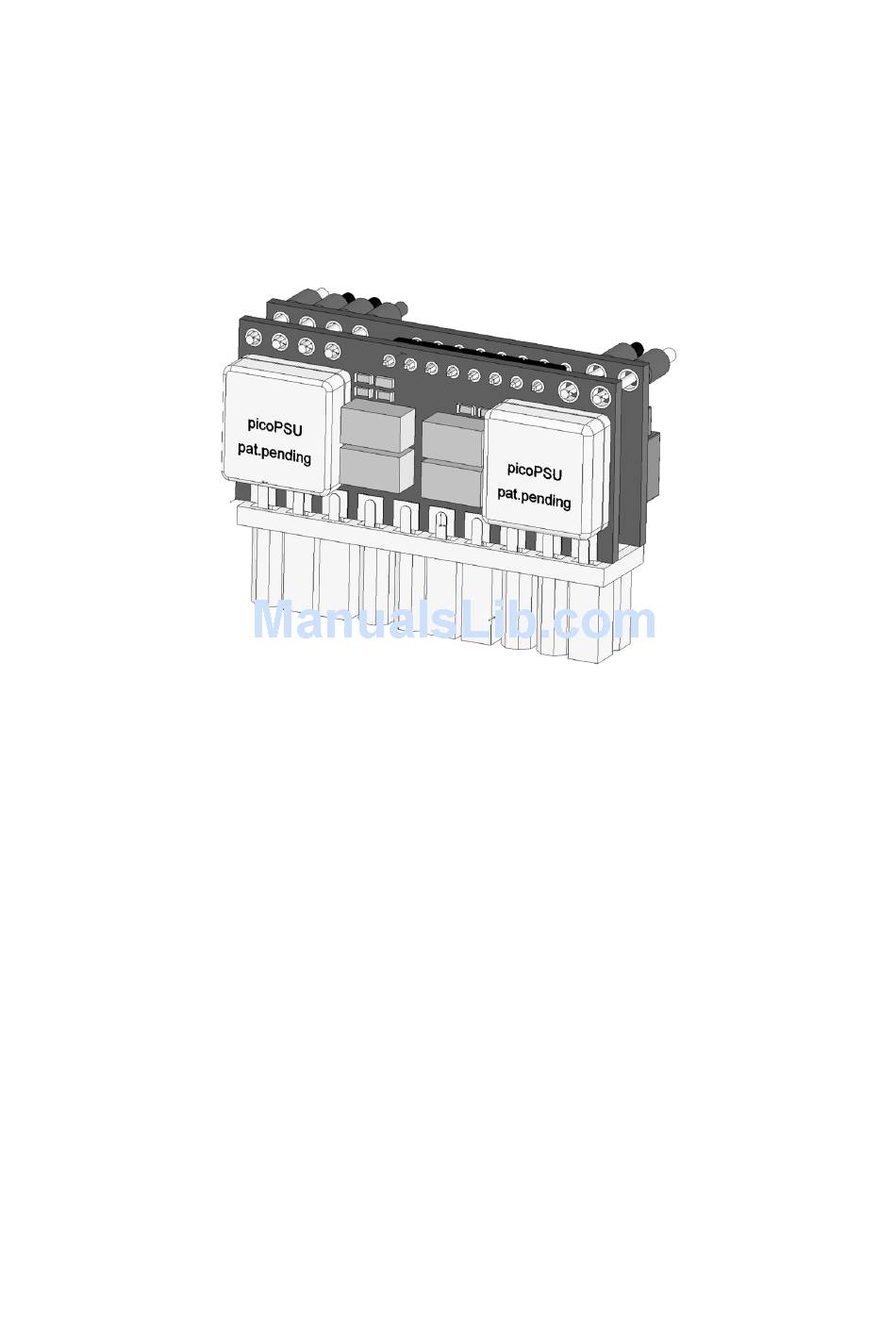

- Page 2 Mini-Box.com ATX DC-DC Converter Series Introduction The picoPSU-80-WI-32 is a small yet powerful and fully compliant ATX power supply designed to power a wide variety of motherboard from a single 12-32V unregulated power source. The picoPSU-80-WI-32 is the only “plug-in” wide input range power supply solution for general purpose low power motherboards.
- Page 3 34V) to the input connector. 3) Turn on the PC using the motherboard ON/OFF switch Typical configuration The picoPSU-80-WI-32 has been tested with all mini-ITX board under virtually any disk/floppy/CDROM/PCI configuration. Removing the picoPSU-80-WI-32 In order to remove the picoPSU you must release the power connector latch and then remove the unit.
- Page 4 Mini-Box.com ATX DC-DC Converter Series Specifications, picoPSU-80-WI-32, DC-DC ATX PSU Power Ratings (max load, peak load) Volts (V) Max Load (A) Peak Load (A) Regulation % +/- 1.5% 5VSB 1.5A +/- 1.5% 3.3V +/- 1.5% -12V 0.1A 0.1A +/- 5% +/- 3% At max load, forced air ventilation is required.
- Page 5 Relative humidity 5 to 95 percent, non-condensing Warranty 1 Year Limited Warranty statement. Warranty is void if maintenance or calibration is performed by end-user or by use in conjunction with power modules not provided by mini-box.com. Support Email: support@mini-box.com Web Site: http://www.mini-box.com...
