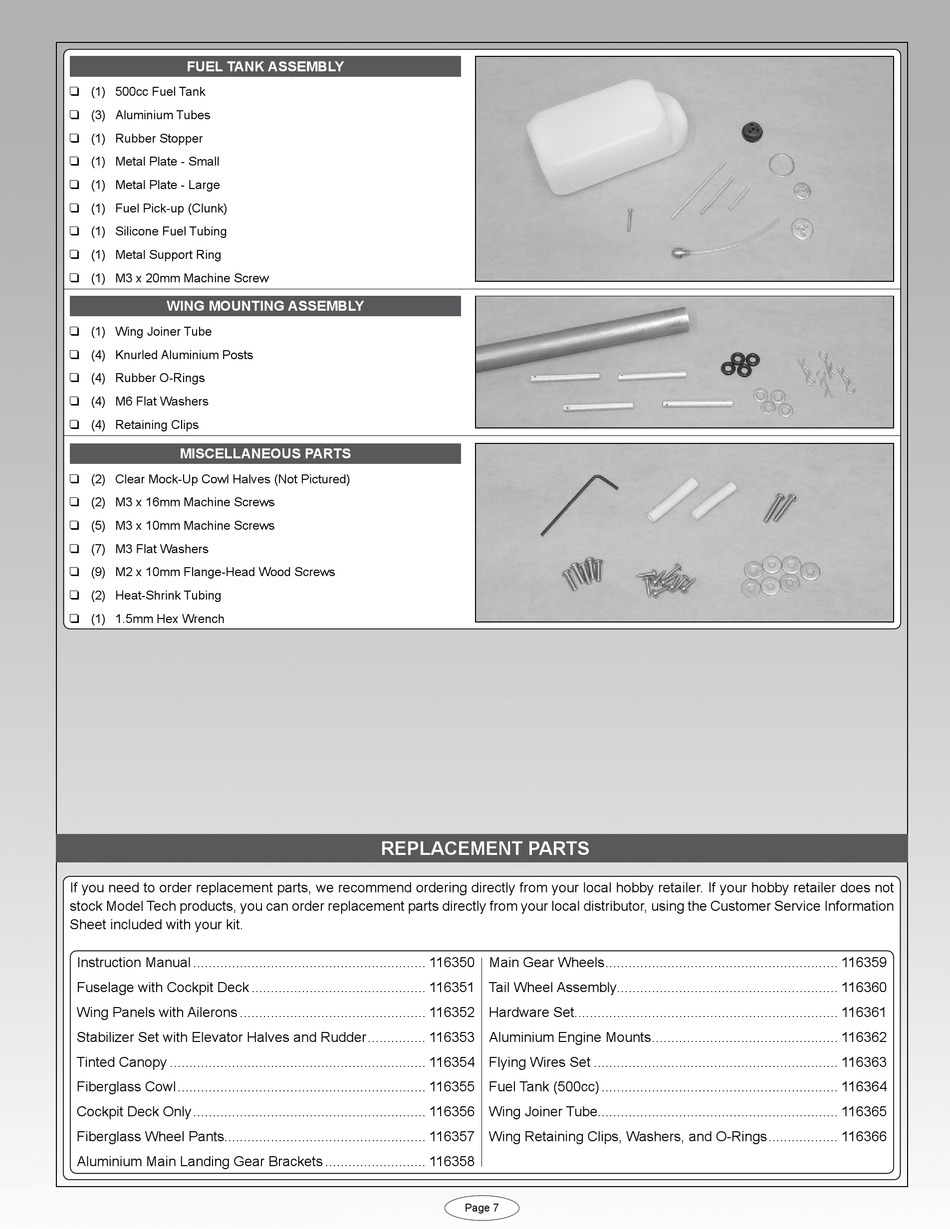

fuEl TaNK assEMbly
q () 500cc Fuel Tank
q (3) Aluminium Tubes
q () Rubber Stopper
q () Metal Plate - Small
q () Metal Plate - Large
q () Fuel Pick-up (Clunk)
q () Silicone Fuel Tubing
q () Metal Support Ring
q () M3 x 20mm Machine Screw
WiNg MouNTiNg assEMbly
q () Wing Joiner Tube
q (4) Knurled Aluminium Posts
q (4) Rubber O-Rings
q (4) M6 Flat Washers
q (4) Retaining Clips
MisCEllaNEous ParTs
q (2) Clear Mock-Up Cowl Halves (Not Pictured)
q (2) M3 x 6mm Machine Screws
q (5) M3 x 0mm Machine Screws
q (7) M3 Flat Washers
q (9) M2 x 0mm Flange-Head Wood Screws
q (2) Heat-Shrink Tubing
q () .5mm Hex Wrench
If you need to order replacement parts, we recommend ordering directly from your local hobby retailer. If your hobby retailer does not
stock Model Tech products, you can order replacement parts directly from your local distributor, using the Customer Service Information
Sheet included with your kit.
Instruction Manual ............................................................ 6350
Fuselage with Cockpit Deck ............................................. 635
Wing Panels with Ailerons ................................................ 6352
Stabilizer Set with Elevator Halves and Rudder ............... 6353
Tinted Canopy .................................................................. 6354
Fiberglass Cowl ................................................................ 6355
Cockpit Deck Only ............................................................ 6356
Fiberglass Wheel Pants.................................................... 6357
Aluminium Main Landing Gear Brackets .......................... 6358

rEPlaCEMENT ParTs

Main Gear Wheels ............................................................ 6359
Tail Wheel Assembly......................................................... 6360
Hardware Set.................................................................... 636
Aluminium Engine Mounts ................................................ 6362
Flying Wires Set ............................................................... 6363
Fuel Tank (500cc) ............................................................. 6364
Wing Joiner Tube.............................................................. 6365
Wing Retaining Clips, Washers, and O-Rings .................. 6366
Page 7
