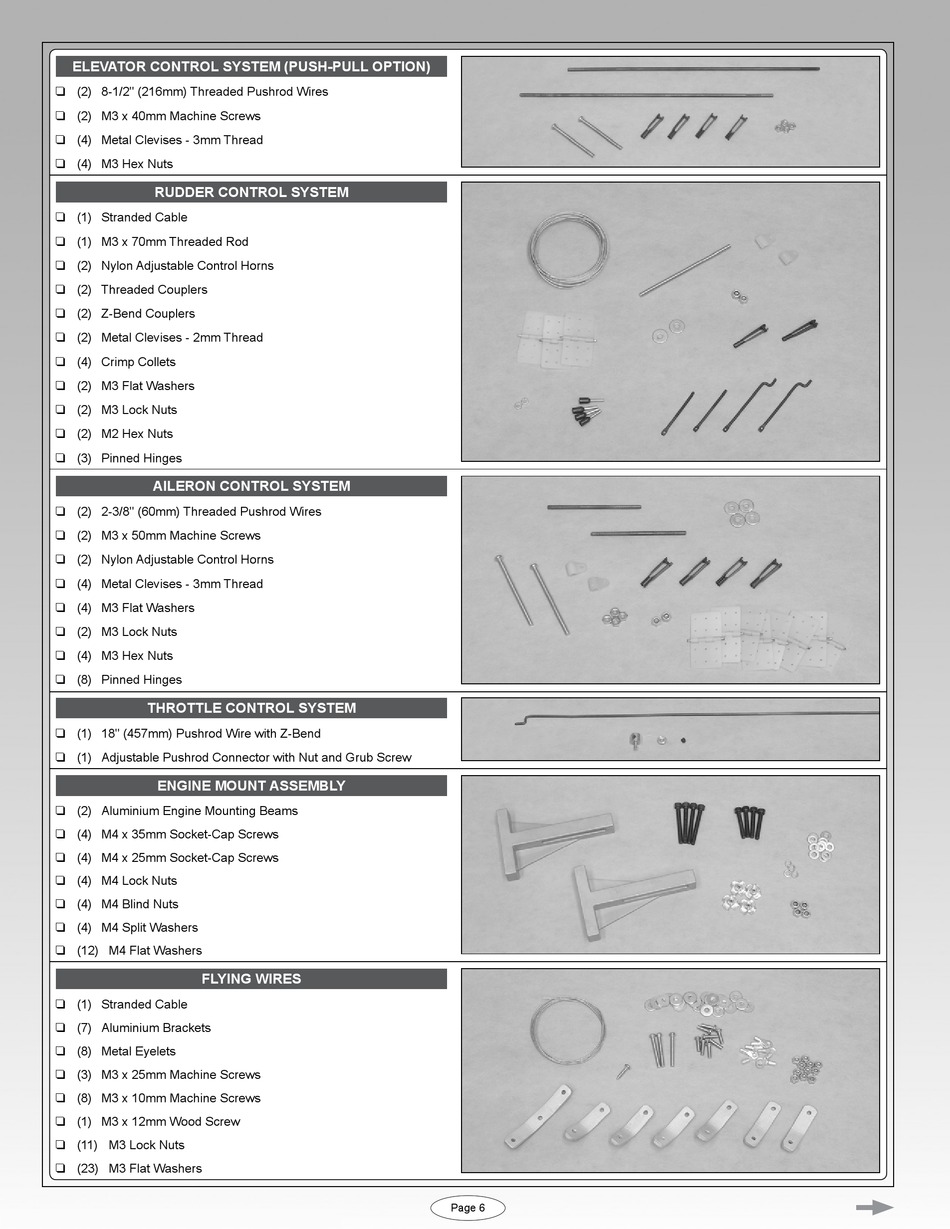

Model Tech Yak 54 Assembly Instructions Manual page 6

ElEvaTor CoNTrol sysTEM (Push-Pull oPTioN)
q (2) 8-/2" (26mm) Threaded Pushrod Wires
q (2) M3 x 40mm Machine Screws
q (4) Metal Clevises - 3mm Thread
q (4) M3 Hex Nuts
ruddEr CoNTrol sysTEM
q () Stranded Cable
q () M3 x 70mm Threaded Rod
q (2) Nylon Adjustable Control Horns
q (2) Threaded Couplers
q (2) Z-Bend Couplers
q (2) Metal Clevises - 2mm Thread
q (4) Crimp Collets
q (2) M3 Flat Washers
q (2) M3 Lock Nuts
q (2) M2 Hex Nuts
q (3) Pinned Hinges
ailEroN CoNTrol sysTEM
q (2) 2-3/8" (60mm) Threaded Pushrod Wires
q (2) M3 x 50mm Machine Screws
q (2) Nylon Adjustable Control Horns
q (4) Metal Clevises - 3mm Thread
q (4) M3 Flat Washers
q (2) M3 Lock Nuts
q (4) M3 Hex Nuts
q (8) Pinned Hinges
ThroTTlE CoNTrol sysTEM
q () 8" (457mm) Pushrod Wire with Z-Bend
q () Adjustable Pushrod Connector with Nut and Grub Screw
ENgiNE MouNT assEMbly
q (2) Aluminium Engine Mounting Beams
q (4) M4 x 35mm Socket-Cap Screws
q (4) M4 x 25mm Socket-Cap Screws
q (4) M4 Lock Nuts
q (4) M4 Blind Nuts
q (4) M4 Split Washers
q (2) M4 Flat Washers
flyiNg WirEs
q () Stranded Cable
q (7) Aluminium Brackets
q (8) Metal Eyelets
q (3) M3 x 25mm Machine Screws
q (8) M3 x 0mm Machine Screws
q () M3 x 2mm Wood Screw
q () M3 Lock Nuts
q (23) M3 Flat Washers
