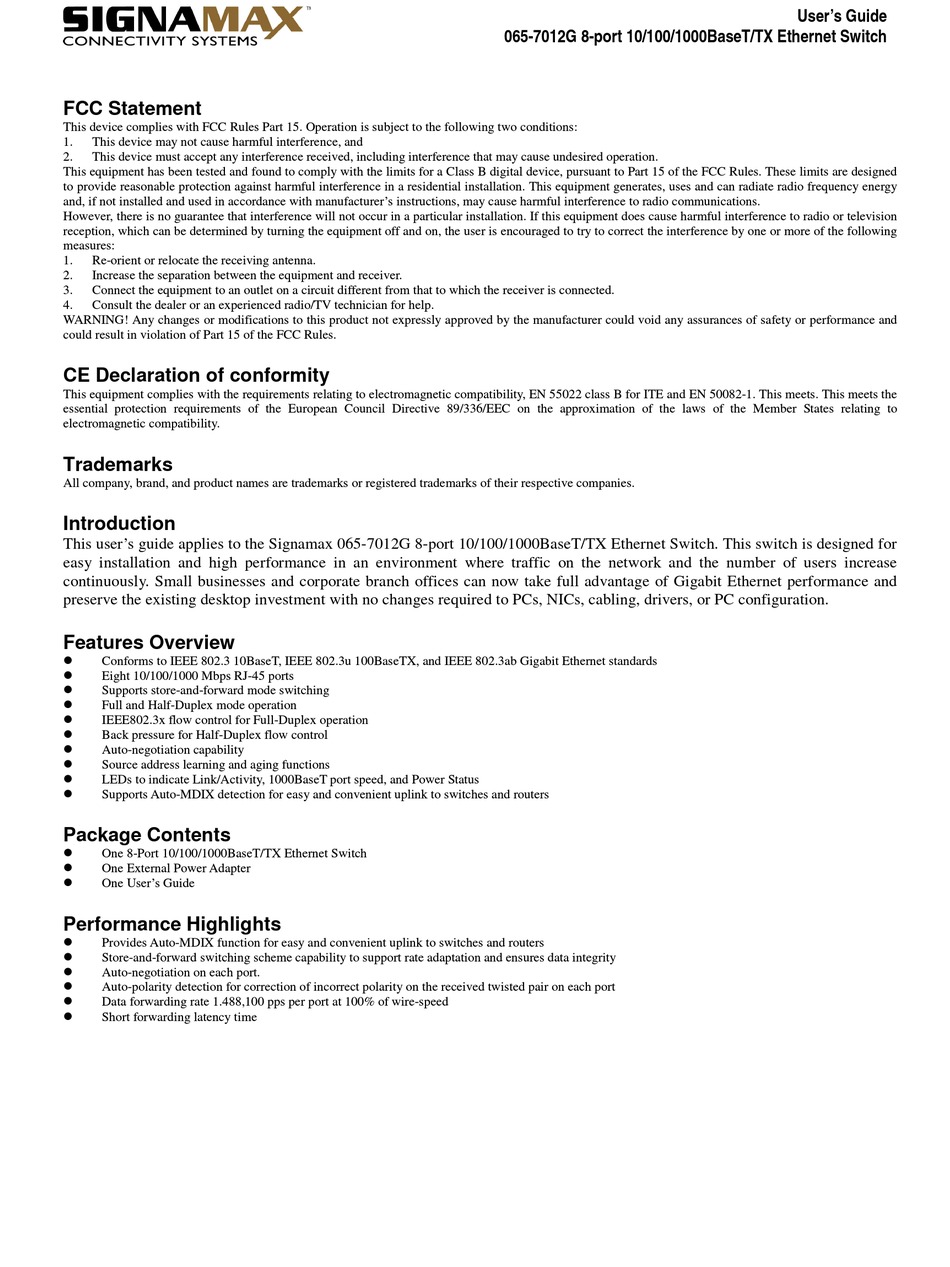

SignaMax 065-7012G User Manual

FCC Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Re-orient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly approved by the manufacturer could void any assurances of safety or performance and
could result in violation of Part 15 of the FCC Rules.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE and EN 50082-1. This meets. This meets the
essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Trademarks
All company, brand, and product names are trademarks or registered trademarks of their respective companies.
Introduction

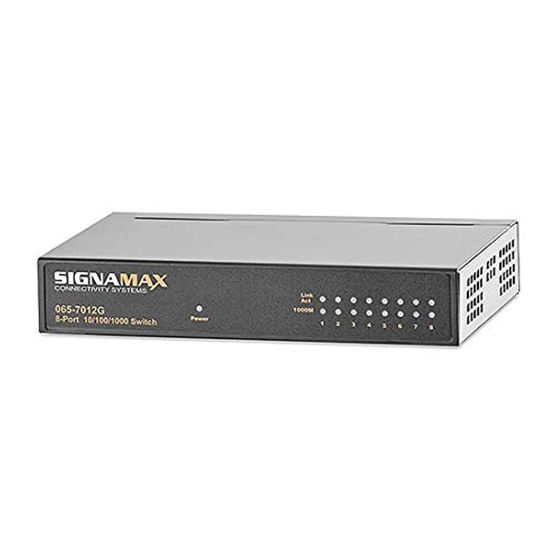

This user's guide applies to the Signamax 065-7012G 8-port 10/100/1000BaseT/TX Ethernet Switch. This switch is designed for
easy installation and high performance in an environment where traffic on the network and the number of users increase
continuously. Small businesses and corporate branch offices can now take full advantage of Gigabit Ethernet performance and
preserve the existing desktop investment with no changes required to PCs, NICs, cabling, drivers, or PC configuration.

Features Overview

Conforms to IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, and IEEE 802.3ab Gigabit Ethernet standards
Eight 10/100/1000 Mbps RJ-45 ports
Supports store-and-forward mode switching
Full and Half-Duplex mode operation
IEEE802.3x flow control for Full-Duplex operation
Back pressure for Half-Duplex flow control
Auto-negotiation capability
Source address learning and aging functions
LEDs to indicate Link/Activity, 1000BaseT port speed, and Power Status
Supports Auto-MDIX detection for easy and convenient uplink to switches and routers

Package Contents

One 8-Port 10/100/1000BaseT/TX Ethernet Switch
One External Power Adapter
One User's Guide
Performance Highlights
Provides Auto-MDIX function for easy and convenient uplink to switches and routers
Store-and-forward switching scheme capability to support rate adaptation and ensures data integrity
Auto-negotiation on each port.
Auto-polarity detection for correction of incorrect polarity on the received twisted pair on each port
Data forwarding rate 1.488,100 pps per port at 100% of wire-speed
Short forwarding latency time
065-7007 5-port and 065-7012 8-port 10/100BaseT/TX Ethernet Mini Switches
065-7012G 8-port 10/100/1000BaseT/TX Ethernet Switch
User's Guide
