Summary of Contents for SignaMax 065-7840
Page 1

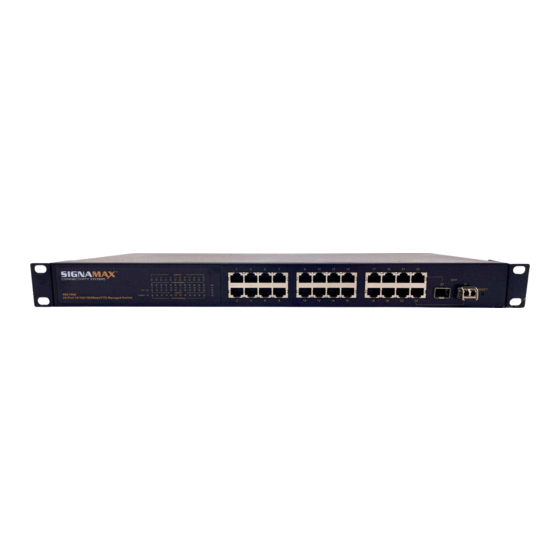

Signamax™ Connectivity Systems Model 065-7840 24-Port 10/100/100BaseT/TX Managed Switch U s e r ’ s G u i d e...
Page 2
Signamax™ Connectivity Systems Model 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch U s e r ’ s G u i d e Release 1.0 Release Date: July, 2005...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: •...
Page 10
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 24 Gigabit L2 Managed Switch through the built-in CLI and web by RS-232 serial interface and Ethernet ports step- by-step.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 1. Introduction 1-1. Overview of 24 Gigabit L2 Managed Switch 24-port Gigabit L2 Managed Switch is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch included 22-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch.
Page 12
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule using Weighted Round Robin (WRR). User-defined weight classification of packet priority can be based on either a VLAN tag on packet or a user-defined port priority.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 1-2. Checklist Before you start installing the switch, verify that the package contains the following: ⎯ A set of 24 Gigabit L2 Managed Switch ⎯ Modules (optional) ⎯ Mounting Accessory (for 19” Rack Shelf) ⎯...
Page 14
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • Supports 802.1Q VLAN • Supports user management and limits three users to login • Maximal packet length can be up to 9216 bytes for jumbo frame application • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed •...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 1-4. View of 24 Gigabit L2 Managed Switch Fig. 1-1 Full View of 24 Gigabit L2 Managed Switch 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional removable modules on the front panel of the switch.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • LED Indicators Color Function System LED POWER Green Lit when +5V DC power is on and good CPU LED Green Blinks when CPU is activity 10/100/1000Ethernet TP Port 1 to 24 LED...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 1-5. View of the Optional Modules In the switch, Port 23~24 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2. Installation 2-1. Starting 24 Gigabit L2 Managed Switch Up This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1. Hardware and Cable Installation At the beginning, please do first: ⇒...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP;...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-2-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-2-3. Switch Cascading in Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels &...
Page 22
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-2). Fig. 2-2 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
Page 23
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Case 2b: Port-based VLAN (See Fig.2-4). Fig. 2-4 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-3. Configuring the Management Agent of 24 Gigabit L2 Managed Switch We offer you three ways to startup the switch management function. They are RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-3-1. Configuring the Management Agent of 24 Gigabit L2 Managed Switch through the Serial RS-232 Port To perform the configuration through RS-232 console port, the switch’s serial port must be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9 connector.
Page 26
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • Set IP Address, Subnet Mask and Default Gateway IP Address Please refer to Fig. 2-6 Console Management for details about the ex-factory setting. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-3-2. Configuring the Management Agent of 24 Gigabit L2 Managed Switch through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 2-9 the Login Screen for Web 2-1-4. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.
Page 29
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
Page 30
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
Page 31
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask.
Page 32
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 2-2. Typical Applications The 24 Gigabit L2 Managed Switch implements 24 Gigabit Ethernet TP ports with auto MDIX and two slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. For more details on the specification of the switch, please refer to Appendix A.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3. Operation of Web-based Management This chapter instructs you how to configure and manage the 24 Gigabit L2 managed switch through the web user interface it supports, to access and manage the 22-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-1 3-1. Web Management Home Overview After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up...
Page 37
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch • The Information of Page Layout ⎯ On the top side, it shows the front panel of the switch. In the front panel, the linked ports will display green; as to the ports, which are link off, they will be dark.
Page 38
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Root System Port Mirror Bandwidth SNMP IGMP Snooping Max. Packet Length DHCP Boot VLAN MAC Table GVRP Trunk 802.1x Alarm Configuration Diagnostics TFTP Server Firmware Upgrade Reboot Logout...
You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is 065-7840. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
Page 40
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
Page 42
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
Page 43
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you...
Page 45
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
Page 46
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
Page 49
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
Page 50
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Speed / Duplex Mode: Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000Mbps supported only.
Page 51
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-8 Parameter description of Port 23 and Port24: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode.
Page 52
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Vendor SN (Serial Number): Show the serial number assigned by the manufacturer. Date Code: Show the date this SFP module was made. Temperature: Show the current temperature of SFP module. Vcc: Show the working DC voltage of SFP module.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below. Fig. 3-9...
Page 54
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Mode: Set the speed and duplex of the port. In speed, if the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-10, the window can show all ports’ counter information at the same time.
Page 56
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Rx Packet: The counting number of the packet received. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of bad packets received.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-11, the window can show only one port counter information at the same time.
Page 58
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Rx Low Priority Packets: Number of Rx packets classified as low priority. Rx Broadcast: Show the counting number of the received broadcast packet. Rx Multicast: Show the counting number of the received multicast packet.
Page 59
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Tx 65-127 Bytes: Number of 65 ~ 126-byte frames in good and bad packets transmitted. Tx 128-255 Bytes: Number of 127 ~ 255-byte frames in good and bad packets transmitted. Tx 256-511 Bytes: Number of 256 ~ 511-byte frames in good and bad packets transmitted.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-3. Mirror Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-4. Bandwidth Management Function name: Bandwidth Management Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Fig. 3-13 Parameter description: Port Number: Choose the port that you would like this function to work on it.
Page 62
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch All Traffic for Egress Rate Limiting(Shaping): Set up the limit of Egress bandwidth for the port you choose. Packet transmission will be delayed if the rate exceeds the value you set up in Data Rate field.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-5. QoS(Quality of Service) Configuration offers powerful 5 kinds of QoS functions. There are Per Port switch Priority that you can assign each port to different precedence, VLAN Tag priority that can make precedence of 8 priorities, IP TOS Classification, IP TCP/UDP Port Classification and IP DiffServe Classification.
Page 64
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Per Port Priority Function description: We can assign QoS Priority, including High and Low for each port. For example, if we transmit IP packets from Port 2 and Port 3 at the speed of...
Page 65
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: VLAN Tag Priority Function description: In vlan tag, there are 3 bits belonging to priority. According to these 3 bits, we could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0, 1 1 1. We can set High priority or Low priority for each traffic class.
Page 66
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Bit 0, Bit 1, Bit 2: According to the arrangement of VLAN-tagged priority, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
Page 67
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: IP ToS Classification Function description: Another QoS function is the application of Layer 3 on network framework. We focus on TOS field of IP header. There are three bits in TOS field. We means bit 2~4 of TOS field that we will use.
Page 68
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Bit 0, Bit 1, Bit 2: According to the arrangement of Bit 5 ~ Bit 7 in TOS Field of IP Header, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
Page 69
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: IP TCP/UDP Port Classification Function description: In L4 QoS Configuration, you can enter one of these special network transmission events, for example we use” Down prioritize web browsing, e-mail, FTP and news “L4 QoS Configuration and click apply, and then click Custom L4.
Page 70
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Prioritize Databases (Oracle, IBM DB2, SQL, Microsoft): Belong to the QoS in L4. Just tick the option button and press <Apply> button to have this function taken affect. Then, enter Custom L4 to set up Special TCP/UDP port for QoS.
Page 71
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Advanced Mode Fig. 3-18 Simple Mode Fig. 3-19 Simple Mode: Press <Simple> button is to return to the screen that all L4 port number will disappear (See Fig 3-19).
Page 72
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: IP Diffserv Classification Function description: IP Diffserve Classification function, it can form total 64 (0~63) kinds of Traffic Class based on the arrangement of 6-bit field in DSCP of the IP packet. In the switch, user is allowed to set up these 64 kinds of Class that belong to High or Low Priority.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-6. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices.
Page 74
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Default SNMP function : Enable Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function : Enable Default trap host IP address: 0.0.0.0...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-7. IGMP Snooping The function, IGMP Snooping, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because...
Page 76
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including “Passive”, “Active” and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable Active: In Active mode, IGMP snooping switch will periodically issue the...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-8. Max. Packet Length Function name: Max. Packet Length Function description: The switch is capable of dealing with 9k Jumbo Frames, which suits the transmission for a large amount of data in the network environment.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-9. DHCP Boot The DHCP Boot function is used to spread the request broadcast packet into a bigger time frame to prevent the traffic congestion due to broadcast packets from many network devices which may seek its NMS, boot server, DHCP server and many connections predefined when the whole building or block lose the power and then reboot and recover.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-10. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
Page 80
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Metro Mode: The Metro Mode is a quick configuration VLAN environment method on Port-based VLAN. It will create 22 or 23 Port-based VLAN groups. Double-tag: Double-tag mode belongs to the tag-based mode, however, it would treat all frames as the untagged ones, which means that tag with PVID will be added into all packets.
Page 81
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Up-link Port: This function is enabled only when metro mode is chosen in VLAN mode. Except Port 23, each port of the switch cannot transmit packets with each other. Each port groups a VLAN with Port 23, thus, total 23 groups consisting of 2 members are formed.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups, You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit>...
Page 83
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Add Group: Create a new Tag-based VLAN. Input the VLAN name as well as VID, configure the SYM-VLAN function and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-3. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit>...
Page 85
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-4. Tag Rule Function name: Tag Rule Function description: In VLAN Tag Rule Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rules to each port.
Page 87
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Role: This is an egress rule of the port. Here you can choose Access, Trunk or Hybrid. Trunk means the outgoing packets must carry VLAN tag header. Access means the outgoing packets carry no VLAN tag header. If packets have double VLAN tags, one will be dropped and the other will still be left.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-11. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static Forward, Static Filter and MAC Alias, which cannot be categorized to some function type. They are described below.
Page 89
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC” or “Static MAC”.
Page 90
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function Name: MAC Table Maintenance Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table.
Page 91
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function Name: Static Forward Function Description: Static Forward is a function that allows the user in the static forward table to access a specified port of the switch. Static Forward table associated with a specified port of a switch is set up by manually inputting MAC address and its alias name.
Page 92
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Static Filter Function Description: Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is listed in the filtering Static Filter table. User can very easily maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields individually.
Page 93
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report.
Page 94
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 01 Alias: MAC alias name you assign.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-12. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application.
Page 96
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below.
Page 97
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state.
Page 98
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-40 Parameter description:...
Page 99
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application.
Page 100
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID. Valid range is 1 ~ 4094.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-13. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other...
Page 102
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-13-2. STP Configuration The STP, Spanning Tree Protocol, actually includes RSTP. In the Spanning Tree Configuration, there are six parameters open for the user to configure as user’s idea. Each parameter description is listed below.
Page 104
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-13-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item.
Page 106
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID.
Page 107
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-14. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
Page 109
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Per Trunking Group supports a maximum of 12 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Some configuration examples are listed below:...
Page 110
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports.
Page 111
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
Page 112
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 24) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
Page 113
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view.
Page 114
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: LACP System Priority Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-15. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication.
Page 116
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch The overview of operation flow for the Fig. 3-49 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
Page 117
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Authentication server Fig. 3-50 Authenticator Supplicant A The Fig. 3-51 shows the procedure of 802.1x authentication. There are steps for the login based on 802.1x port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
Page 118
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant.
Page 119
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
Page 120
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication.
Page 121
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode.
Page 122
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
Page 123
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x...
Page 124
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-16. Alarm Configuration Alarm Configuration Events Configuration Email/SMS Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 24 different trap events to users for switch management.
Page 126
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-56 Function name: Email/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings.
Page 127
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server. Email Address 1 – 6: email address that would like to receive the alarm message.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-17. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is the ex-factory setting and cannot be altered.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-17-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-59 Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory.
Page 130
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Restore Default Configuration Function description: Restore Default Configuration function can retrieve the ex-factory setting to replace the start configuration. Fig. 3-61 Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-17-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description:...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-18. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections.
Page 133
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box. The test signal only wraps around in the switch box.
Page 134
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-19. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply>...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-20. Log This function shows the log data. The switch provides system log data for users. There are 19 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-21. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-22. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 3-23. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 4-2-1. Global Commands of CLI exit Syntax: exit Description: Back to the previous mode. When you enter this command, your current position would move back to the previous mode. If you use this command in the top mode, you are still in the position of the top mode.
Page 145
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
Page 146
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before. The CLI supports up to 256 records. If no argument is typed, the CLI would list total records up to 256.
Page 147
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.
Page 148
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration.
Page 149
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately;...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 4-2-2. Local Commands of CLI system show Syntax: show Description: To display the basic information of the switch. Argument: None Possible value: None Example: 065-7840(system)# show Model Name : 065-7840 System Description : L2 Managed Switch...
Page 151
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set contact Syntax: set contact <contact string> Description: To set the contact description of the switch. Argument: String length up to 32 characters. Possible value: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
Page 152
Possible value: <ip> : 192.168.1.2 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: 065-7840(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 set system IP address : 192.168.1.2 subnet mask : 255.255.255.0 default gateway : 192.168.1.253 set dns Syntax: set dns <ip address>...
Page 153
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None Possible value: None Example: 065-7840(ip)# disable dhcp : Disabled system DHCP function. show Syntax: show Description: To display the system’s DHCP function state, IP address, subnet mask, default gateway, DNS mode, DNS server IP address and current IP address.
Page 154
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch time set manual Syntax: set manual <YYYY/MM/DD> <hh:mm:ss> Description: To set up the current time manually. Argument: <YYYY/MM/DD> <hh:mm:ss> Possible value: YYYY : Year (2000-2036) : Month (01-12) : Day (01-31) : Hour (00-23)
Page 155
: daylight saving start month/day/hour : daylight saving end month/day/hour : Month (01-12) : Day (01-31) : Hour (00-23) Example: 065-7840(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully 065-7840(time)# show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,” Timezone”, ”...
Page 156
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch account Syntax: add guest <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: A string must be at least 5 character.
Page 157
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch modify Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: 065-7840(account)# modify aaaaa username/password: the length is from 5 to 15.
Page 158
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch port set speed-duplex Syntax: set speed-duplex <range> <auto|10half|10full|100half|100full|1Gfull> Description: To set up the speed and duplex of all ports. Argument: <range>:syntax 1,5-7, available from 1 to 24 <port-speed>: auto: set auto-negotiation mode 10half: set speed/duplex 10M Half...
Page 159
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show detail-counter Syntax: Show detail-counter <range> Description: To display the detailed counting number of each port’s traffic. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: 1 ~ 24 Example: 065-7840 (port)# show detail-counter 5...
Page 160
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch clear counter Syntax: clear counter Description: To clear all ports’ counter (include simple and detail port counter) information. Argument: None Possible value: None Example: 065-7840 (port)# clear counter enable state Syntax: enable state <range>...
Page 161
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch disable state Syntax: disable state <range> Description: To disable the communication capability of the port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: 065-7840 (port)# disable state 12...
Page 162
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch mirror set mirror-mode Syntax: set mirror-mode <rx|disable> Description: To set up the mode of Mirror (rx mode or disable). Argument: <rx | disable> rx : Enable the mode of Mirror(Only mirror the packets that is received)
Page 163
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: Show Description: To display the setting status of Mirror function. Argument: None Possible value: None Example: 065-7840(mirror)# show Mirror Mode : rx Monitoring Port : 2 Monitored Port : 3 4 5 7 10...
Page 164
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch bandwidth enable ingress-rate Syntax: enable ingress-rate <range> <data_rate> Description: To set up the Ingress-rate of the ports. Argument: <range>:syntax 1,5-7, available from 1 to 24 <data_rate>: 0-1000. Possible value: <range>: 1 to 24 <data_rate>: 0-1000.
Page 165
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch disable ingress-rate Syntax: disable ingress-rate <range> Description: To cancel the Ingress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: 065-7840(bandwidth)# disable ingress-rate 1-8...
Page 166
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display all current settings of the bandwidth. Argument: None Possible value: None Example: 065-7840(bandwidth)# show All State All Rate Storm State Storm Rate All state All Rate ====== =========== ========== ============= ============ =========== ==========...
Page 167
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set mode Syntax: set mode <port/pri_tag/tos/layer4/diffserv> Description: To set qos priority mode of the switch Argument: port: per port priority pri_tag: vlan tag priority tos: ip tos classification layer4: ip tcp/udp port classification...
Page 168
<port-range>: syntax: 1,5-7, available from 1 to 24 <tag-range>: priority level, syntax: 1,5-7, available from 0 to 7 <class>: class of service setting. 1: high, 0: low Example: 065-7840(qos)# set pri-tag 1-15 1-2 1 set tos Syntax: set tos <port-range> <tos-range> <class>...
Page 169
<port-range>: syntax: 1,5-7, available from 1 to 24 <#:> tcp/udp port number, range: 1-10 <tcp/udp port range>: 0-65535. match: special TCP/UDP class. 1: high, 0: low default: default class (all other TCP/UDP ports). 1: high, 0: low Example: 065-7840(qos)# set advance-layer4 5 2 80 1 0...
Page 170
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set diffserv Syntax: set diffserv <ds-range> <class> Description: To set class of ports on IP DiffServe qos. Argument: <ds-range>: dscp field <class>: class of service Possible value: <ds-range>: syntax: 1,5-7, available from 0 to 63 <class>: 1: high, 0: low...
Page 171
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch snmp enable Syntax: enable snmp enable set-ability Description: The Enable here is used for the activation snmp or set-community. Argument: None. Possible value: None. Example: 065-7840(snmp)# enable snmp 065-7840(snmp)# enable set-ability disable Syntax:...
Page 172
<community>:trap community name Possible value: trap number: 1 to 6 port:1~65535 Example: 065-7840(snmp)# set get-community public 065-7840(snmp)# set set-community private 065-7840(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP. Argument: None.
Page 173
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch max-pkt-len set len Syntax: set len <range> <length> Description: <range> port range length (bytes): 1518/1532/9216 Argument: <range> Port range <length >(bytes): Maximum Packet Length can be accepted Possible value: <range> : syntax 1,5-7, available from 1 to 24 <length>(bytes): 1518/1532/9216...
Page 174
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch igmp set igmp_snooping Syntax: set igmp_snooping <status> Description: To set up the mode of IGMP Snooping. Argument: <status> 0:disable , 1:active , 2:passive Possible value: <status> 0,1,2 Example: 065-7840(igmp)# set igmp-snooping 2 show...
Page 175
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch dhcp-boot set dhcp-boot Syntax: set dhcp-boot <sec> Description: To set up the delay time for DHCP Boot. Argument: <sec>:range syntax: 0, 1-30. The value “0” is to disable dhcp-boot delay Possible value: <sec>:0-30...
Page 176
1,5-7 #: sym/asym vlan setting. 1: symmetric vlan, 0: asymmetric vlan Possible value: vid: range from 1 to 4094 name: tag-vlan name range: from 1 to 24 # :0,1 Example: 065-7840(vlan)# set tag-group 2 VLAN-2 2-5,6,15-13 0...
Page 177
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set port-group Syntax: set port-group <name> <range> Description: To add or edit a port-based VLAN group. Argument: name: vlan name range: vlan group members, syntax: 1,5-7 Possible value: name: port-vlan name range: available from 1 to 24...
Page 178
Possible value: range : available from 1 to 24 vid: available from 1 to 4094 Example: 065-7840(vlan)# set port-role 5 hybrid 6 enable sym-vlan <range> Syntax: enable sym-vlan <range> Description: To drop frames from the non-member port.
Page 179
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch disable sym-vlan Syntax: disable sym-vlan <range> Description: To drop frames from the non-member port. Argument: range : which port(s) you want to set. Possible value: range: available from 1 to 24 Example: 065-7840(vlan)# disable sym-vlan 5-10...
Page 180
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch del tag-group <vid> Syntax: del tag-group <vid> Description: To delete the tag-based vlan group. Argument: vid: which vlan group you want to delete. Possible value: vid: available from 1 to 4094 Example: 065-7840(vlan)# del tag-group 2 del port-group <name>...
Page 181
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show pvid Syntax: show pvid Description: To display pvid, ingress/egress rule. Argument: None Possible value: None Example: 065-7840(vlan)# show pvid Port PVID Rule1 Rule2 Port Rule Untag Vid ------ ------ --------- --------- ----------- -----------...
Page 182
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch mac-table <<information>> show Syntax: Show Description: To display all mac table information. Argument: None Possible value: None Example: 065-7840(mac-table-information)# show MAC Table List Alias MAC Address Port VID State ---------------- ----------------- ---- ---- -----------------...
Page 183
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch <<maintain>> set aging Syntax: set aging <#> Description: To set up the age out time of dynamic learning mac. Argument: <#> : age-timer in seconds, 0, 10 to 65535. The value zero disables aging...
Page 184
<vid> : vlan id. 0, 1-4094. vid must be zero if vlan mode is not tag-based [alias] : mac alias name, max 15 characters Possible value: None Example: 065-7840(mac-table-static-mac)# add 00-02-03-04-05-06 3 0 aaa 065-7840(mac-table-static-mac)# Syntax: del <mac> <vid> Description: To remove the static mac entry.
Page 185
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show filter Syntax: show filter Description: To display the static filter table. Argument: None Possible value: None Example: 065-7840(mac-table-static-mac)# show filter Static Filtering Etnry: (Total 1 item(s)) 1) mac: 00-33-03-04-05-06, vid: -, alias: ccc 065-7840(mac-table-static-mac)# <<alias>>...
Page 186
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display the mac alias entry. Argument: None Possible value: None Example: 065-7840(mac-table-alias)# show MAC Alias List MAC Address Alias ----- ----------------- ---------------- 00-02-03-04-05-06 aaa 00-33-03-04-05-06 ccc 00-44-33-44-55-66 rrr...
Page 187
<range> : syntax 1,5-7, available from 1 to 24 <join>: available from 20 to 100 <leave>: available from 60 to 300 <leaveall>: available from 1000 to 5000 Leave Time must equal double Join Time at least. Example: 065-7840(gvrp)# set timer 2-8 25 80 2000...
Page 188
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set applicant Syntax: set applicant <range> <normal|non-participant> Description: To set default applicant mode for each port. Argument: range: port range normal: set applicant as normal mode non-participant: set applicant as non-participant mode Possible value: <range>: syntax 1,5-7, available from 1 to 24...
Page 190
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Example: 065-7840(gvrp)# show config GVRP state: Enable Port Join Time Leave Time LeaveAll Time Applicant Registrar Restricted ---- --------- ---------- ------------- --------------- --------- ---------- 1000 Normal Normal Disable 2000 Normal Normal Disable 2000...
Page 191
<Max. Age>: available from 6 to 40. <Forward Delay>: available from 4 to 30. Possible value: <Bridge Priority> 0 to 61440. <Hello Time>: 1 to 10. <Max. Age>: 6 to 40. <Forward Delay>: 4 to 30. Example: 065-7840(stp)# set config 61440 2 20 15...
Page 192
<path cost>: 0, 1-200000000. <priority> : 0 to 240 <edge_port> : yes / no <admin p2p>: auto / true / false Example: 065-7840(stp)# set port 1-16 0 128 yes auto show status Syntax: show status Description: To display the status of STP.
Page 193
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Example: 065-7840(stp)# show status STP Status : STP State : Enabled Bridge ID : 00:40:C7:D8:09:1D Bridge Priority : 61440 Designated Root : 00:40:C7:D8:09:1D Designated Priority : 61440 Root Port Root Path Cost Current Max. Age(sec)
Page 194
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show port Syntax: show port Description: To display the port information of STP. Argument: None Possible value: None Example: 065-7840# stp 065-7840(stp)# show port Port Port Status Path Cost Priority Admin Edge Port Admin Point To Point...
Page 195
<active LACP>: active : set the LACP to active mode passive : set the LACP to passive mode Possible value: None Example: 065-7840(trunk)# set trunk 1-4 lacp 1 active 065-7840(trunk)# del trunk Syntax: del trunk <port-range> Description: Delete trunk port Argument: <port-range>...
Page 196
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None Possible value: None Example: 065-7840(trunk)# show status Trunk Port Setting Trunk Port Status ------------------------------------- ---------------------- port...
Page 197
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show aggtr-view Syntax: show aggtr-view Description: To display the aggregator list. Argument: None Possible value: None Example: 065-7840(trunk)# show aggtr-view Aggregator 1) Method: None Member Ports: 1 Ready Ports:1 Aggregator 2) Method: LACP...
Page 198
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show lacp-priority Syntax: show lacp-priority Description: To display the value of LACP Priority. Argument: None Possible value: None Example: 065-7840(trunk)# show lacp-priority LACP System Priority : 32768 065-7840(trunk)#...
Page 199
<secret-key> : set up the value of secret-key, and the length of secret-key is from 1 to 31 Possible value: <port-number> : 1~65535, default is 1812 Example: 065-7840(802.1x)# set state 192.168.1.115 1812 WinRadius 065-7840(802.1x)# set mode Syntax: set mode <port-range> <mode>...
Page 200
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set port-control Syntax: set port-control <port-range> <authorized> Description: To set up 802.1X status of each port. Argument: <port range> : syntax 1,5-7, available from 1 to 24 <authorized> : Set up the status of each port...
Page 201
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: set quiet-period <port-range> <sec> Description: A timer used by the Authenticator state machine to define periods of time during when it will not attempt to acquire a Supplicant. Argument: <port range> : syntax 1,5-7, available from 1 to 24 <sec>...
Page 202
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set max-request <port-range> <times> Description: The maximum number of times that the state machine will retransmit an EAP Request packet to the Supplicant before it times out the authentication session. Argument: <port range> : syntax 1,5-7, available from 1 to 24 <times>: max-times , range 1-10...
Page 203
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch set serverTimeout Syntax: set serverTimeout <port-range> <sec> Description: A timer used by the Backend Authentication state machine in order to determine timeout conditions in the exchanges between the Authenticator and the Supplicant or Authentication Server. The initial value of this timer is either suppTimeout or serverTimeout, as determined by the operation of the Backend Authentication state machine.
Page 204
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show mode Syntax: show mode Description: To display the mode of each port. Argument: None Possible value: None Example: 065-7840(802.1x)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable Disable show security...
Page 205
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show parameter Syntax: show parameter Description: To display the parameter settings of each port. Argument: None Possible value: None Example: 065-7840(802.1x)# show parameter port 1) port control : Auto reAuthMax txPeriod : 30...
Page 206
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch alarm <<events>> Syntax: set sms <range> set email <range> set trap <range> set all <range> Description: The Set here is used for the activation of sms, email and trap event. Argument: <range>: syntax 1,5-7, trap number.
Page 207
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: The Show here is used to display the configuration of alarm event. Argument: None. Possible value: None. Example: 065-7840(alarm-events)# show Events Email SMS Trap ----------------------------------------- 1 Cold Start 2 Warm Start...
Page 208
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch <<email>> Syntax: set server <ip> set user <username> set mail-address <#> <mail address> Description: The Set here is used for the configuration of e-mail server, username, password and address. Argument: <ip>: E-mail server ip <username>: email server account and password...
Page 209
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: The Show here is used to display the configuration of e-mail trap event. Argument: None. Possible value: None. Example: 065-7840(alarm-email)# show Mail Server : 192.168.1.6 Username : admin Password : **************** Email Address 1: abc@mail.abc.com...
Page 210
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: del <#> Description: The Del here is used to remove the configuration of mobile phone number. Argument: <#>: mobile phone number, range: 1 to 6 Possible value: <#>: 1 to 6 Example:...
Page 211
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show (alarm) Syntax: show Description: The Show for alarm here is used to display the configuration of Trap, SMS or E-mail. Argument: None. Possible value: None. Example: 065-7840(alarm)# show events 065-7840(alarm)# show email...
Page 212
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch diag diag Syntax: diag Description: Diag is used to test if UART, DRAM, Flash and EEPROM. Argument: None. Possible value: None. Example: 065-7840(diag)# diag EEPROM Test : OK UART Test : OK DRAM Test...
Page 213
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported.
Page 214
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch upload Syntax: Upload Description: To upload log data through tftp. Argument: None. Possible value: None. Example: 065-7840(log)# upload enable auto-upload Syntax: enable auto-upload Description: To enable the auto-upload function. Argument: None. Possible value: None.
Page 215
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch firmware set upgrade-path Syntax: set upgrade-path <filepath> Description: To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path Possible value: <filepath>: upgrade file path Example: 065-7840(firmware)# set upgrade-path gs2124_v0.96.bin.gz...
Page 216
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch config-file set export-path Syntax: set export-path <filepath> Description: To set up the filepath and filename that will be exported. Argument: <filepath>:filepath and filename Possible value: <filepath>:filepath and filename Example: 065-7840(config-file)# set export-path log/21511.txt...
Page 217
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch export user-conf Syntax: export user-conf Description: To run the export user-conf function. Argument: None Possible value: None Example: 065-7840(config-file)# export user-conf Export sucessful. import start Syntax: import start Description: To run the import start function.
Page 218
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display the config-file information. Argument: None Possible value: None Example: 065-7840(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: nmap/123.ts Import Path and Filename: user123.txt...
Page 219
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch tftp set server Syntax: set server <ip> Description: To set up the IP address of tftp server. Argument: <ip>: tftp server ip Possible value: <ip>: tftp server ip Example: 065-7840(tftp)# set server 192.168.3.111...
Page 220
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch autologout autologout Syntax: autologout <time> Description: To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: <time>: 0,1-3600...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Appendix A Technical Specifications Features • 22 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab. • 2 Gigabit TP/SFP fiber are dual media ports with auto detected function.
Page 224
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Diagnostic LED: System LED : Power, CPU Per Port LED: 10/100/1000M TP Port 1 to 24 : LINK/ACT, 10/100/1000Mbps 1000M SFP Fiber Port 23,24 : SFP(LINK/ACT) Power Requirement AC Line Voltage 100∼240 V Frequency 50∼60 Hz...
Page 225
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Management Software Specifications Auto-negotiation support on 10/100/1000 Base- TX ports, Web browser or console interface can set transmission speed (10/100/1000Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection.
™ Signamax 065-7840 24-Port 10/100/1000BaseT/TX Managed Switch Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable.
