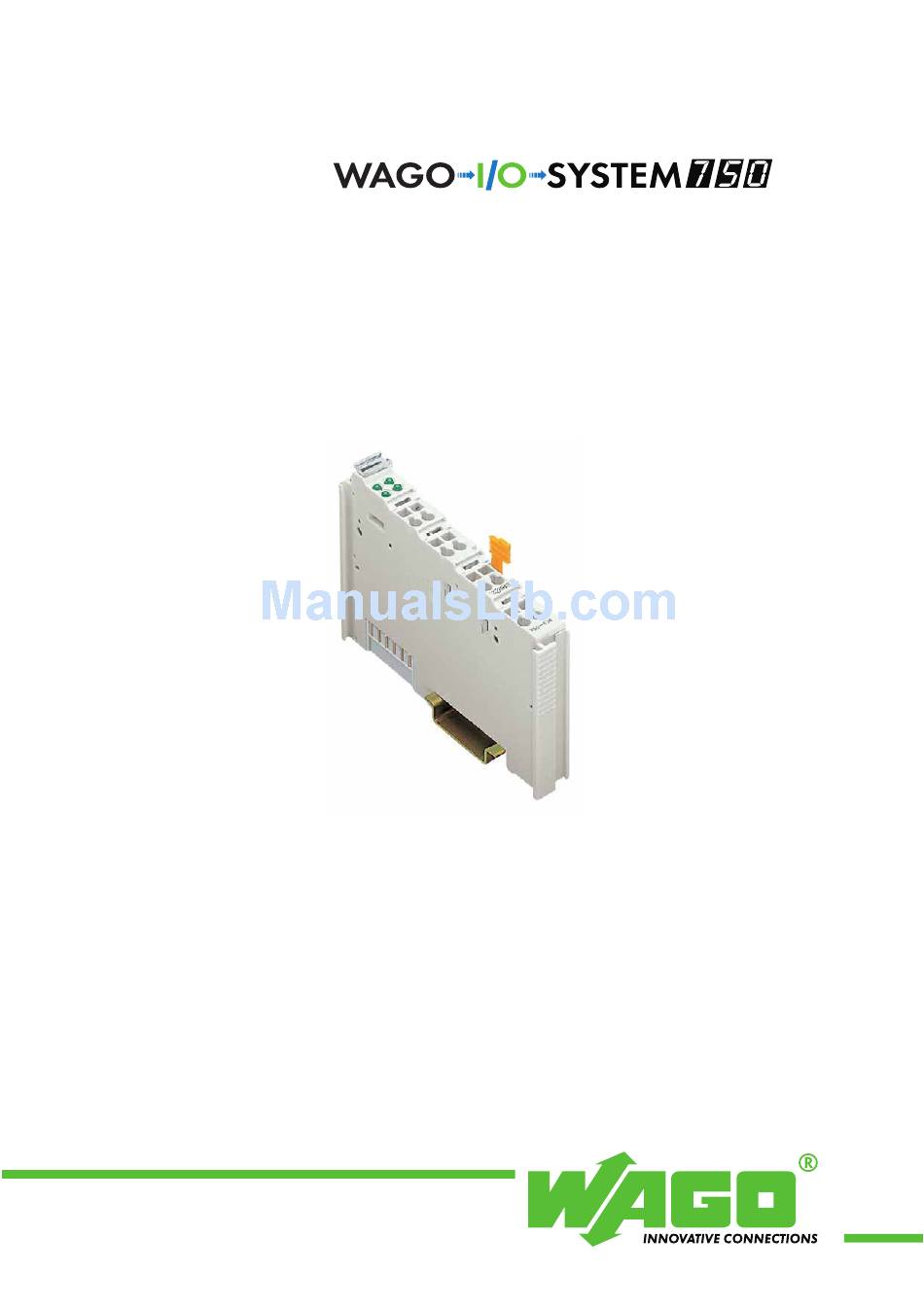

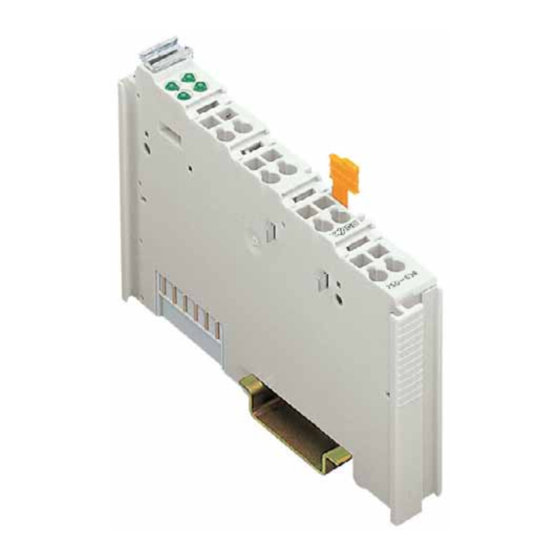

  • Page 1 Fieldbus Independent I/O Modules SSI Transmitter Interface 750-630 Manual Version 1.1.1...
  • Page 2 • General Copyright  2008 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...

  • Page 3: Table Of Contents

    Safety Information..................8 Font Conventions ..................9 Number Notation ..................9 Scope ...................... 10 2 I/O Modules ....................11 Special Modules ..................11 2.1.1 750-630 (/xxx-xxx) [SSI Transmitter Interface] ....... 11 2.1.1.1 Variations..................11 2.1.1.2 View....................11 2.1.1.3 Description..................12 2.1.1.4...

  • Page 4: Important Notes

    Co. KG, Minden, Germany. Non-observance will involve the right to assert damage claims. WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications that serve to increase the efficiency of technical progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents.

  • Page 5: Use Of The 750 Series In Compliance With Underlying Provisions

    Legal Bases All responsible persons have to familiarize themselves with the underlying legal standards to be applied. WAGO Kontakttechnik GmbH & Co. KG does not assume any liability whatsoever resulting from improper handling and damage incurred to both WAGO´s own and third-party products by disregarding detailed information in this Manual.

  • Page 6: Standards And Guidelines For Operating The 750 Series

    (emissions of interference) in compliance with EN 61000-6-3. You will find the detailed information in section "WAGO-I/O-SYSTEM 750"  "System Description"  "Technical Data".  Please observe the safety precautions against electrostatic discharge in accordance with DIN EN 61340-5-1/-3.

  • Page 7: Symbols

    Observe the precautionary measure for handling components at risk of electrostatic discharge. Note Make important notes that are to be complied with so that a trouble-free and efficient device operation can be guaranteed. Additional Information References to additional literature, manuals, data sheets and internet pages. WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 8: Safety Information

    Danger The WAGO-I/O-SYSTEM 750 and its components are an open system. It must only be assembled in housings, cabinets or in electrical operation rooms. Access is only permitted via a key or tool to authorized qualified personnel.

  • Page 9: Font Conventions

    Only for use in LAN, not for connection to telecommunication circuits. 1.5 Font Conventions Names of paths and data files are marked in italic-type. italic e.g.: C:\Programs\WAGO-IO-CHECK Menu items are marked in italic-type, bold letters. italic e.g.: Save A backslash between two names characterizes the selection of a menu point from a menu.

  • Page 10: Scope

    Important Notes Scope 1.7 Scope This manual describes the Digital Input Module 750-630 SSI Transmitter Interface of the modular WAGO-I/O-SYSTEM 750. Handling, assembly and start-up are described in the manual of the Fieldbus Coupler. Therefore this documentation is valid only in the connection with the appropriate manual.

  • Page 11: O Modules

    750-630 (/xxx-xxx) [SSI Transmitter Interface] • 11 Variations 2 I/O Modules 2.1 Special Modules 2.1.1 750-630 (/xxx-xxx) [SSI Transmitter Interface] 2.1.1.1 Variations Item-No. Designation Description 750-630 SSI/ 24Bit/ 125kHz/ Gray SSI Transmitter Interface 750-630/000-001 SSI/ 24Bit/ 125kHz/ Bin SSI Transmitter Interface...

  • Page 12: Description

    However, if such a case should occur, another supply module must be added. The module 750-630 and its variations can be used with all couplers/controllers of the WAGO-I/O-SYSTEM 750 (except for the economy types 750-320, -323, -324 and -327).

  • Page 13: Display Elements

    750-630 (/xxx-xxx) [SSI Transmitter Interface] • 13 Display Elements 2.1.1.4 Display Elements Channel State Function Watchdog Timer Overflow * 13 14 * The green LED goes off if no process data is transmitted by the fieldbus Status coupler / controller for 100 ms.

  • Page 14: Technical Data

    14 • 750-630 (/xxx-xxx) [SSI Transmitter Interface] Technical Data 2.1.1.6 Technical Data Module Specific Data Transmitter connection Inputs: + D, -D, Outputs: +CL, -CL Current consumption (internal) 85 mA typ. Voltage via power jumper contacts DC 24 V (-15 % ... +20 %) Transmission rate 125 kHz (max.
  • Page 15 750-630 (/xxx-xxx) [SSI Transmitter Interface] • 15 Technical Data The following Ex approvals have been granted to the basic version of 750-630 I/O modules and the variation 750-630/000-xxx: KEMA (01 KEMA 1024X) II 3 G EEx nA II T4 (ANSI/ISA 12.12.01)

  • Page 16: Process Image

    Process Image 2.1.1.7 Process Image Using the I/O module 750-630, a 5 byte input and output process image can be transferred to the fieldbus coupler / controller via one logical channel. The data received by the transmitter are stored in 3 input bytes (D0 ... D2). Neither the input byte (D3) and four output bytes (D0 ...
  • Page 17 750-630 (/xxx-xxx) [SSI Transmitter Interface] • 17 Process Image Status byte S0 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 ERROR FRAME_ SSI_IN_ ERROR A general error has occurred. This bit is set in a FRAME or SSI-IN error has occurred.

  • Page 18: Adjustable Variation 750-630/003-000

    The presetting is Baud rate: 9600 baud, data bits: 8, Parity: none, stop bits: 1. In this mode of operation the module has the same behavior and also the same process values as the base module 750-630. If another mode of operation is selected by changing the parameters, then the module behaves according to the variation with the selected mode of operation.
  • Page 19 Power fail bit not active (PFB) Enable Power fail bit active * default setting More Information Detailed Information about the parameterizing this module can be found in the manual for the software tool WAGO-I/O-CHECK or in the Internet under: http://www.wago.com WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 20: Use In Hazardous Environments

    20 • Use in Hazardous Environments 3 Use in Hazardous Environments The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas. The following sections include both the general identification of components (devices) and the installation regulations to be observed. The individual subsections of the "Installation Regulations"...

  • Page 21: Marking Configuration Examples

    Approval body and/or number of the examination IECEx PTB 07.0064X certificate I M2 / II 3 GD Explosion protection group and Unit category Ex nA Type of ignition and extended identification Explosion protection group Temperature class WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 22 Figure 3: Side marking example for Ex i and IEC Ex i approved I/O modules according to CENELEC and IEC Figure 4: Text detail – Marking example for Ex i and IEC Ex i approved I/O modules according to CENELEC and IEC WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 23 Device category: Zone 2 device (Zone 0 subunit) Explosion protection mark Type of protection: Non-sparking operating equipment [ia] Category of type of protection intrinsic safety: Even safe when two errors occur Explosion Group Temperature class: Max. surface temperature 135°C WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 24: Marking For America According To Nec 500

    Table 3: Description of marking example for I/O modules according to NEC 500 Printing on Text Description CL 1 Explosion protection group (condition of use category) DIV 2 Area of application (zone) Grp. ABCD Explosion group (gas group) Optemp code T4 Temperature class WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 25: Installation Regulations

    NFPA 70 National Electrical Code Art. 500 Hazardous Locations ANSI/ISA-RP 12.6-1987 Recommended Practice C22.1 Canadian Electrical Code Notice the following points When using the WAGO-I/O SYSTEM 750 (electrical operation) with Ex approval, the following points are mandatory: WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 26: Special Conditions For Safe Operation Of The Atex And Iec Ex (Acc. Demko 08 Atex 142851X And Iecex Ptb 07.0064)

    3.2.1 Special Conditions for Safe Operation of the ATEX and IEC Ex (acc. DEMKO 08 ATEX 142851X and IECEx PTB 07.0064) The fieldbus-independent I/O modules of the WAGO-I/O-SYSTEM 750-.../...-... must be installed in an environment with degree of pollution 2 or better. In the final...

  • Page 27: Special Conditions For Safe Use (Atex Certificate Tüv 07 Atex 554086 X)

    554086 X) For use as Gc- or Dc-apparatus (in zone 2 or 22) the field bus independent I/O modules WAGO-I/O-SYSTEM 750-*** shall be erected in an enclosure that fulfils the requirements of the applicable standards (see the marking) EN 60079-0, EN 60079-11, EN 60079-15, EN 61241-0 and EN 61241-1. For use as...
  • Page 28 If the module is energized do not remove or replace the fuse. Do not separate when energized! Do not separate the module when energized! Separate only in a non-hazardous area! Separate the module only in a non-hazardous area! WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 29: Special Conditions For Safe Use (Iec-Ex Certificate Tun 09.0001

    3.2.3 Special conditions for safe use (IEC-Ex Certificate TUN 09.0001 For use as Dc- or Gc-apparatus (in zone 2 or 22) the fieldbus independent I/O modules WAGO-I/O-SYSTEM 750-*** shall be erected in an enclosure that fulfils the requirements of the applicable standards (see the marking) IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 61241-0 and IEC 61241-1.
  • Page 30 If the module is energized do not remove or replace the fuse. Do not separate when energized! Do not separate the module when energized! Separate only in a non-hazardous area! Separate the module only in a non-hazardous area! WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 31: Special Conditions For Safe Use (Atex Certificate Dekra 11Atex0203 X)

    Address selectors and ID switches may only be adjusted when the system supply is switched off, or when the location is known to be non-hazardous. The ambient temperature range is: 0°C ≤ T ≤ +55°C. WAGO-I/O-SYSTEM 750 I/O Modules...

  • Page 32: Ansi/Isa 12.12.01

    Devices containing fuses must not be fitted into circuits subject to over loads! Devices containing fuses must not be fitted into circuits subject to over loads, e.g. motor circuits! WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 33 Proof of certification is available on request. Also take note of the information given on the module technical information sheet. The Instruction Manual, containing these special conditions for safe use, must be readily available to the user. WAGO-I/O-SYSTEM 750 I/O Modules...
  • Page 34 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Hansastraße 27 • D-32423 Minden Phone: 05 71/8 87 – 0 Fax: 05 71/8 87 – 1 69 E-Mail: info@wago.com Internet: http://www.wago.com...
