INSTALLATION
OPERATING
INSTRUCTIONS

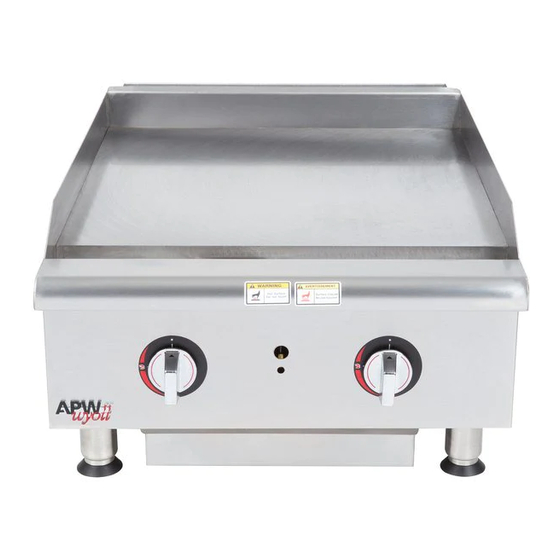

Manual Heavy Duty Gas Griddles
MODELS: HMG-2424, HMG-2436, HMG-2448, HMG-2460, HMG-2472
(US & Canadian units are convertible and are assembled for Natural Gas)
(European units are not convertible and assembled for the appropriate gas)
Please complete this information and retain this manual for the life of the equipment. For
Warranty Service and/or Parts, this information is required.
Model Number
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids
in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating and
maintenance instructions thoroughly before installing, or servicing this equipment.
WARNING: Instructions must be posted in a prominent location. All safety precautions
must be taken in the event the user smells gas. Safety information can be obtained from
your local gas supplier.
GAS-FIRED
C
LISTED
Dallas Plant
729 Third Ave. Dallas, TX 75226
Local: 1-(214) 421-7366
Toll Free: 1-(800) 527-2100
Parts/Service Fax: 1-(214) 565-0976
AND
IMPORTANT FOR FUTURE REFERENCE
Serial Number
U L
US
APW Wyott Foodservice Equipment Company
E-mail: info@apwwyott.com
www.apwwyott.com
Cheyenne Plant
1938 Wyott Drive, Cheyenne, WY 82007
Local: 1-(307) 634-5801
Toll Free: 1-(800) 752-0863
Parts/Service Fax: 1-(307) 772-0460
1
Date Purchased
U L
EPH
ANSI/NSF4
P/N 8835400 2-09
Advertisement
Table of Contents
Related Manuals for APW Wyott HMG-2424
Summary of Contents for APW Wyott HMG-2424
- Page 1 OPERATING INSTRUCTIONS Manual Heavy Duty Gas Griddles MODELS: HMG-2424, HMG-2436, HMG-2448, HMG-2460, HMG-2472 (US & Canadian units are convertible and are assembled for Natural Gas) (European units are not convertible and assembled for the appropriate gas) IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment.
-
Page 2: Table Of Contents
Congratulations on your purchase of APW Wyott commercial cooking or refrigeration equipment. APW Wyott takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. To ensure best... -
Page 3: Safety Precautions
Installation and start-up should be performed by a qualified installer who thoroughly read, understands and follows these instruction. If you have questions concerning the installation, operation, maintenance or service of this product, write Technical Service Department APW Wyott Foodservice Equipment Company, 1938 Wyott Drive, Cheyenne, WY 82007. SAFETY PRECAUTIONS Before installing and operating this equipment be sure everyone involved in its operation is fully trained and is aware of all precautions. -
Page 4: General Installation Instructions
WARNING: Keep the appliance free & clear of all combustible substances. If gas odor is detected at any time, immediately shut unit down at the main shutoff valve. Do not permit any open flames in the area of the appliance. Immediately contact an authorized Service Agency or your local Gas Supplier for service. -
Page 5: Specifications & Dimensions
HMG-2436 35.850" (910.6) 24" (609.6) HMG-2448 47.850" (1215.4) 24" (609.6) HMG-2460 59.850" (1520.2) 24" (609.6) HMG-2472 71.850" (1825.0) 24" (609.6) SPECIFICATIONS - HEAVY DUTY GAS GRIDDLE: HMG-2424 21826000 38.09 24" MANUAL GRIDDLE 6.27 9.51 24.0 33.88 15.46 13.13 23.58 21.00 32.37... - Page 6 SPECIFICATIONS - HEAVY DUTY GAS GRIDDLE: HMG-2436 21826100 38.09 36" MANUAL GRIDDLE 6.27 20.36 36.0 33.88 15.46 13.13 23.58 33.00 32.38 4.21 SPECIFICATIONS - HEAVY DUTY GAS GRIDDLE: HMG-2448 21826200 38.48 48" MANUAL GRIDDLE 6.27 32.92 48.0 33.88 15.46 13.13 23.58 45.000 32.38...
- Page 7 SPECIFICATIONS - HEAVY DUTY GAS GRIDDLE: HMG-2460 21826300 38.09 6.27 43.54 60" MANUAL GRIDDLE 60.0 33.88 15.46 13.13 23.58 57.00 32.38 4.21 SPECIFICATIONS - HEAVY DUTY GAS GRIDDLE: HMG-2472 21826400 38.21 6.27 44.92 72" MANUAL GRIDDLE 72.0 33.88 15.46 13.13 23.58 69.00 32.38...
-
Page 8: Conversion
CONVERSION Instructions are for conversion from Natural Gas to Propane (L.P.) on all models HMG. The conversion should be done before connecting the unit to the gas supply. Units are shipped from the factory equipped for use on natural gas. Orifices necessary for LP (propane) are provided in a bag tied to the valve on the front panel. -
Page 9: Lighting Instructions
LIGHTING INSTRUCTIONS HMG Griddles are furnished with either a pilot safety valve or a standing pilot (not available in the European Community). Please follow the instructions for your unit. HMG Griddles are furnished with either a flame failure pilot or a standing pilot (not available in the European community). Pilot Operation HMG Flame Failure Gas Valve: Operation of the gas valve pilot: Turn knob on the main gas valve to the pilot position... -
Page 10: Operating Instructions
All burners are lit from constantly burning pilots. Turning the thermostat to the desired temperature is all that is required to put the unit in service. Do not permit fans to blow directly at the unit. Wherever possible, avoid open windows next to the units' sides or back. -
Page 11: Cleaning/Maintenance
NOTE: THIS APPLIANCE MUST ONLY BE SERVICED BY AN AUTHORIZED AGENT. NOTE: Parts protected by the manufacturer or his agent are not to be adjusted by the installer unless the installer is an authorized service agent. If you have any questions or problems contact your nearest APW Wyott Service Representative. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Thermostat is bad. Heat does not come on when thermostat is turned on. Pilot burner not lit. Gas valve is bad. Obstructed pilot orifice. Pilot burner will not light. Pilot gas turned off at automatic pilot. Automatic pilot valve is bad. -
Page 13: Replacement Parts Lists & Exploded View
HMG GRIDDLES (DOMESTIC) - EXPLODED VIEW & PARTS LIST ITEM DESCRIPTION HMG-2424 HMG-2436 HMG-2448 HMG-2460 HMG-2472 21826020 WELDM'T, GRIDDLE PLATE 21826120 WELDM'T, GRIDDLE PLATE 21826220 WELDM'T, GRIDDLE PLATE 21826320 WELDM'T, GRIDDLE PLATE 21826420 WELDM'T, GRIDDLE PLATE 21826433 SIDE, FIREBOX 21826022 BODY, 24" FIREBOX 21826122 BODY, 36"... - Page 14 ITEM DESCRIPTION HMG-2424 HMG-2436 HMG-2448 HMG-2460 HMG-2472 21826427 BAFFLE, FRONT HEAT 21813085 SPACER 21826020 MANIFOLD, 24" 21826120 MANIFOLD, 36" 21826220 MANIFOLD, 48" 21826320 MANIFOLD, 60" 21826420 MANIFOLD, 72" 2068500 VALVE, GAS 210° ON/OFF 2092517 PLUG, 1/8 NPTM 2066834 HOOD, ORIFICE #34...
- Page 15 HMG GRIDDLES (CE) - EXPLODED VIEW & PARTS LIST HMG-2424 HMG-2436 HMG-2448 ITEM DESCRIPTION HMG-2460 HMG-2472 21826020 WELDM'T, GRIDDLE PLATE 21826120 WELDM'T, GRIDDLE PLATE 21826220 WELDM'T, GRIDDLE PLATE 21826320 WELDM'T, GRIDDLE PLATE 21826420 WELDM'T, GRIDDLE PLATE 21826433 SIDE, FIREBOX 21826036 BODY, 24" FIREBOX 21826136 BODY, 36"...
- Page 16 ITEM DESCRIPTION HMG-2424 HMG-2436 HMG-2448 HMG-2460 HMG-2472 21826437 BAFFLE, FRONT HEAT 21813085 SPACER 21830735 MANIFOLD, 24" 21830835 MANIFOLD, 36" 21830935 MANIFOLD, 48" 21831035 MANIFOLD, 60" 21831135 MANIFOLD, 72" 2068300 VALVE, GAS 210° ON/OFF 2092517 PLUG, 1/8 NPTM 2066834 HOOD, ORIFICE #34...
- Page 17 ITEM DESCRIPTION HMG-2424 HMG-2436 HMG-2448 HMG-2460 HMG-2472 2069700 VALVE, BALL 3/4" 90DEG. 2092612 ELBOW, BRASS 3/8-27F X 3/8 C 2092614 ELBOW, BRASS 3/8C X 3/8-27M BRASS 2092626 PIPE, INLET 20932101 NUT, COMPRESSION & FERRULE 21826016 BRACKET, THERMOCOUPLE 21826046 TUBE, PILOT SUPPLY CE...
- Page 18 NOTES:...
- Page 19 NOTES:...
-
Page 20: Warranty
APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced. From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs. -
Page 21: Cheyenne, Wy
APW Wyott Foodservice Equipment Company Dallas Plant Cheyenne Plant 729 Third Ave. Dallas, TX 75226 1938 Wyott Drive, Cheyenne, WY 82007 Local: 1-(214) 421-7366 Local: 1-(307) 634-5801 Toll Free: 1-(800) 527-2100 Toll Free: 1-(800) 752-0863 Parts/Service Fax: 1-(214) 565-0976 Parts/Service Fax: 1-(307) 772-0460 E-mail: info@apwwyott.com...
