INSTALLATION AND OPERATING INSTRUCTIONS

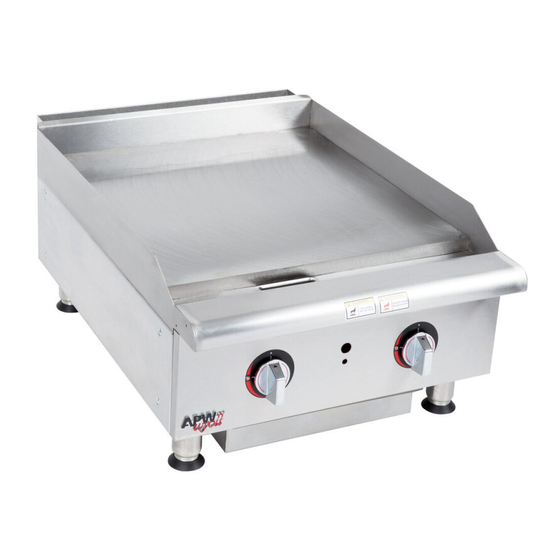

Thermostatic Heavy Duty Gas Griddles
MODELS: HTG-2424i, HTG-2436i, HTG-2448i, HTG-2460i, HTG-2472i
(US & Canadian units are convertible and are assembled for Natural Gas)
(European units are not convertible and assembled for the appropriate Gas)
Please complete this information and retain this manual for the life of the equipment. For Warranty
Service and/or Parts, this information is required.
Model Number
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing, or servicing this equipment.
WARNING: Instructions must be posted in a prominent location. All safety precautions
must be taken in the event the user smells gas. Safety information can be obtained from
your local gas supplier
DALLAS:
1307 N. Watters Rd #180 • Allen, TX • 75013
Local: (972) 908-6100
Toll Free: (800) 431-2745
Parts/Service Fax: (214) 565-0976
IMPORTANT FOR FUTURE REFERENCE
APW Wyott MANUFACTURING
Serial Number
CHEYENNE:
1938 Wyott Dr • Cheyenne, WY • 82007
Local: (307) 634-5801
Toll Free: (800) 752-0863
Parts/Service Fax: (214) 565-0976
1
Date Purchased
P/N 8822231 09/24/13
Advertisement
Table of Contents
Related Manuals for APW Wyott HTG-2424i
Summary of Contents for APW Wyott HTG-2424i
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Thermostatic Heavy Duty Gas Griddles MODELS: HTG-2424i, HTG-2436i, HTG-2448i, HTG-2460i, HTG-2472i (US & Canadian units are convertible and are assembled for Natural Gas) (European units are not convertible and assembled for the appropriate Gas) IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment.
-
Page 2: Table Of Contents
APW Wyott. Congratulations on your purchase of APW Wyott commercial cooking or refrigeration equipment. APW Wyott takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. -
Page 3: Safety Precautions
If you have questions concerning the installation, operation, maintenance or service of this product, write Technical Service Department APW Wyott Manufacturing., Inc, 1938 Wyott Dr. Cheyenne, WY 82007. SAFETY PRECAUTIONS Before installing and operating this equipment be sure everyone involved in its operation is fully trained and is aware of all precautions. -
Page 4: General Installation Instructions
WARNING: Keep the appliance free & clear of all combustible substances. If gas odor is detected at any time, immediately shut unit down at the main shutoff valve. Do not permit any open flames in the area of the appliance. Immediately contact an authorized Service Agency or your local Gas Supplier for service. - Page 5 23.6 “ (600) HTG-2448i 48" (1219.2) 33.3" (846) 15.5" (392.1) 45.0”(1143) 23.6” (600) HTG-2460i 60" (1524.0) 33.3" (846) 15.5" (392.1) 57.0”(1448) 23.6” (600) HTG-2472i 72" (1828.8) 33.3" (846) 15.5" (392.1) 69.0”(1753) 23.6” (600) SPECIFICATIONS – HEAVY DUTY GAS GRIDDLE: HTG-2424i...
-
Page 6: Conversion
CONVERSION Instructions are for conversion from Natural Gas to Propane (L.P.) on all models HTG. The conversion should be done before connecting the unit to the gas supply. Units are shipped from the factory equipped for use on natural gas. Orifices necessary for LP (propane) are provided in a bag tied to the valve on the front panel. -
Page 7: Lighting Instructions
grease which may accumulate around this cap. The openings must remain open for the regulator to function. Clean more often in a very greasy atmosphere. LIGHTING INSTRUCTIONS HDTG Griddles are furnished with either a pilot safety valve or a standing pilot (not available in the European Community). -
Page 8: Operating Instructions
2. Loosen the screws on the front of the burner and adjust the air shutter to just eliminate the yellow tips of the burner flame. Lock the air shutter in place by tightening the screws. European Community If adjustment becomes necessary in the field, it should be done by a factory authorized and trained technician who should seal the screw after the adjustment to safeguard against unauthorized tampering by the end user. -
Page 9: Cleaning/Maintenance
NOTE: THIS APPLIANCE MUST ONLY BE SERVICED BY AN AUTHORIZED AGENT. NOTE: Parts protected by the manufacturer or his agent are not to be adjusted by the installer unless the installer is an authorized service agent. If you have any questions or problems contact your nearest APW Wyott Service Representative. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Thermostat is bad. Heat does not come on when Pilot burner not lit. thermostat is turned on. Gas valve is bad. Obstructed pilot orifice. Pilot burner will not light. Pilot gas turned off at automatic pilot. Automatic pilot valve is bad. - Page 11 HTG GRIDDLES (DOMESTIC) - EXPLODED VIEW & PARTS LIST ITEM DESCRIPTION HTG-2424i HTG-2436i HTG-2448i HTG-2460i HTG-2472i 22231254 Weldm't, Griddle Plate 22231374 Weldm't, Griddle Plate 22231494 Weldm't, Griddle Plate 22231614 Weldm't, Griddle Plate 22231734 Weldm't, Griddle Plate 21826433 Side, Firebox 21831222 Body, 24"...
- Page 12 Stiffiner 2067600 Regulator, 5" WC. & 1 0" WC. 21825012 Side, Grease Chute 21831347 Tube, Manifold/T'stat 2065847 APW Wyott Casted Logo 2092624 Fitting, 3/8c x 1/8 NPT Male Straight 8861000 Label, Spec 8809920 Decal, Improper Installation 8837134 Label, Orifice Size...
- Page 13 HTG GRIDDLES (CE) - EXPLODED VIEW & PARTS LIST ITEM DESCRIPTION HTG-2424i HTG-2436i HTG-2448i HTG-2460i HTG-2472i 22231254 Weldm't, Griddle Plate 2424i 22231374 Weldm't, Griddle Plate 2436i 22231494 Weldm't, Griddle Plate2448i 22231614 Weldm't Griddle Plate 2460i 22231734 Weldm't, Griddle Plate 2472i...
- Page 14 Channel, Stiffiner 2067600 Regulator, 5" W.C. & 1 0" W.C. 21825012 Side, Grease Chute 21831347 Tube, Manifold/T'stat 2065847 APW Wyott Casted Logo 2092624 Fitting, 3/8cx 1/8 NPT Male Straight 8861000 Label, Spec 8809920 Decal, Improper Installation 8837134 Label, Orifice Size...
- Page 15 ITEM DESCRIPTION HTG-2424i HTG-2436i HTG-2448i HTG-2460i HTG-2472i 21831213 Tube, Pilot Supply CE 21830813 Tube, Pilot Supply CE 21831512 Tube, Pilot Supply CE 21831317 Tube, Pilot Supply CE 21831513 Tube, Pilot Supply CE 21832913 Tube, Pilot Supply CE 21833017 Tube, Pilot Supply CE...
- Page 16 NOTES:...
-
Page 17: Warranty
APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced. From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs.
