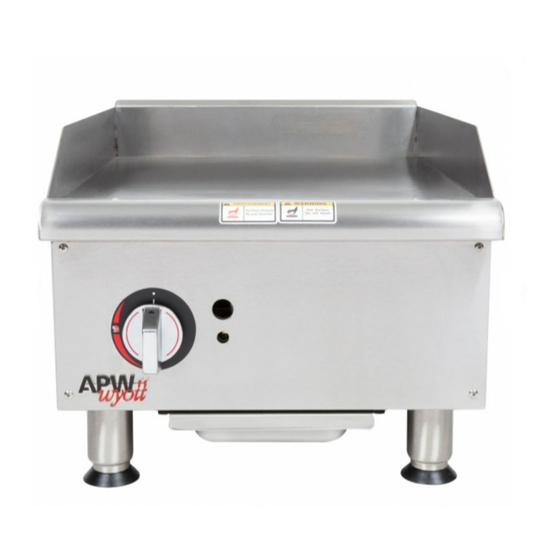

  • Page 1 INSTALLATION OPERATING INSTRUCTIONS Gas Griddles MODELS: GGT-18i, -24i, -36i, -48i & MODELS: GGM-18i, -24i, -36i, 48i (US & Canadian units are convertible and are assembled for Natural Gas) (European units are not convertible and assembled for the appropriate gas) IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment.
  • Page 2: Table Of Contents

    APW Wyott. Congratulations on your purchase of APW Wyott commercial cooking or refrigeration equipment. APW Wyott takes pride in the design and quality of our products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment.
  • Page 3: Safety Precautions

    Installation and start-up should be performed by a qualified installer who thoroughly read, understands and follows these instruction. If you have questions concerning the installation, operation, maintenance or service of this product, write Technical Service Department APW Wyott Foodservice Equipment Company, P.O. Box 1829, Cheyenne, WY 82003. SAFETY PRECAUTIONS Before installing and operating this equipment be sure everyone involved in its operation is fully trained and is aware of all precautions.
  • Page 4: General Installation Instructions

    WIDTH DEPTH MODEL IN. (MM) IN. (MM) 17 13/16” / (452) 19 ½” / (496) GGT-18i and GGM-18i 23 13/16” / (605) 19 ½” / (496) GGT-24i and GGM-24i 35 13/16” / (910) 19 ½” / (496) GGT-36i and GGM-36i 47 13/16”...
  • Page 5: Lighting Instructions

    Caution: DO NOT use an open flame to check for leaks. Check all gas piping for leaks with a soap and water solution before operating unit. THESE UNITS ARE SUITABLE FOR INSTALLATION ON NON-COMBUSTIBLE SURFACES ONLY. Noncombustible clearances: 0" sides (0 mm) 0"...
  • Page 6: Operating Instructions

    5. Turn the burner knobs to "HI". If the burner does not ignite, promptly open the pilot valve more. If the pilot flame appears larger than necessary, turn it down and reset burner ignition. The pilot flame should be as small as possible but large enough to guarantee reliable ignition of the burners when the knobs are turned to "HI".
  • Page 7: Service/Repair

    CLEANING / MAINTENANCE CAUTION: Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish of your unit, marring it’s appearance and making it susceptible to dirt accumulation. Do Not use steel wool, other abrasive cleaners or cleaners/sanitizers containing chlorine, iodine, ammonia or bromine chemicals as these will deteriorate the stainless steel and glass material and shorten the life of the unit.
  • Page 8: Conversion

    CONVERSION Instructions are for conversion from Natural Gas to Propane (L.P.) on all GGT & GGM models. The conversion should be done before connecting the unit to the gas supply. 1. Remove the knobs and front panel. GGM Models GGT Models Screw 2.
  • Page 9 GGT CALIBRATION PROBE LOCATION CALIBRATION PROCEDURE FOR GGT GRIDDLES Locate the reading positions Make sure the griddle surface is clean. Grease or food particles on the griddle will result in inaccurate thermostat calibration. Mark the locations where the temperature probe will be placed for testing. See the sketch provided. Starting from the left side of the griddle, measure 8”...
  • Page 10 If the temperature differential is large than 75ºF, there is probably a problem with your system. It may not be the thermostat. First make sure you thermostat probe is flat against the griddle plate and is making good contact. Dirt under the probe will cause inaccurate readings. Next make sure the thermostat bulb is held tightly in its holder.
  • Page 11: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Thermostat is bad. Heat does not come on when Pilot burner not lit. thermostat is turned on. Gas valve is bad. Obstructed pilot orifice. Pilot burner will not light. Pilot gas turned off at automatic pilot. Automatic pilot valve is bad.
  • Page 12 PARTS LISTS & EXPLODED VIEWS GGM GRIDDLES (EXPLODED VIEW)
  • Page 13 GGM – PARTS LIST Item Description Quan Item Description Quan 218215-20 Weldment, Griddle 2425400 Pan, Grease 18" Short Draw Varies GGM-18 218216-20 Weldment, Griddle 2425500 Pan, Grease 24" Short Draw Varies GGM-24 218217-20 Weldment, Griddle 8861000 Label, Spec GGM-36 218218-20 Weldment, Griddle 218215-12 Panel, Back...
  • Page 14 GGT GRIDDLES (EXPLODED VIEW)
  • Page 15 GGT – PARTS LIST Item Description Quan Item Description Quan 218219-60 Weldment, Griddle, GGT -18 2300100 Bags, Poly 36x27x44 218220-60 Weldment, Griddle, GGT -24 1018064 Insulation, Thermostat Bulb 218221-60 Weldment, Griddle, GGT -36 8509300 Washer, Flat, SAE, 5/16 218222-60 Weldment, Griddle, GGT -48 8436200 Nut, Hex 5/16-18 S/S 2092614...
  • Page 16: Warranty

    Authorized Service Agencies. The use of other than APW Wyott Authorized Service Agencies will void this warranty and APW Wyott will not be responsible for such work or any charges associated with same. The closest APW Wyott Authorized Service Agent must be used.

This manual is also suitable for:

Ggt-24iGgm-18iGgt-36iGgm -24iGgm-36iGgm-48i ... Show all
