Ancillary Product Specifications
Pressure Pickup Port
4.4 Pressure Pickup Port
Cover
Mounting
Dimensions
Pressure Fitting
4.52 in.
(114.78 mm)
Pressure Pickup Port

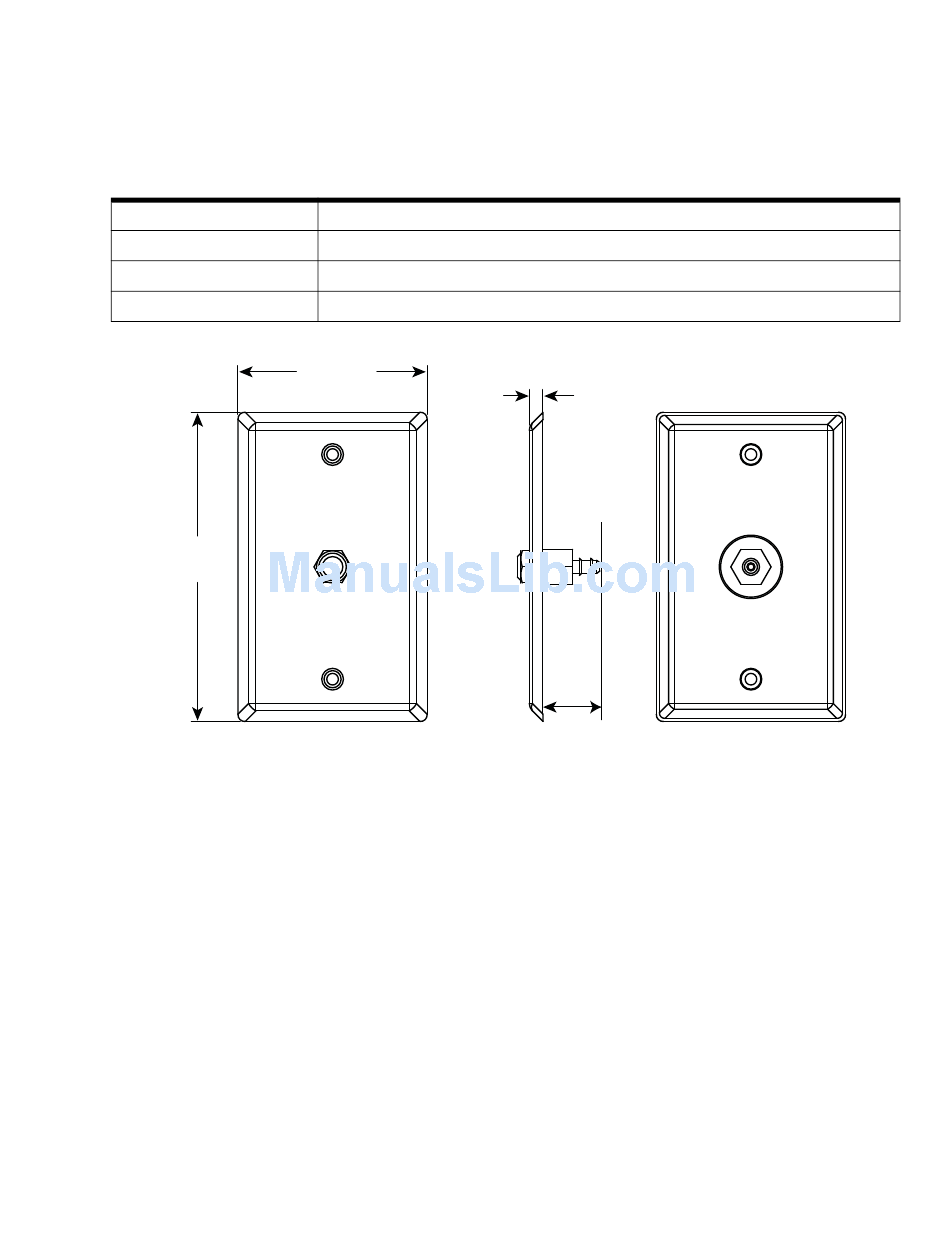

Figure 4-4.
32
MKT-0262 MPC-1748 Rev 02/13
Table 4. Pressure Pickup Port
Stainless steel standard wall cover plate
Standard single gang electrical box (2 screws included)
2.77" (70.23 mm) W x 4.52" (114.78 mm) H x 1.02" (26.08 mm) D
1/4" flexible push-on tubing (Standard)
2.77 in.
(70.23 mm)
.20 in.
(5.08 mm)
.82 in.
(21 mm)
