Fitting an APM2 in an APM100 Enclosure
Instructions

2.2.4 Wiring

POWER
L1
L2
RELAY
COM
+15
NO
RC
NC Normally Closed
COM BACnet APM2-xx-ENG-BAC Products
B (+)
A (-)
GND

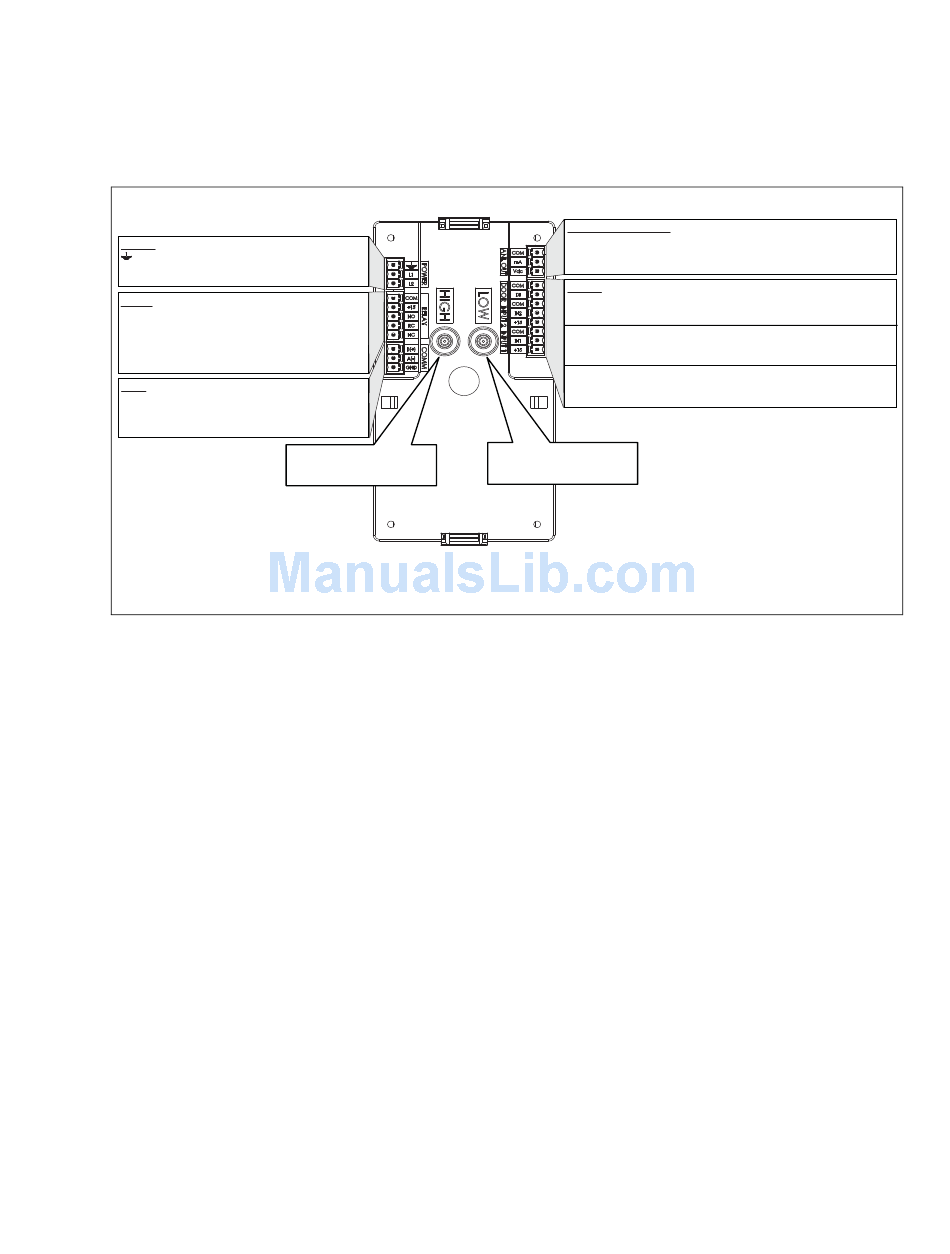

Rear View of the APM2 Showing Wiring and Plumbing Connections
Figure 2-4.
The back of the APM2 has electrical connectors labeled with their function. The mating electrical connectors
(supplied) are color coded and labeled with the matching function.
Refer to the Advanced Pressure Monitor II User's Guide (MKT-0263) for detailed wiring instructions.

2.2.5 Remotely Switching Alarm Setpoints

The APM100 model uses dry contacts to switch pressure setpoints between positive and negative, whereas the
APM2 uses an input voltage: 0, 5 or 10 Volts to switch pressure setpoints between negative-neutral-positive
respectively. If this function was used on the APM100 product, adaptations will need to be made to restore their
function with other equipment or devices that will generate the 0, 5 or 10 Volt signal.
16
MKT-0262 MPC-1748 Rev 02/13
Earth Ground
24 Vac
24 Vac
COM
+15 Vdc
Normally Open
Relay COM
HIGH or room pressure tubing
contacts here
REAR VIEW
ANALOG (ANL) OUTPUT
COM
mA
Vdc
INPUTS (wired to door N.O. contact)
COM
DI
COM
IN2
+15
COM
IN1
+15
LOW or reference pressure tubing
connects here
COM
Current Output (4-20 mA)
Voltage Output (0-5 Vdc, 0-10 Vdc)
COM Door
Digital Input
COM Analog Input2
Analog Input2 (0-5, 0-10Vdc)
15 Vdc
COM Analog Input1
Analog Input1 (0-5, 0-10Vdc)
15 Vdc
