Phoenix Advanced pressure monitor II Installation Manual page 34

Ancillary Product Specifications
Model 267 Pressure Transducer
2.68 in.
(68 mm)
1.34 in.
(34 mm)
0.93 in.
(24 mm)

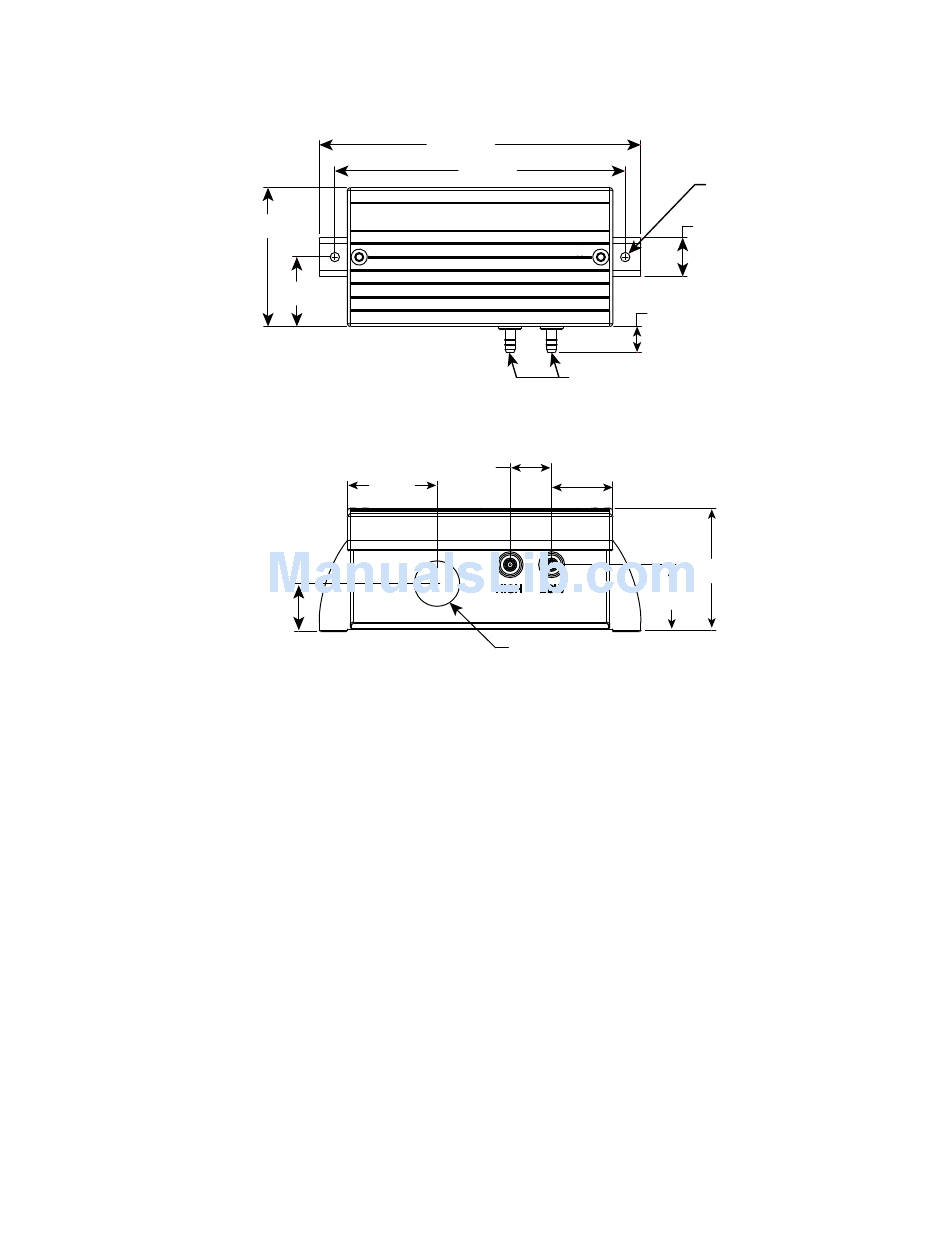

Model 267 Pressure Transducer
Figure 4-2.
30
MKT-0262 MPC-1748 Rev 02/13
6.10 in.
(155 mm)
5.60 in.
(142 mm)
0.80 in.
(20 mm)
1.73 in.
(44 mm)
Ø7/8 in.
(Ø22 mm)
0.18 in.
(Ø4.5 mm)
0.75 in.
(19 mm)
0.50 in.
(13 mm)
3/16" O.D. PRESSURE FITTING
FOR 1/4" PUSH-ON TUBING
1.18 in.
(30 mm)
2.36 in.
(60 mm)
1.29 in.
(33 mm)
