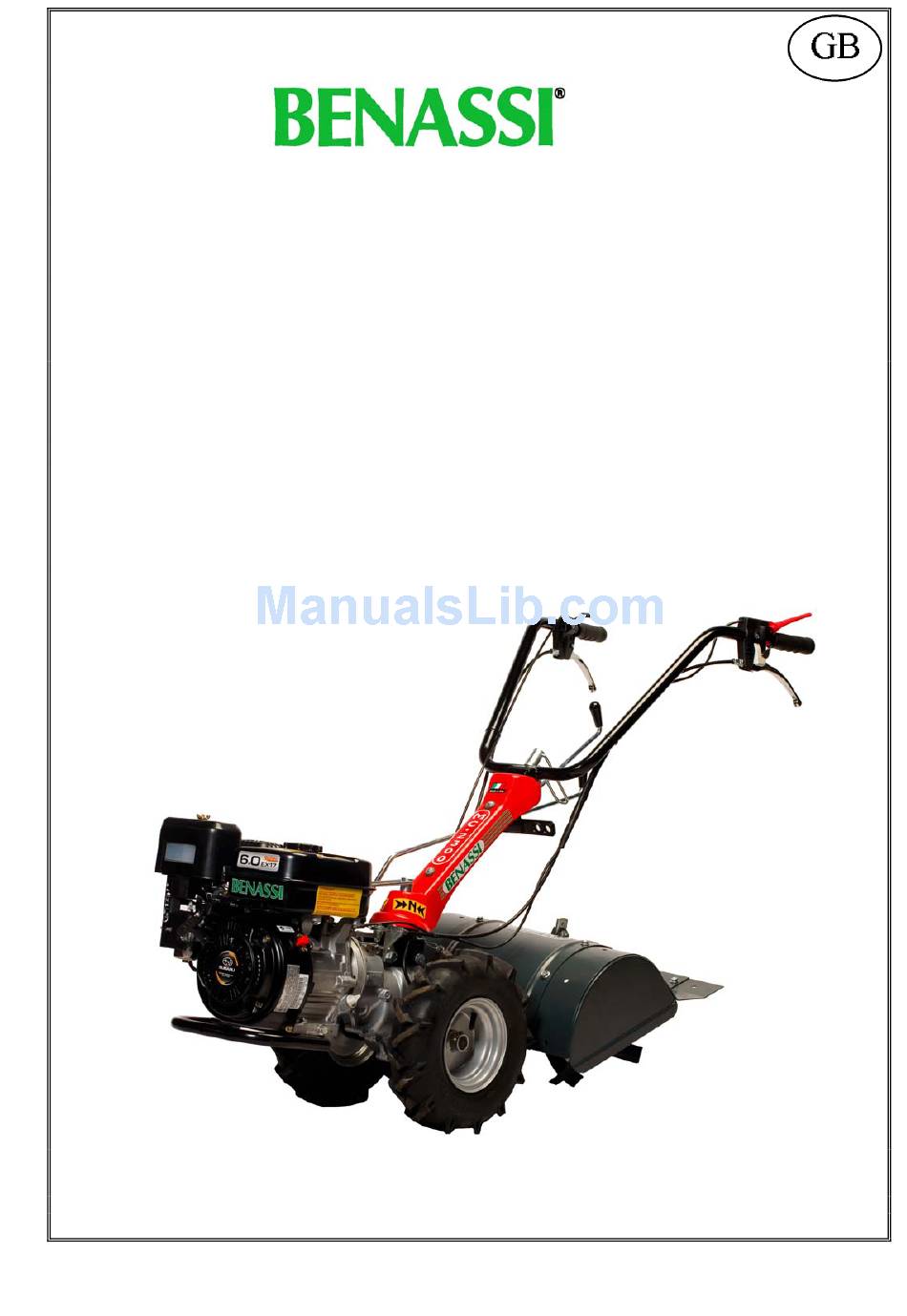

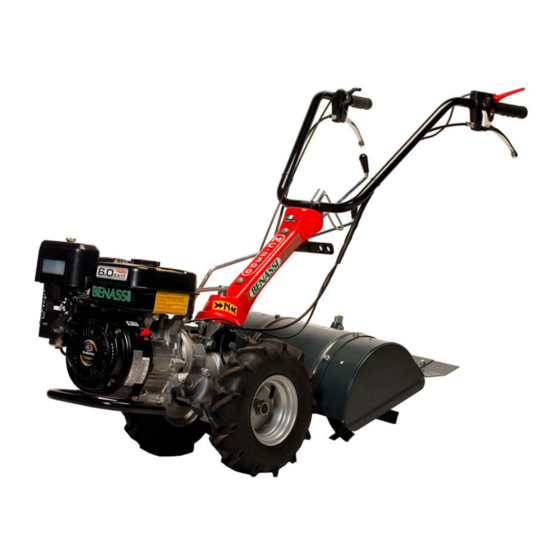

  • Page 1 S.p.A. INSTRUCTIONS  AND  MAINTENANCE MANUAL  MC 2300 “REVERSO” 25/11/2002  ...

  • Page 2: Service And Warranty

    Please use BENASSI SPA products, original spare-parts and accessories; BENASSI SPA disclaims all responsibility for any alteration or improper application. BENASSI SPA shall not be liable for the application to its machines of accessories made by third persons, without previous authorisation.
  • Page 3 MC 2300 2 TECHNICAL DATA OF THE ENGINES MOUNTED ON THE DIFFERENT VERSIONS  TECHNICAL FEATURES MC 2300 D MC 2300 H MC 2300 HS MC 2300K MC 2300I Engine YANMAR HONDA HONDA KAMA INTERMOTORL L 48 AE DI GX 160 GC 160 KG 160 LGA 226 Weight Cultivator Kg. 81 Kg.

  • Page 4: Packing And Transport

    MC 2300 Engine driven cultivator version Power mower version 5 – PACKING AND TRANSPORT  The machine is normally delivered packed, without accessories, in carton boxes having the following dimensions and overall dimensions: Machine packing : - WIDTH: 47 cm.- LENGTH cm: 71 - HEIGHT cm. 58 Mowing unit packing : - WIDTH: 38 cm.- LENGTH cm: 40 - HEIGHT cm.

  • Page 5: Machine Identification

    MC 2300 6 ‐ACCESSORIES  Wheels torque 3.50.6 Mowing unit Cod. 97063300 38-48 Cod. 94761600 Wheels torque 13.500.6 Cod. 97063400 Cutting unit cm. 92 with special Plough cutterbar and spare blade Cod. 91062500 Cod. 94564600 Snow turbine cm.50 Lister with arm single-stage Cod.

  • Page 6: Use Of The Machine

    The producer disclaims all responsibility for damages or injuries resulting from the improper use of the machine. The respect of the working conditions, maintenance and repairs established by BENASSI SPA, according to the rules, are also part of the machine use.

  • Page 7: Machine Starting

    MC 2300 11‐ TOOLS MOUNTING AND MACHINE REVERSIBILITY  It is very easy to mount or to change tools to the machine. Tools are all quick coupling type and don’t need screws or fastening spanners for the locking. Tools are coupled in the machine body (male and female) and locked with a pin. The pin must be locked with the lever (Ref. “B” Picture 8) in order to avoid its disengagement.

  • Page 8: Maintenance And Lubrication

    MC 2300   13 – START OF THE WORK  Accurately inspect the work area, removing foreign objects ( iron wires, stones, sticks, glasses etc.), since they could cause dangerous and sudden reactions of the machine. Engage the clutch, the ENGINE STOP pushbutton will release itself, then put into gear and power take-off, giving little clutch-touches if it does not immediately engage.

  • Page 9: Troubleshooting

    MC 2300 Control that the air-filter is clean, if the filter is in oil bath control the level every 8-10 hours of work or even more frequently if you are working in dusty grounds. Use engine oil to restore the oil level; before refilling the oil tank, wash it carefully. GEAR BOX Control the oil level every 50 hours of work by taking out the cap on the gearbox case (the machine must be in the horizontal position).
  • Page 10 MC 2300 Never force the engine; when smoke comes out from the exhausting pipe, it means that the engine is under stress. Do not work for long periods of time at full speed, in particular during warm periods. Periodically control the tyre pressure ( Atm. 1,3) During the mounting of the different tools do not damage the dowels (Ref.
  • Page 11 MC 2300 21 ‐ CE DECLARATION CONFORMITY OF THE MACHINE  40010 San Matteo della Decima BO Italy Via Lampedusa n°1 We declare under our responsibility that the machine is conformity with the essential safety and health protection in accordance with Directive 98/37/EC, to the requirements of Directive 2000/14/EC applicable to it. TYPE ENGINE DRIVEN CULTIVATOR MODEL MC 2300 For verification of the conformity with the above-mentioned Directives reference has been made to following specifications: UNI...
