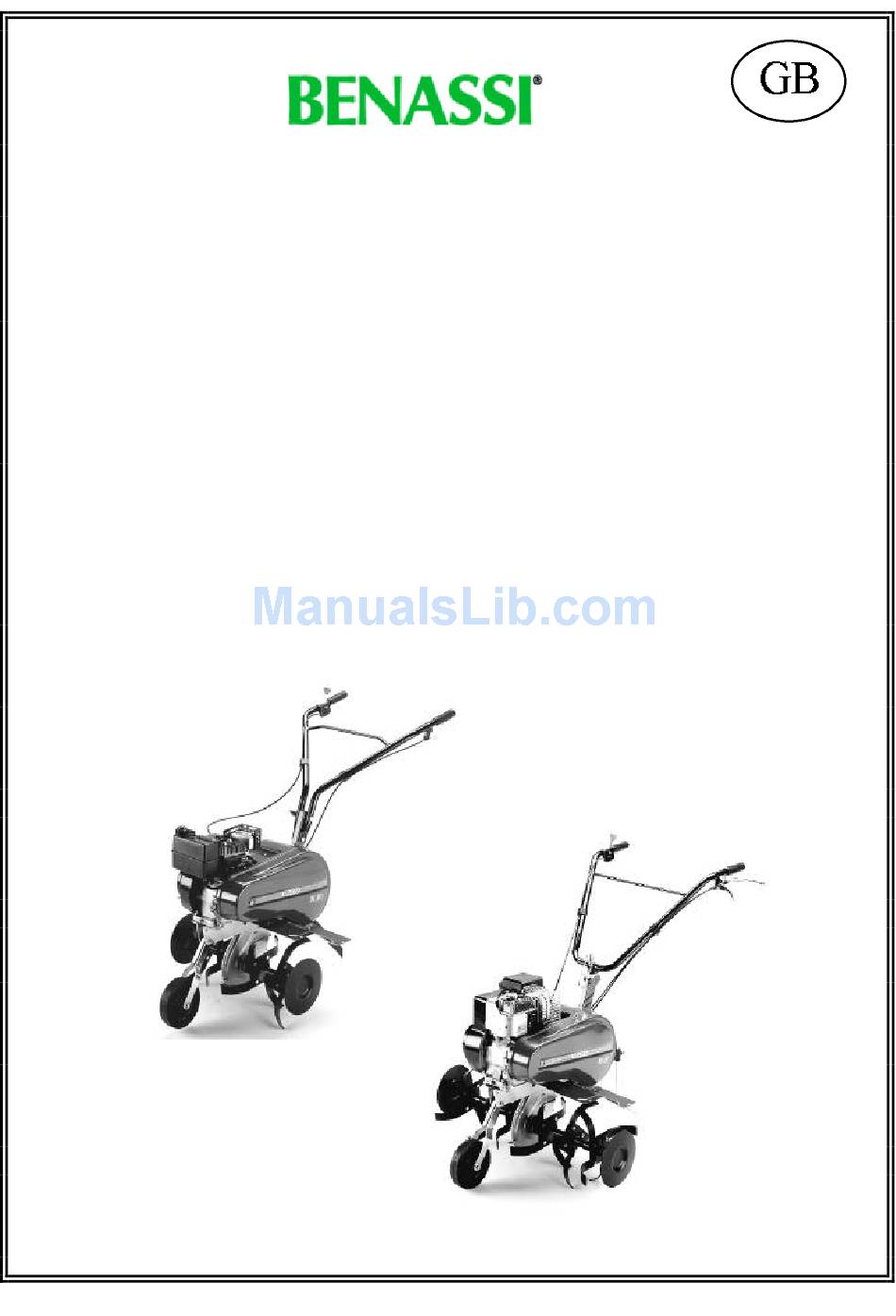

- Page 1 USE AND MAINTENANCE CULTIVATOR MODEL BL30 / BL35 3035-1.11 25/11/2002...
- Page 2 INTRODUCTION Dear user, thank you for prefering BENASSI, The top performance and the easy use of aur machine should give you any satisfaction. • This machine is the result of a long experience working at the top quality standard and using first quality material.
-
Page 3: Technical Details
• Safety device for both forward and backward gear stopping the tiller. • The model BL30 has a single belt transmission for the engine and a greased chain for the tiller. • The model BL35 has a double belt transmission (front and reverse) for the engine and a greased chain for the tiller. -
Page 4: Security Terms
BL 30 / 35 PICT n°4- -PICT n°6 INSTRUCTIONS FOR MOTORHOE ASSEMBLY The machine is packed in a box of the following dimensions : WIDTH: 80 cm. HEIGHT: 70 cm. LENGHT: 45 cm. • Take the machine out of the carton box. •... -
Page 5: Starting And Stopping The Machine
In the model BL35 with two levers you can insert the reverse gear pulling the hand lever “H” in position “b” (PICT 10). • In the model BL30 pulling the clutch lever in position “b” the correct space of the internal sides of the belt (PICT 12) s hould be of 45- 55 mm. - Page 6 BL 30 / 35 • In the model BL35 pulling the reverse gear lever between the internal sides of the belt should be 25-35 mm (PICT 14). • In the model BL 35 H with forward gear lever engaged you should keep the distance of about 55 mm between the internal sides of the belt (see picture 15).
-
Page 7: Maintenance
BL 30 / 35 MAINTENANCE • For the normal maintenance (oil, filter, spark plug) check the booklet for the engine included. • The chain for the final transmission is lubricated with normal grease. Every year you should introduce some grease through the hole “Q” (PICT 19) in the main body. - Page 8 MODEL BL30 T Measured acoustic power: Lwa=92Db Guaranteed acoustic power: Lwa=95dB(2000/14/CE) EN ISO 3744-ISO 11094 Vibration to handles with weighting UNI EN 1033 value: 5,40 m/sec ² BL30/35 , BL 35T , BL 30/35HS , BL30/35K TYPE: CULTIVATOR MODEL Noise level at operator’s ear : LAeq = 86 dB (A) Test condition: 1,6 Mt at the center of the handlebar Vibration to handles with weighting UNI EN 1033 value: 5,42 m/sec ²...
Need help?
Do you have a question about the BL30 and is the answer not in the manual?
Questions and answers
Pozdrav ,jedan savjet jeli ide ulje u lanac

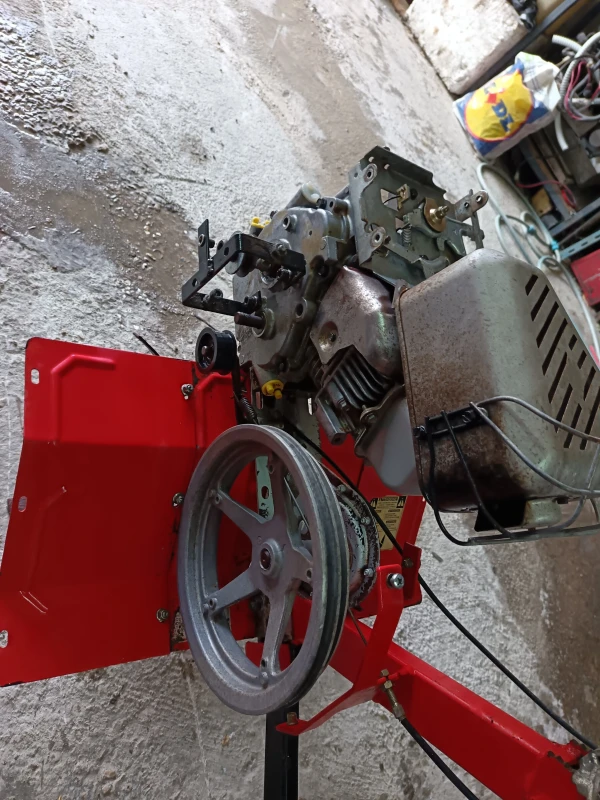

Imam kopačicu benassi bl 30 za koju mi treba shema spajanja gasa.
