Summary of Contents for Benassi BL106

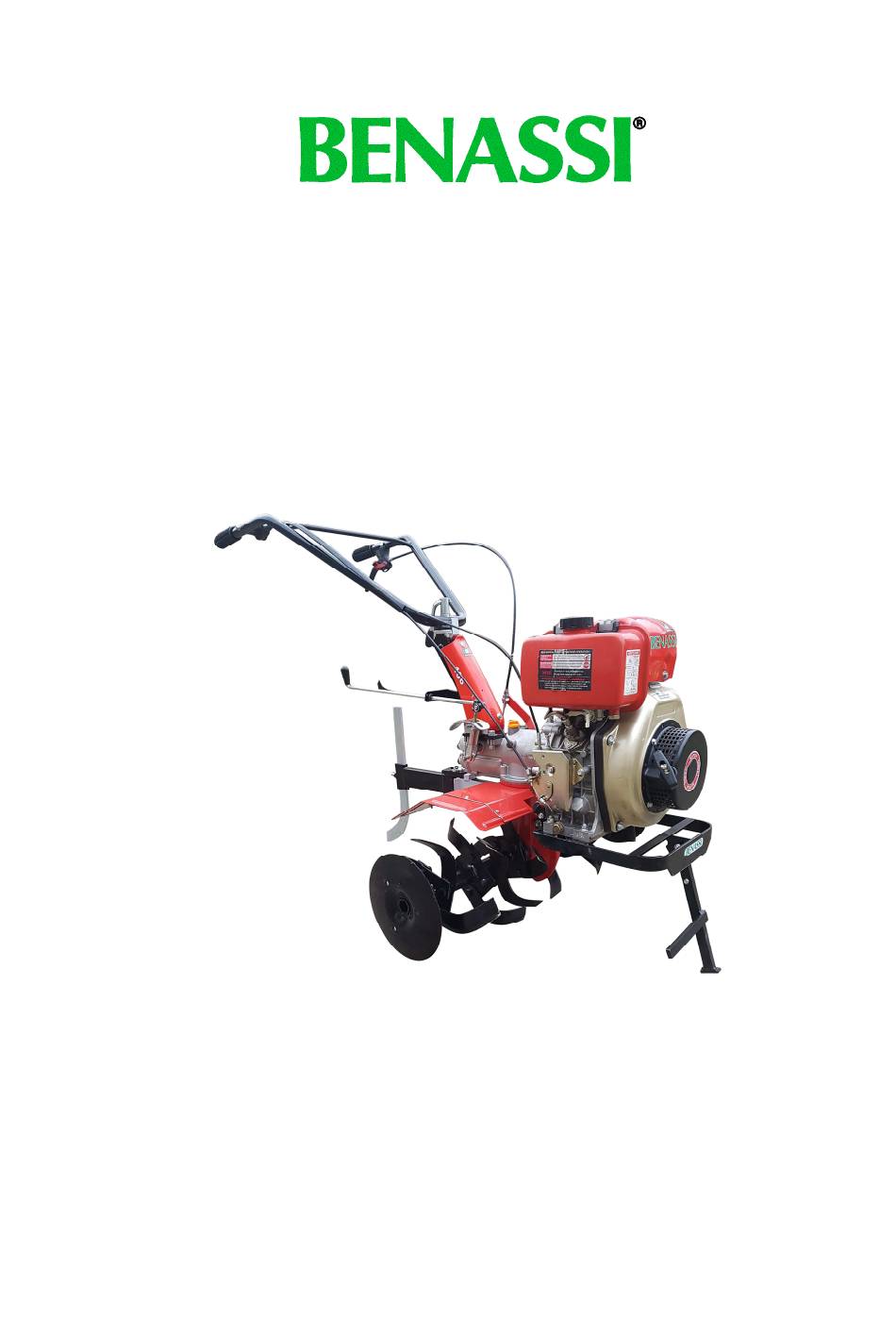

- Page 1 BL106 TILLER USE AND MAINTENANCE...
- Page 2 35456830 V.01 10/19...
- Page 3 INDEX 1. Introduction 2. Symbols on the machine 3. Technical data 4. Parts of the machine 5. Packing 6. Safety information 7. Starting and stopping the machine 8. Controls and adjustments 9. Maintenance 10. Take the machine out of service 11.
- Page 4 1. INTRODUCTION Thanking you for your choice, we welcome you among our numerous customers. We are sure that the performance and ease of use of this machine will be to your liking. The long experience in the sector, the use of high quality materials, accurate processing, ensure perfect efficiency of the machine which, if used correctly with the necessary maintenance, will offer you performance for many years.
- Page 5 2 SYMBOLS ON THE MACHINE The symbols used as posters on the machine to indicate dangers during use and maintenance are as follows:...
- Page 6 TECHNICAL DATA MODEL BL106H BL106C BL106KD BL106CD BL106LD ENGINE Consult the manufacturer's manual FUEL Gasoline or diesel START Recoil start. TRANSMISSION Gears in oil bath SPEED 3 Front + 1 reverse OIL QUANTITY 1.5 l OIL TYPE TAMOIL JM UTTO CLUTCH: Conical in oil bath HANDLEBAR:...
- Page 7 Environmental conditions Unless otherwise specified in the order, it is understood that the machine must be designed to operate regularly in the environmental conditions referred to in the following points. Environmental conditions other than those prescribed can cause mechanical breakage with consequent dangerous situations for people.
- Page 8 4 Main parts of the machine The machine consists of the following main parts: 1. Clutch lever 2. Throttle lever 3. Gear lever 4. Spur 5. Rotary tiller 6. Engine starting 7. Fuel inlet cap 8. Air filter 9. Handle register 10.
- Page 9 PACKAGING Remove the machine from the packaging. - Carefully clean the hubs and the tiller shaft by applying a small amount of grease to facilitate assembly and future removal. - Mount the right and left tiller hubs on the tiller holder shaft. - Pay attention to the orientation of the cutting edge of the cutter knives.
-
Page 10: Safety Information
SAFETY INFORMATION - We recommend that you carefully read the engine manual and this booklet. - The use of the machine by minors is prohibited. - The user is responsible for damage as the machine responds to his commands. - Any person who is unfamiliar with the machine and who has never used it, must consult this manual before use. - Page 11 STARTING AND STOPPING THE MACHINE CAREFULLY READ THE USE AND MAINTENANCE HANDBOOK OF THE ENGINE AT THE ITEM "STARTING" FOR OPTIMAL STARTING OF THE MACHINE ATTENTION! NEW FACTORY MACHINES DO NOT CONTAIN OIL IN THE ENGINE. ENGINE START Whenever you are about to start the engine, always make sure to strictly follow what is indicated below: Check the engine oil level and top up if necessary.
- Page 12 CONTROLS AND ADJUSTMENTS GEAR CONTROL LEVER It is operated in the following way: a) Bring the engine to the minimum number of revolutions using the accelerator lever. b) Move the gear lever to the desired position: forward or reverse c) Gradually insert the clutch lever. d) Accelerate the engine.
- Page 13 It is possible to overturn the spur to increase the friction with the ground. 1) ADJUSTMENT FOR HARD GROUND: loosen the screw and raise the spur in order to move back the weight of the tiller. 2) ADJUSTMENT FOR SOFT SOILS: loosen the screw and lower the spur in order to move the weight of the tiller on the axis of the hoes.
- Page 14 MAINTENANCE - During the first hours of operation of the machine, do not carry out excessively heavy work and follow the instructions provided. - For all maintenance operations relating to the engine (spark plugs, air filter, adjustments) consult the manufacturer's manual. CHANGE BOX OIL - Periodically check the gearbox oil level using the cap.
-
Page 16: Decommissioning And Scrapping
10 DECOMMISSIONING AND SCRAPPING At the end of the operating life of the machine, the user must take care of the dismantling and elimination of the materials making up the machine in accordance with the EU directives or according to the laws in force in his country, using particular precautions for the disposal of environmentally significant materials, such as : - plastic parts - rubber parts... -
Page 17: Warranty
WARRANTY The machines and accessories are guaranteed for 2 years for Hobby use and 1 year for professional use. Electric or rubber parts are excluded. The manufacturer undertakes to replace the parts recognized as defective free of charge: labor and transport will always and in any case be the responsibility of the customer. - Page 18 13. CE marking The plate with the CE marking shows the main features and data for identifying the machine: - Manufacturer's data - Model of the machine - Badge number, - Year of construction - Power in kW, - Weight in kg, Such data must absolutely not be altered or modified.
- Page 19 EC DECLARATION OF CONFORMITY The undersigned manufacturer and custodian of the documentation BENASSI srl VIA LAMPEDUSA,1 40017 S.G. PERSICETO – Fraz. S.M. DECIMA (BO) Italia declares under its own responsibility that the machine Type : TILLER Model : BL106H BL106KD BL106C BL106CD BL106LD...
- Page 20 Benassi srl VIA LAMPEDUSA , 1 40017 San Giovanni in Persiceto – F. S.M. DECIMA (BO) - ITALY TEL. +39 051 820511 +39 051 6826164 Web: www.benassi.eu e-mail: benassi@benassispa.it Dealer's stamp...
