S.p.A.
USE AND MAINTENANCE HANDBOOK
MOTORISED HOE
MODEL
BL 45
25/11/2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL 45 and is the answer not in the manual?

Questions and answers

Related Manuals for Benassi BL 45

Summary of Contents for Benassi BL 45

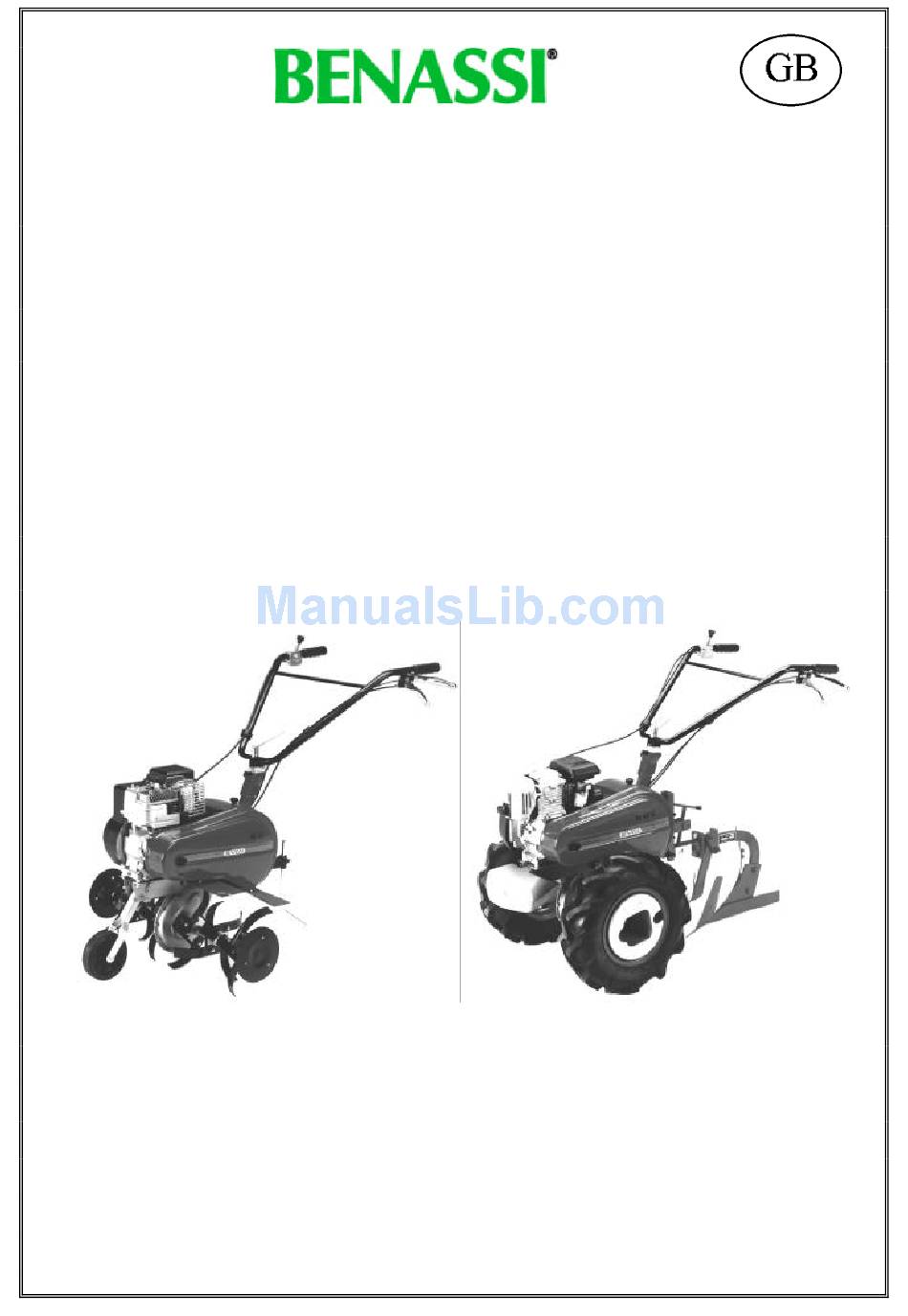

  • Page 1 S.p.A. USE AND MAINTENANCE HANDBOOK MOTORISED HOE MODEL BL 45 25/11/2002...
  • Page 2 INTRODUCTION Dear user, Thank you for preferring BENASSI. The top performance and the easy use of our machine will give you any satisfaction. ♦ This machine is the result of a long experience working at the top quality standard and using first quality material.
  • Page 3 BL 45 S.p.A. IDENTIFICATION AND TECHNICAL SPECIFICATIONS Model: BL 45 B Model: BL 45 HS Model: BL 45 K Net weight: Kg. 56,2 Net weight: Kg. 53,5 Net weight: Kg. 56 Ploughing version net weight: Kg. 137 Ploughing version net weight: Kg. 135 Ploughing version net weight: Kg.
  • Page 4 BL 45 S.p.A. • Insert the forward gear engagement cable, already assembled with the lever on the slot of the handle, and fix the cable adjuster to the internal lever support. Then fix the lever by unscrewing the bolt. Reinsert the screw when the lever is in the support, then screw the nut.
  • Page 5 If the gap is not correct, you can adjust it by shifting the engine on its guides towards the handlebars if you have to reduce the gap, or viceversa (BL 45 H excluded). After moving the engine (in all models) you should adjust the tension of the belt stretching pulley using the adjusting screws “L”...
  • Page 6 REDUCED FORWARD SPEED REVERSE MOTION BL 45 - Picture 14 - - Picture 15 - - Picture 16 - (REVERSE MOTION BL 45 HONDA) - Picture 17 - - Picture 18 - - Tillers - - Picture 19 - - Picture 20 -...
  • Page 7 40010 SanMatteo della Decima BO Italy Via Lampedusa n°1 Tel. (051) 820511 Declare in sole responsibility that the product CULTIVATOR BL 45 B - BL 45 HS, -BL 45 K to which this certificate applies, conforms the basic health and safety requirements stated in the directive 98/37/CE and the directive EMC 89/336/CE modified 92/31/CE The laws EN 292-1 - EN 292-2 and EN 709 have been examined to verify this conformity.
  • Page 8 BL 45 S.p.A. S.p.A. VIA LAMPEDUSA 1 40010 S. MATTEO DELLA DECIMA (BO) - ITALY TEL. 0039/051/82.05.34 TELEFAX 0039/051/682.61.64 e-mail: export@benassispa.it www.benassispa.it Dealer stamp...
