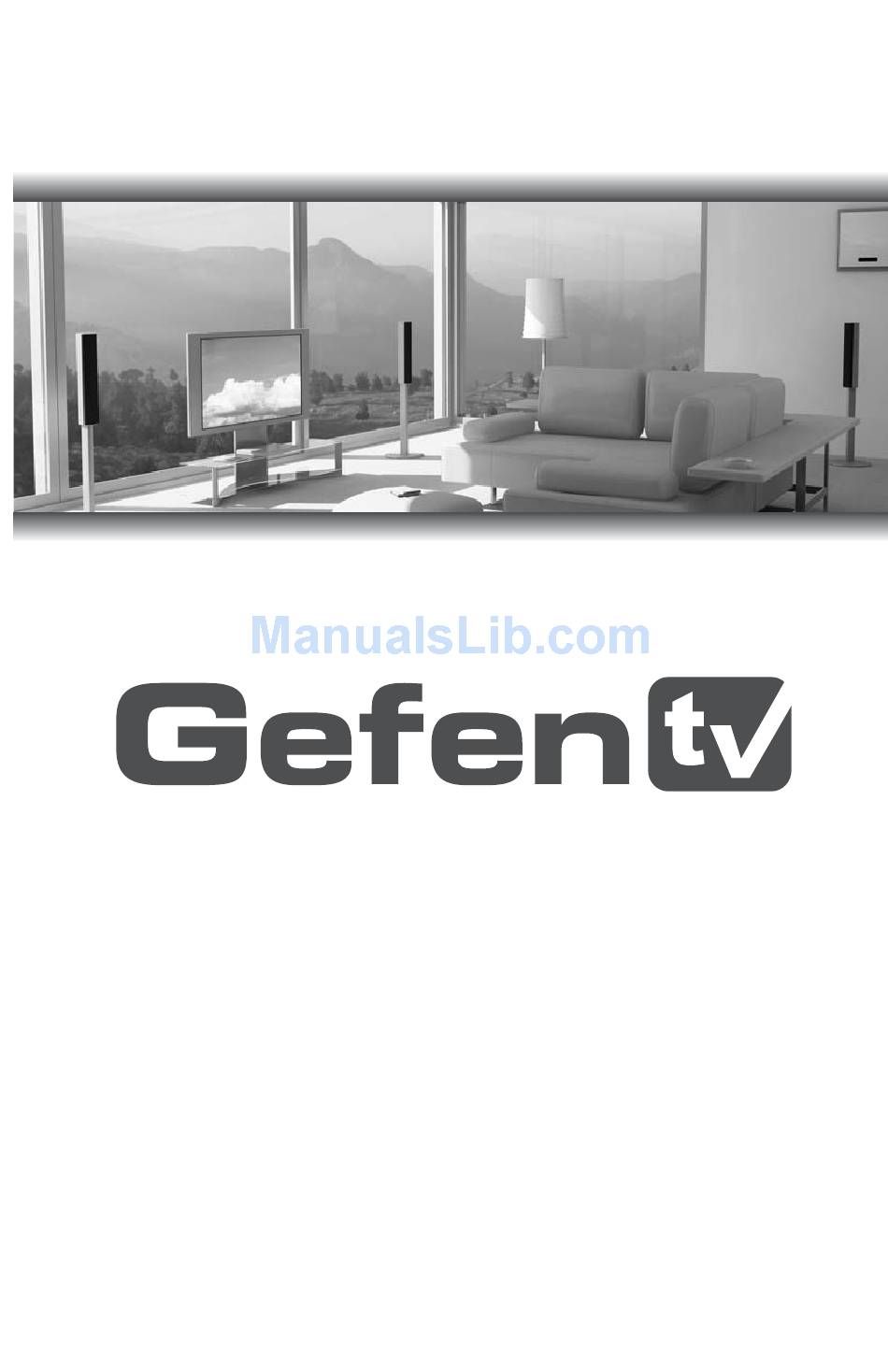

- Page 1 ® HDMI To Composite/S-Video Scaler GTV-HDMI-2-COMPSVIDS User Manual www.gefentv.com...
- Page 2 ASKING FOR ASSISTANCE Technical Support: Telephone (818) 772-9100 (800) 545-6900 (818) 772-9120 Technical Support Hours: 8:00 AM to 5:00 PM Monday thru Friday Pacifi c Time Write To: Gefen, LLC c/o Customer Service 20600 Nordhoff St Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating Instructions HDMI To Composite/S-Video Scaler Specifi cations Warranty... -
Page 4: Introduction
How It Works Simply connect your HDMI video source to the HDMI input jack of the GefenTV HDMI to Composite Scaler. Connect your Composite or S-Video display cable to the correct video output jack on the Scaler’s rear panel. RCA-type analog audio... -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDMI TO COMPOSITE/S-VIDEO SCALER • The HDMI To Composite/S-Video Scaler converts HDTV input resolutions of 480p, 576p, 720p, 1080i and 1080p at 50/60 Hz to either NTSC 480i or PAL 576i. -
Page 6: Features
FEATURES Features • HDMI to Composite / S-Video conversion plus scaling • HDMI pass-through • Supports 480p to 1080p HDMI input resolutions at 50/60 Hz. • Outputs 480i / 576i signal for Composite/S-Video Display devices • Supports both NTSC and PAL formats Package Includes (1) HDMI To Composite/S-Video Scaler (1) 6 Foot HDMI Cable (M-M) -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS Stereo Analog Audio Output 2 RCA stereo analog audio outputs. Connects to the display or a audio Receiver. Only 2 channel LPCM from the HDMI input can be passed to these outputs. Multi-channel bit-stream such as Dolby Digital will not be passed to this output. -
Page 9: Connecting And Operating Instructions
CONNECTING AND OPERATING INSTRUCTIONS How to Connect the HDMI To Composite/S-Video Scaler Connect the HDMI source to the HDMI To Composite/S-Video Scaler’s HDMI input using the supplied HDMI cable. Connect the display to the HDMI To Composite/S-Video Scaler’s composite or s-video outputs using user supplied cables. Connect the HDMI To Composite/S-Video Scaler’s stereo analog audio output to the display or audio Receiver. -
Page 10: Specifi Cations
SPECIFICATIONS Input Video Signal ..................1.2V p-p Input Sync Signal ................5V p-p (TTL) Horizontal Frequency Range ..............31-70 KHz Vertical Frequency Range ..............50-60 KHz Power Supply ....................5V DC A/V Input .............. (1) HDMI Type A, 19-pin female Video Outputs ............ (1) Composite RCA / (1) S-Video Audio Outputs ...... -
Page 11: Warranty
WARRANTY Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 13 Rev A9 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
