Summary of Contents for GefenTV GTV-HIDEFS

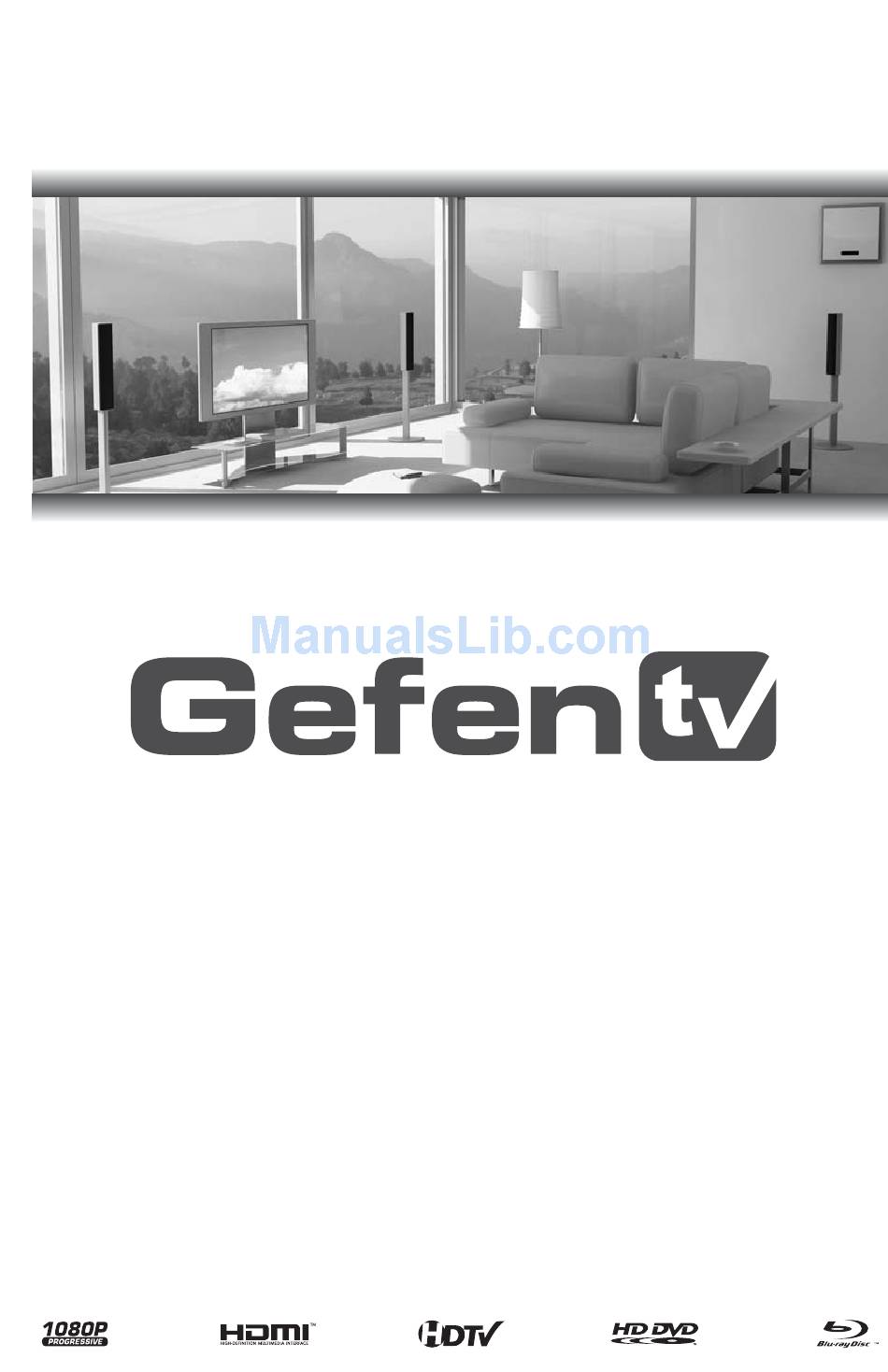

- Page 1 High-Definition Scaler GTV-HIDEFS User Manual www.gefentv.com...
- Page 2 ASKING FOR ASSISTANCE Technical Support: Telephone (818) 772-9100 (800) 545-6900 (818) 772-9120 Technical Support Hours: 8:00 AM to 5:00 PM Monday thru Friday. Write To: Gefen Inc. c/o Customer Service 20600 Nordhoff St Chatsworth, CA 91311 www.gefentv.com support@gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Descriptions Connecting And Operating The High-Defi nition Scaler RMT-SR-IR Remote Description High-Defi nition Scaler Confi guration 11 RMT-SR-IR Remote Installation 12 IR Code Confi guration 13 Wiring Diagram 14 Specifi cations 15 Warranty... -
Page 4: Introduction
Gefen TV Gefen TV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HIGH-DEFINITION SCALER • The DVI input on the High-Defi nition scaler will accept an DVI-D (digital) or a DVI-A (analog) video source (connect a VGA and DVI monitor simultaneously using a DVI-I to VGA and DVI-D adapter. Part# ADA-DVI- 2-DVIVGA). -
Page 6: Features
FEATURES Features • Both digital and analog inputs are format converted and pixel re-scaled through the HD Mate Scaler. It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality. •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Power Input LED LED Indicator Indicator IR Eye Back Panel Component 1 Toslink Input Component 2Toslink Input Analog Audio Inputs Component Input 2 Component Input 1 Analog Audio DVI-I DVI TOSLINK DVI-I Outputs Output Input Input TOSLINK Output 5V DC Power... -
Page 8: Connecting And Operating The High-Defi Nition Scaler
CONNECTING AND OPERATING THE HIGH-DEFINITION SCALER How to Connect the High-Defi nition Scaler Connect the DVI output on the High-Defi nition Scaler to the display using the supplied DVI cable. Connect either the TOSLINK digital audio output, the stereo mini-jack analog output or the 2 RCA analog audio output to the display or external audio processor using user supplied cables. -
Page 9: Rmt-Sr-Ir Remote Description
RMT-SR-IR REMOTE DESCRIPTION Output - Cycles through the available output resolutions. Please see the section High-Defi nition Scaler CONFIGURATION / Output on page 8 for the output resolution table. Input - Cycles though all of input sources. The selectable inputs are Composite, S-Video, Component, HDMI 1, and HDMI 2. -
Page 10: High-Defi Nition Scaler Confi Guration
HIGH-DEFINITION SCALER CONFIGURATION Entering the Menu System Pressing the Menu button on the included RMT-SR-IR remote control will display the GUI (graphical user interface) for adjustment options. The GUI is overlaid onto the outgoing video to the display. Therefore, the selected source must be outputting a compatible resolution for viewing on the display. - Page 11 HIGH-DEFINITION SCALER CONFIGURATION VIDEO CONTINUED Contrast Adjusts the contrast in increments of 1 on a scale of 1 to 100 (default 50). Brightness Adjusts the brightness in increments of 1 on a scale of to 100 (default 50). Adjusts the hue in increments of 1 on a scale of 1 to 100 (default 50). Saturation Adjusts the saturation in increments of 1 on a scale of 1 to 100 (default 50).
- Page 12 HIGH-DEFINITION SCALER CONFIGURATION VIDEO CONTINUED V-Pos (Vertical Position) Adjusts the image’s vertical position on the screen. Options: • Adjusts in increments of 1 on a scale of 1 to 100 (default is 50) OUTPUT This menu sets the output resolution for all video sources. The OUTPUT button on the RMT-SR-IR remote control cycles through these resolutions when pressed.
- Page 13 HIGH-DEFINITION SCALER CONFIGURATION COLOR CONTINUED Blue Adjusts the blue color in regards to the appearance of white for the USER setting. Option: Adjusts in increments of 1 from 1 to 100 (default is 50) OSD (ON SCREEN DISPLAY) H-Pos (Horizontal Position) Adjusts the OSD’s horizontal position on the screen.
-
Page 14: Rmt-Sr-Ir Remote Installation
RMT-SR-IR REMOTE INSTALLATION Remove battery cover from the back of the RMT-SR-IR remote. Verify that dip switches 1 & 2 are in the down (OFF) position. (See page 13) Insert the battery, hold the battery so that you can see the positive side facing up. -
Page 15: Ir Code Confi Guration
IR CODE CONFIGURATION How to Resolve IR Code Confl icts In the event that IR commands from other remote controls confl ict with the supplied RMT-SR-IR remote control, changing the remote channel will alleviate this issue. The RMT-SR-IR remote control has DIP SWITCHES for confi guring the remote channel. -
Page 16: Wiring Diagram
WIRING DIAGRAM... -
Page 17: Specifi Cations
SPECIFICATIONS Digital Video Amplifi er Bandwidth ............165 MHz Component Video Bandwidth ..............350 MHz Input DDC Signal ................. 5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p Single Link Range ..............1080p/1920 x 1200 Input/Output DVI Connector ..........DVI-I (29 pin) female Analog Video Input Connector ..........
