Summary of Contents for GefenTV GTV-HDMI-2-HDMIAUD

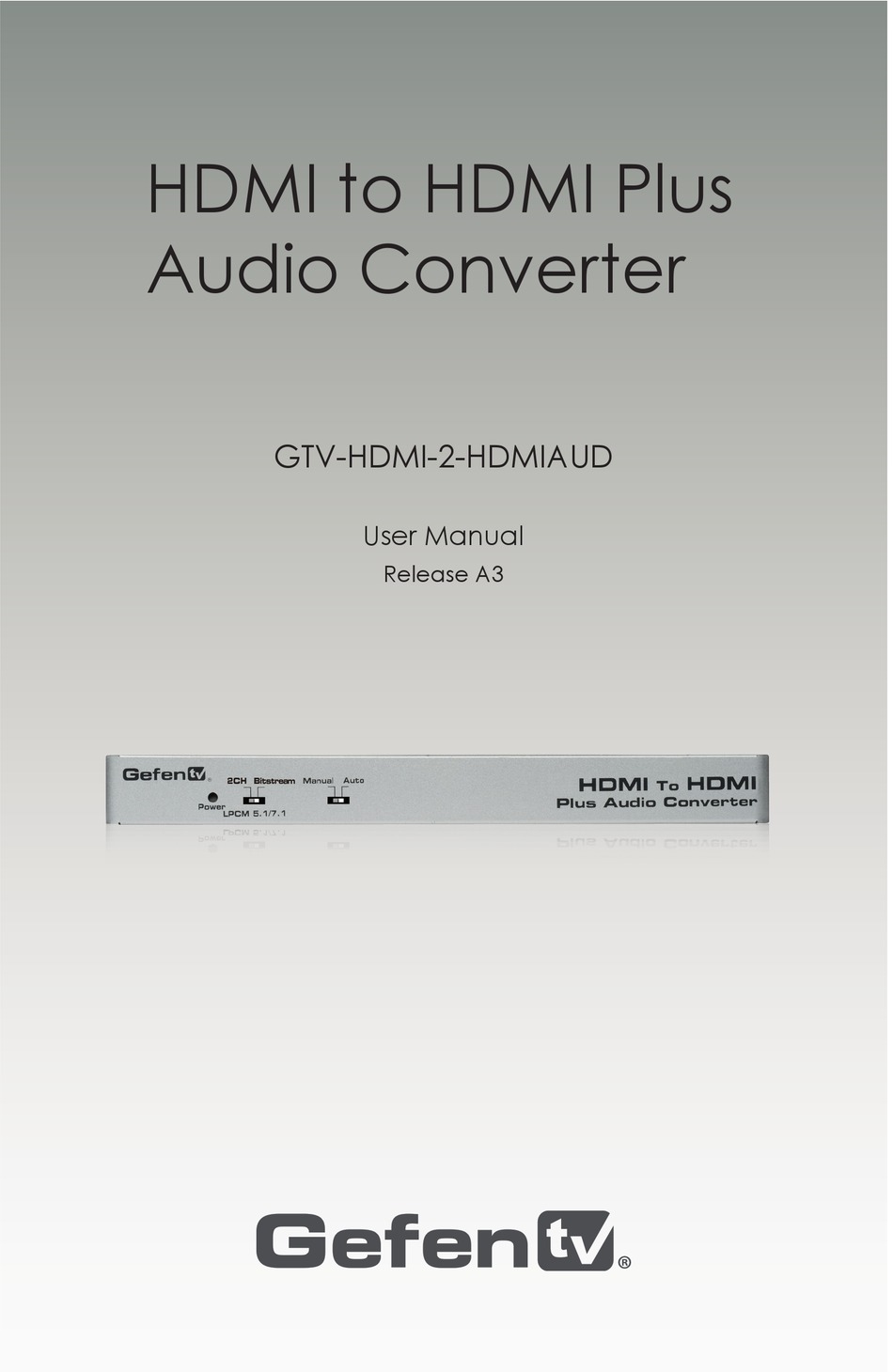

- Page 1 HDMI to HDMI Plus 3GSDI Audio Embedder Audio Converter GTV-HDMI-2-HDMIAUD User Manual Release A3...
- Page 2 HDMI to HDMI Plus Audio Converter Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 3 HDMI to HDMI Plus Audio Converter Warranty Information Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
- Page 4 HDMI to HDMI Plus Audio Converter Contacting Gefen Technical Support Gefen, LLC c/o Customer Service 20600 Nordhoff St. Chatsworth, CA 91311 Telephone: (818) 772-9100 (800) 545-6900 Fax: (818) 772-9120 Email: support@gefen.com Visit us on the Web: www.gefen.com Technical Support Hours: 8:00 AM to 5:00 PM Monday - Friday, Pacific Time HDMI to HDMI Plus Audio Converter is a trademark of Gefen, LLC.
- Page 5 HDMI to HDMI Plus Audio Converter Operating Notes • This product does not decode audio formats.
- Page 6 HDMI to HDMI Plus Audio Converter 3GSDI Audio Embedder Features and Packing List Features • Supported HDMI Features: ► Resolutions up to 1080p Full HD ► 12-bit Deep Color ► LPCM 7.1 Audio, Dolby® TrueHD, and DTS-HD Master Audio™ ► 3DTV pass-through ►...
-
Page 7: Table Of Contents
3GSDI Audio Embedder HDMI to HDMI Plus Audio Converter Table of Contents Getting Started Panel Layout ......................2 Front ......................2 Back ......................3 Installation ......................4 Connecting the HDMI to HDMI Plus Audio Converter ........4 Sample Wiring Diagram ................4 Operating the HDMI to HDMI Plus Audio Converter Audio Output ...................... -
Page 9: Getting Started
HDMI to HDMI Plus Audio Converter 01 Getting Started Panel Layout ......................2 Front ......................2 Back ......................3 Installation ......................4 Connecting the HDMI to HDMI Plus Audio Converter ........4 Sample Wiring Diagram ................4... -
Page 10: Panel Layout
Getting Started Panel Layout Front Name Description Power This LED indicator will glow bright blue when the unit is powered. This switch selects the desired audio output. LPCM 5.1 / 7.1 In order to use this switch, the Manual / Auto Bitstream switch must be set to the Manual position. -
Page 11: Back
Getting Started Panel Layout Back Name Description HDMI In Use the included HDMI cable to connect a Hi-Def source to this HDMI port. HDMI Out Connect an HDMI cable between this ports and an HD display. Optical Out Connect an optical cable from the Optical Out port to the TOSLINK connector of an A/V receiver. -
Page 12: Installation
HDMI Plus Audio Converter. Connect the AC power cord to an available electrical outlet. Sample Wiring Diagram DIGITAL AUDIO (TOSLINK) CABLE ® MULTI-CHANNEL RCA CABLES HDMI CABLE Hi Def Source HDMI to HDMI Plus Audio Converter Audio Receiver HD Display GTV-HDMI-2-HDMIAUD page | 4... -
Page 15: Operating The Hdmi To Hdmi Plus Audio Converter
HDMI to HDMI Plus Audio Converter 02 Operating the HDMI to HDMI Plus Audio Converter Audio Output ......................8 Mode Selection ..................... 8... -
Page 16: Audio Output
Operating the HDMI to HDMI Plus Audio Converter Audio Output The table below, provides a summary of the audio formats supported by each output. Audio Format HDMI Out Optical Out Analog Output 2-channel LPCM 5.1-channel LPCM 7.1-channel LPCM Dolby® Digital DTS Digital Surround™... -
Page 19: Appendix
HDMI to HDMI Plus Audio Converter 03 Appendix Specifications ...................... 12... -
Page 20: Specifications
Appendix Specifications Supported Formats Video • 1080p Full HD • 1920 x 1200 (WUXGA) Audio • LPCM 7.1 • Dolby® TrueHD • DTS-HD Master Audio™ Connectors HDMI In • 1 x HDMI Type A 19-pin, female, locking HDMI Out • 1 x HDMI Type A 19-pin, female, locking Optical Out •... - Page 22 Stretch It, Switch It, Split It. Gefen’s Got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
