H o m e A n t e n n a
C o n n e c t i o n s

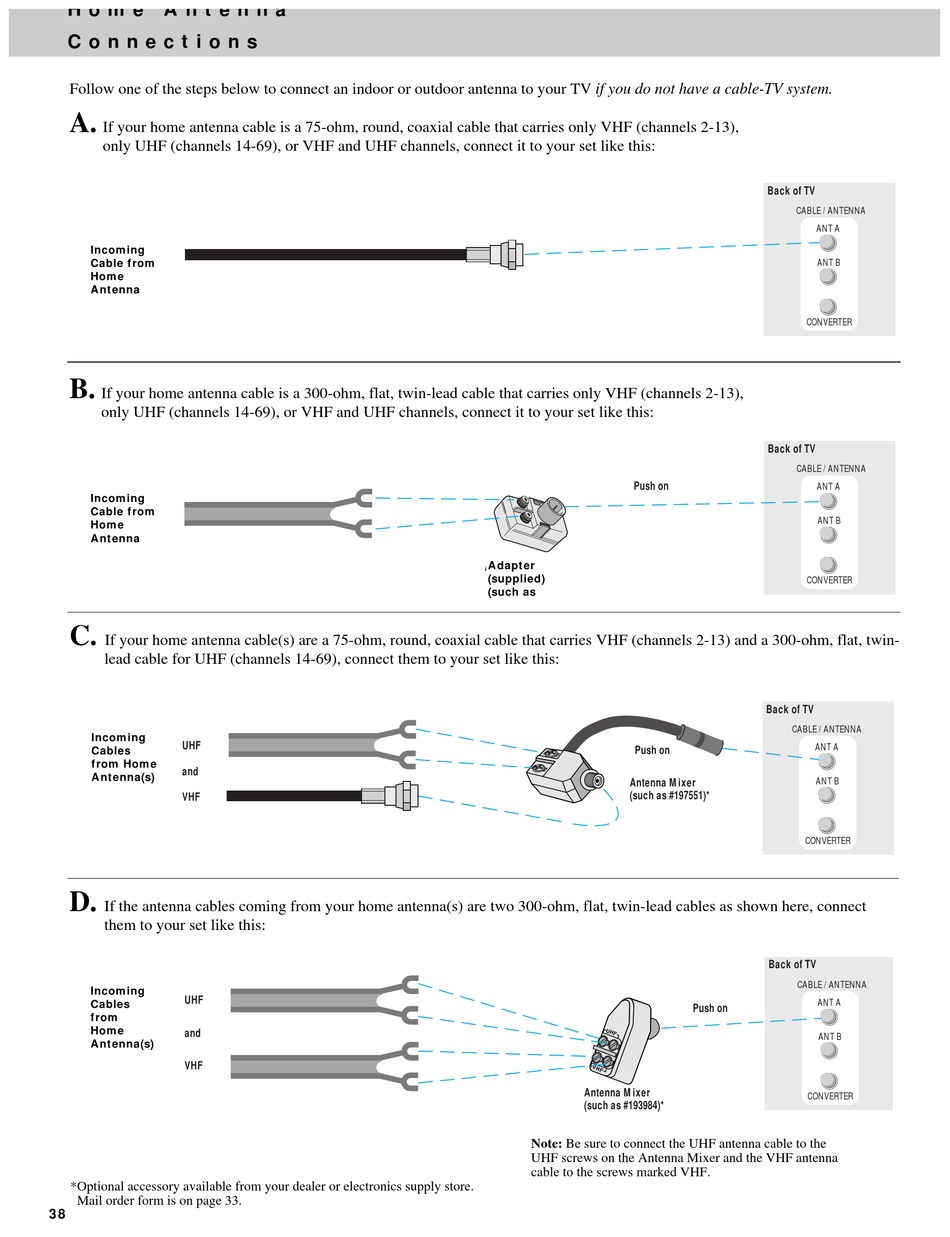

Follow one of the steps below to connect an indoor or outdoor antenna to your TV if you do not have a cable-TV system.
A.
If your home antenna cable is a 75-ohm, round, coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Incoming
Cable from
Home
Antenna
B.
If your home antenna cable is a 300-ohm, flat, twin-lead cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Incoming
Cable from
Home
Antenna
VHF/UHF Combination
C.
If your home antenna cable(s) are a 75-ohm, round, coaxial cable that carries VHF (channels 2-13) and a 300-ohm, flat, twin-
lead cable for UHF (channels 14-69), connect them to your set like this:
Incoming
UHF
Cables
from Home
and
Antenna(s)
VHF
D.
If the antenna cables coming from your home antenna(s) are two 300-ohm, flat, twin-lead cables as shown here, connect
them to your set like this:
Incoming
UHF
Cables
from
Home
and
Antenna(s)
VHF
*Optional accessory available from your dealer or electronics supply store.
Mail order form is on page 33.
38
VHF or UHF Only
or
Push on
Adapter
Adapter (supplied)
(supplied)
(such as
Push on
Antenna Mixer
(such as #197551)*
Antenna Mixer
(such as #193984)*
Note: Be sure to connect the UHF antenna cable to the
UHF screws on the Antenna Mixer and the VHF antenna
cable to the screws marked VHF.
Back of TV
CABLE / ANTENNA
ANT A
ANT B
CONVERTER
Back of TV
CABLE / ANTENNA
ANT A
ANT B
CONVERTER
Back of TV
CABLE / ANTENNA
ANT A
ANT B
CONVERTER
Back of TV
CABLE / ANTENNA
ANT A
Push on
ANT B
CONVERTER
