- Page 1 GEPON SFU ONU EPN-102 / EPN-104 User's Manual...
- Page 2 Copyright Copyright© 2009 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
- Page 3 All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. Revision User’s Manual for GEPON SFU ONU Model: EPN-102 / EPN-104 Rev: 1.0 (Mar. 2009)
-
Page 4: Table Of Contents
Table of Contents 1. INTRODUCTION ......................5 1.1 Feature........................6 1.2 Package Contents....................6 1.3 Physical Details......................7 2. INSTALLATION ......................11 2.1 Safety Requirement .....................11 2.2 Hardware Installation...................11 2.3 Verifying the Installation ..................13 3. APPLICATION ......................14 3.1 GEPON Applications ...................14 3.2 FTTx Applications (FTTH / FTTB) ...............15 APPENDIX A: HARDWARE SPECIFICATION..............16... -
Page 5: Introduction

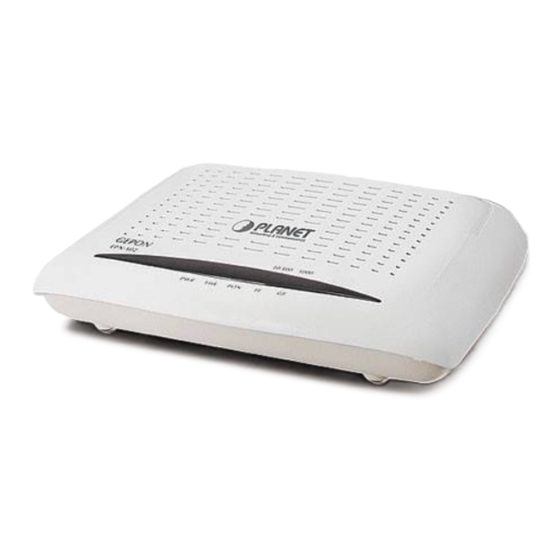

20km distance between equipment nodes, and most importantly, provide much greater bandwidth. PLANET EPN-102 / EPN-104 are the GEPON SFU ONU devices. The EPN-102 designed with one GEPON port, one standard 10Base-T/100Base-TX, one standard 10Base-T / 100Base-TX / 1000Base-TX Ethernet ports, and the EPN-104 designed with one GEPON port, four standard 10Base-T/100Base-TX Ethernet ports for subscriber access. -
Page 6: Feature
Conforms to the requirements of the European Union Restriction on the use of Hazardous Substances (RoHS) Directive. 1.2 Package Contents EPN-102 / EPN-104 Unit x 1 Power Adapter x 1 Quick Installation Guide x 1 User’s Manual CD x 1... -
Page 7: Physical Details
1.3 Physical Details Front Panel of EPN-102 Front Panel LED definition State Description When the ONU is powered on and in ready state When the ONU is powered off Service offered Link No service offered Flash System alarm Normal operation... - Page 8 Rear Panel of EPN-102 Rear Panel Port and Button Definition Connector Description ON / OFF The power button is for turn on or turn off the ONU. The reset button can restore the default settings of device. To restore factory RESET defaults, keep the device powered on and push a paper clip into the hole.
- Page 9 Front Panel of EPN-104 Front Panel LED definition State Description When the ONU is powered on and in ready state When the ONU is powered off Service offered Link No service offered System alarm Normal operation Flashing Optical alarm Alarm Normal operation Ethernet Link up LAN 1-4...
- Page 10 Rear Panel of EPN-104 Rear Panel Port and Button Definition Connector Description ON / OFF The power button is for turn on or turn off the ONU. The reset button can restore the default settings of device. To restore factory RESET defaults, keep the device powered on and push a paper clip into the hole.
-
Page 11: Installation
Please connect the ONU to you devices as follow: Connecting the RJ-45 network cable. Step 1. Plug-in the RJ-45 cable to 10/100/1000 GE Port (EPN-102 only) or 10/100 FE Ports. Plug-in the other side to your host or devices. Connecting the fiber cable. - Page 12 Connecting Power Adapter. Step 3. Connect the power adapter to the power socket on the ONU. Insert the other end into a power outlet. Turn on the power-switch. Figure-1 EPN-102 connection diagram Figure-2 EPN-104 connection diagram...
-
Page 13: Verifying The Installation
The PLANET GEPON Solution based on the Teknovus GEPON Technology. The ONU was designed with PLANET OLT EPL-4000 system. If you connect to third party OLT system, even the OLT is Teknovus solution; the PON connection still might be unstable and malfunction, that because the configurations of ONU must depend on the OLT settings. -
Page 14: Application
3. Application 3.1 GEPON Applications The OLT device is deployed in the central office room. The ONU devices are connected to the OLT device through an optical splitter, which forms a P2MP (Point-to-Multipoint) topology, connect to the switches or the devices as computers, IP Phone, IP Surveillance for Triple Play Service. -
Page 15: Fttx Applications (Ftth / Fttb)
3.2 FTTx Applications (FTTH / FTTB) Figure-4 FTTx Applications FTTx is the main trend and final target for the development of optical communication. It can provide the high speed bandwidth to users without traffic jam. GEPON technology is the most practical and feasible access solution for FTTx. OLT is setup in the central equipment room of a community, to connect to the backbone networks of data, video and voice applications. -
Page 16: Appendix A: Hardware Specification
Appendix A: Hardware Specification EPN-102 Product GEPON SFU ONU Model EPN-102 Hardware Transmission speed Downstream: 1.25 Gbps Upstream: 1.25 Gbps Wavelength Downstream: 1490nm Upstream: 1310nm Optical specification Downstream: Min. receive sensitivity: -26dBm Max. receive saturation power: -3dBm Upstream: Min. output optical power: -1 dBm Max. - Page 17 EPN-104 Product GEPON SFU ONU Model EPN-104 Hardware Transmission speed Downstream: 1.25 Gbps Upstream: 1.25 Gbps Wavelength Downstream: 1490nm Upstream: 1310nm Optical specification Downstream: Min. receive sensitivity: -26dBm Max. receive saturation power: -3dBm Upstream: Min. output optical power: -1 dBm Max.
