Ace 3196425 Quick Manual

Wireless mechanical battery operated chime
Hide thumbs Also See for 3196425:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

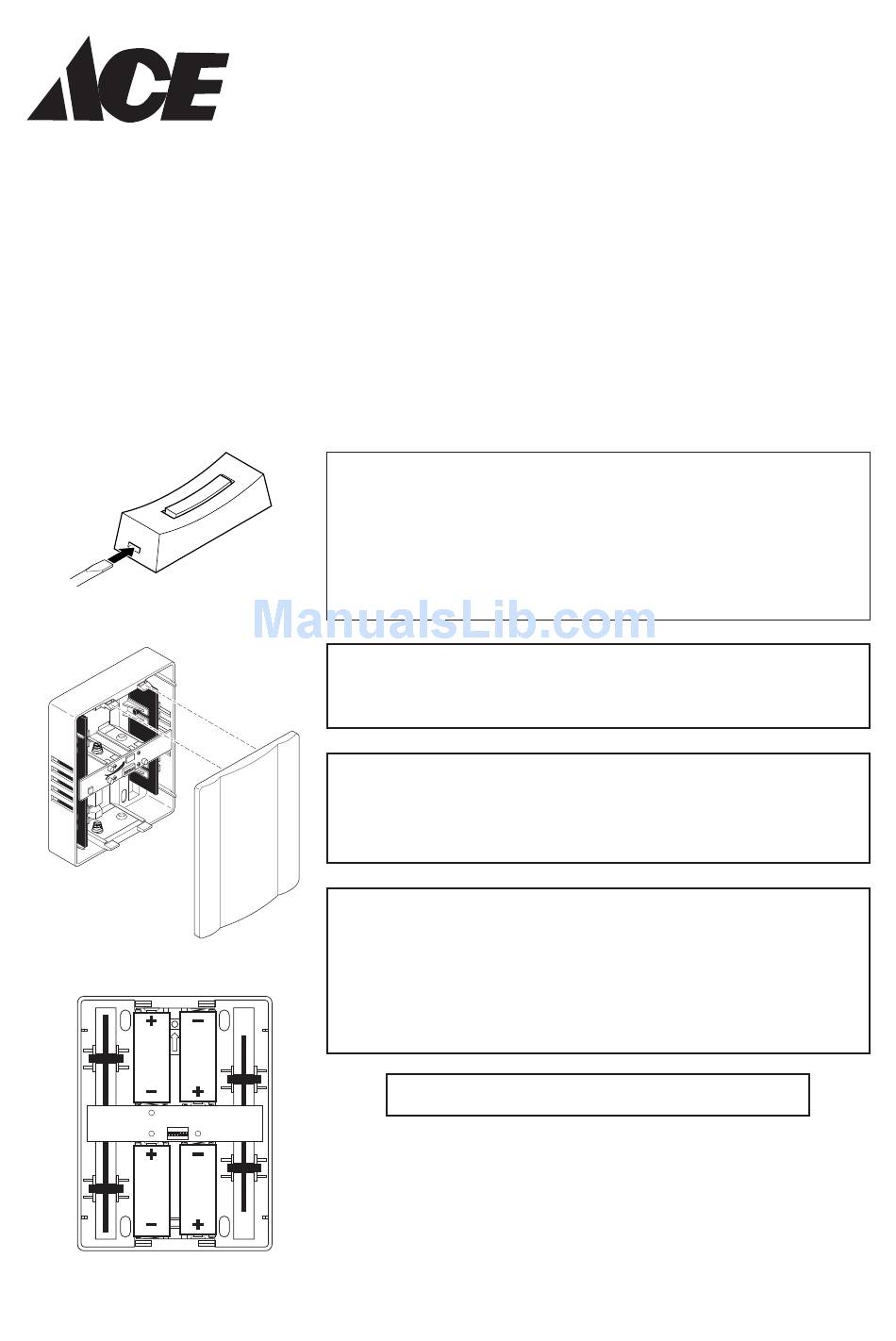

This package includes (Style of push button and chime may vary from illus-
tration):
• Wireless chime
• Wireless push button w/battery
• Hardware pack
This chime requires 4 "C" alkaline batteries (not included). In typical
use, alkaline batteries will last up to 2
Figure 1
O N
7
5 6
3 4
1 2
Figure 2
ON
1 2 3 4 5 6 7
Figure 3
© 2003
Wireless Mechanical
Battery Operated Chime
®
1.
Install alkaline type A23 12 volt push but-
ton battery (included). Remove back of case
by pushing in tab on bottom with a small
screwdriver. Make sure battery is oriented
properly (see page 3).
2.
Remove chime cover. Pull firmly as shown
in Figure 2.
3.
Install 4 alkaline "C" batteries in chime.
Make sure batteries are oriented properly as
shown in Figure 3.
4.
Test range. Temporarily position chime and
push button where you want them mounted.
Press push button to verify chime and push
button work properly. If chime does not
sound, see Troubleshooting.
Use either screws or double sided tape to mount
push button.
To mount with screws, remove back of case by
pushing in tab on bottom with a small screwdriver
(see Figure 1).
Model 3196425 (AC-6505)
1
/
years.
2
5.

Mount push button and chime.

598-1149-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3196425 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ace 3196425

Summary of Contents for Ace 3196425

  • Page 1 Wireless Mechanical Battery Operated Chime ® Model 3196425 (AC-6505) This package includes (Style of push button and chime may vary from illus- tration): • Wireless chime • Wireless push button w/battery • Hardware pack This chime requires 4 “C” alkaline batteries (not included). In typical use, alkaline batteries will last up to 2 years.
  • Page 2 Attach back of case to door jamb or wall. Snap front of push button on. When attaching push button using double sided tape, make sure the surface of the door jamb or wall is clean. Figure 4 Attach chime unit using two Holes for screws and wall anchors pro- Wall...
  • Page 3 Tune Settings Your wireless chime has different selectable tunes: Dong (one note) and Ding-Dong (two note). The factory setting is for the Ding-Dong tune. This tune can be changed by following the instructions below. • Dong (one note tune) Push button: Add jumper to location 8. •...

  • Page 4: Troubleshooting

    Troubleshooting Low Battery Indicator: When the push button designated for the “Ding- Dong” tone is pressed, only a “Dong” note will play when battery power is low in chime unit. Chime does not sound: • Make sure push button and chime codes are the same (See pages 2 and 3). •...
  • Page 5 This warranty does not include reimbursement for inconvenience, instal- lation, setup time, loss of use, or unauthorized service. ® This warranty covers only ACE assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.
  • Page 6 NOTES _______________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1149-00...
  • Page 7 NOTES _______________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1149-00...
  • Page 8 NOTES _______________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1149-00...

This manual is also suitable for:

Ac-6505
