To reduce the risk of electrical shock, this equipment has a polarized
plug (one blade is wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
© 2003
®

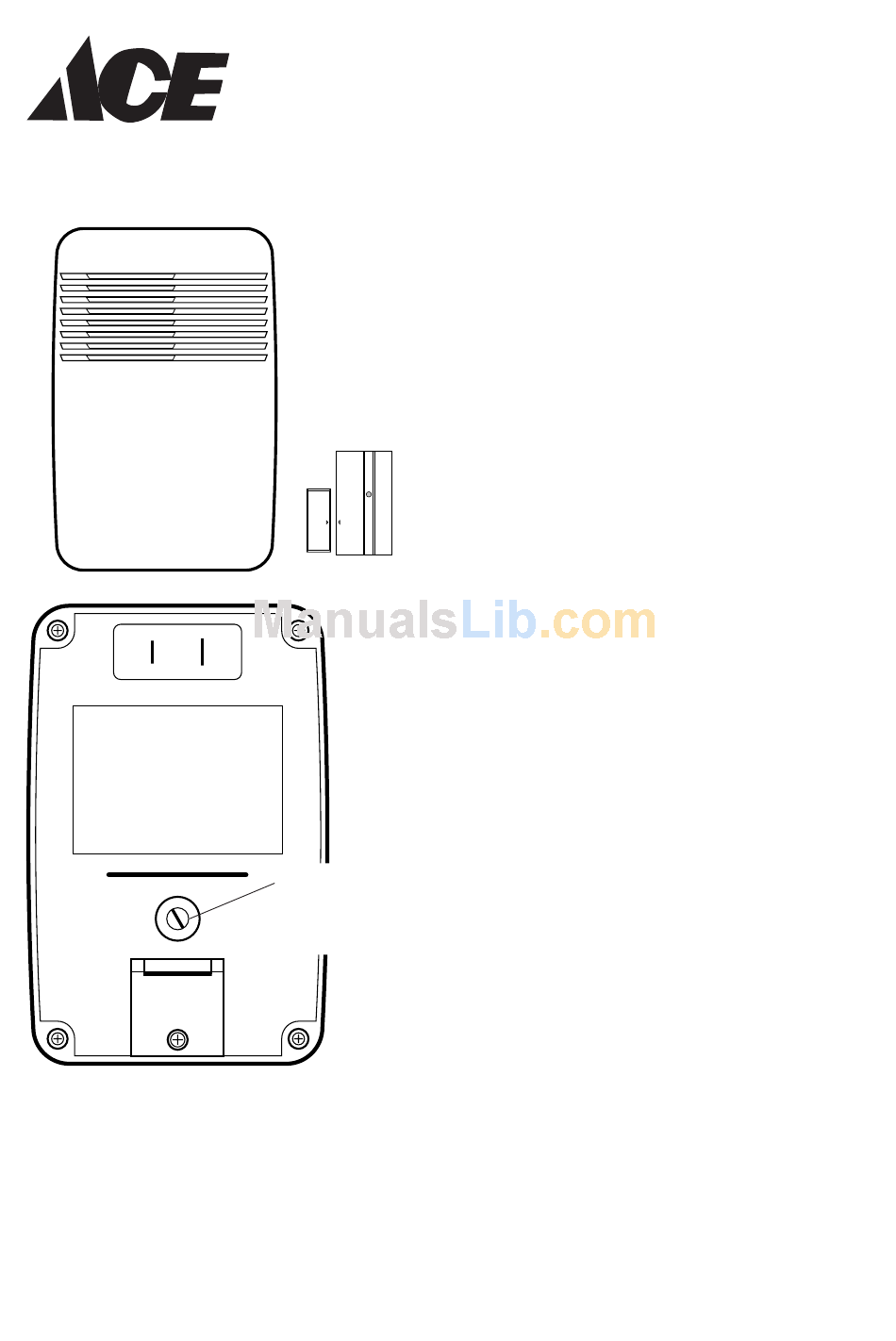

Chime
Volume
Control
Wireless Door
Sensor Chime
Model 3003530 (AC-6168)
Your doorbell includes:
• Plug-in doorbell chime
• Door sensor/transmitter with
battery
• Door magnet
• Magnet spacer
• Hardware pack
1. Set the chime volume on the
back of the plug-in chime, if
desired.
2. Plug-in the doorbell chime.
598-1073-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ace 3003530 (AC-6168)
Summary of Contents for Ace 3003530 (AC-6168)
- Page 1 ® To reduce the risk of electrical shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
- Page 2 Important considerations: The sensor/transmitter must be mounted to the door jamb. The magnet should be attached to the door. To prevent vandalism and increase battery life, the sensor/transmitter should be installed inside. To install the battery in the transmit- Install an alkaline type A23 12 Volt battery. The positive terminal should be positioned as shown.
- Page 3 Code and Tune Settings Note: Most installations will not require you to change any of the jump- ers on your doorbell. WARNING: Disconnect chime unit from power source before opening code access door. Close door and replace screw before reconnecting to power.
- Page 4 Your wireless chime has different selectable tunes: Ding (one note), Ding- Dong (two note), or Westminster (eight note) (Available on selected chimes). The factory setting is for the Ding-Dong tune (or Westminster, when avail- able). This tune can be changed by following the instructions below. •...
-
Page 5: Troubleshooting
Chime does not sound: • Red light on the transmitter does not light. Check battery polarity. Replace the transmitter battery. • Red light on the transmitter does light. Make sure the transmitter and the chime channels are the same (See page 4). Make sure the plug-in chime has power going to it. - Page 6 FIVE YEAR LIMITED WARRANTY This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to state or province to province. For a period of five years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you.
- Page 7 NOTES _______________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1073-02...
- Page 8 NOTES _______________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ _____________________________ 598-1073-02...
