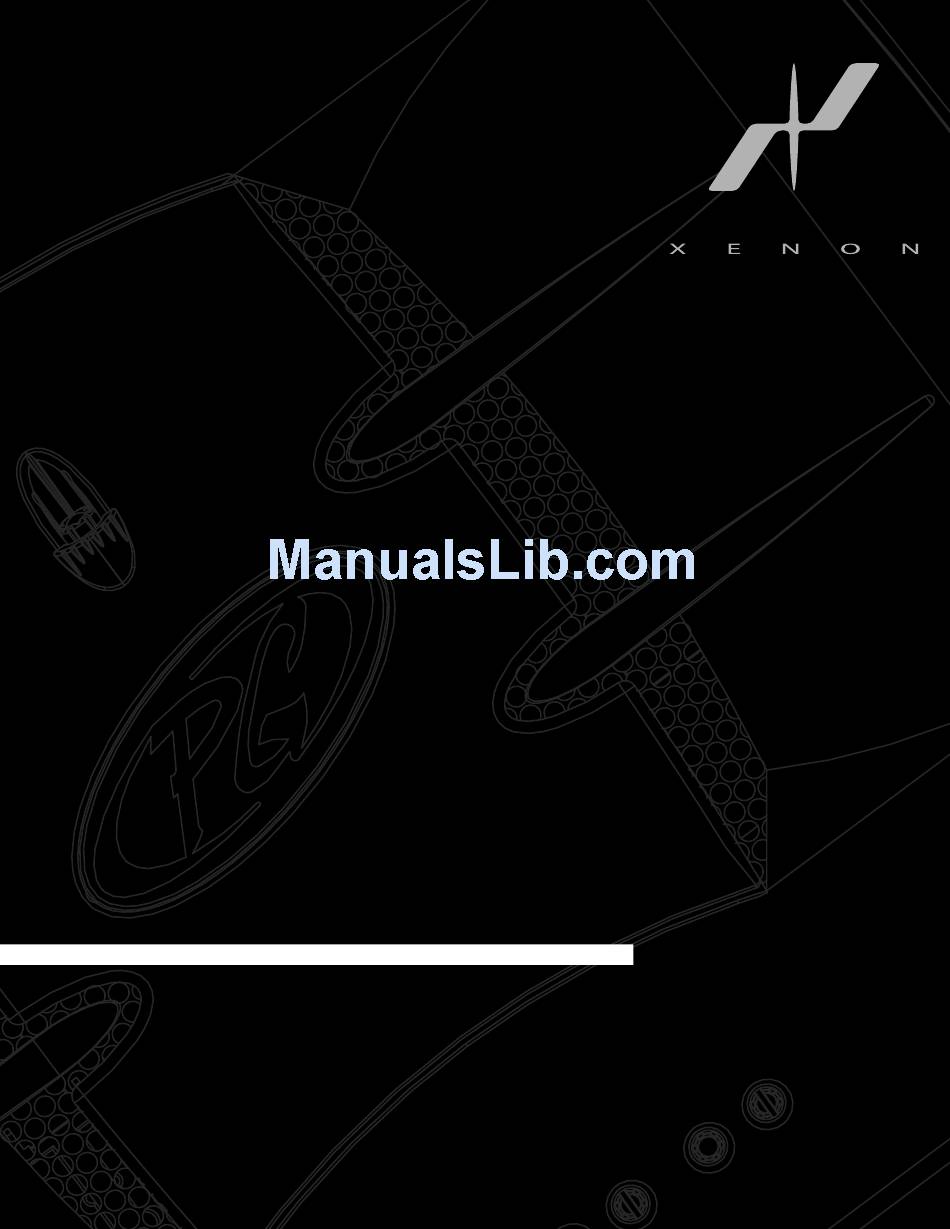

- Page 1 AMPLIFIER MANUAL www.phoenixgold.com...
- Page 2 Congratulations on purchasing one of the finest amplifiers available in the car audio marketplace today. The Xenon amplifiers were designed and engineered with the spirit of the original Phoenix Gold MS and M series to deliver bulletproof performance at any impedance while delivering unbelievable sound quality.
- Page 3 ™ detented control system allows users to perfectly adjust crossover slope every time without errors or guess work. Every Xenon amplifier has a separately defeatable continuously variable high and low pass filter for maximum processing flexibility Now that’s total control!
- Page 4 INPUT Speaker Outputs INPUTS Used to connect the amplifier Remote Voltage Display Connect preamp signal to speakers. The separate + Input Connect the optional cables from the head unit and – terminals are internally RMD Voltage Display to to these terminals. To max- wired in parallel.
- Page 5 Blue LED lights to indicate the fused positive terminal for an additional amplifier. the optional LPL44 ™ the amplifier is on. The LED (+12V) of the car’s battery. Remote Lowpass Level will blink in 1 second inter- X600.1, X1200.1 = 4 Gauge...
- Page 6 BRIDGED INPUT Speaker Outputs INPUTS Used to connect the amplifier Remote Voltage Display Connect preamp signal to speakers. Use the left + and Input Connect the optional cables from the head unit right – terminals for bridged RMD Voltage Display to to these terminals.
- Page 7 LPL44 ™ the amplifier is on. The LED (+12V) of the car’s battery. Remote Lowpass Level will blink in 1 second inter- X100.2 = 8 Gauge X200.2 = 4 Gauge...
- Page 8 BRIDGED FRONT Speaker Outputs Input INPUTS OUT: The Rear input of the Used to connect the amplifier Remote Voltage Display Connect preamp signal amplifier is used to provide to speakers. Use the left + and Input Connect the optional cables from the head unit signal for the rear channels.
- Page 9 Blue LED lights to indicate to fused the positive terminal for an additional amplifier. the optional LPL44 ™ the amplifier is on. The LED (+12V) of the car’s battery. Remote Lowpass Level will blink in 1 second inter- X200.4, X100.4 = 4 Gauge...
-
Page 10: T E R M I N A L C O V E R S
In most applications, one 4 gauge input will supply enough current to the amplifier, but in some SPL situations the option of using dual 4 gauge inputs is available. The second terminal can also be used to wire an external capacitor to the amplifier. - Page 11 All rubber parts have been pretreated with Meguiar's brand rubber protectant. This ensures a rich, natural shine for your amplifier’s terminal covers and endcaps. Over time if your amplifier’s rubber parts become dirty or lose some of their luster, simply reapply with Meguiar's rubber protectant. This complex formula includes cleaning agents that help remove dirt and grime and replenish that lush, like new look.
- Page 12 PHOENIX GOLD INTERNATIONAL, Inc. 9300 North Decatur Portland, OR 97203 Tel: 503.286.9300 Fax: 503.978.3380 www.phoenixgold.com rev A 1/04 www.phoenixgold.com...
