M a d e i n E U

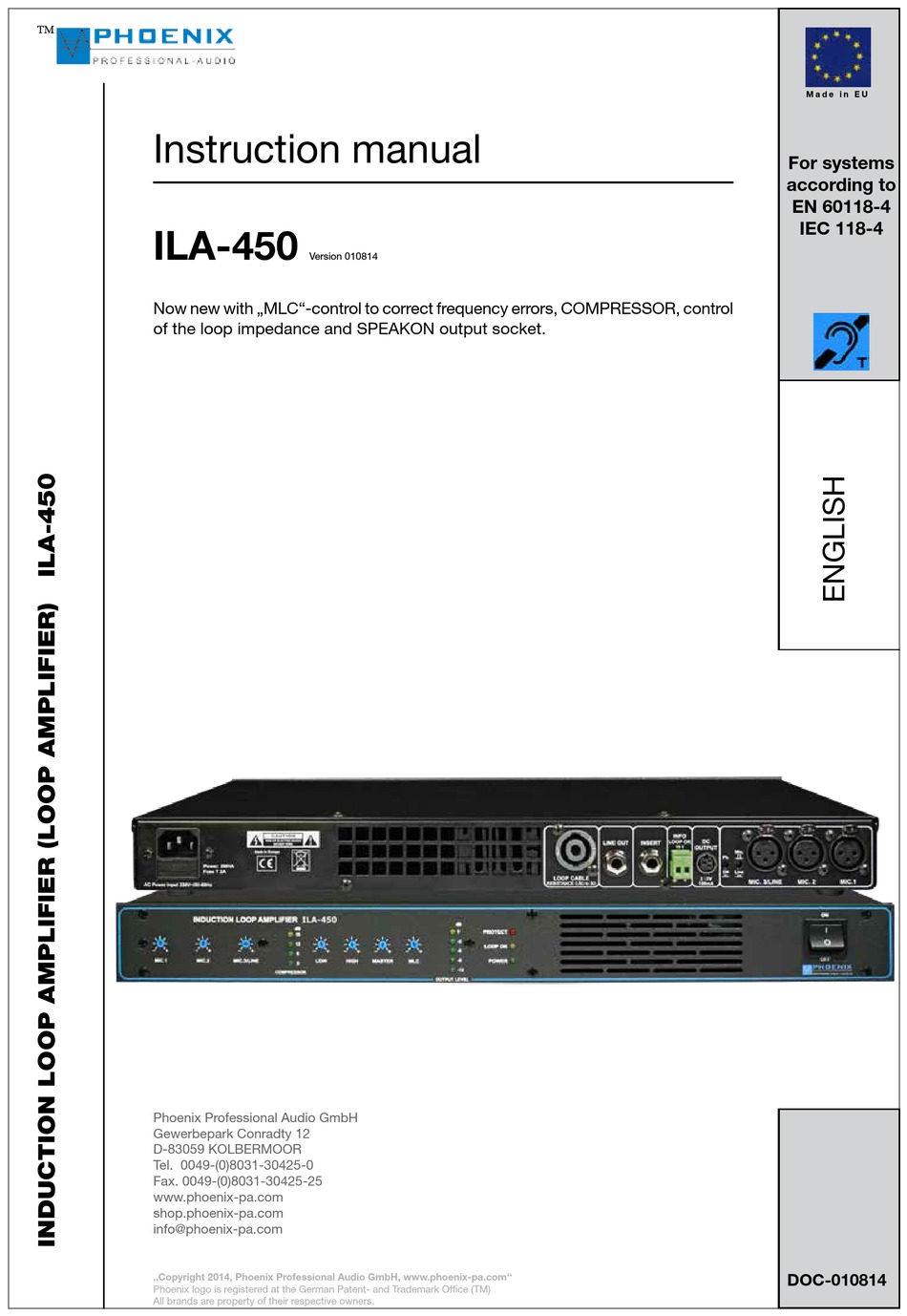

Instruction manual
For systems
according to
EN 60118-4
IEC 118-4
ILA-450
Version 010814
Now new with „MLC"-control to correct frequency errors, COMPRESSOR, control
of the loop impedance and SPEAKON output socket.
Phoenix Professional Audio GmbH
Gewerbepark Conradty 12
D-83059 KOLBERMOOR
Tel. 0049-(0)8031-30425-0
Fax. 0049-(0)8031-30425-25
www.phoenix-pa.com
shop.phoenix-pa.com
info@phoenix-pa.com
DOC-010814
„Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com"
Phoenix logo is registered at the German Patent- and Trademark Office (TM)
All brands are property of their respective owners.
Advertisement
Related Manuals for Phoenix ILA-450
Summary of Contents for Phoenix ILA-450
- Page 1 Gewerbepark Conradty 12 D-83059 KOLBERMOOR Tel. 0049-(0)8031-30425-0 Fax. 0049-(0)8031-30425-25 www.phoenix-pa.com shop.phoenix-pa.com info@phoenix-pa.com DOC-010814 „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 2 11. Only use products and accessories specified by Phoenix Professional Audio GmbH. 12. Let maintenance operations only be carried out by qualified maintenance staff. The device has always to be maintained, when it has been damaged in any way, f.i.
- Page 3 Instruction manual GENERAL The new redesigned ILA-450 is a loop amplifier as professional solution for the installation to loop amplifiers. The ILA-450 loop amplifier for audio transmission is used extensively to supply hearing devices by inductive audio signals. The ILA-450 Phoenix induction loop amplifier has been developed as a high quality LOOP-amplifier for medium induction loops.
- Page 4 The magnetic field outside the intended area quickly loses strength and drops to ZERO. This is done by coupling a phase shift FS-1 which is connected between both ILA-450, which in turn produces a signal phase difference of 90 degrees in the electric current by two adjoining induction loops.
- Page 5 SAFETY INSTRUCTIONS Before starting the amplifier ILA-450 we ask you to read the safety instructions carefully. We ask you to carry out the installation according to the following guidelines: In a clearly visible position a sign „INDUCTIVE COUPLING“ should be placed near the entrance to the area where an induction loop is installed.
- Page 6 Turn the MLC-control to reach the best tone (audio signal) on the induction loop, simultaneously listen to the audio signal with ILA-E receiver via the headphones. Repeat the measurement process for all induction loop amplifiers resp. induction loops ILA-450 which are bound in the system.
- Page 7 0.5 -4.0 Ohm). IMPORTANT: After elimination of the fault please always reset the loop amplifier ILA-450 by switching the amplifier off with the POWER button, wait for 3 seconds and switch it on again with the POWER button.
- Page 8 REAR SIDE/CONNECTIONS 1.- MAINS INPUT TERMINAL 230VAC/50-60 Hz 230VAC mains input terminal. Connect the ILA-450 with the power cable to the network. 2.- LOOP CABLE SPEAKON bush 2-poled, the loop line shall be connected with the clamps (+ Pin) and (- Pin).
- Page 9 1 GND and wire link to 3 2 +IN 2 +IN 3 -IN „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 10 115 meter 190 meter CONSTRUCTION SIMPLE LOOP SYSTEM A simple induction loop system consists of a LOOP amplifier ILA-450 and one or more induction loops of the same size, see drawing. Drawing 1.1 shows single loop Drawing 1.2 shows double loop „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“...
- Page 11 Rooms and areas where an induction loop is installed, should be marked accordingly. Please pass parallel lines close together „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 12 Rooms and areas where an induction loop is installed, should be marked accordingly. „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 13 By the phase modulation the audio signal is shifted by 90 o phases and routed to the second ILA-450, then the second ILA-450 has to supply the second parallel induction loop in the complete system.
- Page 14 LOOP SYSTEM WITH 90 DEGREES PHASE SHIFT according to EN 60118-4 Example for a simple LOOP-SEGMENT induction loop system with two ILA-450 (MASTER/SLAVE) and FS-1 90 degrees phase shifter. It is important that the induction loops are approximately of the same size.
- Page 15 Rooms and areas where an induction loop is installed, should be marked accordingly. „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 16 The magnetic field outside the intended area loses quite rapidly strength and drops to ZERO. This is done by coupling a phase shifter FS-1 which is switched between the two ILA-450, this again effects a signal phase difference of 90 degrees in the electrical flow by two adjoining induction loops.
- Page 17 OUTPUT „A“ FS-1 mains side FS-1 input side OUTPUT „B“ INPUT SIGNAL SLAVE 90 „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 18 Calculation of the shif between the two loops „C“ 10.6 11.4 12.2 13.0 13.8 14.6 15.4 16.2 17.0 „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 19 C= B = 2,44 (meter) 10.6 11.4 12.2 13.0 13.8 14.6 15.4 16.2 17.0 „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 20 Induction loop No. 1 (the first ILA-450) Induction loop No. 2 (the second ILA-450) Induction loop „complete“ (the first ILA-450 and the second ILA-450 LOOP amplifier in the system) „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM)
- Page 21 „wireless“ hearing device without hearing aid, f.i. for channel interpretation systems. „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 22 (W) 443 mm x (H) 44 mm x (D) 200 mm, graphite, without 19“-mounting brackets Weight: approx. 4.5 kg „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
- Page 23 Instruction manual „Copyright 2014, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
