Phoenix ILA-1000 Instruction Manual

Automatic induction loop amplifier
Hide thumbs Also See for ILA-1000:
Table of Contents

Advertisement

Quick Links

Download this manual

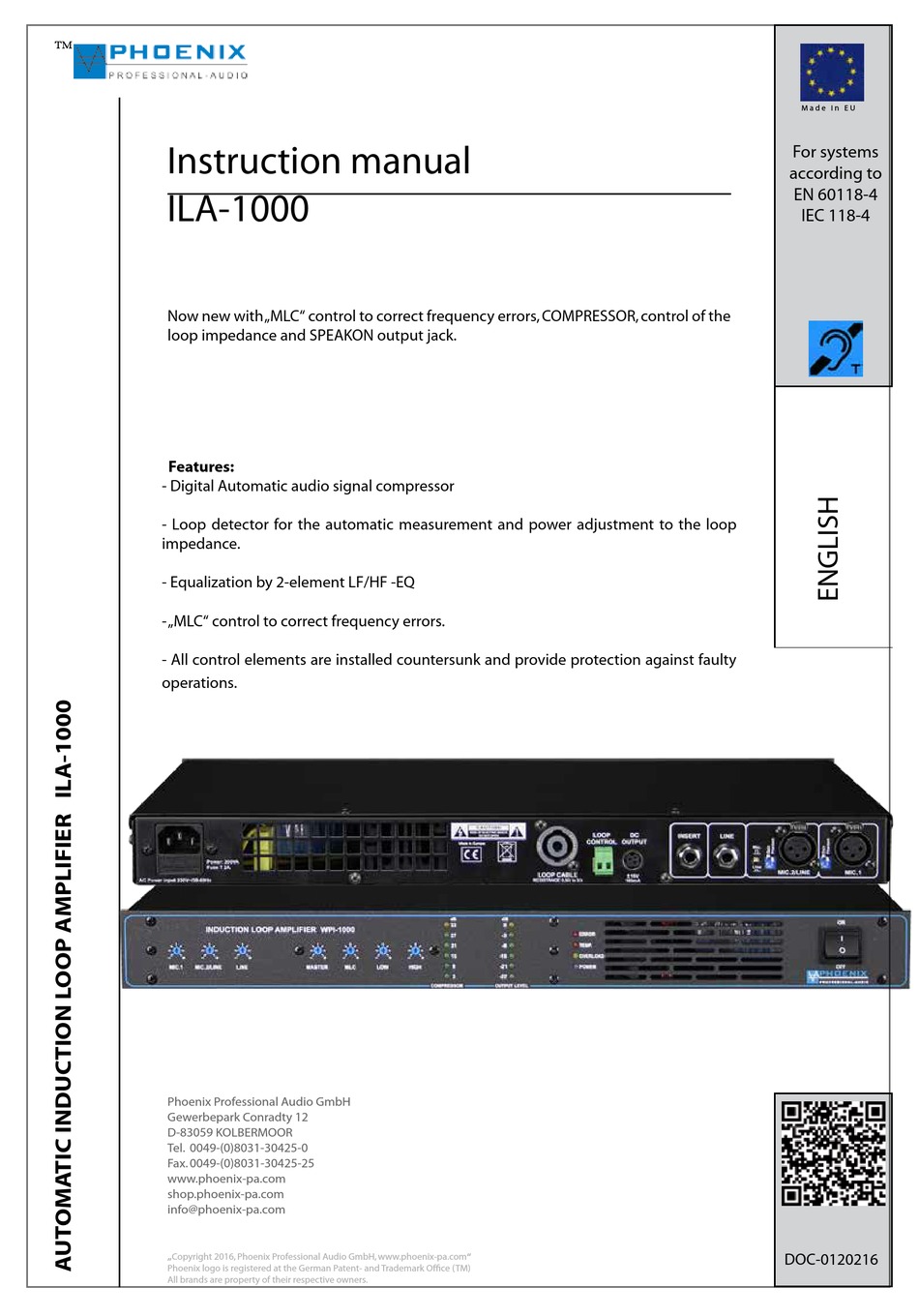

Instruction manual
ILA-1000
Now new with „MLC" control to correct frequency errors, COMPRESSOR, control of the
loop impedance and SPEAKON output jack.
Features:
- Digital Automatic audio signal compressor
- Loop detector for the automatic measurement and power adjustment to the loop
impedance.
- Equalization by 2-element LF/HF -EQ
- „MLC" control to correct frequency errors.
- All control elements are installed countersunk and provide protection against faulty
operations.
Phoenix Professional Audio GmbH
Gewerbepark Conradty 12
D-83059 KOLBERMOOR
Tel. 0049-(0)8031-30425-0
Fax. 0049-(0)8031-30425-25
www.phoenix-pa.com
shop.phoenix-pa.com
info@phoenix-pa.com
„Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com"
Phoenix logo is registered at the German Patent- and Trademark Office (TM)
All brands are property of their respective owners.
M a d e i n E U
For systems
according to
EN 60118-4
IEC 118-4
DOC-0120216

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILA-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix ILA-1000

Summary of Contents for Phoenix ILA-1000

  • Page 1 Gewerbepark Conradty 12 D-83059 KOLBERMOOR Tel. 0049-(0)8031-30425-0 Fax. 0049-(0)8031-30425-25 www.phoenix-pa.com shop.phoenix-pa.com info@phoenix-pa.com DOC-0120216 „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 2 11. Only use products and accessories specified by Phoenix Professional Audio GmbH, Inc. 12. Let maintenance operations only be carried out by qualified maintenance staff. The device has always to be maintained if it has been damaged in any way, f.i.
  • Page 3 GENERAL The new redesign ILA-1000 represents a loop amplifier as professional solution for the construction of induction loops. The ILA-1000 loop amplifier for audio transmission is used on a large scale, to supply hearing devices by inductive audio signals. The ILA-1000 automatic induction loop amplifier has been developed as high-quality LOOP amplifier for average induction loops.
  • Page 4 60118-4, so that a loop structure according to a „LOOP SEGMENT“ system is possible. In a „LOOP SEGMENT“ system always two ILA-1000 work together which form a magnetic field, thus on the entire area always the constant field strength of the magnetic field is reached.

  • Page 5: Safety Instructions

    Instruction manual SAFETY INSTRUCTIONS Before start-up of the amplifier ILA-1000 we ask you to read the safety instructions carefully. Please carry the installation out according to the following guidelines: In a clearly visible position close to the entrance to the area where an induction loop is installed, a sign „ INDUCTIVE COUPLING“...

  • Page 6: Front Side

    Turn the MLC control to reach the best sound (audio signal) on the induction loop, simultaneously listen to the audio signal with the ILA-E receiver by the headphone. Repeat the measuring process in all ILA-1000 induction loop amplifiers or induction loops bound in the system. 6.- HIGH-EQ filter (+-12dB) LF control of the individual microphone- or LINE inputs.
  • Page 7 Fault indication for loop impedance (impedance is not within the measurement range of 0.5 -3.0 Ohm). IMPORTANT: After eliminating the fault please always „reset“ the loop amplifier ILA-1000“ by switching the amplifier off with the POWER button, wait for 3 sec. and switch it on again with the POWER button.

  • Page 8: Rear Side/Connections

    (position to MIC. and input signal with LINE level), so that the amplifier cannot properly process the signal and the signal can be reproduced distorted at the loop output. „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 9 1 GND and wire link to 3 2 +IN 2 +IN 3 -IN „Copyright 2016 Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.

  • Page 10: Rear Side/Connectors

    DIP-2 (OFF-position). „Copyright 2016 Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 11 190 meter CONSTRUCTION EASY LOOP SYSTEM „Single Array System“ An easy induction loop system consists of a LOOP amplifier ILA-1000 and one or more induction loops of the same size, see drawing. Illustration 1.1 shows single loop according to DIN EN 60118-4 Illustration 1.2 shows double loop according to DIN EN 60118-4...
  • Page 12 Rooms and areas where an induction loop is laid, should be marked accordingly. Please lead parallel lines close together „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 13 Rooms and areas, in which an induction loop is laid, should be marked accordingly. „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 14 By the phase modulation the audio signal is shifted by 90 o phases and transferred to the second ILA-1000, then the second ILA-1000 has to supply the second parallel induction loop in the whole system.
  • Page 15 LOOP SYSTEM MIT 90 DEGREES PHASE SHIFT according to EN 60118-4 Phased Array System Example for an easy LOOP-SEGMENT induction loop system with two ILA-1000 (MASTER/SLAVE) and FS-1 90 de- grees phase shift. It is important that the induction loops are approximately the same size.
  • Page 16 Rooms and areas, in which an induction loop is laid, should be marked accordingly. „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 17 LOOP SYSTEM WITH 90 DEGREES PHASE SHIFT according to EN 60118-4 Phased Array System By the phase modulation the audio signal is shifted for 90 o phases and transferred to the second ILA-1000 or to the second induction loop. Then the second ILA-1000 has to supply the second plumper induction loop in the whole inductive hearing system.
  • Page 18 LOOP SYSTEM WITH 90 DEGREES PHASE SHIFT according to EN 60118-4 Phased Array System SIGNAL INPUT MASTER 0 FS-1 mains side SLAVE 90 „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 19 Calculation of the shift between the two loops „C“ 10.6 11.4 12.2 13.0 13.8 14.6 15.4 16.2 17.0 „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 20 C= B = 2,44 (meter) 10.6 11.4 12.2 13.0 13.8 14.6 15.4 16.2 17.0 „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
  • Page 21 The drawings show the laying of the two calculated induction loops from the example calculation. Induction loop No. 1 (the first ILA-1000) Induction loop No. 2 (the second ILA-1000) Induction loop „total“ (the first ILA-1000 and the second ILA-1000 LOOP amplifier in the system)

  • Page 22: Dimensional Drawing

    „wireless“ hearing device without hearing aid, f.i. for channel interpreter systems. „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.

  • Page 23: Specifications

    Technical changes and printed errors preserved. The illustrations are similar, color variations preserved. „Copyright 2016, Phoenix Professional Audio GmbH, www.phoenix-pa.com“ Phoenix logo is registered at the German Patent- and Trademark Office (TM) All brands are property of their respective owners.
