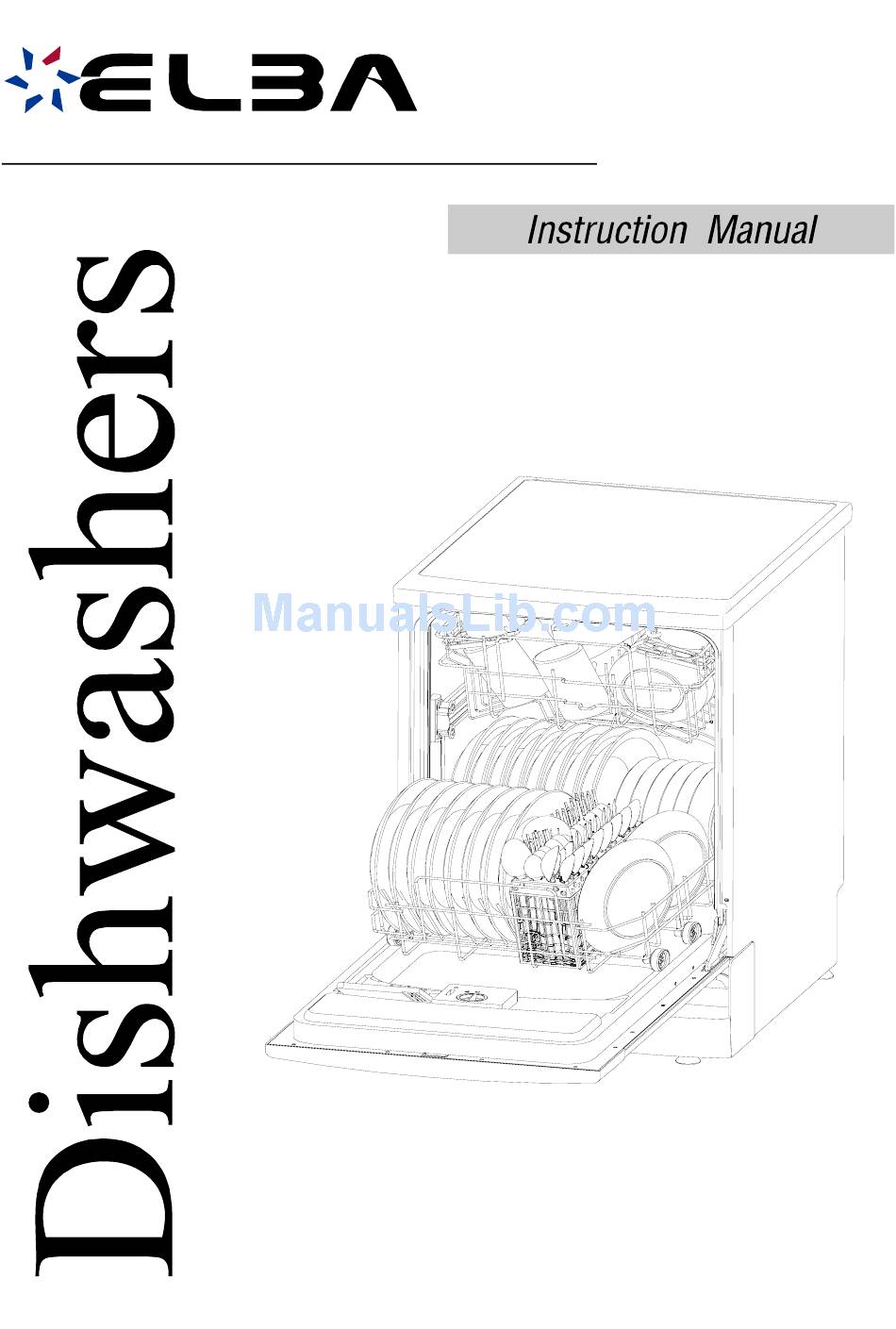

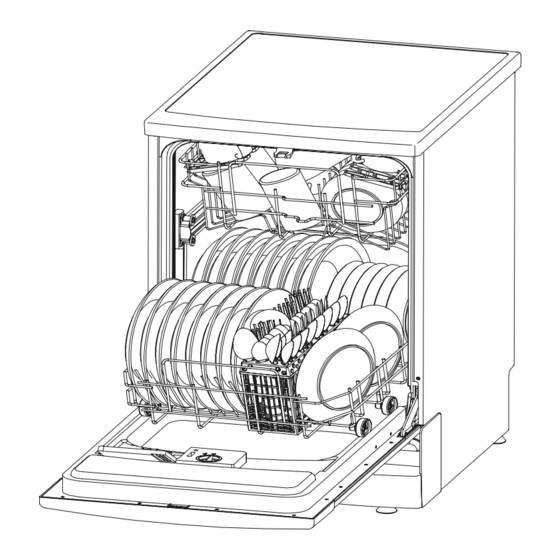

- Page 1 EBDW 9235-M SS EBDW 9235-M W...
-
Page 2: Table Of Contents
Dear Costumer, Please r ead this User Information carefully and keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. Control Panel............3 Dishwasher Features..........3 This manual contains sections of Safety Instructions, Operatin g Instructions, Installation Instructions and Troubleshooting Tips etc. - Page 3 Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas.
-
Page 4: Control Panel
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: Ø for polyethylene, e.g. sheet wrapping material Ø for polystyrene, e.g. padding material Ø polyoxymethylene, e.g. plastic clips Ø... -
Page 5: Water Softener
To get the best performance from your dishwasher,read all operating instructions before using it for the first time. O FF Pr og. Star t Reset ON/OFF Button: To turn on/off the power supply. Display Window: Program remaining time, delay time, running indicator, faut codes and etc. - Page 6 Before usi ng your dishwasher for the first time: A. Set the water softener B. Pour 1／2 litre of water inside the salt container and then fill with dishwasher salt C. Fill the rinse aid dispenser D. Function of detergent The water softener must be set manually, using the water hardness dial .
- Page 7 Always use salt intended for use with dishwasher. The sal t container is locat ed beneath the lower rack and should be filled as foll ows: Atte ntion! Only use salt specifically designed for use in dishwa shers! All other t ypes of salt not spe ci fically designed for use in a dishwasher, e specially table salt, will damage the water softener.
- Page 8 If there is no rinse-aid w arning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases.
-
Page 9: Concentrated Detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, dishwasher can be split in two basic types: conventional, alkaline detergents wi th caustic components low alkaline concentrated detergents with natural enzymes The use of “normal”... -
Page 10: Detergent
Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergen. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging. - Page 11 Your dishwasher has a 3 in 1 program which needs not salt and rinse aid but a 3 In1 tablet. And this dishwasher comes with a 3 in 1 tablet container as an accessory. NOTE: Only 3 in 1 program uses 3 in 1 tablet. If using 3 in 1 tablet in other programs, the appliance will not get a best performance.
-
Page 12: Attention Before Or After Loading The Dishwasher Racks
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after Loading the Dishwasher Racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. - Page 13 We recommend that you place large items which are most difficult to clean in to the low er rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm.
- Page 14 Silverware Basket Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at th e front of the upper rack.
-
Page 15: At The End Of The Wash Cycle
shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard! - Page 16 Pre-wash pre-wash For normally soiled loads, wash45 such as pots , plates,glasses rinse/ 3in1 17.2 and lightly soiled pans. rinse68 ℃ standard daily cycle. drying Pre-wash For the heaviest soiled loads, -wash( 0℃ such as pots,pans,casserole Wash (60 ℃) Strong 5/25 g.
-
Page 17: Wash Cycle Table
Turning on the Appliance Starting a wash cycle... Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, than the upper one (see the section entitled “Loading the Dishwasher”). Pour in the detergent (see the section entitled “Salt, Detergent and Rinse Aid”). -
Page 18: Filtering System
A forgotten dish can be added any time before the detergent cup opens. Open the door a little to stop the washing. Add forgotten dishes. After the spray arms stop working,you can open the door Close the door, the dishwasher will work after ten second. completely. -
Page 19: Filter Assembly
Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be reci rculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. - Page 20 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the fini sh.
- Page 21 Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.
-
Page 22: Water Outlet
Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. Extension Hose If you need a drain hose extension, observe to use a simil ar drain hose. It must be no longer than 4 metres;... -
Page 23: Before Calling For Service
Before Calling for Service Review the charts on the following pages may make you be free of calling for service. Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on... - Page 24 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
- Page 25 Height : 850mm(adjustable+10mm) Width : 600mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 12 Place settings...
- Page 26 Address:15 Kian Teck Crescent Singapore 628884 Tel: 65-6268 0066 Service Hotline: 65-6268 0077...
