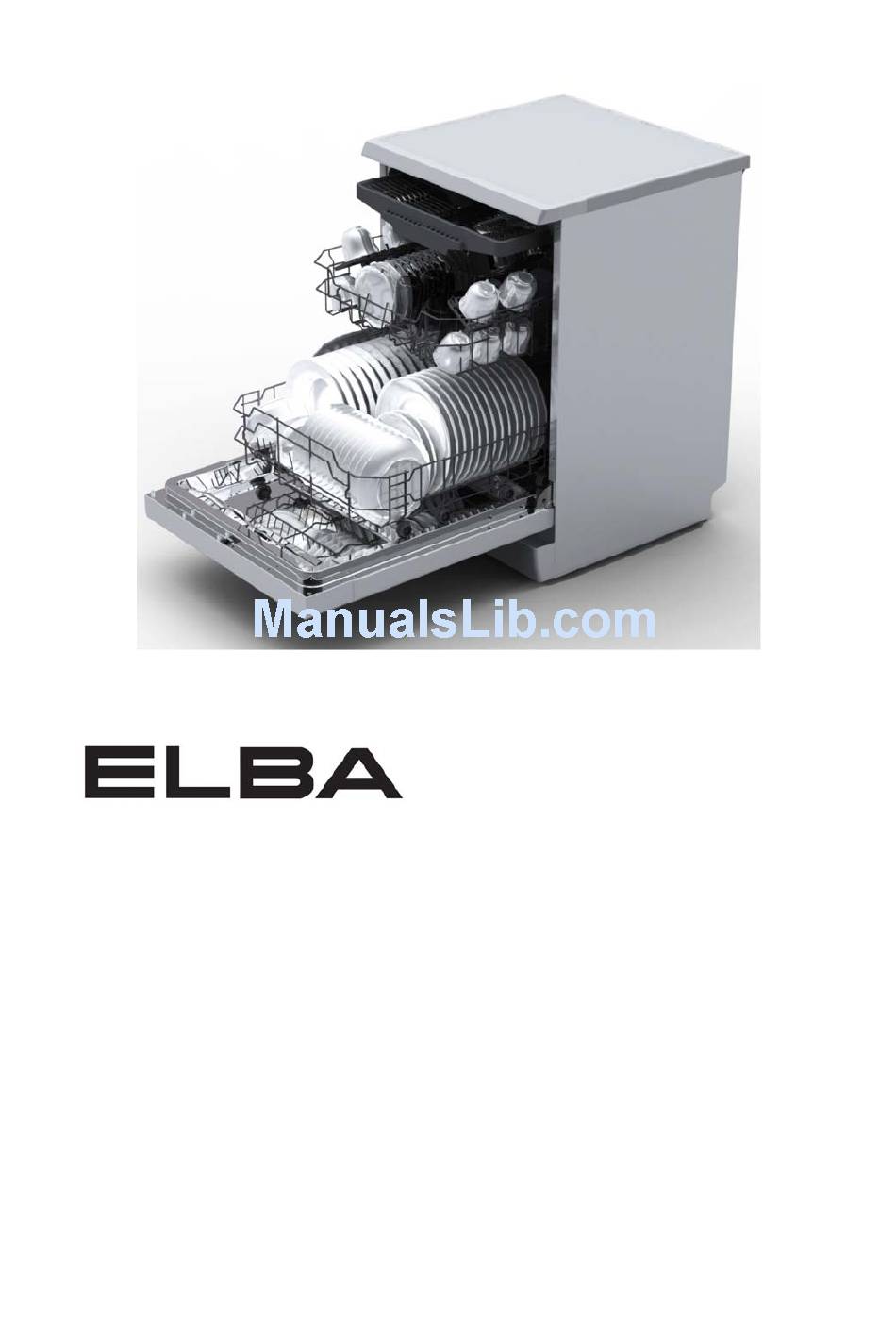

DISHWASHER
MODEL: EDW-B1461(WH)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDW-B1461 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EDW-B1461

Summary of Contents for Elba EDW-B1461

  • Page 1 DISHWASHER MODEL: EDW-B1461(WH) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.
  • Page 3 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).

  • Page 4: Before Calling For Service

    Read this Manual 1) Safety Information..........1 1) Safety Information..........1 Dear Customer, 2) Disposal............2 2) Disposal............2 Please carefully read this manual before using the dishwasher, it will help you to use and maintain the 3) Operating Instructions........3 3) Operating Instructions........3 dishwasher properly. Keep it as a reference in the later days.
  • Page 5 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 6 Dispose of the dishwasher packaging material correctly. All packaging ma terials can b e recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.

  • Page 8: Adjusting Salt Consumption

    Before using your dishwasher for the first time,set the water soften er by: Adding 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually using the water h ardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

  • Page 9: Rinse Aid Dispenser

    Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in the following: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of sal t not specificall y desi gned for the use in a dishwasher, especially table salt, will damage the water softener.

  • Page 10: When To Refill The Rinse Aid Dispenser

    When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid container is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.

  • Page 11: Concentrated Detergent

    Detergents There are 3 sorts of deterge nts 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when °...

  • Page 12: Fill In Detergent

    Fill in Detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle deterg ent placed. The place of pre-wash cycle deterge nt placed. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent packaging.
  • Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme has ended.

  • Page 14: Adjusting The Upper Basket

    The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms placed into the lowerbask et: tea cups and saucers, as well as plates, small bowls such as pots, p ans, lids, serving dishes and bowls, and shallow pans (as long as they are not too dirty).
  • Page 15 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(45 ℃ For normally soiled loads, Wash (50 5/30g Normal 1.25 such as pots , plates,glasses Rinse (or3in1) ℃ and lightly soiled pans. Rinse (60 Drying ℃ Pre-wash(50 Pre-wash For heavily soiled crocker y, ℃...

  • Page 16: Switch Off The Dishwasher

    When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water.

  • Page 17: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.

  • Page 18: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 19 When not in Use for a LongTime After Every Wash It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
  • Page 20 Improper connection of the equipment earthing conductor can result in the risk of an for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.

  • Page 21: Water Outlet

    How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cann ot be drained dire ctly into the sink. It will be necessary to drain excess water from hoses into a bo wl o r suitable container that is held outside and lower th an the sink.
  • Page 22 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
  • Page 23 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 24 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Height : 845mm Width : 598 mm (with the door closed)
