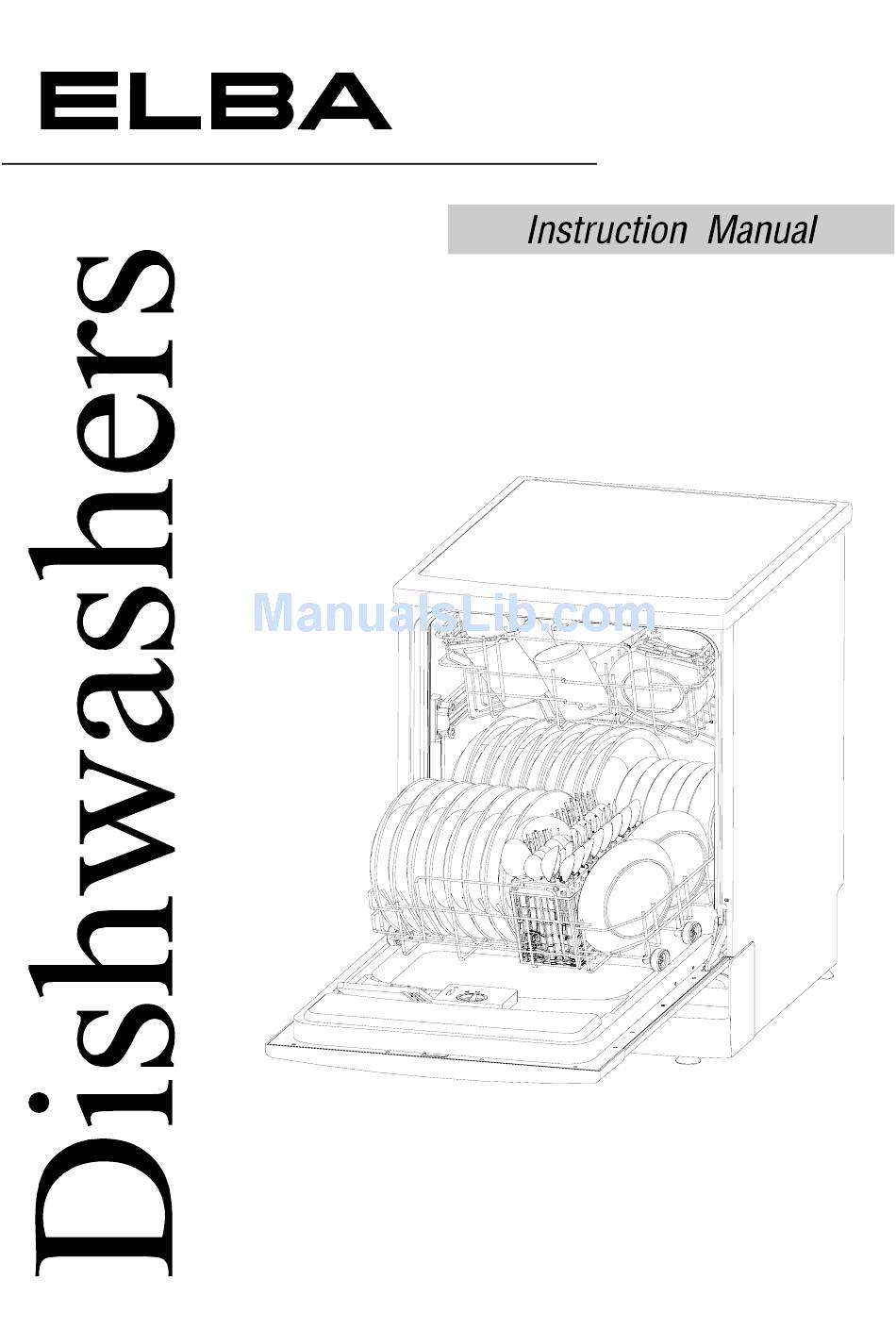

- Page 1 EDW-1292D...
- Page 2 ....1 This manual contains sections of Safety Instructions,Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
- Page 3 This appliance must be grounded. In the event Improper connection of the equipment- of a malfunction or breakdown, grounding will grounding conductor can result in a risk reduce the risk of electric shock by providing a of electric shock. Check with a qualified path of least resistance of electric current.
- Page 4 To get the best performance from your dishwasher,read all operating instructions before using it for the first time. S TRO NG NO RMAL E CON OMY RI NS E RAP I D S OAK 1 Pre-rinse light: Blink during pre-rinse. you can't cancel a program by cutting off the power.
- Page 5 Pre-wash For the heaviest soiled loads, -wash( 0℃ such as pots,pans,casserole Wash (50 ℃) Strong dishes and dishes that have 5/25 g. Rinse been sitting with dried food Rinse (70 ℃) on them for a while. Drying Pre-wash For normally soiled loads, -wash such as pots...
- Page 6 If your model have not water softener, you may skip this section. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliances is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
- Page 7 WATER HARDNESS Salt consumption Auto nomy Selector Position (gram/cycle) (cycles/1.2kgs) mmol/l Clark 0~14 0~10 0~1.4 8~22 14~39 10~28 1.4~3.9 22~45 39~80 28~56 3.9~8 >45 >80 >56 >8 Note:1 ° dH=1.25 ° Clark=1.78 Note:1 ° dH=1.25 ° Clark=1.78 ° fH=0.178mmol/l ° fH=0.178mmol/l °...
- Page 8 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned w ith "open" arrow and turning i t to the closed (right) arrow. The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks.
- Page 9 Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way 1.Items such as cups, glasses, pots/pans, etc. are stood upsi de down. 2.Curve items, or those with recesses, should be at a slant so that water can run off. 3.They are stacked securely and cannot tip over.
- Page 10 We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
- Page 11 Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.
-
Page 12: Cleaning The Spray Arms
The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter (Fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain. - Page 13 Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on them .Otherwise the filters could be contorted and the performance of dishwasher could be debased. To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
- Page 14 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities.
- Page 15 Height : 850mm Width : 600mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 12 Place settings...
- Page 16 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
- Page 17 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
