H501W User Manual
User Manual
Model: H501W
Megapixel Indoor Pan/Tilt IP Camera
-Contents-
Chapter 1. Introduction of Camera
............................................. 2
.........................................................2
.................................................3
........................................5
Chapter 5. Camera Advanced Settings
......................................10
www.dericam.net
Copyright @ Shenzhen Dericam Technology Co., Limited
tech@dericam.com
1
Advertisement
Table of Contents
Related Manuals for Dericam H501W
Summary of Contents for Dericam H501W
-
Page 1: User Manual
Megapixel Indoor Pan/Tilt IP Camera -Contents- Chapter 1. Introduction of Camera ……………………………………… 2 Chapter 2. Package Contents …………………………………………………2 Chapter 3. Physical Descriptions ………………………………………….3 Chapter 4. Surveillance Software GUI ………………………………….5 Chapter 5. Camera Advanced Settings ………………………………..10 www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 2: Chapter 2. Package Contents

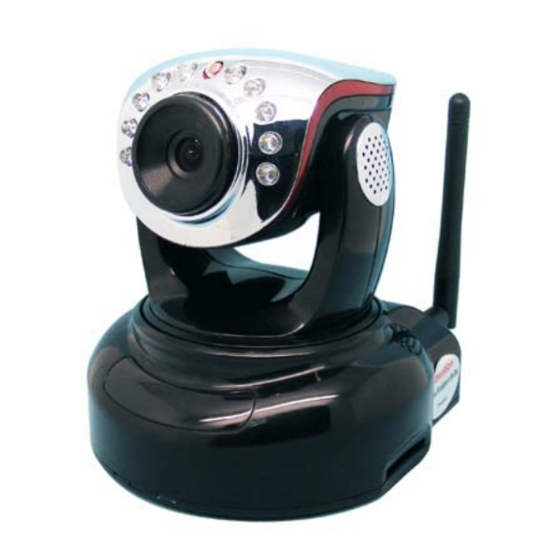

1 Introducing Mega Pixel IP Camera H501W Dericam Megapixel Indoor Pan/tilt IP camera H501W is designed to meet the demands for High Definition indoor IP video surveillance in the DIY Home & SME & Small business security markets. This camera is specially designed to offer you a way to view what is going on inside your home, warehouse, shops or office. -
Page 3: Chapter 3. Physical Descriptions
Physical parts description Fig3.2 Interface description 1----- DC Power Input Socket 2------ WIFI Antenna 3------ RJ45 Ethernet Socket 4------ Audio Input Socket 5------ Audio Output Socket www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... - Page 4 Reset button located in WIFI antenna installation holes below Press the RESET button and hold on more than 10 seconds, the camera will restart and recover to the factory default settings. Note Please never press reset button unless you have forget the password to login the camera. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
-
Page 5: Chapter 4. Surveillance Software Gui
4.1.1 Section 1 Select Language Dericam M series camera supports up to 8 languages, such as English, Spanish, Deutsch and so on. You can select the language you need via click on the select language bar to switch. 4.1.2 Section 2 Dericam Website Link There is an access link to Dericam website homepage, if you need tech support you can contact Dericam directly. -
Page 6: Surveillance Window
Standard Definition which has two resolutions 640*480, 320*240. Please choose lower resolution if you want to get faster video stream, especially if you are accessing the camera via internet remotely. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... - Page 7 6------Stop vertical patrol control button, 7------Horizontal Patrol control button, 8------Stop horizontal patrol control button, C------Restore center position Dericam indoor PTZ IP camera M801W supports movement by 4 directions, Up, Down, Left and Right. 4.2.3 Section 3 Record/Snap/Playback/SD buttons The four buttons from left to right is Record, Snap, Playback, SD entry.
- Page 8 2. You can do all the 8 preset positions with this method showed as Fig.4.5 & 4.6. Fig4.5 Preset position 1 Fig4.6 Preset position 2 www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 9 Digital Zoom & Record save path & Talk & Listen buttons 1--------Digital Zoom- out; 2------------Digital Zoom+ In; 3--------Original image; 4------------- Set recoding save path 5--------Talk button; 6-------------- Listen button Note For Advanced settings, please go to chapter five Advanced Camera Settings. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
-
Page 10: Advanced Camera Settings
Subnet Mask of the LAN network Gateway Gateway of the Router Primary DNS Primary DNS of the LAN network Secondary DNS Secondary DNS of the LAN network SD Status Browser SD Card or Format SD Card www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 11: Audio Settings
Open--- Enable Audio Close--- Disable Audio 3----Audio Type There are two types G.711 and G.726. G.711 bit rate is higher, but clearly, G.726 compression rate is higher. 5.3 Video Settings Fig5.3 Video Settings www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 12: Display Settings
Night Vision Mode/ IR LED Switch control You can set Night vision mode as auto or Manual. If you want to make the IR LED off, you have to set manual, status off. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 13: User Settings
2) Operator, 3) Visitor, You can set users with different level of accessing right. Note You need remember the new user name & password when you change the user & password. It is better for you to write it on your memo. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 14: Basic Network Settings
1 minute, and click “Search” again, the device name of the camera will be showed again on the window if wireless connection is successful. Congratulations! You have done wireless connection of the camera successfully. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 15: Upnp Settings
Fig5.11 DDNS Service Settings Please set DDNS Service Settings within the camera by hostname, a user name password you’ve got from www.dyndns.com. Please refer to Quick Installation Guide for detailed steps. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 16: Mail Service Settings
In order to use FTP function, user should apply user name and password on the FTP server first. And please apply for storage right, in order to write and create sub-category on the FTP server. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 17: Alarm Settings
Please do not try to upgrade the firmware, if the existing firmware works ok. It takes risk of making the camera dead if the upgrading operation is not right. Please email to tech@dericam.com if you want update firmware. www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 18: Restore Factory Settings
5.18 Restore Factory Settings Fig5.18 Restore Factory Settings 5.19 Reboot Device Click option “reboot device” to get the camera restarted, which is the same as unplug the power and re-plug it. Fig5.19 Reboot Device www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com... -
Page 19: System Log
H501W User Manual 5.20 Access Log Fig5.19 Record of access log 5.21 System Log Fig5.20 Record of login in information 5.22 Back Click Back button to go back to surveillance window www.dericam.net Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
