Shenzhen Dericam Technology Co.,LTD
M501W User Manual
User Manual
Model: M501W V2

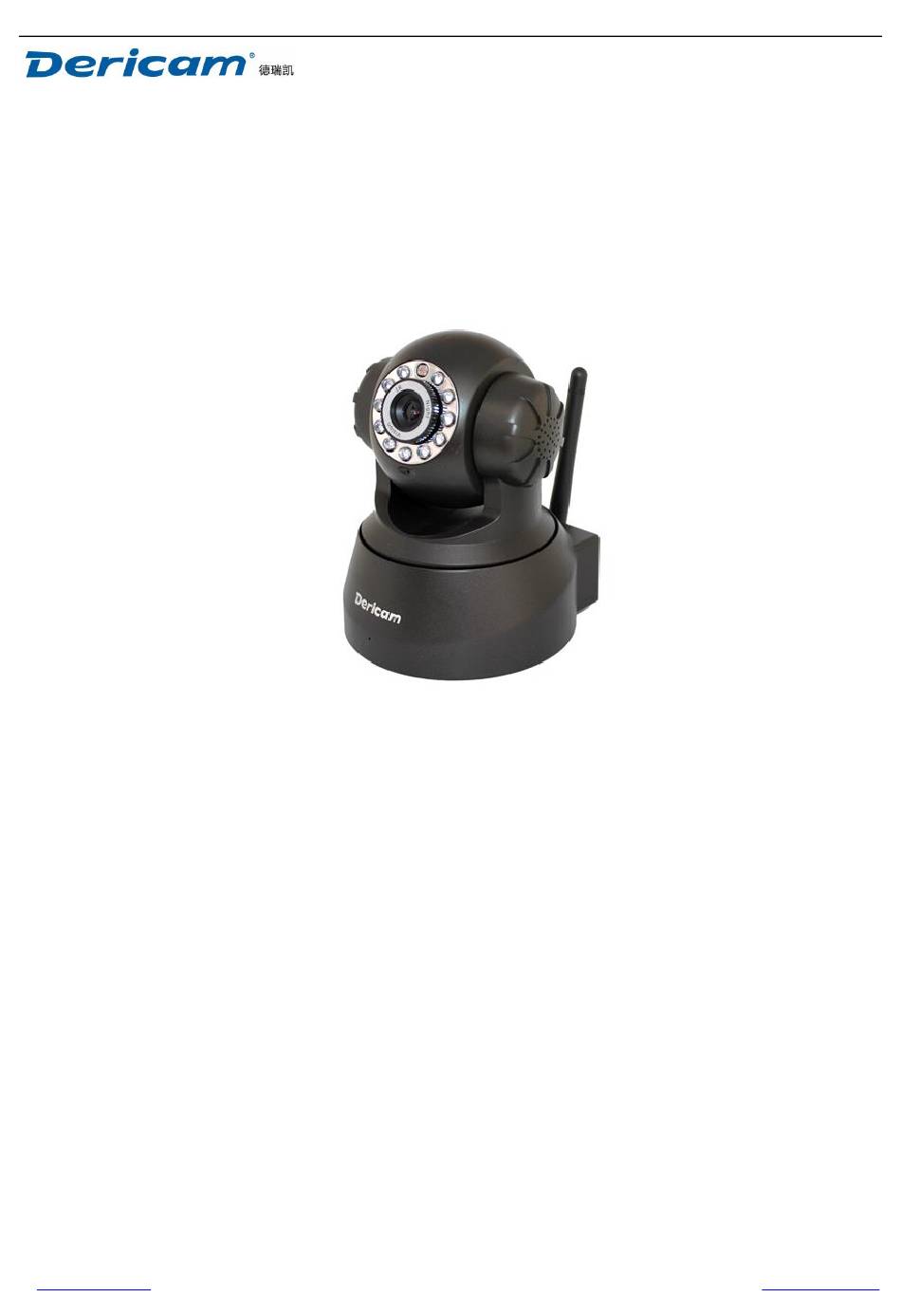

300K Pixels P2P Pan Tilt IP Indoor Camera
-Contents-
Chapter 1. Introduction of Camera
............................................. 2
Chapter 2. Package Contents
.........................................................2
Chapter 3. Physical Descriptions
.................................................3
Chapter 4. Surveillance Software GUI
........................................4
Chapter 5. Camera Advanced Settings
......................................10
Chapter 6. Specification
....................................................................20
www.dericam.com
Copyright @ Shenzhen Dericam Technology Co., Limited
tech@dericam.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dericam M501W V2
Summary of Contents for Dericam M501W V2
- Page 1 Chapter 1. Introduction of Camera ……………………………………… 2 Chapter 2. Package Contents …………………………………………………2 Chapter 3. Physical Descriptions ………………………………………….3 Chapter 4. Surveillance Software GUI ………………………………….4 Chapter 5. Camera Advanced Settings ………………………………..10 Chapter 6. Specification …………………………………………………………..20 www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 2 1 Introducing Indoor PT IP Camera H501W V2 Dericam Low-cost Mini 300K PT IP camera M501W is designed to meet the demands for indoor IP surveillance cameras with Pan/tilt features in the DIY Home & SME & Small business security market. It is of small size compared to traditional speed dome camera and it can be easily installed and setup without any problems.
- Page 3 3------Speaker out Jack 4------RJ45 Port 5------Alarm IO Port 6------DC connector socket 7------Reset Button Note Please never press reset button unless you have forget the password to login the camera. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 4 Please check the login window above, it was divided to 3 sections from no. 1 to 3. 4.1.1 Section 1 Select Language Dericam M501W supports Chinese, English, Germany, France, Italy, Poland, Spain and Korea language. 4.1.2 Section 2 IE ActiveX Mode If your pc is windows based OS, such as Windows XP, Windows7, Windows Vista and you are using IE-based browsers like IE6, IE, IE8, please choose IE ActiveX Mode login method.
- Page 5 Shenzhen Dericam Technology Co.,LTD M501W User Manual 4.2 Surveillance Window Fig4.2 Surveillance Window of Dericam M501W V2 Please check the surveillance window above, it was divided to 8 sections from no. 1 to 8. 4.2.1 Section 1 Multi-windows Switch button You can select 1 window, 4 windows, 9 windows by clicking the switch button above.
- Page 6 Contrast Default parameter is 160, you can adjust the contrast of the image by clicking plus or minus button. 4.2.3 Section 3 Pan/tilt Control 1------Up control button, 2------Down control button, www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 7 1 and you have done preset of position 1. 4.2.5 Section 6 For Administrator For Administrator------Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel. Fig4.6 Administrator Control Panel www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 8 For Advanced settings, please go to chapter five Advanced Camera Settings. 5 Advanced Camera Settings Click the bar “For Administrator”, goes to Administrator Control Panel to make advanced camera settings. 5.1 Device Information Fig5.1 Device Information 5.2 Device Name Settings www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 9 Shenzhen Dericam Technology Co.,LTD M501W User Manual Fig5.2 Device Name Settings Go to option “Device Name Settings”, and set the name you come up with. The default name is Dericam. 5.3 Date & Time Settings Fig5.3 Date & Time Settings Go to option “Date &...
- Page 10 Device” to add the second camera. Just select one of the camera, give a name like Cam02 to identify from the first one. Fill the LAN IP address + http port no. of the second camera, and click Add button to take effect. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 11 1------Obtain IP from DHCP Server Enable DHCP, if disable DHCP, you can assign IP address by yourself 2------Http Port You can change port no. here by entering customized no. and click set www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 12 Go to option “DDNS Settings “.Please set DDNS Service Settings within the camera by hostname, a user name password you’ve got from www.dyndns.com. Please refer to Quick Installation Guide for detailed steps. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 13 1. Check the mail service settings, and make sure all of them are correct and try it again. 2. Check if the sender email is enabled with SMTP server. 3. Check the mailbox should not be enabled SSL or TSL encryption. www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 14 Enable or disable Schedule alarm service Normally this alarm service is often used by email alert, sending snapshots to the email address within the Mail service settings. 5.12 PTZ Settings Fig5.16 Pan/Tilt Speed Settings www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
- Page 15 Upgrading WEB UI Note 1) All Dericam camera are sold out with latest version of firmware, please try to contact us to see if there is a new version of firmware before you want to upgrade the firmware. 2) Please do not try to upgrade the firmware, if the existing firmware works ok. It takes risk of making the camera dead if the upgrading operation is not right.
- Page 16 512MB or above (suggested 1.0GHz) Display Card 64M or above Requirements Supported OS Microsoft Windows 2000/XP/Vista/ MAC OS Browser IE 7, IE8, Firefox, Safari or other standard browsers Certification CE,FCC Warranty Limited 1-year warranty www.dericam.com Copyright @ Shenzhen Dericam Technology Co., Limited tech@dericam.com...
